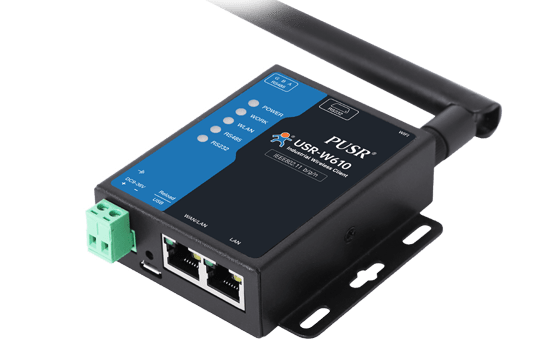

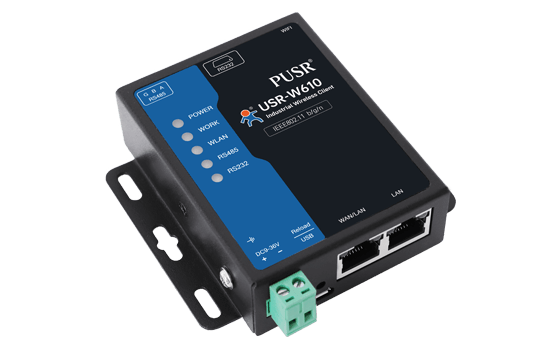

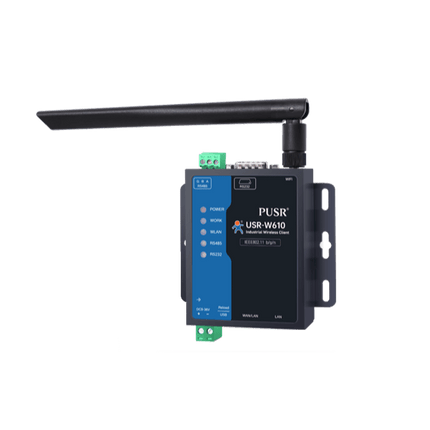

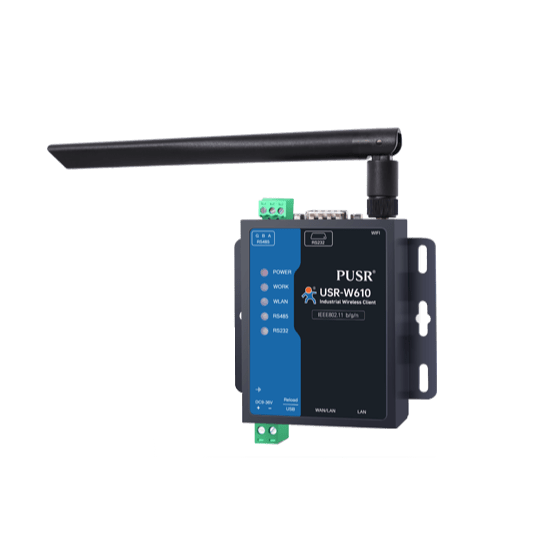

Industrial RS232 RS485 Serial to WiFi & dual Ethernet Converter USR-W610 Qualcomm Version
USR-W610 (Qualcomm version) is a powerful 2.4G WiFi serial device server, which can realize data communication between serial devices and Ethernet/WiFi devices. USR-W610 (Qualcomm version) is equipped with 1*RS232, 1*RS485, 2*10/100Mbps Ethernet port,and it adopts high performance Qualcomm processor, the transmission distance can reach up to 400 meters. It integrates a wealth of network protocols like TCP,UDP,HTTP,MQTT, etc. and supports a variety of networking methods, suitable for various scenarios.

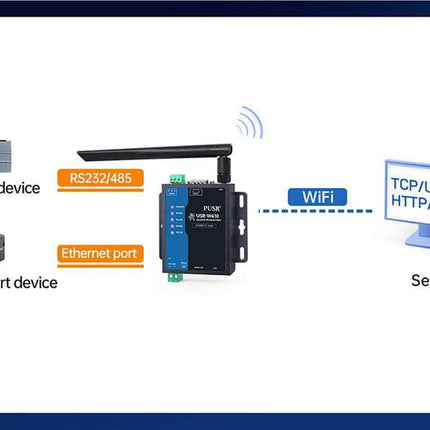

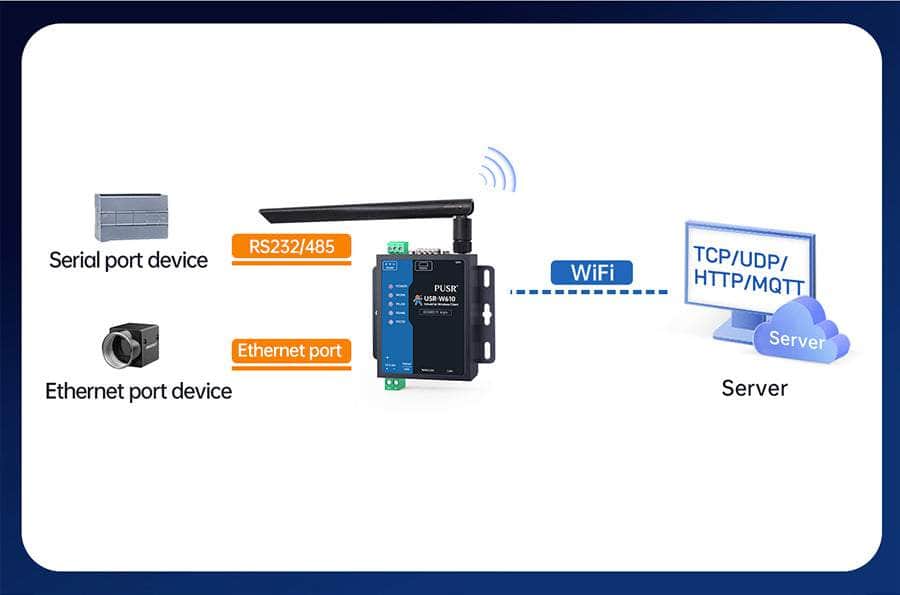

Serial/Ethernet to Wi-Fi Converter
With the help of USR-W610(Qualcomm version), you can achieve data transmission between serial port devices, network port devices, and WiFi devices, as well as remotely monitor the operational status of field devices.
Qualcomm Chip,Powerful and reliable
Powerful and reliable Qualcomm processor to ensure the stable.
2.4GHZ WiFi, offering the advantages of strong anti-interference capability, high speed, and wide coverage. In an open environment, the coverage range can reach up to 400 meters.

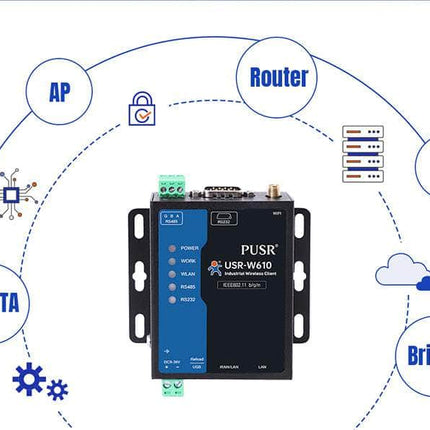

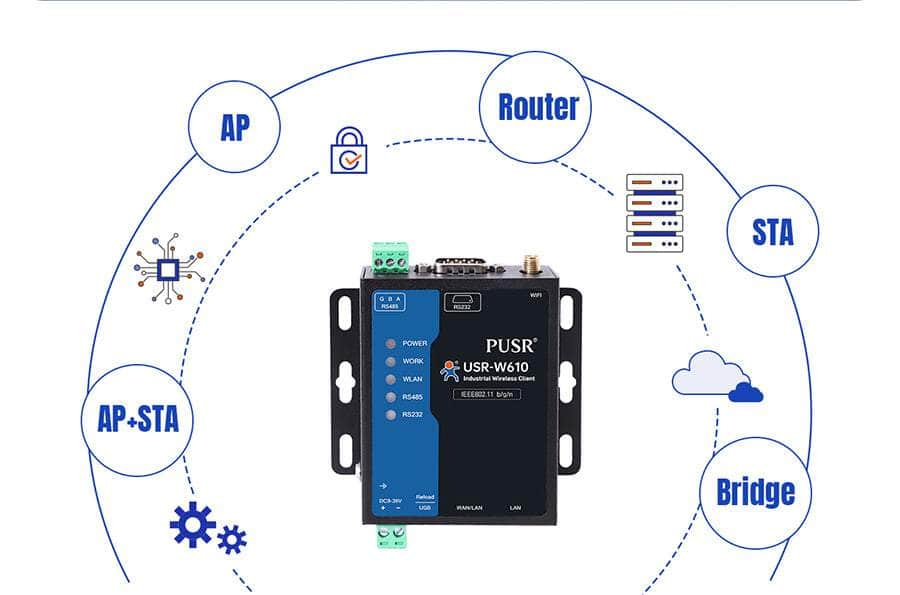

Multiple Working Modes, Meeting Diverse Scenarioes
The USR-W610 (Qualcomm version) provides a wealth of networking methods to meet customer networking needs.
AP mode: Allow network devices to access USR-W610 (Qualcomm version) via Wi-Fi or Ethernet.
STA mode: USR-W610 (Qualcomm version) as a network device accesses other networks via Wi-Fi.
AP+STA mode: Work in AP and STA mode simultaneously.
Bridge mode: The device connected to the Ethernet port of W610 (Qualcomm version) is equivalent to directly connecting to the upper-level network, and the W610(Qualcomm version) is equivalent to being transparent.
Router mode: The device connected to the Ethernet port of W610 (Qualcomm version) will be assigned an IP by the W610 (Qualcomm version).
Rich Product Features
Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
Support Transparant MQTT/TCP/UDP/HTTP data communication.
Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.
Registration Packet Funciton: The server can identify different clients by usingregistration packets.
Industrial-Grade Design, High Reliability
EFT Protection: Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
ESD Protection: Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
Watchdog: Hardware software dual watchdog to ensure stable operation without downtime.
Wide Operation Temperature: -25℃~ 70℃
Remote Management, Anytime, Anywhere
PUSR Platform: USR-W610 (Qualcomm version) cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.

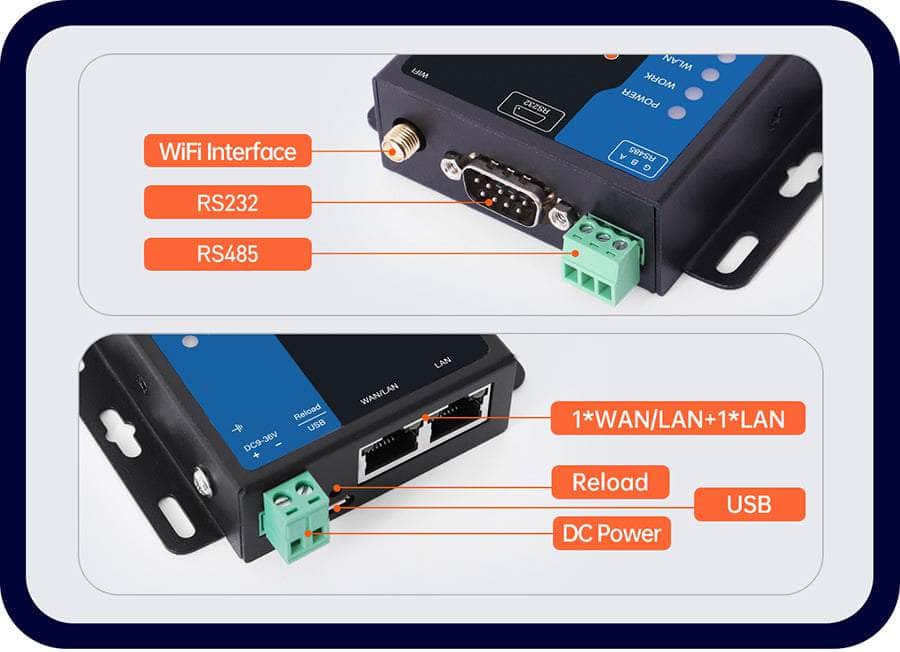

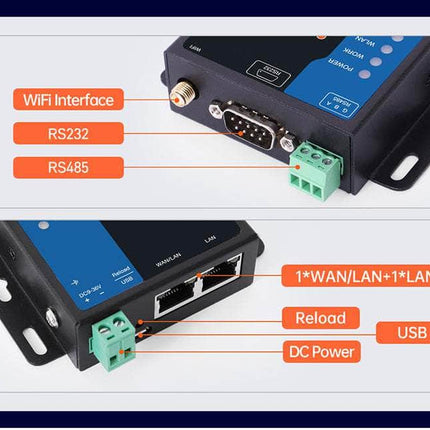

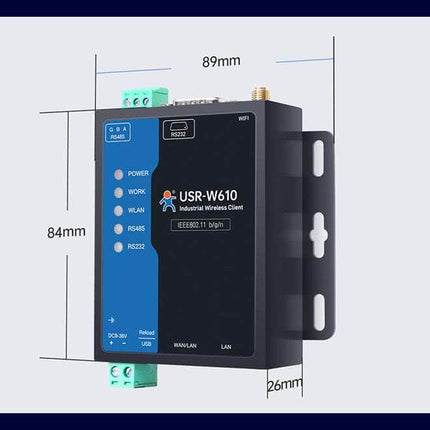

Dimension & Interface
- Dimension: 84*89*26mm
- Serial port: 1*RS232, 1*RS485.
- Baud rate range: 1200~230.4Kbps. The two serial port can work simultaneously.
- ETH ports: 1*WAN/LAN, 1*LAN （10/100Mbps)
- Power supply: DC 9-36V, 1*terminal block connector
- Installation: Wall mounting, desktop placement
- Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
- Antenna Connector: 1*SMA-Female
Specifications
|
Project
|
Model/Specification
|
|
WiFi
|
Wireless standards
|
IEEE 802.11b/g/n
|
|
Frequency Range
|
2.412GHz-2.484GHz
|
|
WiFi mode
|
AP/STA/AP+STA/Bridging/Routing
|
|
Number of client connections
|
8
|
|
Data rate
|
300 Mbps
|
|
MIMO
|
2x2
|
|
Power out
|
HT20（18dBm）; HT40(17dBm)
|
|
WiFiAntenna
|
1* Rod antenna （5 dBi）
|
|
Coverage distance
|
Outdoor open/unobstructed, coverage radius up to 400 meters
|
|
DTU
|
Socket mode
|
TCPS/TCPC/UDPS/UDPC/MODBUS/MQTT/HTTP/
Alibaba Cloud/AWS/PUSR CLOUD
|
|
Heartbeat package/
Registration package
|
Support
|
|
Serial port baud rate
|
RS232 interface: 1200/2400/4800/9600/19200/38400/57600/115200/230400
RS485 interface: 1200/2400/4800/9600/19200/38400/57600/115200/230400
|
|
Data bits
|
7，8
|
|
Stop bit
|
1，2
|
|
Parity bit
|
NONE,ODD,EVEN
|
|
Serial port type
|
1*RS232/1*RS485
|
|
Physical property
|
Operating temperature
|
-25℃~ +70℃
|
|
Storage temperature
|
-40℃~+125℃
|
|
Operating humidity
|
5%~95%RH (no condensation)
|
|
Storage humidity
|
1%~95%RH (no condensation)
|
|
Service voltage
|
DC 9-36V
|
|
Adapter
|
12V/1A
|
|
Working Current
|
Average current 155 mA（DC12V）
Max current 270 mA at（DC12V）
|
|
Size
|
89*103.7*26mm (L*W*H )
|
|
Installation method
|
Wall mount, horizontal desktop placement
|
|
EMC class
|
Grade 3
|
|
Hardware interface
|
Net opening
|
1*WAN/LAN+1*LAN
RJ45 interface: 10/100Mbps adaptive, compliant with IEEE802.3
|
|
Indicator light
|
PWR、WORK、WLAN、485、232
|
|
Power interface
|
2P terminal, size 5.08mm* 2P, with reverse polarity protection
|
|
Terminal interface
|
RS232 interface: DB9
RS485 interface: 3P Phoenix terminal
|
|
Reload key
|
Press and hold for 3 to 15 seconds, then release to restore the factory settings
|
|
Ground protection
|
Ground screw
|
Documents:
[User-Manual] USR-W610(-s)-Manual-V1.0.0
[Specification] USR-W610(-s)-spec-V1.0.1
[AT Command] USR-W610(-s)-AT-Command-Set_V1.0.0
