RS485 CAN Expansion Board for Jetson Nano, Built-In Protection Circuit

Description


RS485 CAN Expansion Board for Jetson Nano, Built-In Protection Circuit



Features:

  • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
  • Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
  • Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
  • Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
  • Reserved control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in python)

Specifications:


CAN CONTROLLER MCP2515
CAN TRANSCEIVER SIT65HVD230DR
RS485 TRANSCEIVER SP3485
OPERATING VOLTAGE 3.3V
MOUNTING HOLE SIZE 3.0mm
DIMENSION 100 × 79mm

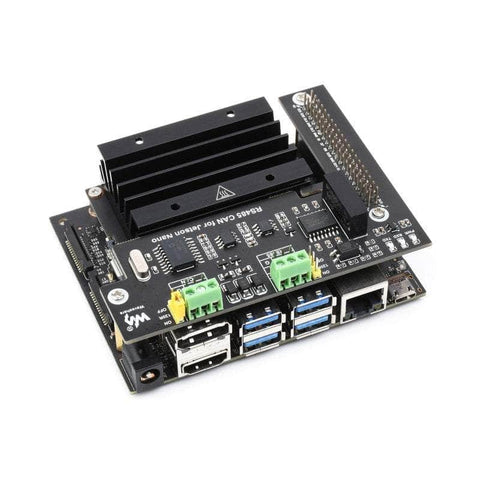

Connect To Jetson Nano

B01 4GB Version



2GB Version

Features RS485 And CAN Function
Isolation Circuit Design, Safer Communication

Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static Electricity, Surge Voltage And Transient Peak Voltage, Making RS485 Communication More Stable And Safer

What's On Board

  1. CAN Controller
    MCP2515
  2. CAN Transceiver
    SIT65HVD230DR
  3. RS485 Transceiver
    SP3485
  4. Power Isolator
    B0505LS

  1. Digital Isolator Chip
    ADUM1412
  2. Optocoupler Isolation Chip
    PC817X3CSP9F
  3. TVS (Transient Voltage Suppressor)
  4. RXD & TXD Indicator
  5. Power Indicator
  6. Power Chip
    RT9193-33

Pin Definition

Outline Dimensions

RS485 CAN Expansion Board for Jetson Nano, Built-In Protection Circuit

Product form

SKU: RS485 CAN for Jetson Nano

$59.00 $49.00 Excl. GST

$49.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description


    RS485 CAN Expansion Board for Jetson Nano, Built-In Protection Circuit



    Features:

    • Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
    • Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
    • Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
    • Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
    • Reserved control pins, allows to work with other control boards
    • Comes with development resources and manual (examples in python)

    Specifications:


    CAN CONTROLLER MCP2515
    CAN TRANSCEIVER SIT65HVD230DR
    RS485 TRANSCEIVER SP3485
    OPERATING VOLTAGE 3.3V
    MOUNTING HOLE SIZE 3.0mm
    DIMENSION 100 × 79mm


    Connect To Jetson Nano

    B01 4GB Version



    2GB Version

    Features RS485 And CAN Function
    Isolation Circuit Design, Safer Communication

    Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static Electricity, Surge Voltage And Transient Peak Voltage, Making RS485 Communication More Stable And Safer

    What's On Board

    1. CAN Controller
      MCP2515
    2. CAN Transceiver
      SIT65HVD230DR
    3. RS485 Transceiver
      SP3485
    4. Power Isolator
      B0505LS

    1. Digital Isolator Chip
      ADUM1412
    2. Optocoupler Isolation Chip
      PC817X3CSP9F
    3. TVS (Transient Voltage Suppressor)
    4. RXD & TXD Indicator
    5. Power Indicator
    6. Power Chip
      RT9193-33

    Pin Definition

    Outline Dimensions
