RS485 CAN HAT for Raspberry Pi

Description

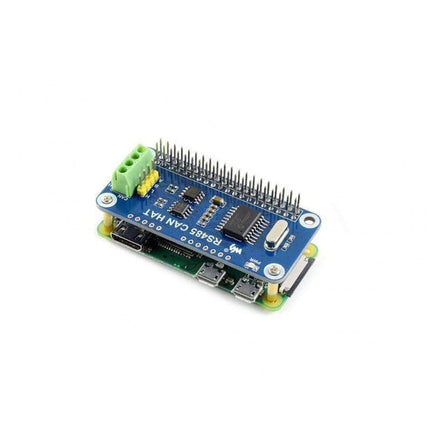

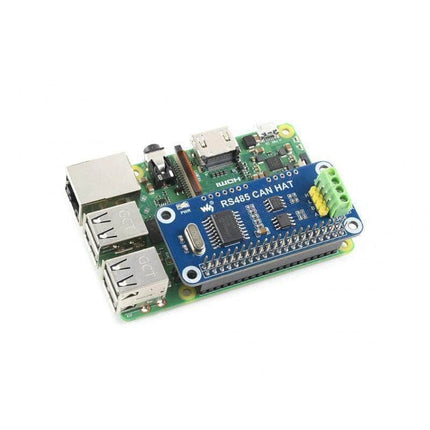

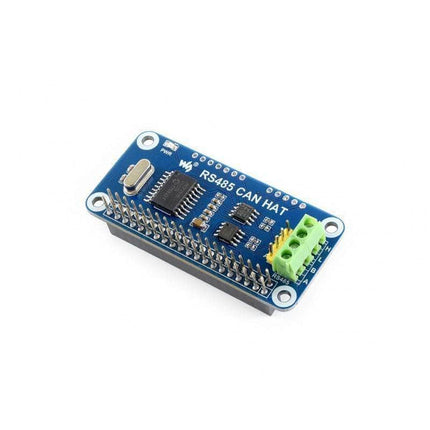

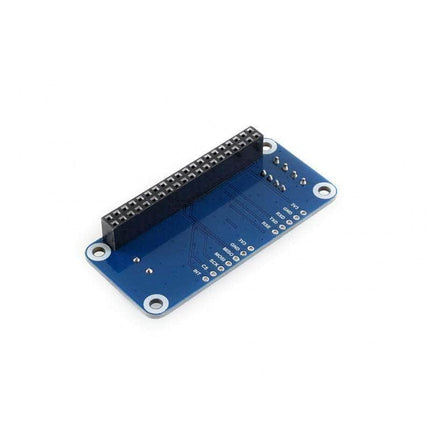

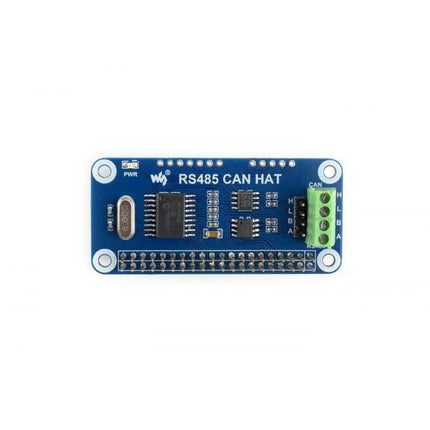

RS485 CAN HAT for Raspberry Pi

The RS485 CAN HAT will enable your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

Features

  • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SN65HVD230
  • RS485 function, controlled via UART, half-duplex communication, with transceiver SP3485
  • Reserved control pins, allows to work with other control boards
  • Comes with development resources and manual (examples in wiringPi/python)

Specifications

  • Operating voltage: 3.3V
  • CAN controller: MCP2515
  • CAN transceiver: SN65HVD230
  • 485 transceiver: SP3485
  • Dimension: 65mm x 30mm
  • Mounting hole size: 3.0mm

Pinouts

PIN Raspberry Pi (BCM) DESCRIPTION
3V3 3V3 3.3V Power
GND GND Ground
SCK P11 / SCLK SPI clock input
MOSI P10 / MOSI SPI data input
MISO P9 / MISO SPI data output
CS P8 / CE0 SPI chip selection
INT P25 Interrupt
RXD P15 / RXD RS485 UART receive
TXD P14 / TXD RS485 UART transmit
RSE P4 RS485 RX/TX setting, high for TX, low for RX



Dimensions

RS485 CAN HAT dimensions

Development Resources

Wiki: www.waveshare.com/wiki/RS485_CAN_HAT



RS485 CAN HAT for Raspberry Pi

Product form
Free pickup in our shop(s)

SKU: RS485 CAN HAT (14882)

$29.00 $19.00 Excl. GST

$29.00 $19.00
Product available in stock, Express post same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    RS485 CAN HAT for Raspberry Pi

    The RS485 CAN HAT will enable your Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

    Features

    • Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
    • CAN function, onboard CAN controller MCP2515 via SPI interface, with transceiver SN65HVD230
    • RS485 function, controlled via UART, half-duplex communication, with transceiver SP3485
    • Reserved control pins, allows to work with other control boards
    • Comes with development resources and manual (examples in wiringPi/python)

    Specifications

    • Operating voltage: 3.3V
    • CAN controller: MCP2515
    • CAN transceiver: SN65HVD230
    • 485 transceiver: SP3485
    • Dimension: 65mm x 30mm
    • Mounting hole size: 3.0mm

    Pinouts

    PIN Raspberry Pi (BCM) DESCRIPTION
    3V3 3V3 3.3V Power
    GND GND Ground
    SCK P11 / SCLK SPI clock input
    MOSI P10 / MOSI SPI data input
    MISO P9 / MISO SPI data output
    CS P8 / CE0 SPI chip selection
    INT P25 Interrupt
    RXD P15 / RXD RS485 UART receive
    TXD P14 / TXD RS485 UART transmit
    RSE P4 RS485 RX/TX setting, high for TX, low for RX



    Dimensions

    RS485 CAN HAT dimensions

    Development Resources

    Wiki: www.waveshare.com/wiki/RS485_CAN_HAT
