| System Information |
| Processor |
ST Cortex-M7 |
| Basic Frequency |
400MHz |
| Flash |
128K+4M byte |
| Ethernet |
| Port Number |
1 |
| Interface Standard |
8 pin RJ45 |
| Rate |
10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection |
2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol |
IP,TCP,UDP,DHCP,DNS,https,ARP,ICMP,Web socket,httpsd client |
| Receive Buffer |
Max 16k bytes buffer |
| Serial |
| Port Number |
4 RS485 Ports, can work at the same time) |
| Interface Standard |
RS-485: 2 wire (A+,B-) half-duplex |
| Data Bits |
7,8 |
| Stop Bit |
1,2 |
| Parity Bit |
Even,Odd |
| Baud Rate |
600bps ~ 921600 bps |
| Flow Control |
XON XOFF |
| Buffer |
Send and receive 2k bytes respectively |
| Protection |
RS-485: anti-static 2KV,lightning protection |
| RS-485 Pull-up and Pull-Down Resistor |
2.2 KΩ |
| Software |
| Virtual Serial（USR-VCOM） |
Windows 2000 or higher(32 bit/64 bit) |
| Configuration |
Built-in webpage, computer set-up software, serial command |
| Basic Parameter |

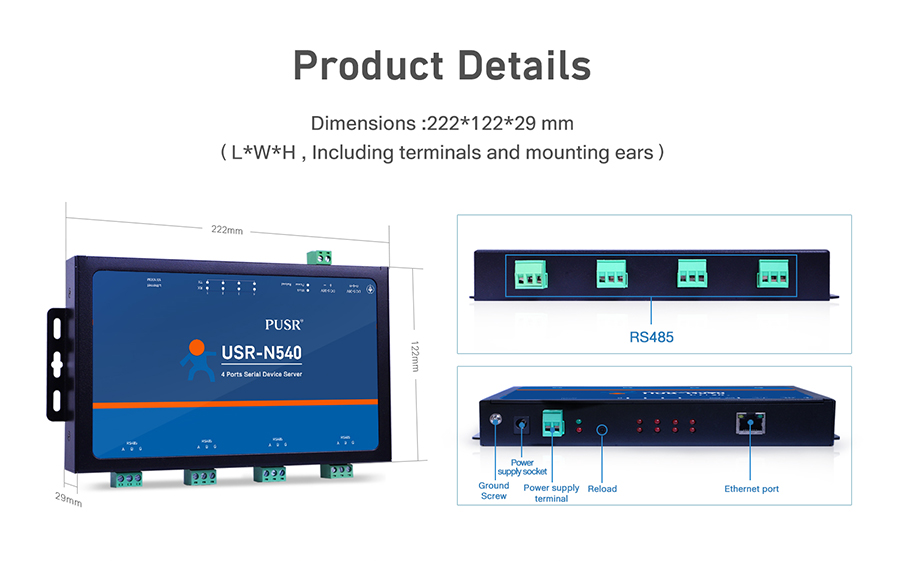

| Size |
222 x 122 x 29 mm (including shell and terminals) |
| Operating Temp. |
-40 ~ 85°C (industry) |
| Storage Temp. |
-40 ~ 85°C, 5 ~ 95% RH (no condensation) |
| Input Voltage |
DC 9 ~ 36V |
| Working Current |
53mA @ 12V |
| Power |
<1W |
