Industrial serial server RS485 to RJ45 Ethernet TCP/IP POE DIN Rail

Description



Industrial serial server RS485 to RJ45 Ethernet TCP/IP POE DIN Rail





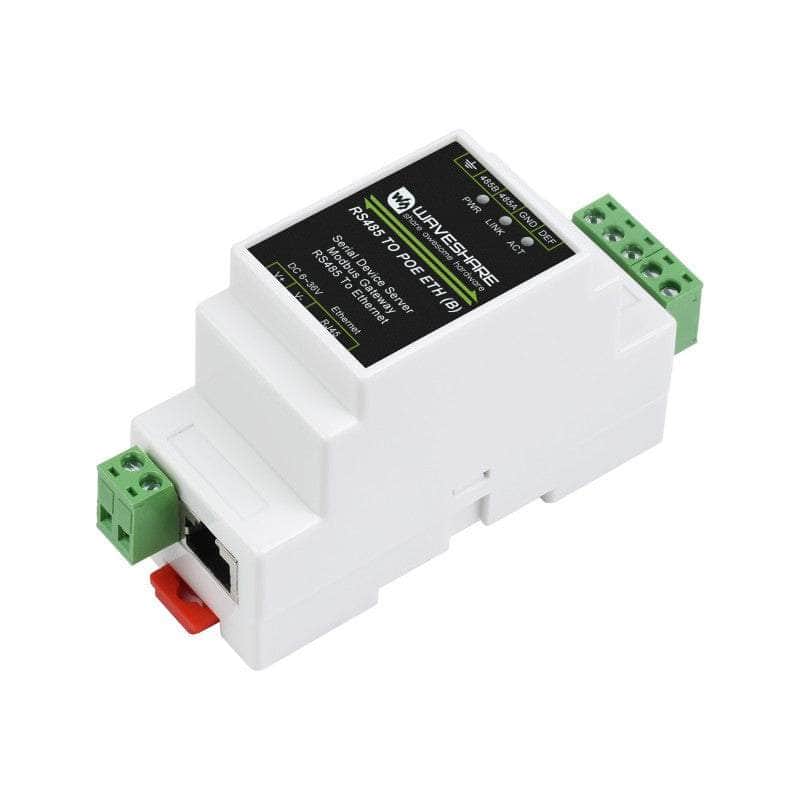

RS485 TO POE ETH (B)
PoE Ethernet port + Electrical isolation


Features:

This is an RS485 device data acquisitor / IoT gateway designed for the industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and an Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications:


Product RS485 TO ETH (B) RS485 TO POE ETH (B)
Product Type Serial server, Modbus Gateway, MQTT Gateway
Basic Function Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface RS485 port x 1, Ethernet port x 1
Power supply 9 ~ 24V DC screw terminal 6 ~ 36V DC screw terminal, or PoE port
Isolation Protection N/C Power isolation, Signal isolation
Communication
Ethernet common network port PoE network port, support IEEE 802.3af standard
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port RS485 Isolated RS485
Serial specification
Baudrate 300 ~ 115200 bps
Parity bit none, odd, even, mark, space
Data bit 5 ~ 9 bits
Flow control N/A
Software
Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration host, web browser, device management functions library
Communication method TCP/IP direct communication, VCOM
Operating mode TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Environment requirement
Operating temperature -40℃ ~ 85℃
Storage temperature -40℃ ~ 100℃
Humidity range 5% ~ 95% relative humidity
Dimensions L × W × H: 87 × 36 × 59 mm

Primary function

bi-directional transparent data transmission between RS485 and Ethernet

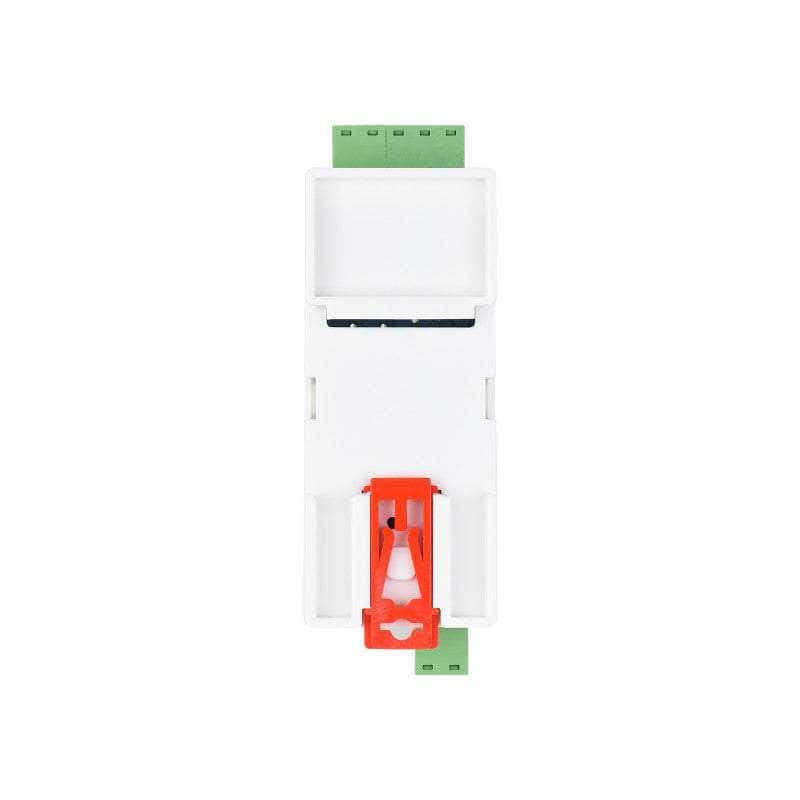

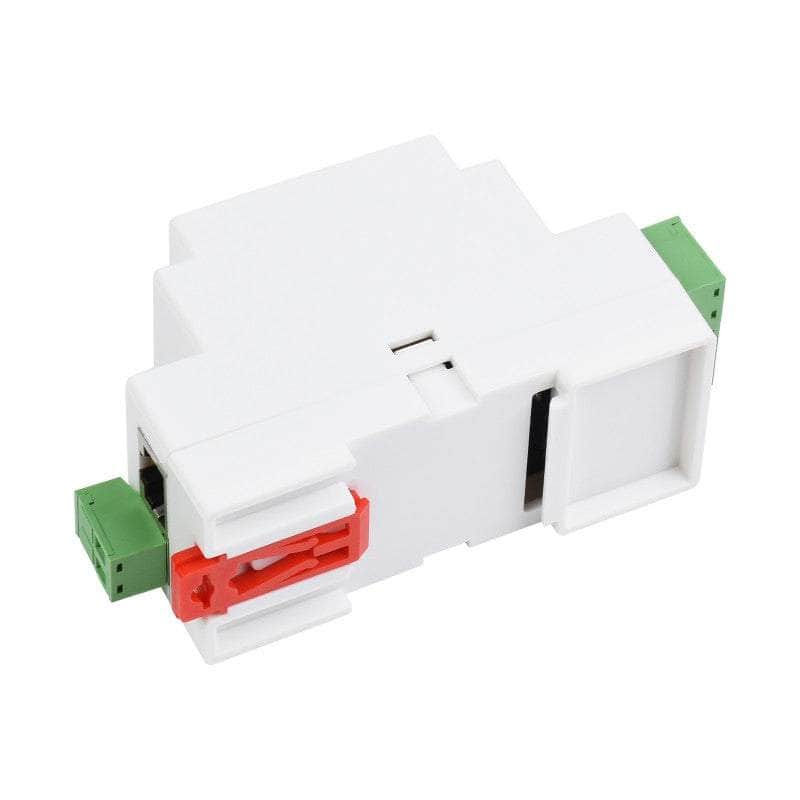

Rail-mount support

easy to combine multi rail-mounted serial server together, more freely

Modbus gateway support

suitable for Modbus gridding upgrade, can be used with 3D configuration software

Multi communication modes

supports TCP server / TCP client / UDP mode / UDP multicast



MQTT/JSON to Modbus

more flexible conversion between different protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi hosts roll-polling support

different network devices will be identified and responsed respectively,
no more crosstalk issue while communicating with multi network devices

User-defined heartbeat/registration packet

easy for cloud communication and device identification

NTP protocol support

getting network time info for serial output or data upload

Multi configuration methods

supports Web browser configuration, obtaining dynamic IP via DHCP,
DNS protocol connected domain server address

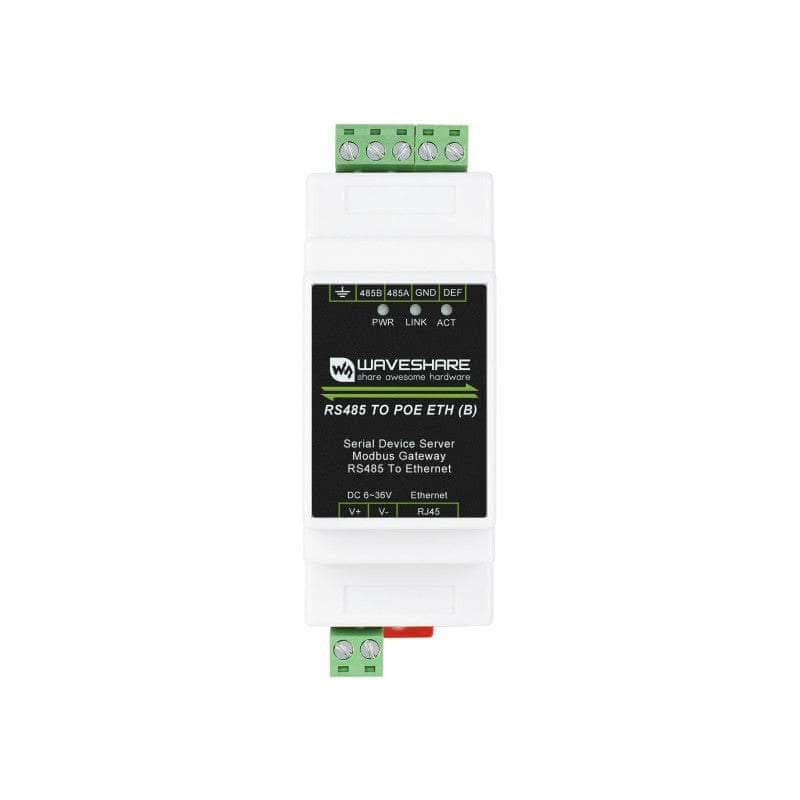

Interface Introduction

* for the power supply range, please refer to the label of the corresponding version.
Outline dimensions
