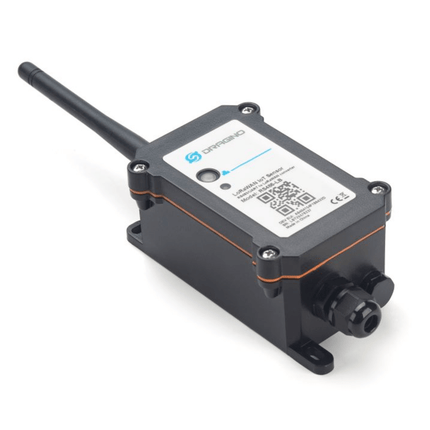

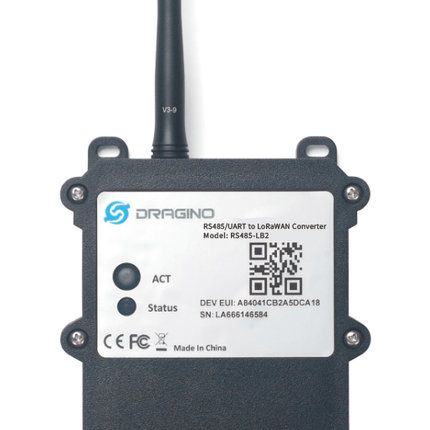

RS485 WaterProof RS485/UART to LoRaWAN Converter Battery Powered
The Dragino RS485-LB/LS is a RS485 / UART to LoRaWAN Converter for Internet of Things solutions. User can connect RS485 or UART sensor to RS485-LB/LS converter, and configure RS485-LB/LS to periodically read sensor data and upload via LoRaWAN network to IoT server.
RS485-LB/LS can interface to RS485 sensor, 3.3v/5v UART sensor or interrupt sensor. RS485-LB/LS provides a 3.3v output and a 5v output to power external sensors. Both output voltages are controllable to minimize the total system power consumption.
RS485-LB/LS is IP67 waterproof and powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use for several years.
RS485-LB/LS runs standard LoRaWAN 1.0.3 in Class A. It can reach long transfer range and easy to integrate with LoRaWAN compatible gateway and IoT server.
For data uplink, RS485-LB/LS sends user-defined commands to RS485 devices and gets the return from the RS485 devices. RS485-LB/LS will process the returns data according to user-define rules to get the final payload and upload to LoRaWAN server.
For data downlink, RS485-LB/LS runs in LoRaWAN Class A. When there is downlink commands from the LoRaWAN server, RS485-LB/LS will forward the commands from the LoRaWAN server to RS485 devices.
RS485-LB/LS Supports BLE configuration and wireless OTA update, which make user easy to use.
Each RS485-LB/LS pre-load with a set of unique keys for LoRaWAN registration, register these keys to the LoRaWAN server and it will auto-connect after power on.
Features:
- LoRaWAN 1.0.3 Class A
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864/MA869
- Ultra-low power consumption
- Support multiple RS485 devices with flexible rules
- Support the Modbus protocol
- Support Interrupt uplink
- Supports connecting a UART sensor with 3.3V or 5V
- Support Bluetooth v5.1 and LoRaWAN remote configuration
- Support wireless OTA update firmware
- AT Commands to change parameters
- Uplink on periodically
- Downlink to change the configuration
- 8500mAh Li/SOCl2 Battery (RS485-LB)
-
Solar panel + 3000mAh Li-ion battery (RS485-LS)
Applications:
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
Specifications:
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
I/O Interface:
- Battery controllable output (2.6v ~ 3.6v depends on battery)
- +5v controllable output
- 1 x RS485 Interface
- 1 x UART Interface , 3.3v or 5v
- 1 x Interrupt or Digital IN/OUT pins
- 1 x I2C Interface
- 1 x one wire interface
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
- Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
