RTD OEM™ Temperature Circuit - Atlas Scientific

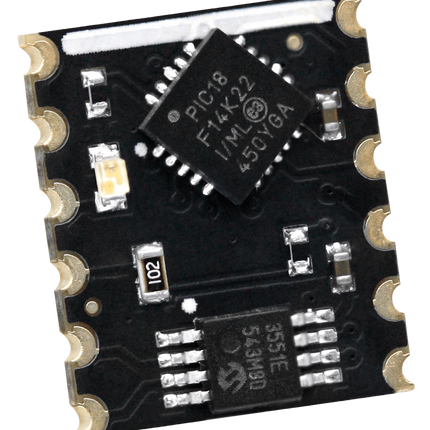

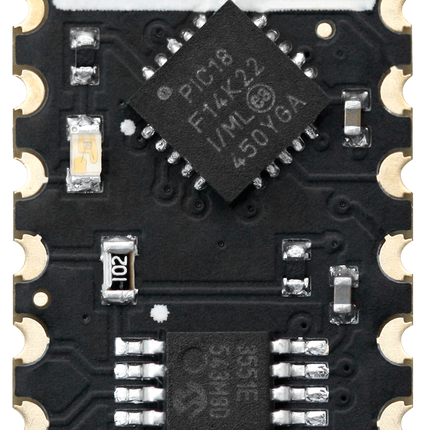

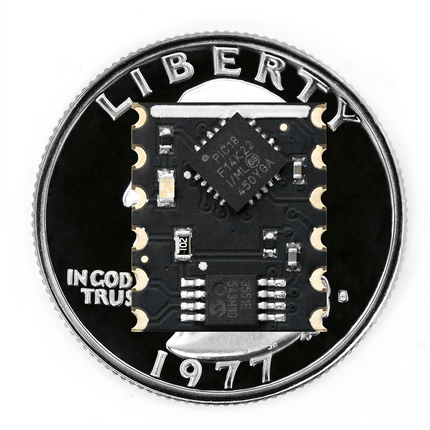

For those engineers tasked with mass-producing a device that needs accurate temperature sensing capabilities, the OEM-RTD is a quick and easy solution to a complex problem. This small 11×13 mm SMD component gives you the ability to accurately read from any class of 2, 3, or 4 wire platinum RTD probes and has a sensing range of -126.000 °C to +1,254 °C.
| RTD |
Resistance Temperature Detector RTD |
| Reads |
Temperature in °C |
| Range |
-126.000 °C − 1254 °C |
| Resolution |
0.001 |
| Accuracy |
+/– (0.1 + 0.0017 x ̊C) |
| Response time |
1 reading every 420ms |
| Supported probes |
Any type & brand PT-100 or PT-1000 RTD |
| Supported configuration |
2 wire, 3 wire or 4 wire RTD |
| Calibration |
Single point |
| Data protocol |
SMBus/I2C |
| Default I2C address |
0x68 |
| Operating voltage |
3.3V − 5.5V |
| Data format |
ASCII |
