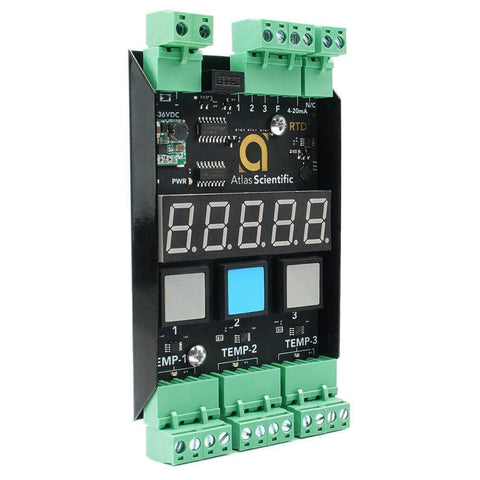

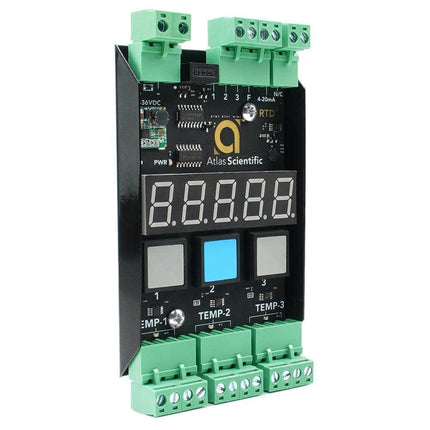

RTD3 Industrial Temperature Transmitter - Atlas Scientific

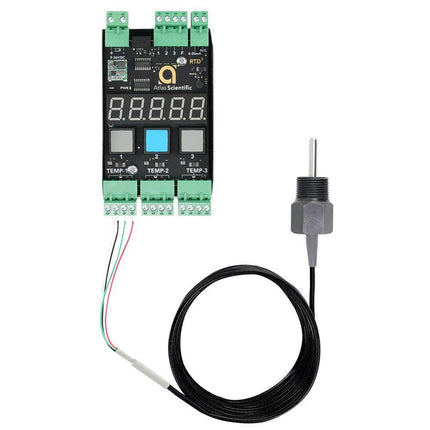

If you have ever had to add an RTD module to a PLC, then you know firsthand just how complicated and expensive they can be. The RTD3 transmitter is designed to be a simple and cost-effective alternative to traditional RTD modules for PLCs. The RTD3 lets you connect and calibrate up to 3 temperature probes simultaneously.
Use your PLCs 4-20mA input to get the temperature readings.

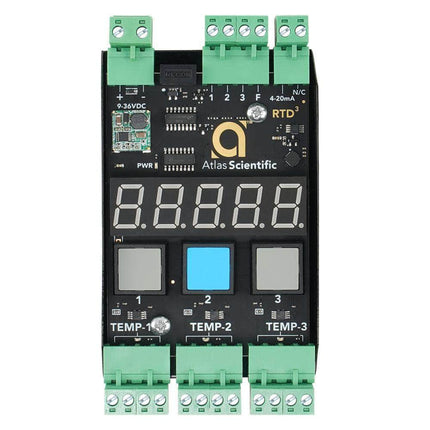

The large display makes it easy to see the temperature and know which probe the reading is coming from.
| Reads |
Temperature (up to 3 probes) |
| Full Range |
-126 °C to 1,254 °C |
| Range with Atlas industrial probe |
-55 °C to 220 °C |
| Accuracy |
+/- 0.1 °C |
| Scale |
°C or °F |
| Calibration |
Single point @0 °C |
| Supported probes |
Any type & brand PT-100 or PT-1000 RTD |
| Mount |

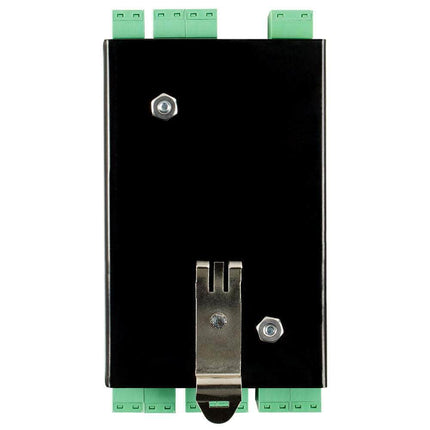

35mm Din rail |
| Output |
4 − 20mA |
| Operating voltage |
9VDC − 36VDC |
