RTL8822CE Wireless NIC, 2.4G/5GHz Dual-Band WiFi 5, Bluetooth 5.0, Compatible with Jetson Orin

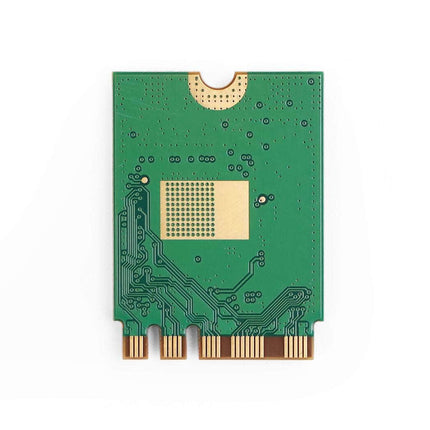

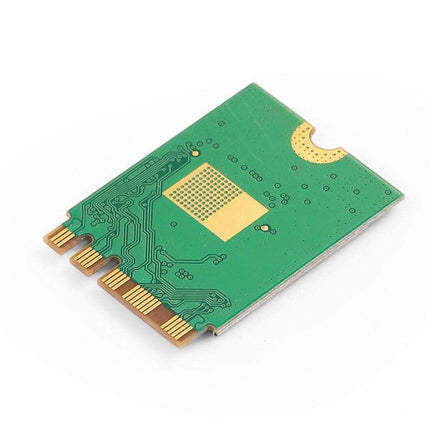

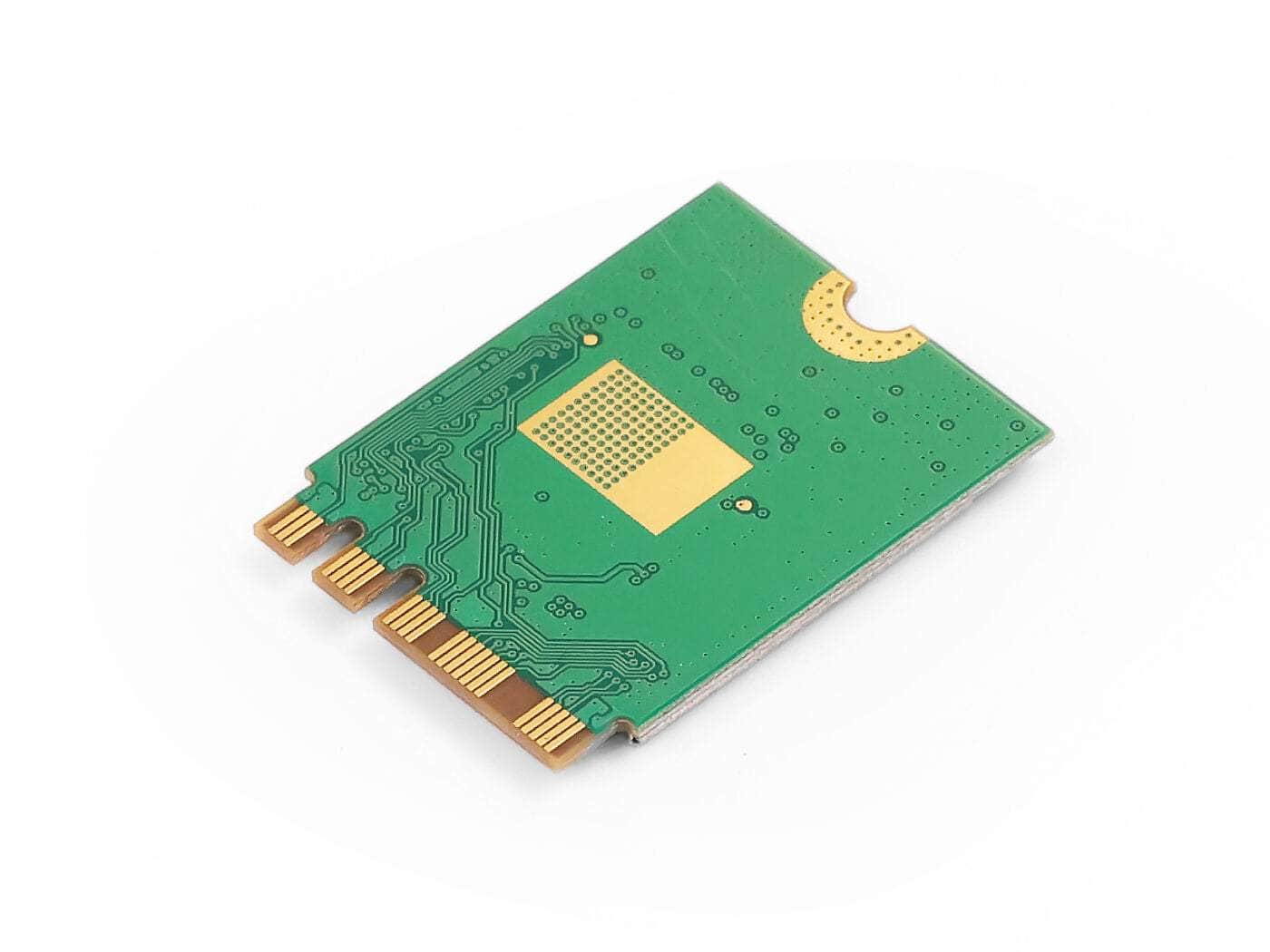

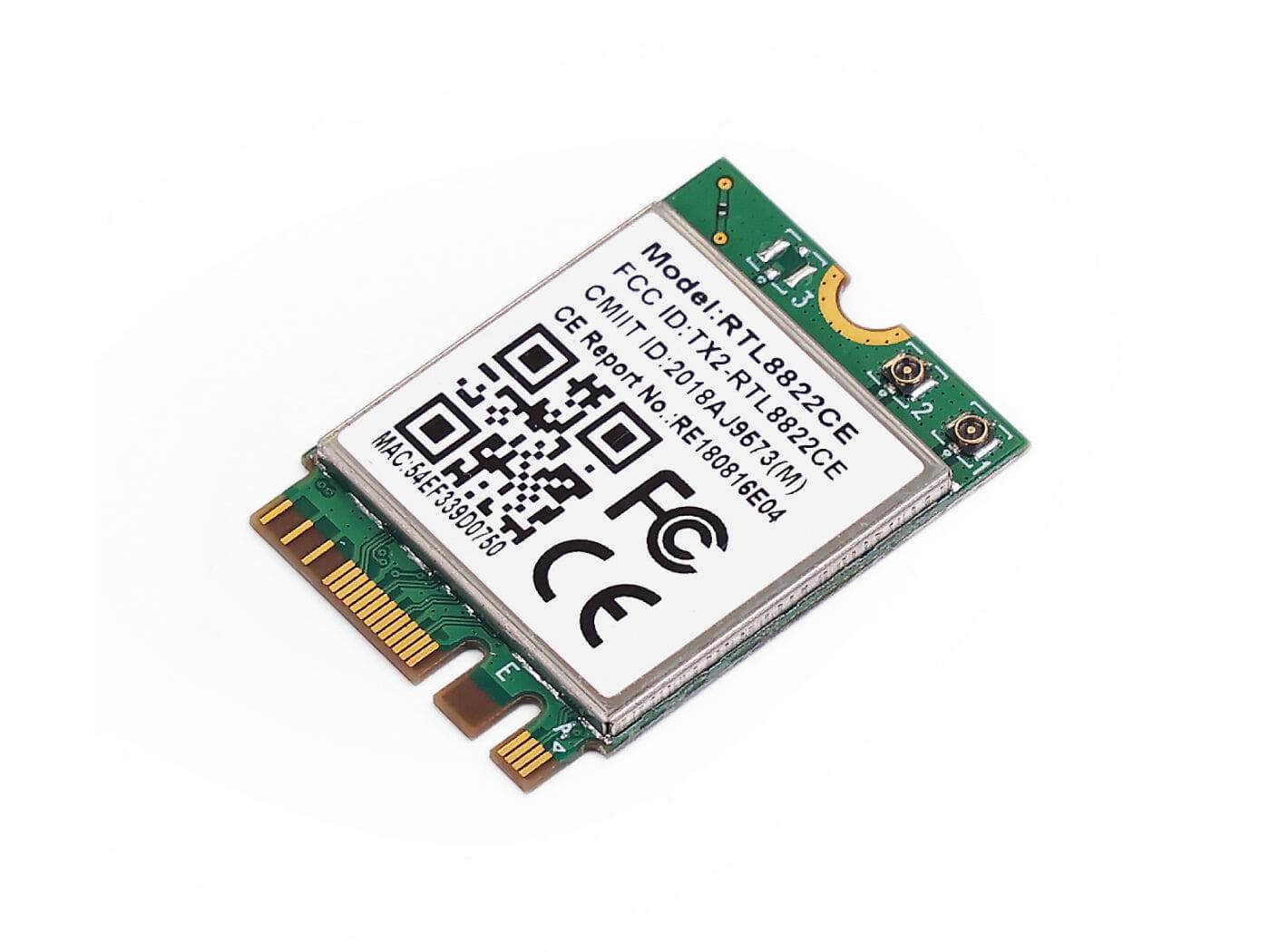

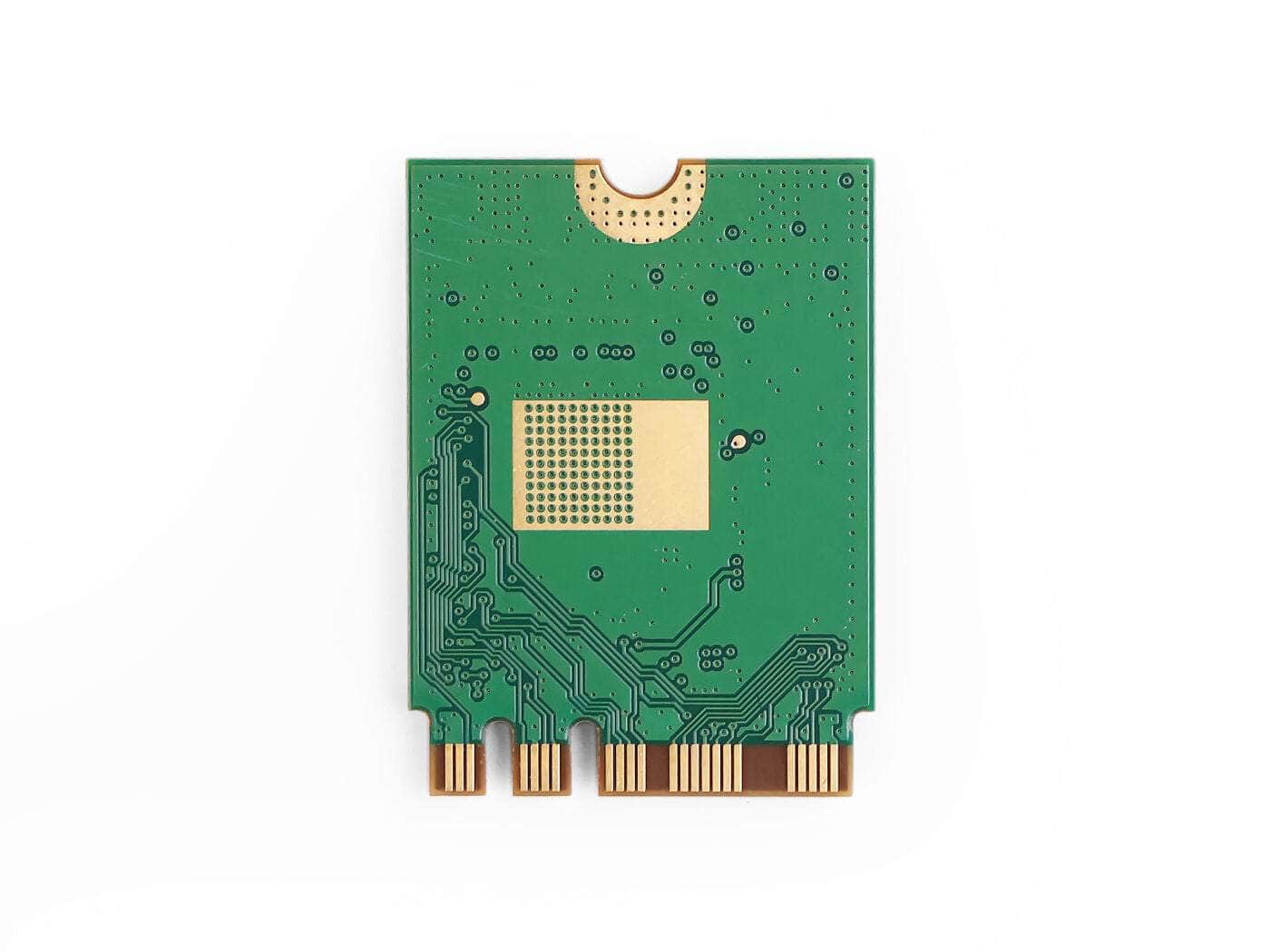

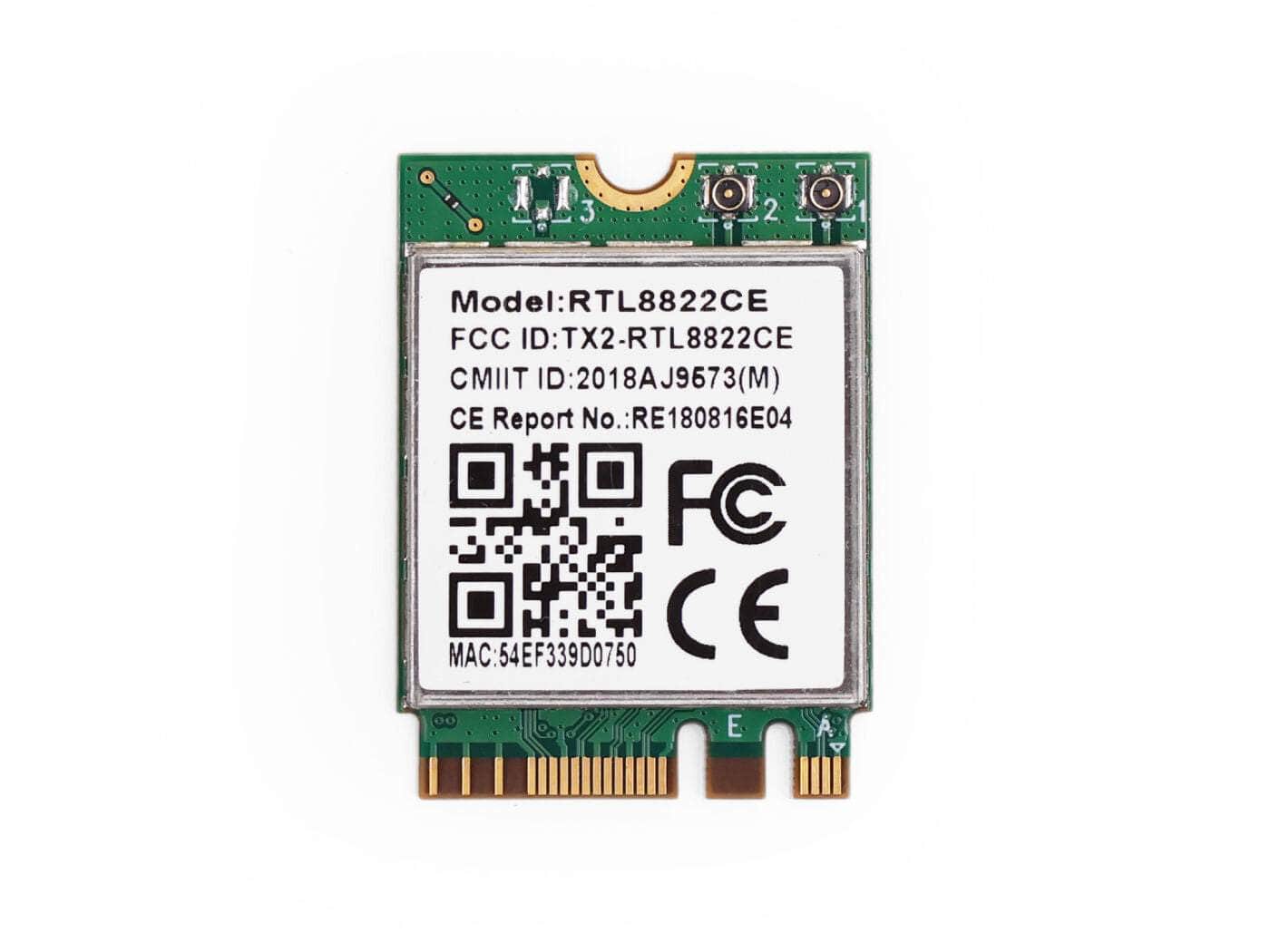

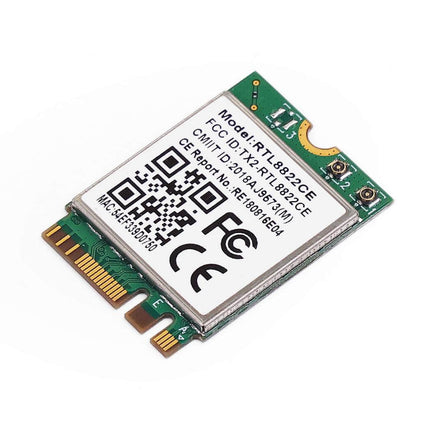

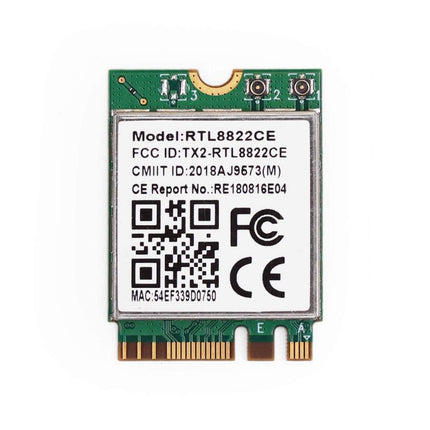

The RTL8822CE is a compact Dual-band WLAN+Bluetooth Combo M.2 Card that integrates a 2T2R Dual-band WLAN subsystem with PCI Express controllers and a Bluetooth v5.0 subsystem with USB support. Compatible with IEEE 802.11 a/b/g/n/ac standards, it delivers a maximum PHY rate of up to 867 Mbps and supports Bluetooth dual mode (v5.0/v4.2/v2.1). Ideal for high-performance wireless and Bluetooth connectivity for using with embedded devices such as reComputer J4012.
Feature
- Supports 2.4G/5GHz dual-band
- Wireless PHY rate can reach up to 867Mbps
- IEEE Standards: IEEE 802.11a/b/g/n/ac
- Form factor: M.2 2230 generic A key or E key
- Connect to external antenna through MHF4 connectors
- Power Supply: DC3.3V±0.2V power supply
- Supports Linux, Windows 10/11, etc.
Specification
|
Chipset
|
RTL8822CE - CG
|
|
WLAN Standards
|
IEEE802.11a/b/g/n/ac
|
|
BT Specification
|
Bluetooth Core Specification v5.0/4.2/2.1
|
|
Host Interface
|
PCI Express 2.1 for WLAN & USB2.0 FS for Bluetooth
|
|
Antenna
|
Connect to the external antennas through MHF4 connector
|
|
Dimension
|
M.2, 30*22*2.15mm (L*W*H)
|
|
Power Supply
|
DC 3.3V±0.2V @ 1000mA (Max)
|
|
Operation Temperature
|
-20°C to +70°C
|
|
Operation Humidity
|
10% to 95% RH (Non - Condensing)
|
