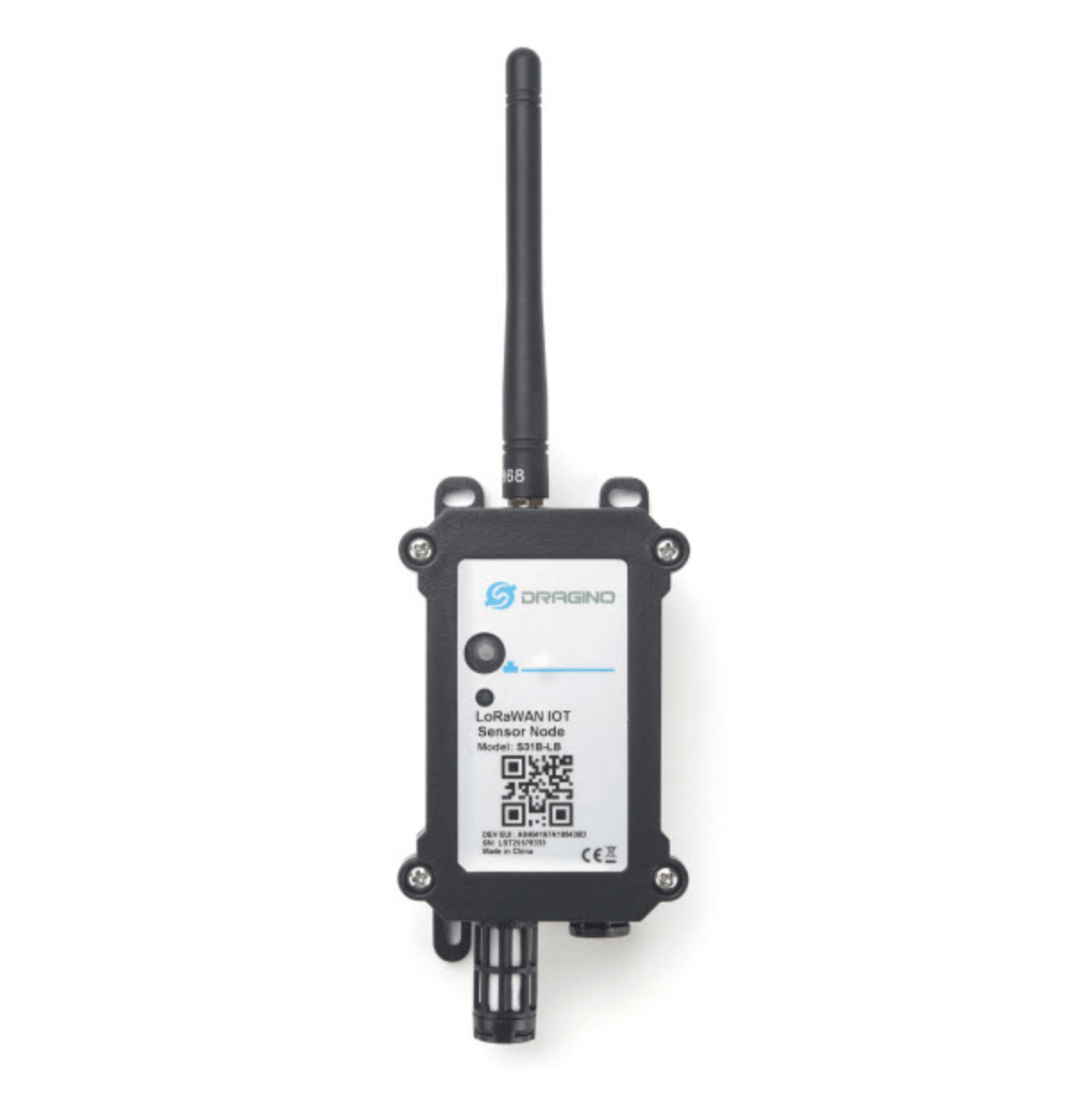

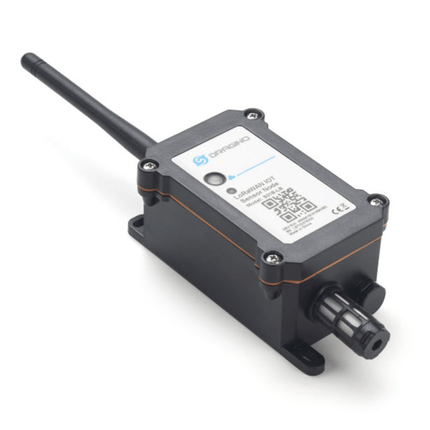

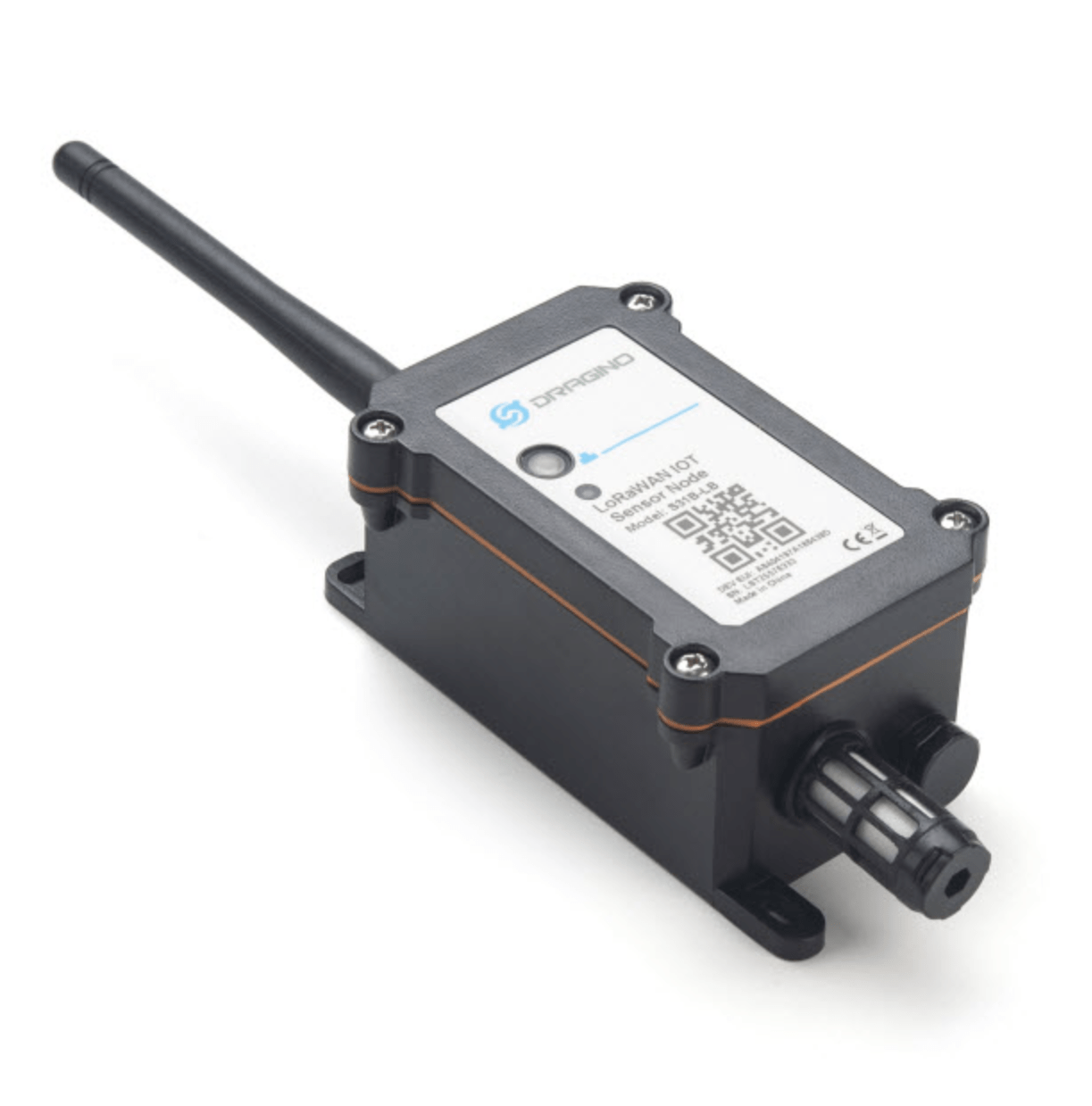

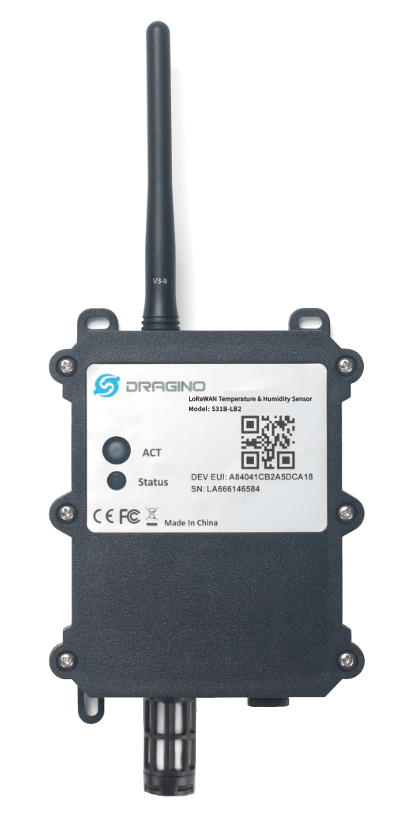

S31B LoRaWAN Waterproof Temperature and Humidity Sensor
The Dragino S31B-LB/LS is a LoRaWAN Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via LoRaWAN wireless protocol.
The temperature & humidity sensor used in S31B-LB/LS is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides a strong reliability and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.
The LoRa wireless technology used in S31B-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
S31B-LB/LS supports Temperature & Humdity alarm feature, user can set temperature alarm for instant notice. S31B-LB/LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.
S31B-LB/LS supports BLE configure and wireless OTA update which make user easy to use.
S31B-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery,, it is designed for long term use up to 5 years.
Features:
- LoRaWAN v1.0.3 Class A
- Ultra-low power consumption
- On-device SHT31 probe
- Measure range -40°C ~ 80°C
- Temperature alarm
- Bands: CN470/EU433/KR920/US915
EU868/AS923/AU915/IN865
- AT Commands to change parameters
- Uplink on periodically or Interrupt
- Downlink to change configure
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long-range Irrigation Systems, etc.
Temperature Sensor:
- Range: -40 to + 80°C
- Accuracy: ±0.2 @ 0-90 °C
- Resolution: 0.01°C
- Long Term Shift: <0.03 °C/yr
Humidity Sensor:
- Range: 0 ~ 99.9% RH
- Accuracy: ± 2%RH ( 0 ~ 100%RH)
- Resolution: 0.01% RH
- Long Term Shift: <0.25 %RH/yr
