Seeed Studio Solar Charger Shield v2.2

Description

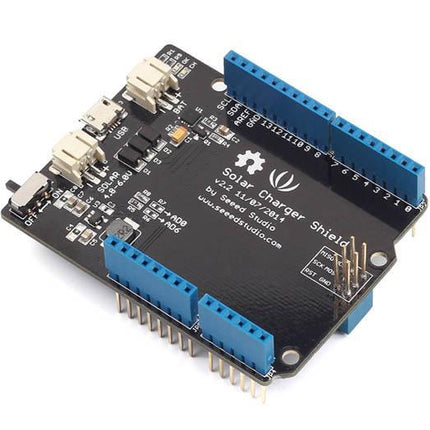

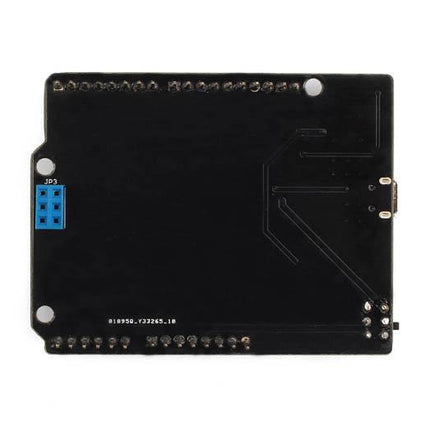

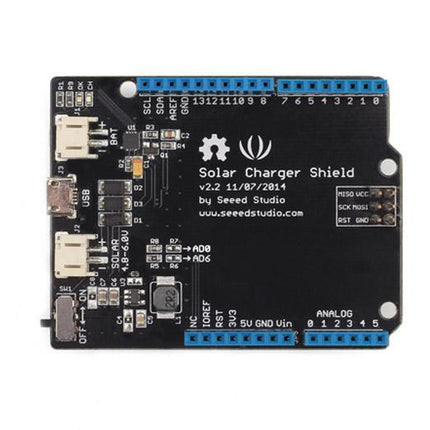

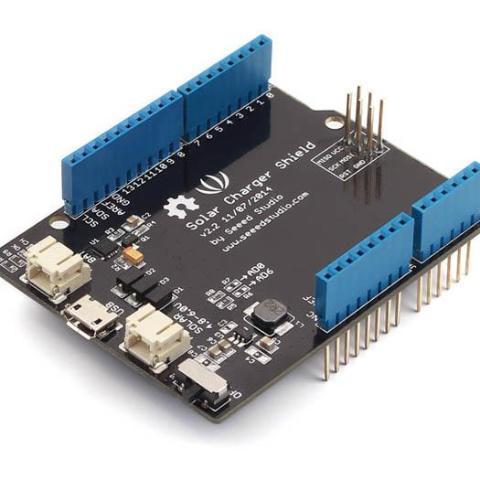

Seeed Studio Solar Charger Shield v2.2

The solar charger is a stackable shield to Arduino compatible platforms, enables adaptive battery power and act as energy harvester for in-field charging. You may use various batteries that has the voltage of 3.0V-4.2V to shift up for 5V output, or put on Li-ion battery and solar panel to form an autonomous sensor unit. The maximum current provided by the board can get up to 600mA. An usb connector is also used to charge the battery.

Features:

  • Output Disconnect

  • Short circuit protection

  • 3W Output Power when connecting battery

  • Continuous Charge Current Up to 900mA

  • Battery status indication (Red: Charging, Green: Charged )

  • Micro-USB Connector

Specification:

  • Battery input voltage: 3.0~4.5V

  • USB input voltage: 4.75~5.25V

  • Solar input voltage: 4.8~6V

  • Maximum Output Power(with battery): 3W(600mA@5V)

  • Ripple voltage:<100mV @ 500mA

  • Dimensions: 68*53mm



Technical Details

Dimensions 115mm x 75mm x 25mm
Weight G.W 42g
Battery Exclude

Seeed Studio Solar Charger Shield v2.2

Product form
Free pickup in our shop(s)

SKU: 106990020

$40.00 $20.00 Excl. GST

$20.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Seeed Studio Solar Charger Shield v2.2

    The solar charger is a stackable shield to Arduino compatible platforms, enables adaptive battery power and act as energy harvester for in-field charging. You may use various batteries that has the voltage of 3.0V-4.2V to shift up for 5V output, or put on Li-ion battery and solar panel to form an autonomous sensor unit. The maximum current provided by the board can get up to 600mA. An usb connector is also used to charge the battery.

    Features:

    • Output Disconnect

    • Short circuit protection

    • 3W Output Power when connecting battery

    • Continuous Charge Current Up to 900mA

    • Battery status indication (Red: Charging, Green: Charged )

    • Micro-USB Connector

    Specification:

    • Battery input voltage: 3.0~4.5V

    • USB input voltage: 4.75~5.25V

    • Solar input voltage: 4.8~6V

    • Maximum Output Power(with battery): 3W(600mA@5V)

    • Ripple voltage:<100mV @ 500mA

    • Dimensions: 68*53mm



    Technical Details

    Dimensions 115mm x 75mm x 25mm
    Weight G.W 42g
    Battery Exclude
