SenseCAP Asset Tracker T2000 LoRaWAN Indoor Outdoor Positioning GNSS
SenseCAP T2000 is a rugged LoRaWAN asset tracker with various power options, ensuring perpetual operation. Featuring an intelligent power management system, IP67 protection, ATEX and an active anti-tamper alarm, it enables reliable long-term outdoor asset tracking.

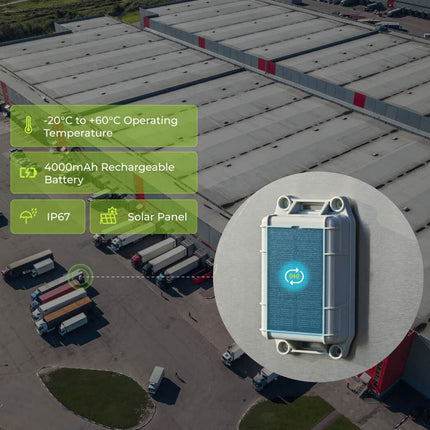

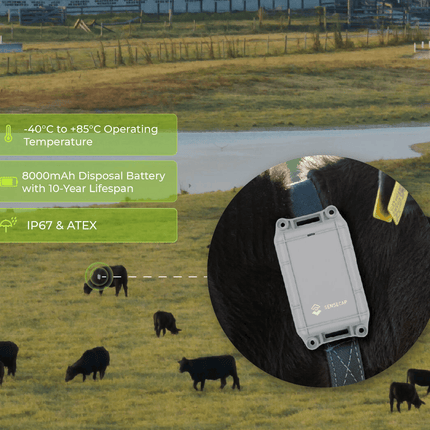

Industrial-Grade Rugged Design: The T2000 series adopts an IP67-rated dustproof and waterproof enclosure made of PC + 10% Glass Fibre composite material, offering excellent impact resistance, corrosion resistance, and UV protection. Combined with an innovative non-penetrating magnetic switch and a wide operating temperature range of –40°C to 85°C, the tracker ensures long-term stable operation even in harsh outdoor environments.

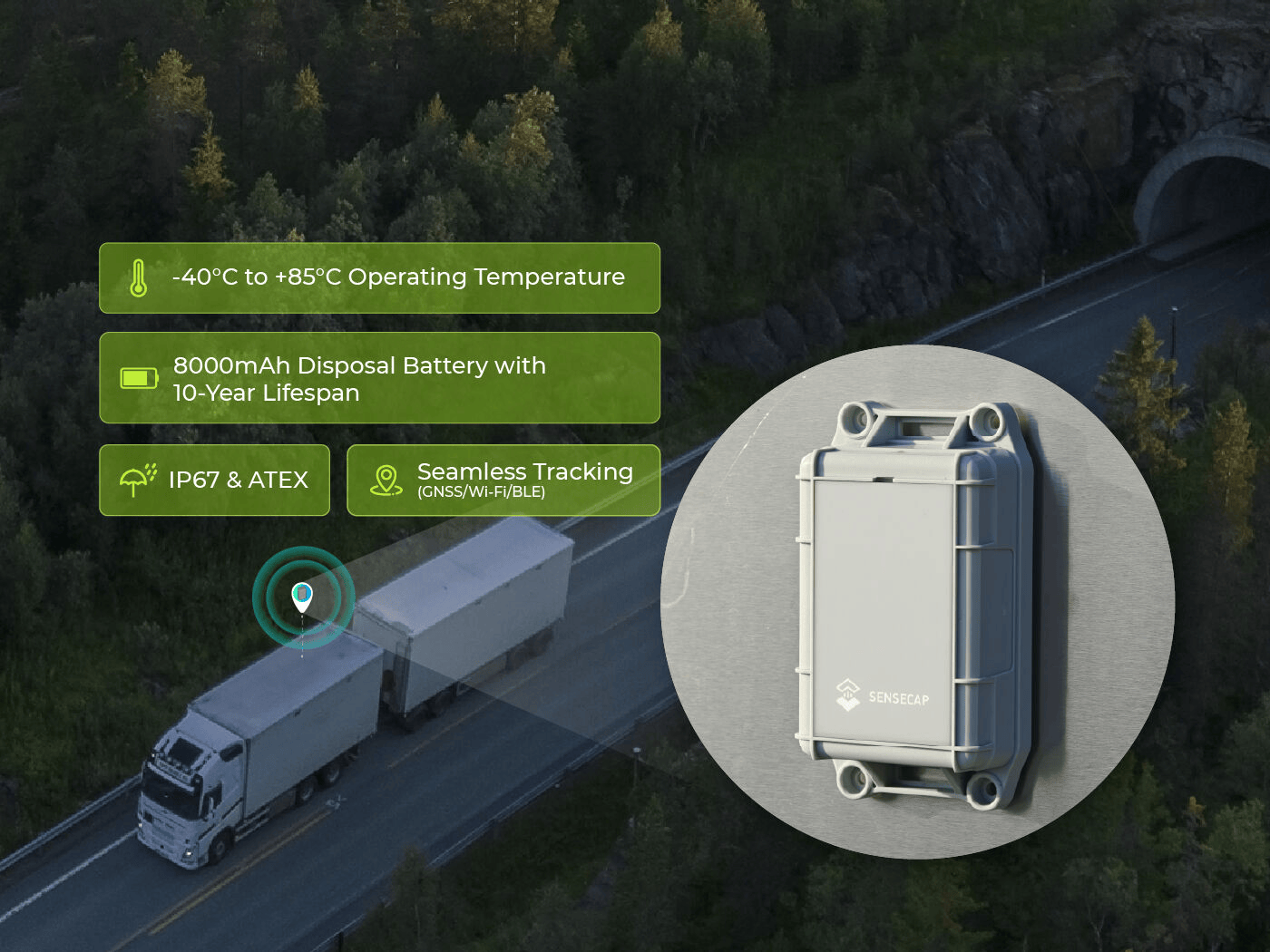

Seamless indoor and outdoor positioning: The T2000 series effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilises GNSS technologies, including GPS, Beidou, Galileo and GLONASS for precise outdoor tracking.

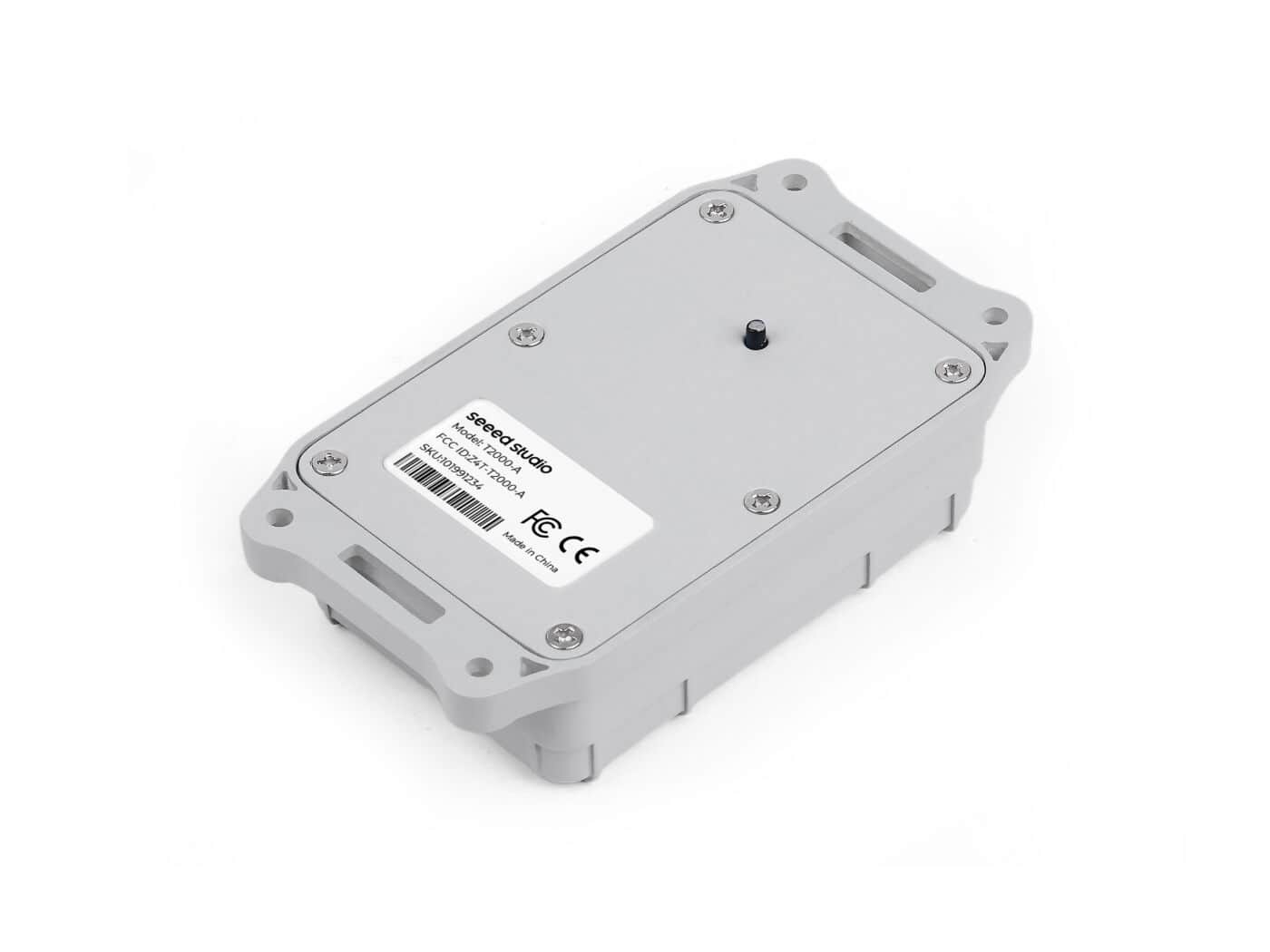

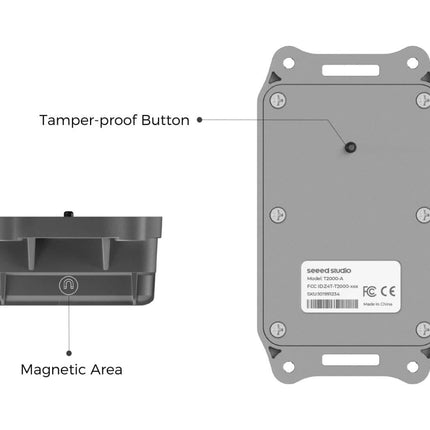

Active Security Protection: Equipped with a physical tamper-proof button and a 3-axis accelerometer. If the device is illegally removed, moved abnormally, or subjected to strong vibration, it will immediately trigger a highest-priority alarm and send instant push notifications to your phone via the SenseCraft platform.
Multiple Operating Modes: Supports Periodic, Event, and Standby modes. Each mode corresponds to different reporting behaviours to maximise battery efficiency for various use cases.
Long-Range Communication & Offline Data Buffer: Based on LoRaWAN® technology, the device achieves wireless data transmission over 8 km in open areas with no SIM card cost required. A built-in large-capacity buffer stores up to 1,000 data records, which will be automatically retransmitted once the network connection is restored, ensuring zero data loss.

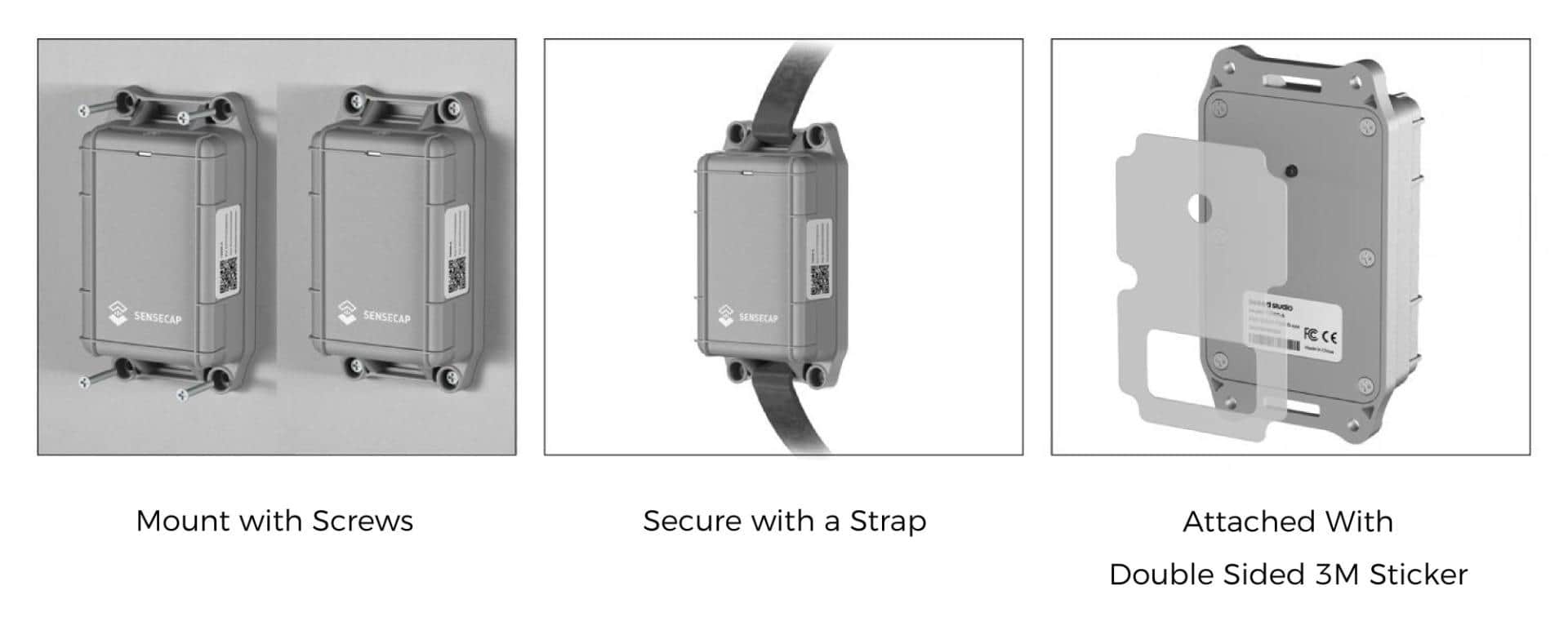

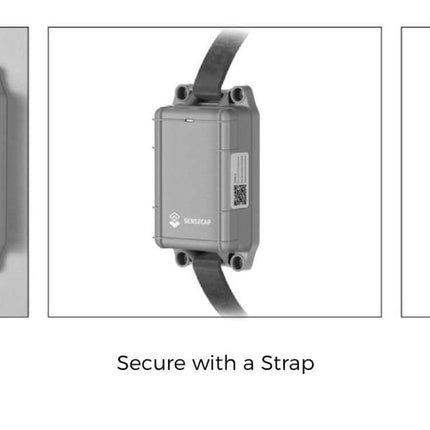

Multiple installation methods

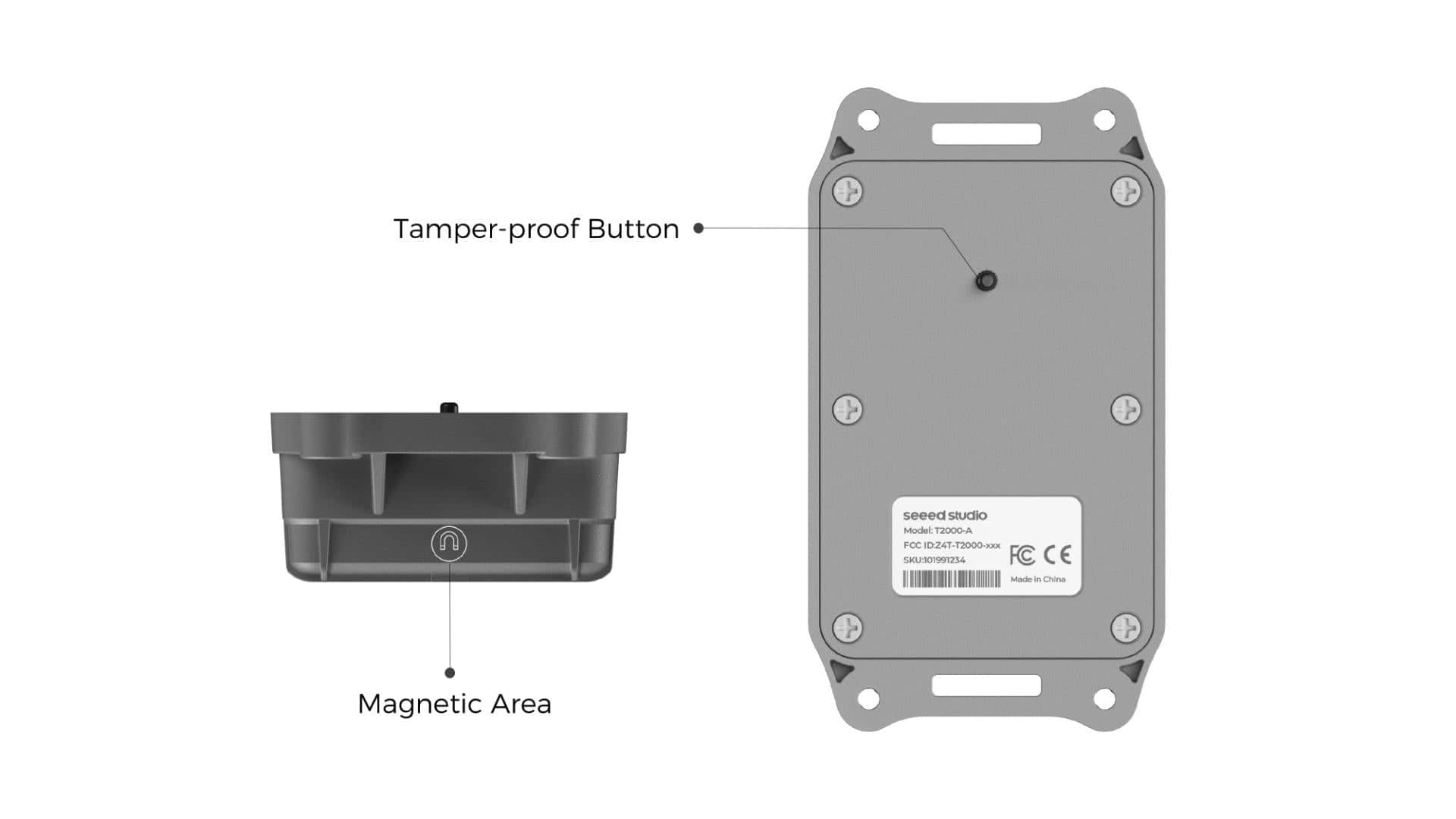

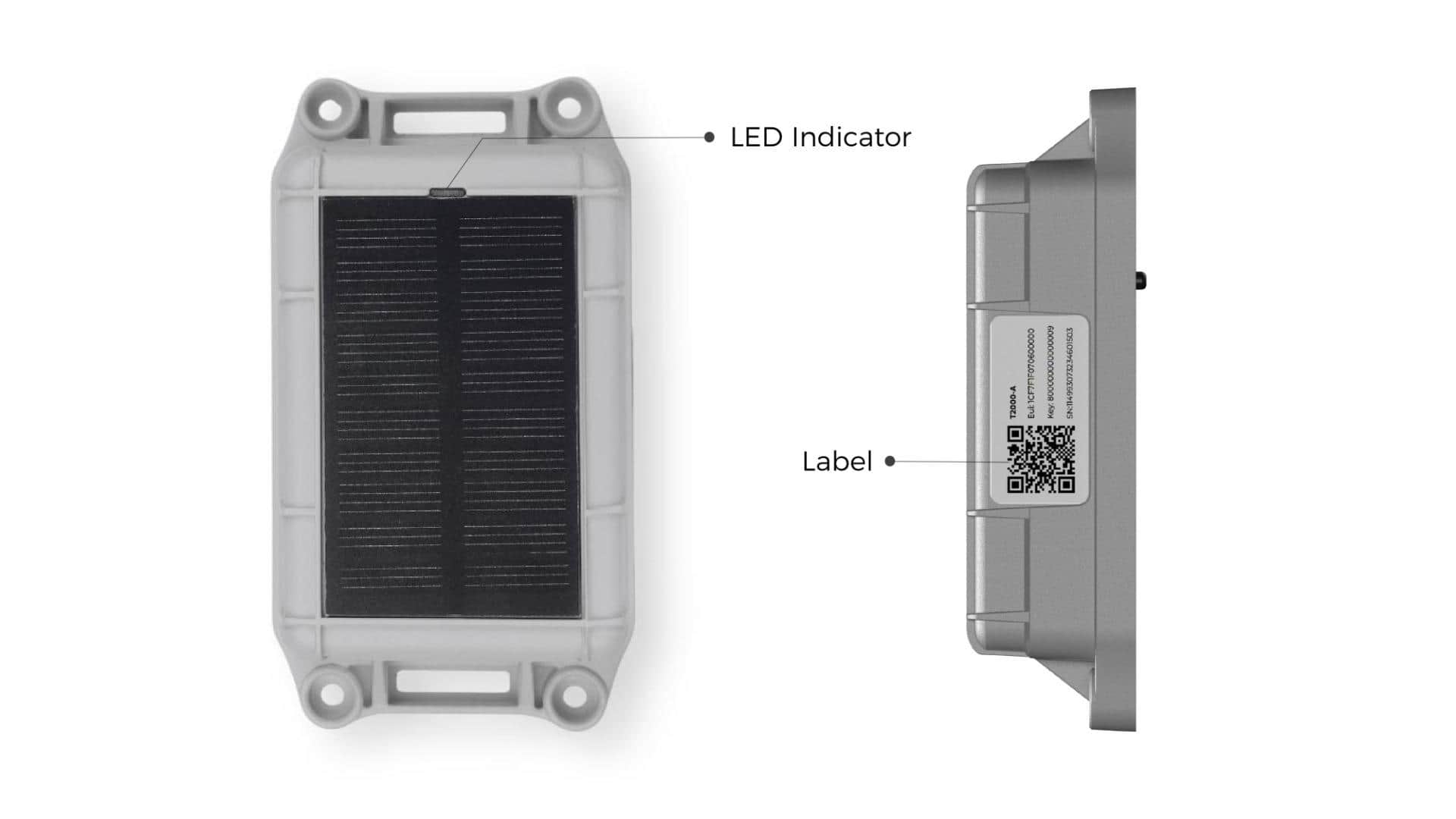

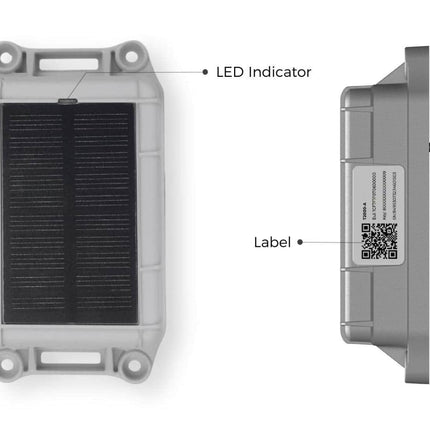

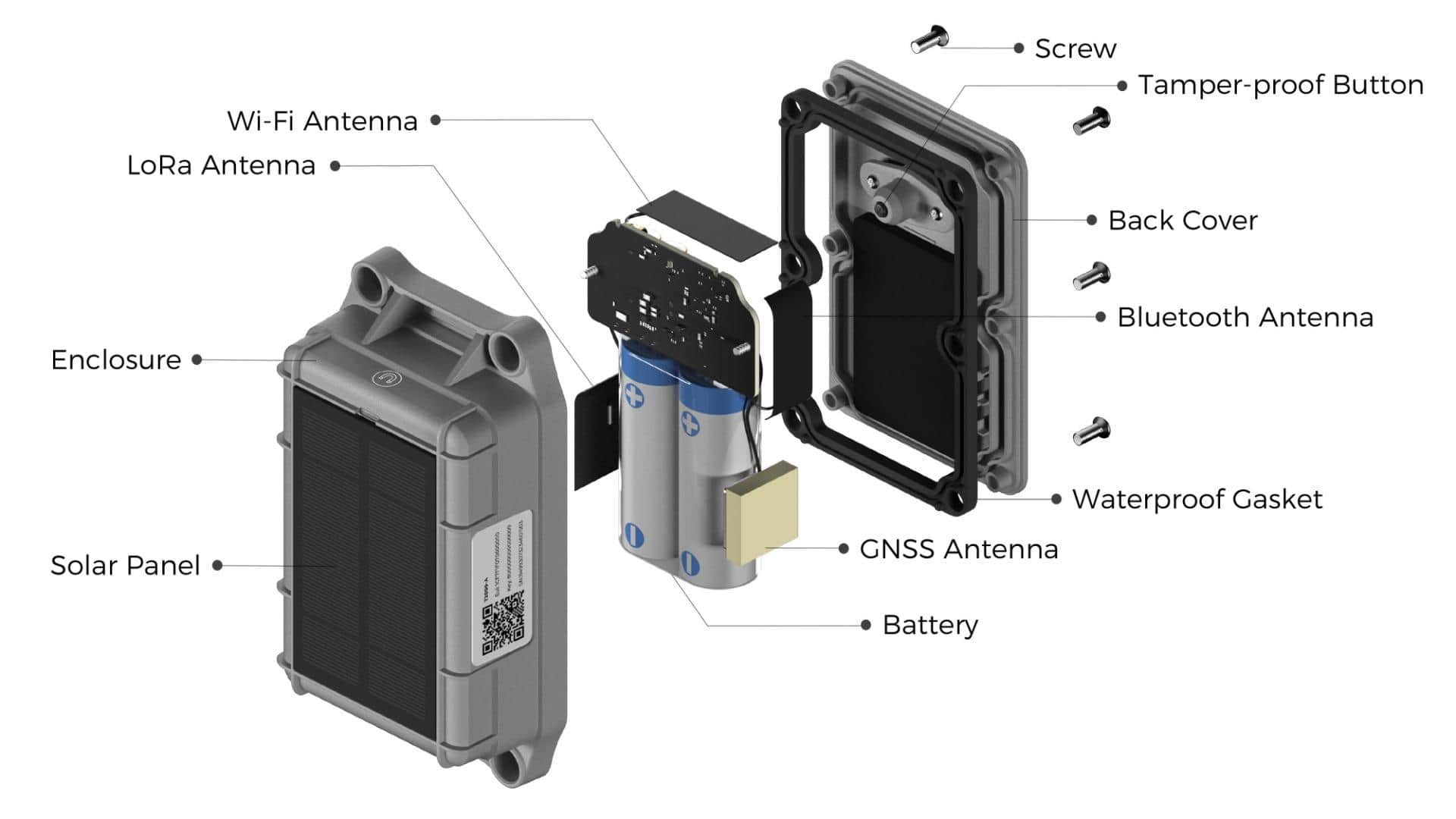

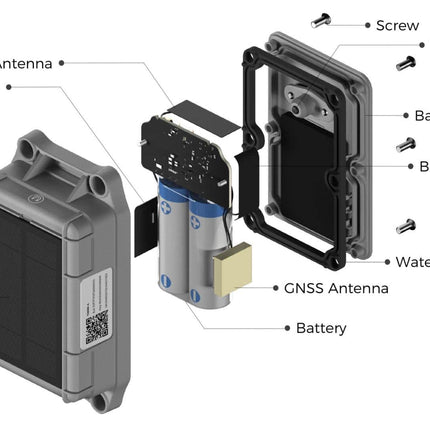

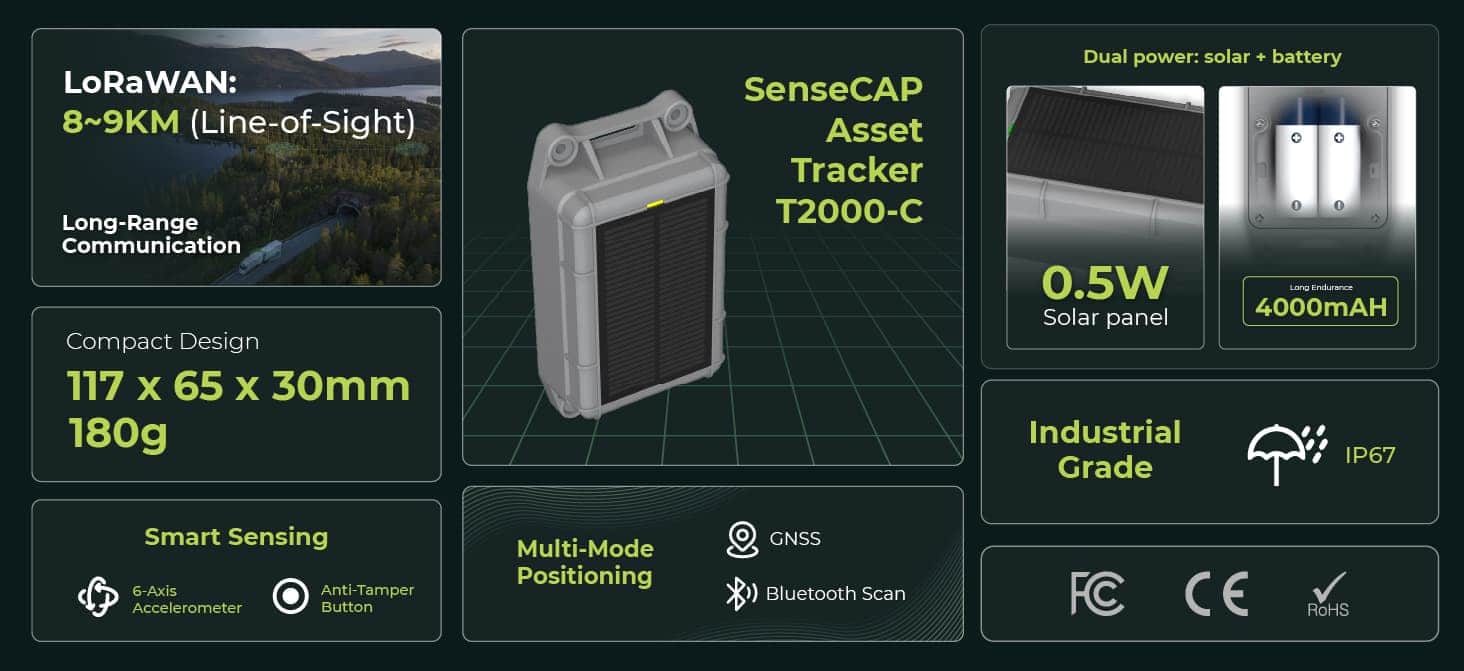

Hardware Overview
Specification
|
Parameter
|
Specification
|
|

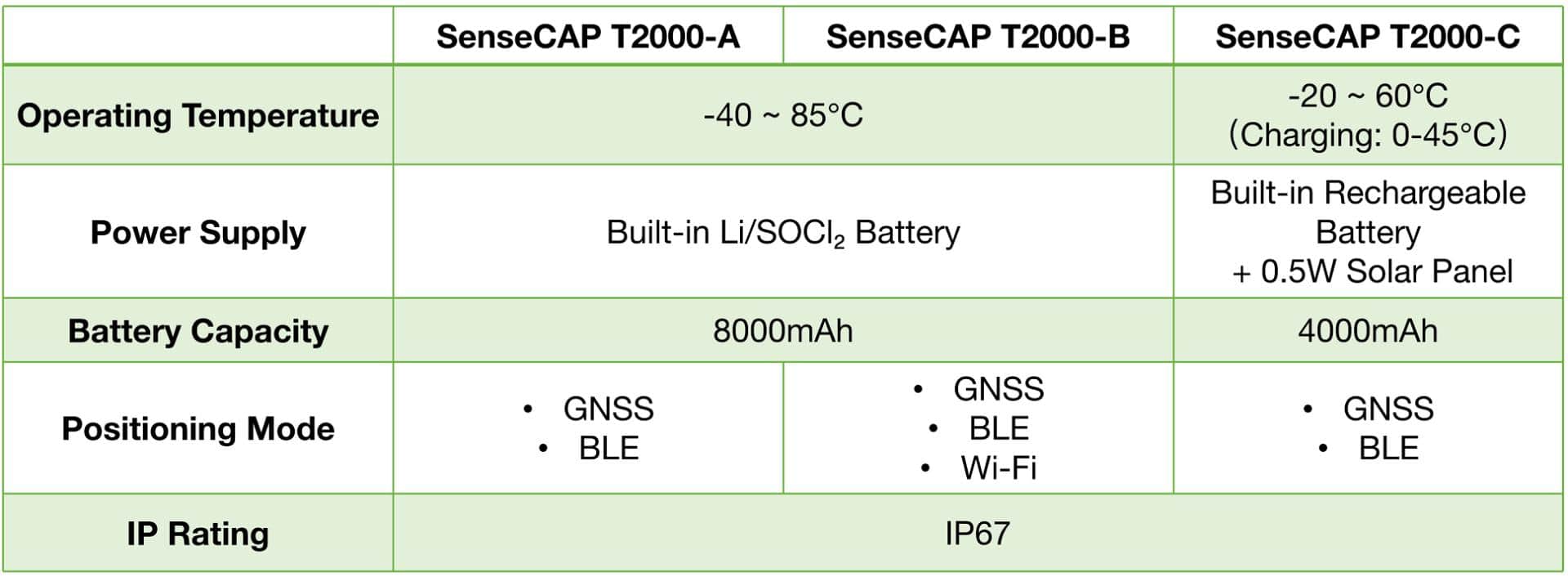

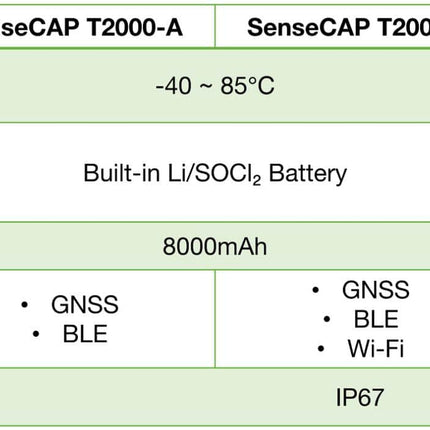

Product Models
|
T2000-A, T2000-B, T2000-C
|
|
Positioning Method
|
GNSS: L76K
GPS L1 C/A, QZSS L1: 1575.42 MHz
GLONASS L1: 1602.5625 MHz
BeiDou B1: 1561.098 MHz
|
|
BLE: nRF52840
Bluetooth 5.0
|
|
Operating Temperature
|
-40 ~ 85℃
|
|

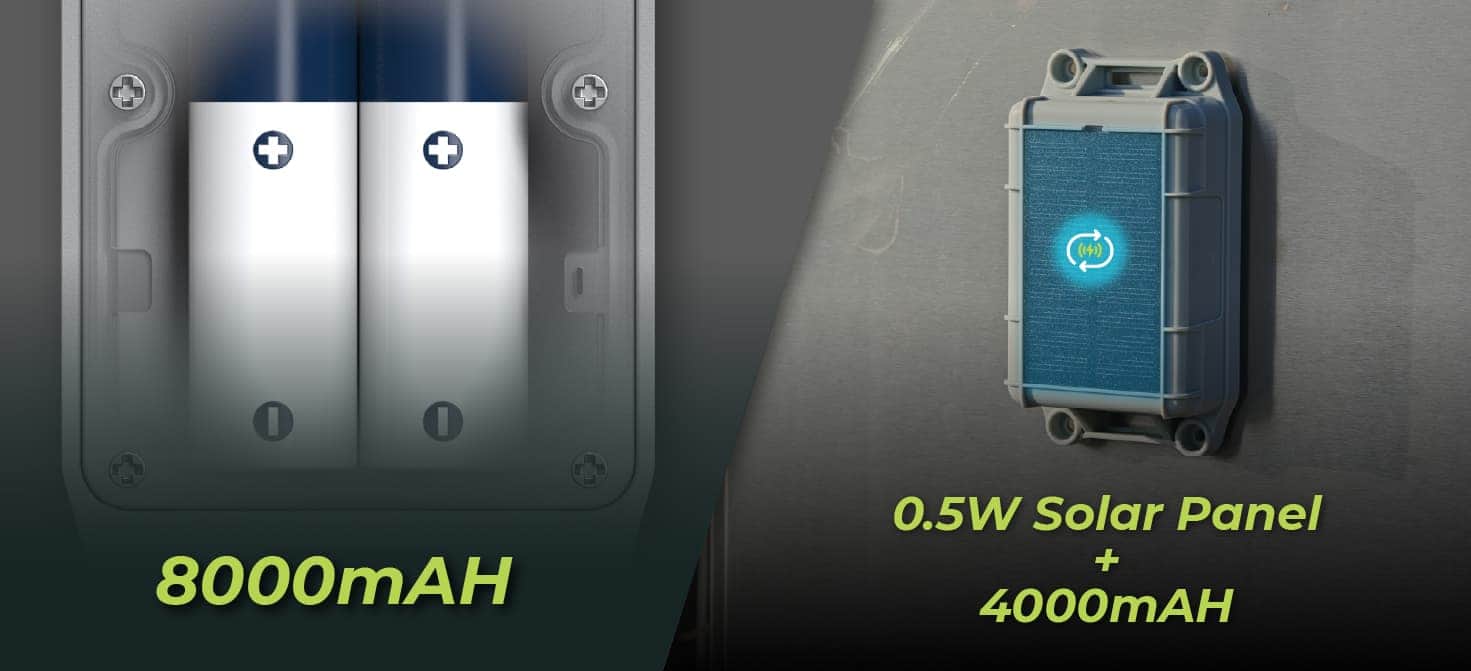

Power Supply
|
Primary Battery, or
0.5W Solar Panel + Rechargeable battery
|
|
Battery Type / Capacity
|
Li/SOCl2 (ER18505) / 8000mAh,or
Ternary lithium battery (INR18500np) / 4000mAh
|
|
Enclosure Material
|
PC + 10% Glass Fiber
|
|
Protection Rating
|
IP67
|
|

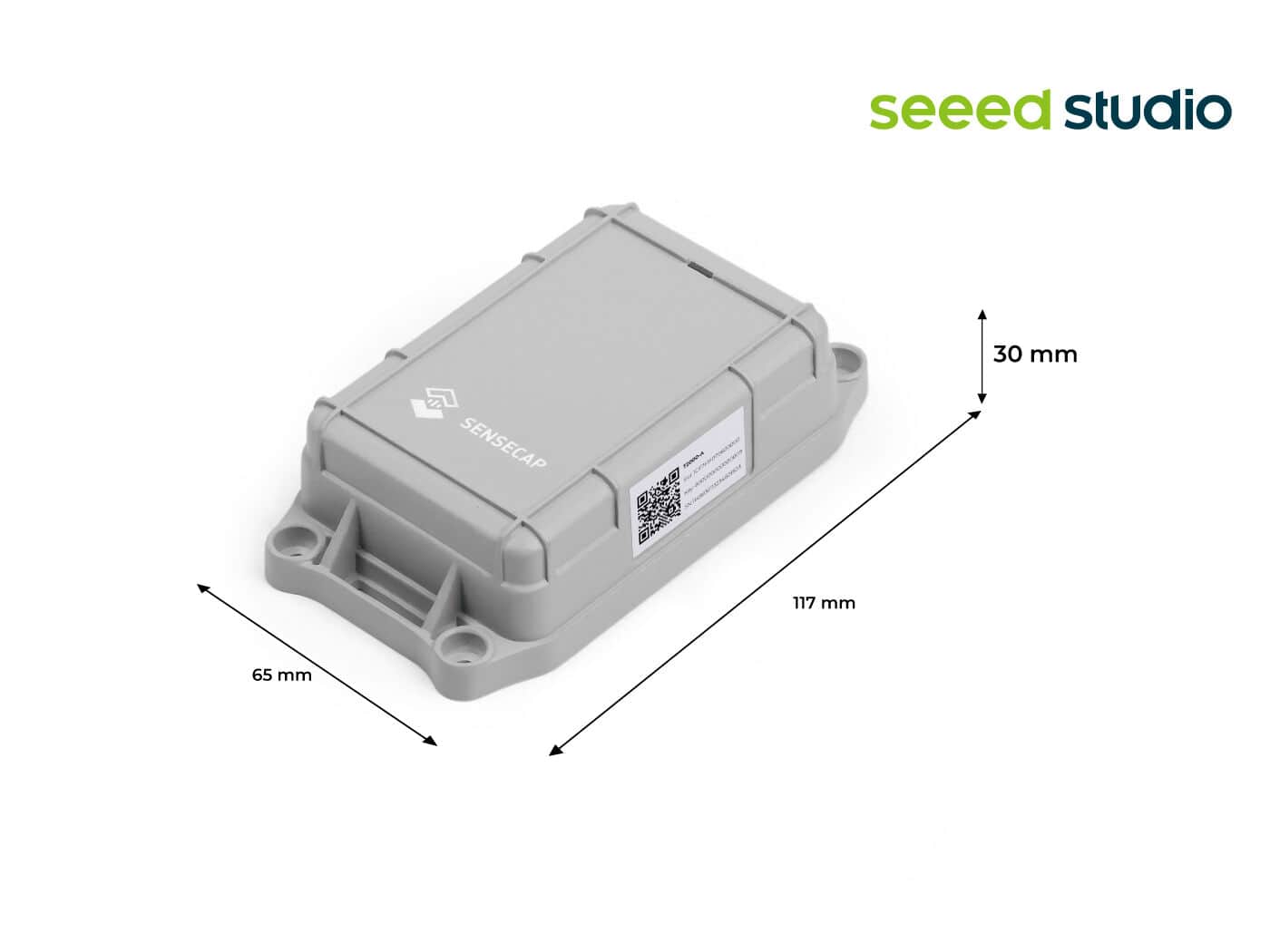

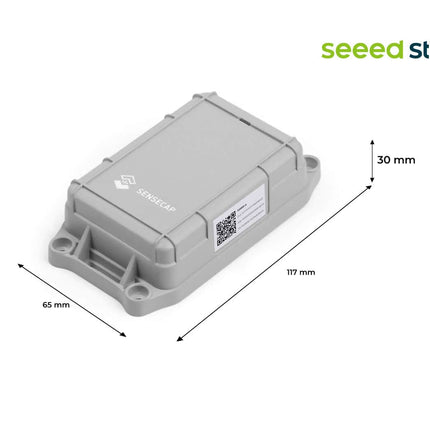

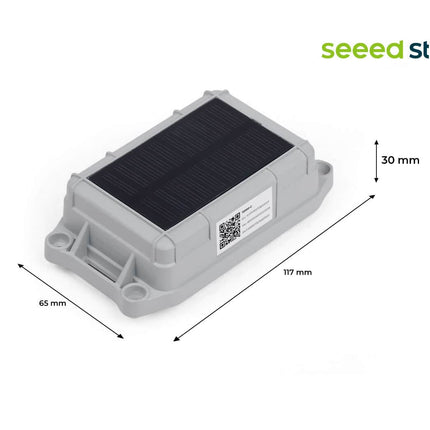

Dimensions
|
117x65x30mm
|
|
Weight
|
180g
|
