Description
SenseCAP Universal Outdoor Enclosure for Indoor Gateways and Hotspots, suitable for SenseCAP M1, M2, BobCat, RAK, Nebra and more LoRaWAN gateways and Helium hotspots
For more information about Helium Network and how it works, please refer to THIS LINK

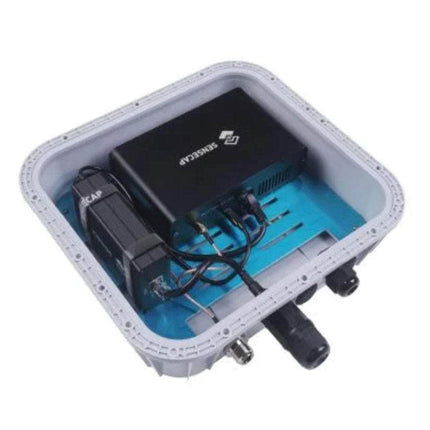

The Kit includes all necessary parts to take your SenseCAP M1 (Miner NOT INCLUDED IN THE KIT) outdoor in a secure and durable casing.
Combined with the 5.8dBi fiberglass antennas, this kit will allow you to better position your Miner and maximize your rewards without a compromise to harsh outdoor conditions
Features
-
IP66 Waterproof Outdoor Enclosure that is suitable for most of the Helium hotspots (E.g.: SenseCAP M1, SenseCAP M2, BobCat, RAK, Helium hotspot, etc.)
-
Simple steps with all accessories needed to upgrade your indoor gateways to the outdoor ones
-
Easy to get wider range coverage of your LoRaWAN application
-

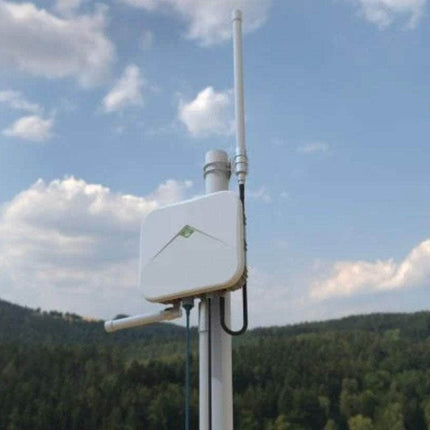

Flexibility to assemble to the wall or a pole with the mounting kit
-
Multiple useful interfaces reserved, including 3* N-type female interface for LoRa Antenna, 1* Ethernet connector with cable gland for Ethernet cable, 1* PG9 interface for power supply, and 1* lightning arrestor ground connector reserved on the bottom cover

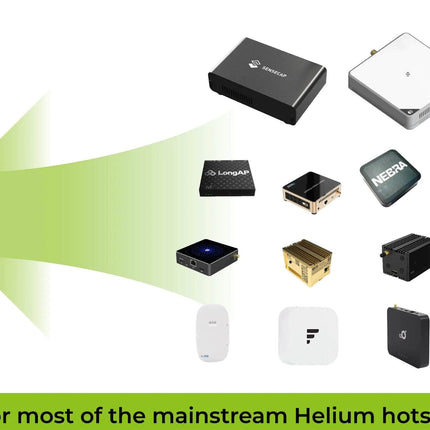

Being specially designed to meet all your needs to put the gateways outdoors, SenseCAP Outdoor Enclosure has a decent size that is able to allocate most of the mainstream hotspots, such as BobCat miner 300, RAK hotspot, Cal-Chip, Nebra, Helium hotspot, etc.

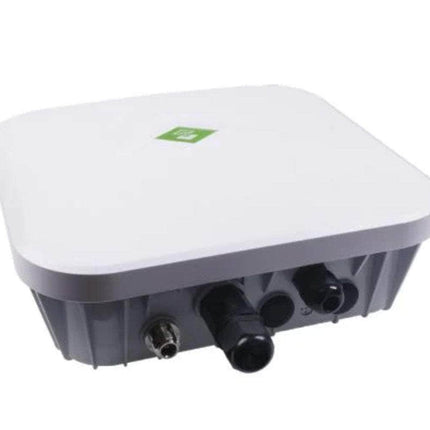

With multiple types of extended interfaces provided, including 3* N-type female interface for LoRa Antenna, 1* Ethernet connector with cable gland for Ethernet cable, 1* PG9 interface for power supply, and 1* lightning arrestor ground connector reserved on the bottom cover, SenseCAP Outdoor Enclosure helps you easily connect your hotspot with the Ethernet cable, fiberglass antenna, 4G antenna, GPS antenna, solar panel power station, lightning arrestor, etc. IP66 waterproof rate keeps it safe from dust and water when placed outdoors.
Rich accessories are provided for you to assemble. More possibilities are waiting for you to discover with your gateways! Bring your IoT applications into the wild with SenseCAP Outdoor Enclosure Kit now.
Specification
-
Material: PC
-
Waterproof Rate: IP66
-
Maximum ambient temperature -40~85°C
-

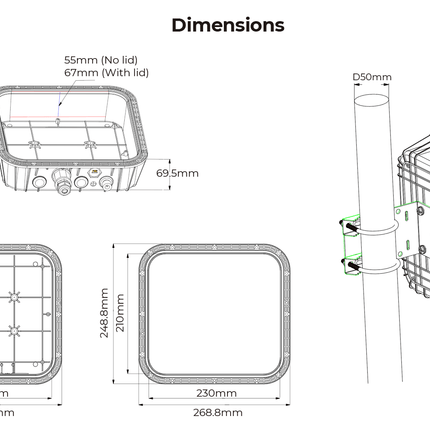

Enclosure Size (connectors excluded): 255*275*92mm
-
Package Size: 360*320*125mm
-
Gross Weight: 2.2 kg
-
Port: Holes for N-type antenna cable gland *3, Hole for Ethernet cable gland *1, PG9-hole*1
Attention
The working temperature of the outdoor enclosure is -40~85°C, however, users should always keep in mind that it is important to make sure the inner temperature does not exceed the specified working temperature range of each component assembled inside, such as the hotspot, PoE, and battery management controller.
If your placement is in a high-temperature weather area and has a long period of direct sunlight, it is highly suggested to add an additional cover or put the enclosure under the solar panel to prevent overheating damage to the internal device.
Please note that SenseCAP will not be responsible for the damage to the inside devices due to users' misuse in inappropriate weather conditions and placement.
Note
All cable glands and connectors are not assembled to the enclosure holes, providing users with more flexibility to choose what to use based on different scenarios. Waterproof silicon plugs are provided for the unused holes.

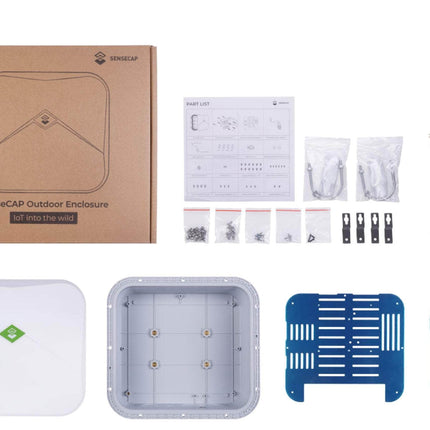

Part List:
Recommended Antenna:
https://www.iot-store.com.au/collections/helium-hotspot/products/lora-fibreglass-antenna-3dbi
https://www.iot-store.com.au/collections/helium-hotspot/products/lora-fibreglass-outdoor-antenna-full-wave-high-gain-omni
