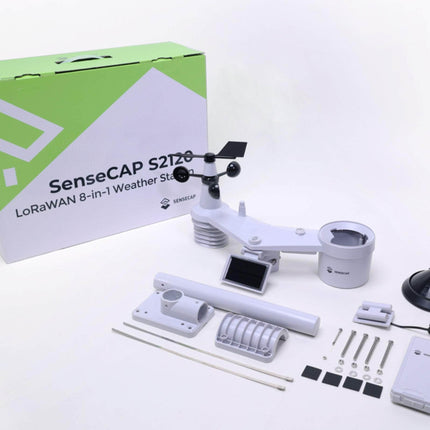

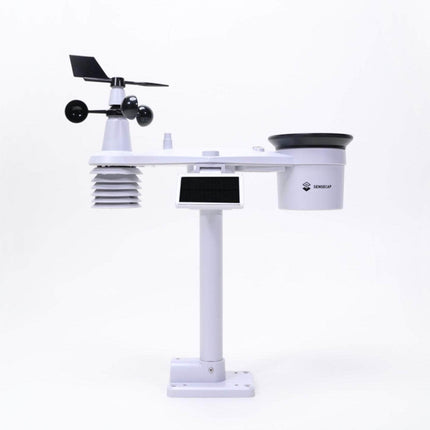

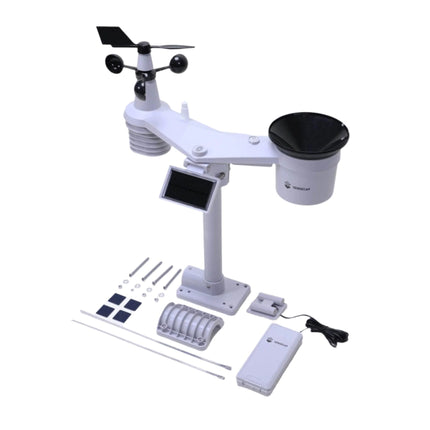

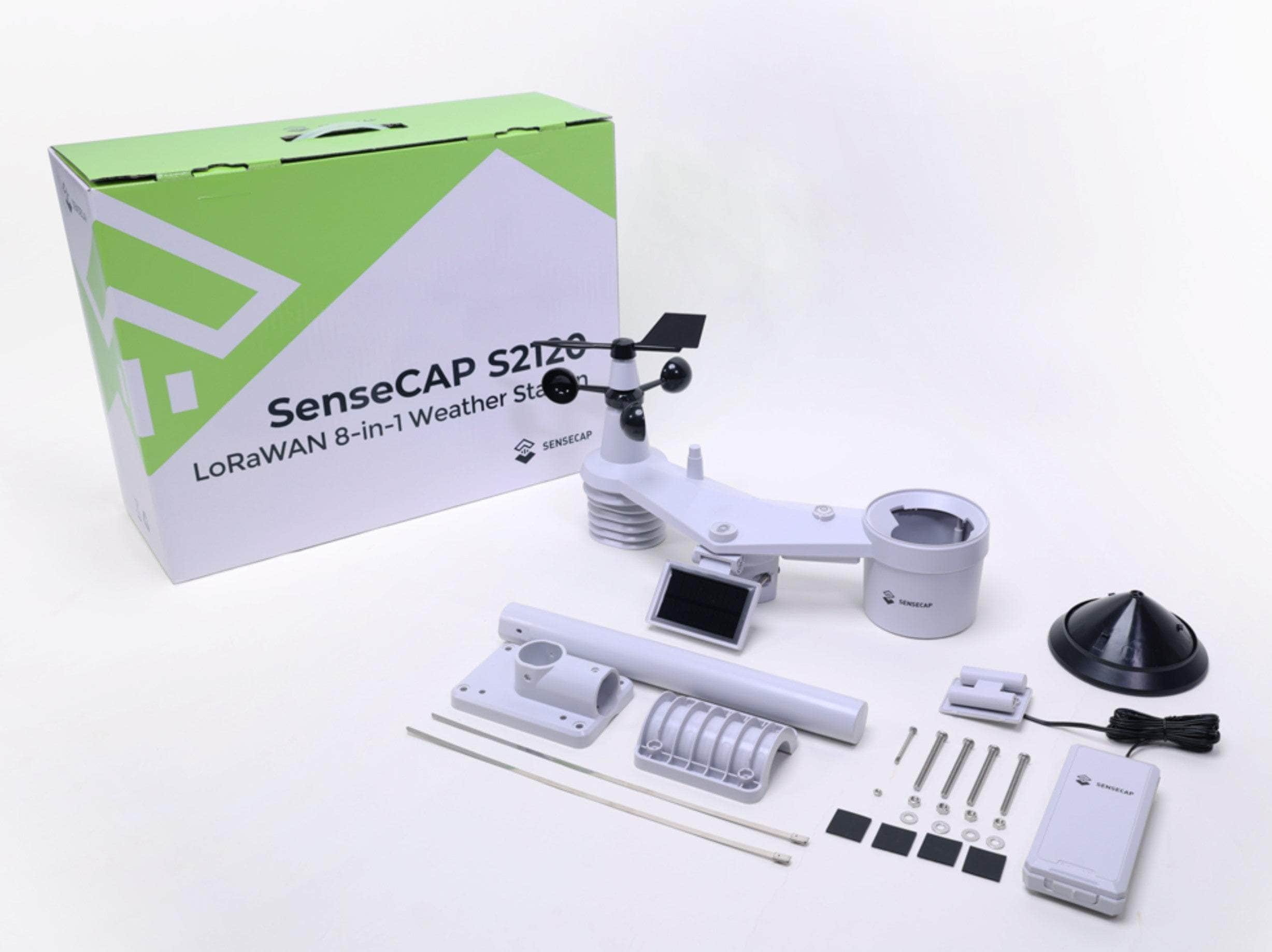

    SenseCAP S2120 LoRaWAN Weather Station 8 sensors

    SenseCAP LoRaWAN S2120 Weather Station collects and uploads 8 sensors: air temperature, humidity, wind speed/direction, rainfall, light intensity, UV index, and barometric pressure data supported by worldwide LoRaWAN networks. The S2120 weather station is suitable for applications in gardens, agriculture, meteorology, urban environmental monitoring, and other scenarios. It also enables low maintenance cost for its ultra-low power consumption, reliable performance, and built-in Bluetooth for OTA configuration and remote device management.

    Features

    • Bluetooth Configuration in 1 min & Remote Management: finish the configuration work in just a few clicks, enable remotely monitor and manage real-time and historical data via the SenseCAP Mate App and SenseCAP Portal

    • Ultra-low Power Consumption, Easily Replaceable Battery & Expandable Capacity: powered by 0.5W solar panel and 3*standard 1.5V AA size dry batteries with up to 2 years service life (support external battery compartment with capacity for six batteries to double the service life)

    • Reliable Performance: suitable for outdoor harsh environments such as high UV exposure, heavy rain, dusty conditions, etc

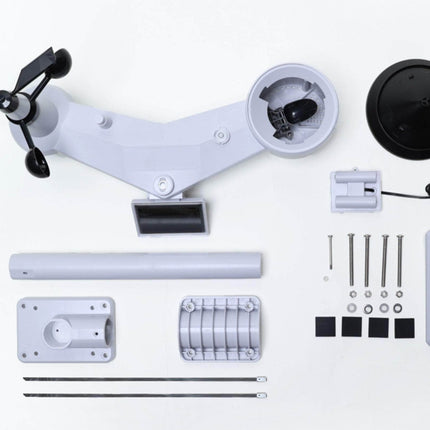

    • One-stop Deployment & Flexible Layout: accessories include poles, mounting stand, etc. for quick installation and can be set up at almost any location

    • Customizable GPS function: we provide GPS function customized service by the WM-LR1110 module

    Scan-and-Play Simplicity, Easy Configuration via Bluetooth in Just 1 min

    Built-in Bluetooth avoids time-consuming configuration works to bring no code experience to individuals with less or no technical background to quickly get started with weather detection.

    Powerful SenseCAP Mate App: data visualization and remote device management

    Compatibility with Multiple Networks and Platforms: easily integrates with existing worldwide  LoRaWAN networks

    How to Select Gateway:

    LoRaWAN network coverage is required when using sensors, there are two LoRaWAN network options.

    Option 1: Sensors work in areas covered by Helium Network (Check on Helium Explore Map).

    Option 2: Sensors work in a standard LoRaWAN network, like The Things Network, Loriot, Chirpstack, etc.



    Multi-scenario Application

    • Backyard and Garden: Measure air temperature and humidity, rainfall, UV index, etc. in the backyard and garden to protect your family.

    • Smart Agriculture: Enable farmers to obtain climate data and information in time, take scientific management measures into production, and improve agricultural production capacity and level.

    • Meteorology: Support applications in the professional meteorological field, for example, timely reflect the changes of various abnormal meteorological conditions in the field of traffic and transportation to provide real-time scientific basis data for traffic management departments.
    • Urban Weather: Provide real-time data for urban squares, parks, scenic spots, golf courses and other urban areas.

    Ultra-low Power Consumption which is suitable for grid distribution

    8-in-1 Weather Station: collect and upload air temperature, humidity, wind speed/direction, rainfall, light intensity, UV index, and barometric pressure data via LoRaWAN



    Specification

    Air Temperature

    Rain Hourly

    Range

    -40.0 ~ 80.0 ℃

    Range

    0 ~ 450 mm/h

    Accuracy

    ±0.5℃ (0~80℃); ±0.6℃ (-40~0℃)

     Accuracy

    ± 7%

    Resolution

    0.1℃

    Resolution

    0.254 mm/h

    Air Humidity

    General Parameters

    Range

    1~99 %RH

    Product Model

    S2120

    Accuracy

    ±3% (1~90%RH); ±4% (90~99%RH)

    Microcontroller

    WM-LR1110

    Resolution

    1%RH

    Support Protocol

    LoRaWAN v1.0.3 Class A

    Barometric Pressure

    Built-in Bluetooth

    App Tool to change parameters

    Range

    540 ~ 1100hPa

    LoRaWAN Channel Plan

    IN865/EU868/US915/AU915/ AS923/KR920/RU864 *

    Accuracy

    ±5hPa(700~1100hPa);

    ±8hPa (540 ~ 699hPa)

    GPS

    Need to customize

    Resolution

     1hPa

    LoRaWAN Max Transmitted Power

    21dBm

    Wind Speed

    LoRa Sensitivity

    -141dBm@SF12 BW=125KHz

    Range

    0~50.0m/s

    Communication Distance

    2 to10km (depending on gateway antenna and environments)

    Accuracy

    ±0.5m/s(<5m/s ); ±10% (> 5m/s)

    Protection grade

    Suitable for outdoor scenes

    Resolution

    0.1 m/s

    Operating Temperature

    -20 to +60 °C (Alkaline battery)

    -40 to +60 °C (Lithium battery)

    Wind Direction

    Operating Humidity

    0~99%RH

    Range

    0~360°

    Device Weight

    1.5kg

    Accuracy

    ± 8°

    Certification

    CE / FCC / RoHS

    Resolution

    Power Supply

    Light Intensity

    Solar Panel



    0.5W (When there is sunlight, solar panels will be used first, otherwise batteries will be used)

    Range

    0 ~ 200000 lux

    Battery Type**

    AA size, 1.5V batteries (alkaline or non-rechargeable Lithium battery)

    Accuracy

    ± 5%

    Number of Battery

    Option1, built-in battery box: 3 * AA battery ;

    Option2, external battery box: 6 *AA battery

    Resolution

    1lux

    Battery Life

    2 years (Solar Panel + 6*AA Battery, 1h/uplink)

    UV Index

    External Battery Box

    Support 6 * AA 1.5V batteries

    Cable: 2m

    IP Rating: IPX6

    Range

    0 ~ 16.0

    * A device supports different frequencies and can be configured via the Bluetooth App.

    ** The battery life varies from data upload interval and distance between gateway.





    Accuracy

    ±10%

    Resolution

    0.1



    LoRaWAN Frequency

    Note: No Frequency limitation. Weather stations can be switched to other frequency plans at any time.

    S2120 is manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, it can support the frequency plans below:

    Frequency Plan

    Common Name

    Sub-band

    EU863-870

    EU868

    ___

    US902-928

    US915

    Sub-band from 1 to 8

    AU915-928

    AU915

    Sub-band from 1 to 8

    AS923

    AS923

    AS923_1, AS923_2, AS923_3, AS923_4

    IN865-867

    IN865

    ___

    KR920-923

    KR920

    ___

    RU864-867

    RU864

    ___

    The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.
