SenseCAP Solar Node P1 and P1 Pro for Meshtastic

Description

SenseCAP Solar Node P1 and P1 Pro for Meshtastic

It is an economical solar-powered comms node or repeater based on Meshtastic. It meets basic comms needs in no - network zones. Unlike P1-Pro, P1 lacks a built-in GPS module and four 18650 batteries, yet keeps core comms. It's perfect for budget-constrained scenarios or those not needing precise location, like environmental monitoring and short - range network setups.

Feature

Note:

SenseCAP Solar Node P1 is cost-effective and lacks the XIAO L76K GPS module and four 18650 batteries. But users can buy and install them independently. For the model with positioning and batteries, opt for the SenseCAP Solar Node P1-Pro.

To add a battery, use a button-top 18650 battery.

  • Integrated with a 5W solar panel, and supports external batteries (which need to be provided by users themselves).
  • The device comes pre-installed with Meshtastic firmware at the factory. It can be seamlessly integrated into the Meshtastic ecosystem.
  • Compatible with the Grove ecosystem, and supports plug-and-play of sensors such as temperature and humidity sensors, light sensors, etc.
  • It is suitable for long-term outdoor use.
  • Supports 8 to 9KM Transmission in open areas. It can be used as an outdoor node or repeater, easily expanding the Mesh network and enhancing network coverage.

  • Accessory OptionsIf you need an antenna with higher gain, we recommend the 860-930MHz 3dBi fiberglass antenna.
    • Plug-and-play: Comes with a standard RF cable, which can be directly inserted into the pre-drilled hole (standard D-shaped hole) on the Solar Node bracket
    • Three-step installation: Align → Insert → Lock


Specification

Main controller

XIAO nRF52840 Plus(Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash)

LoRa Module

Wio-SX1262 Module(Semtch SX1262, TXOP=22dBm@862-930MHz)

GPS Module

Users self-purchase and addXIAO L76K(Support GPS/GLONASS/Galileo)

Antenna

LoRa:

Type: Rod-shaped rubber antenna

Frequency range: 868-915MHZ

Gain: 2dbi

GNSS:

GPS L1 C/A: 1575.42MHz

GLONASS L1: 1602MHz

BeiDou B1: 1561.098MHz

Bluetooth 5.0

Solar Panel

5W

Interface

Grove *1: IIC/GPIO

USB-C debugging

Button

Power on/off

Reset

User-defined

LED

Charging status indicator lights *2

Solar panel status indicator light *1

Mesh heartbeat light *1

User-defined *1

Power supply

5V

Battery

Users self-purchase and add

Dimension

191.2 x 201.2 x 42.1 mm

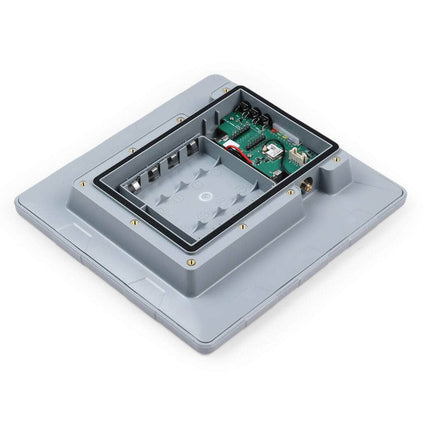

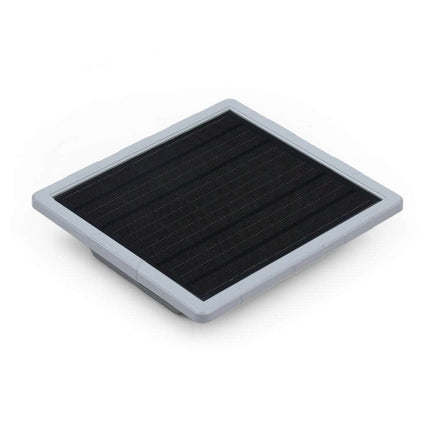

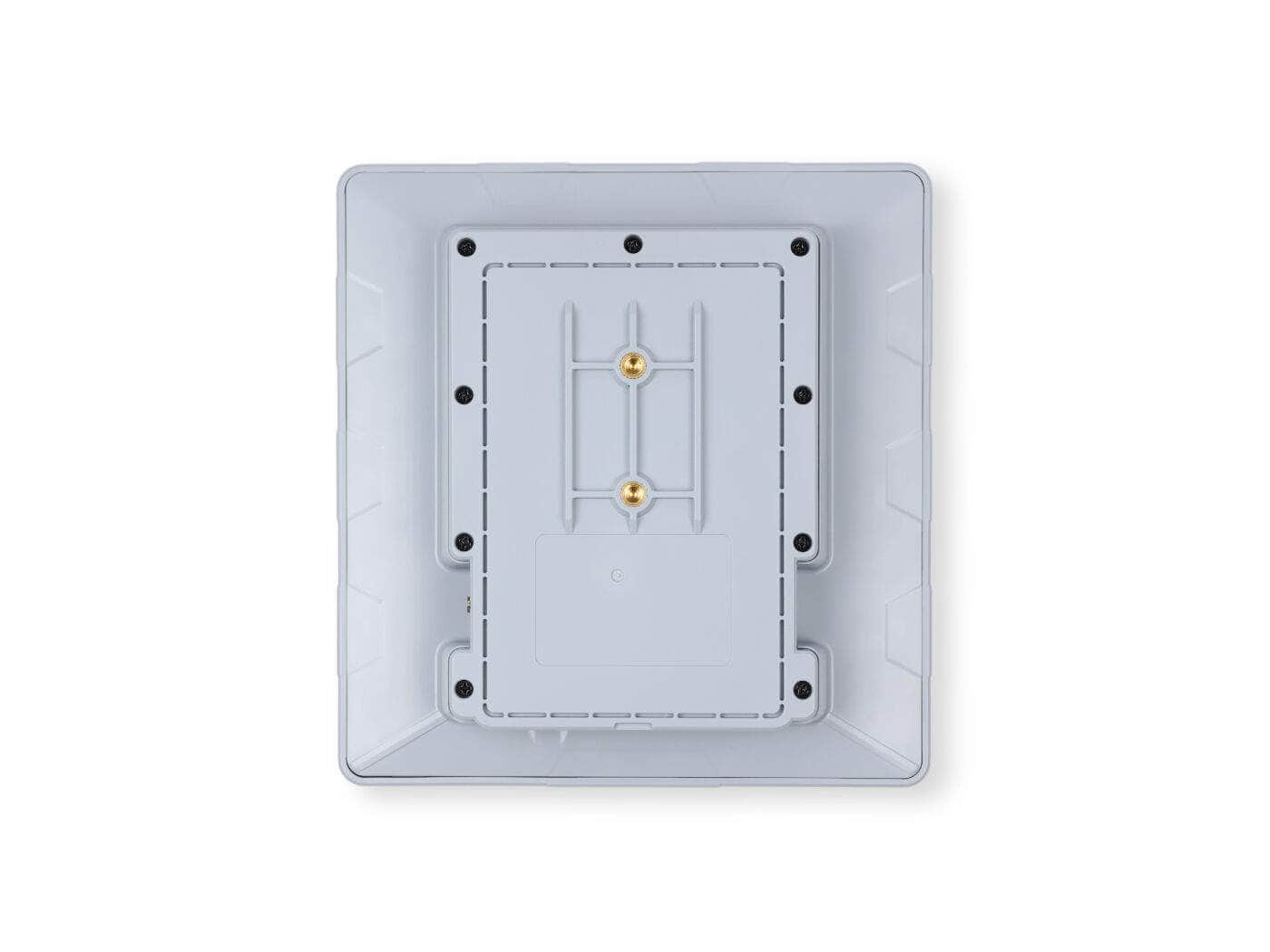

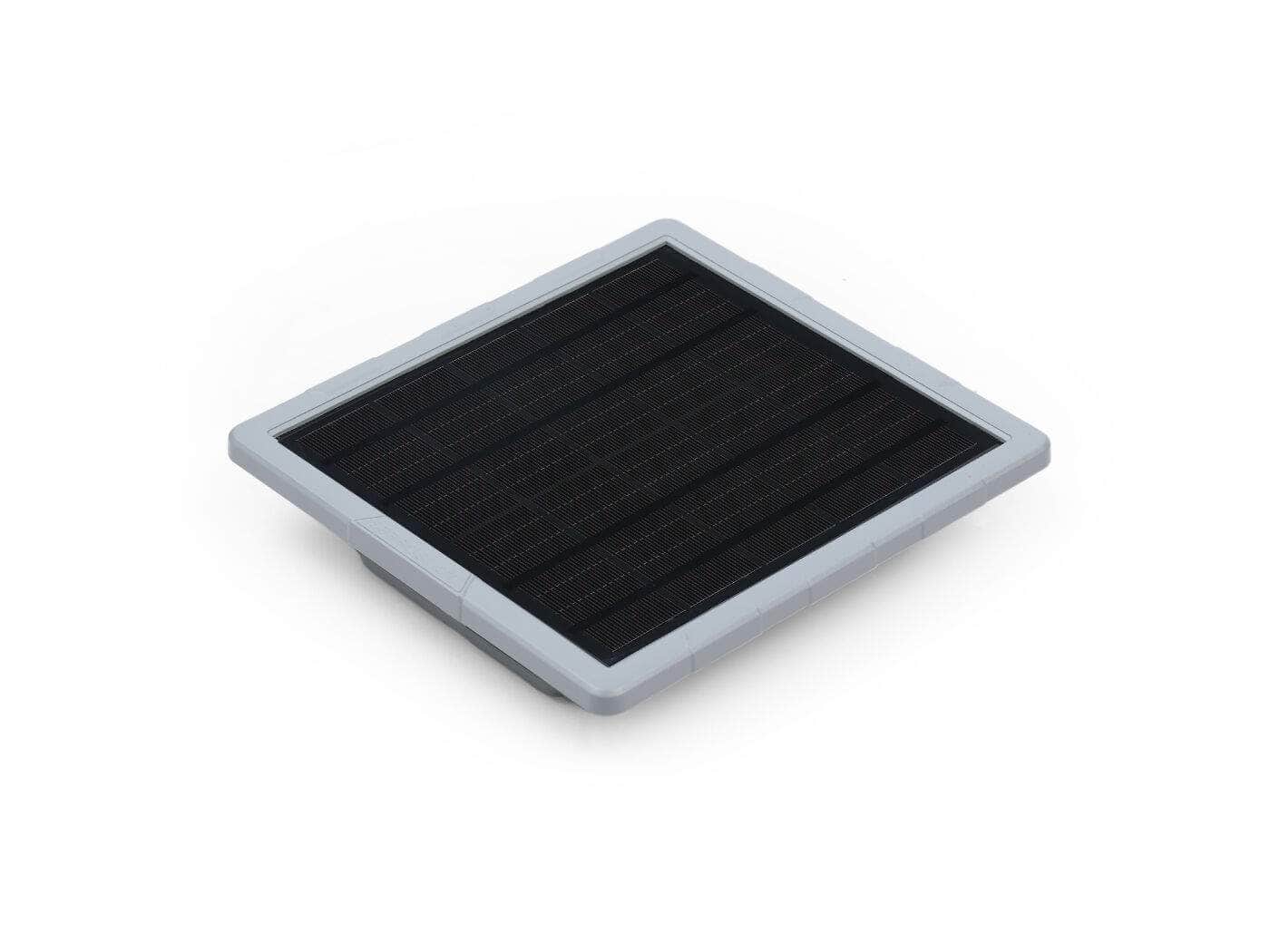

Hardware Overview

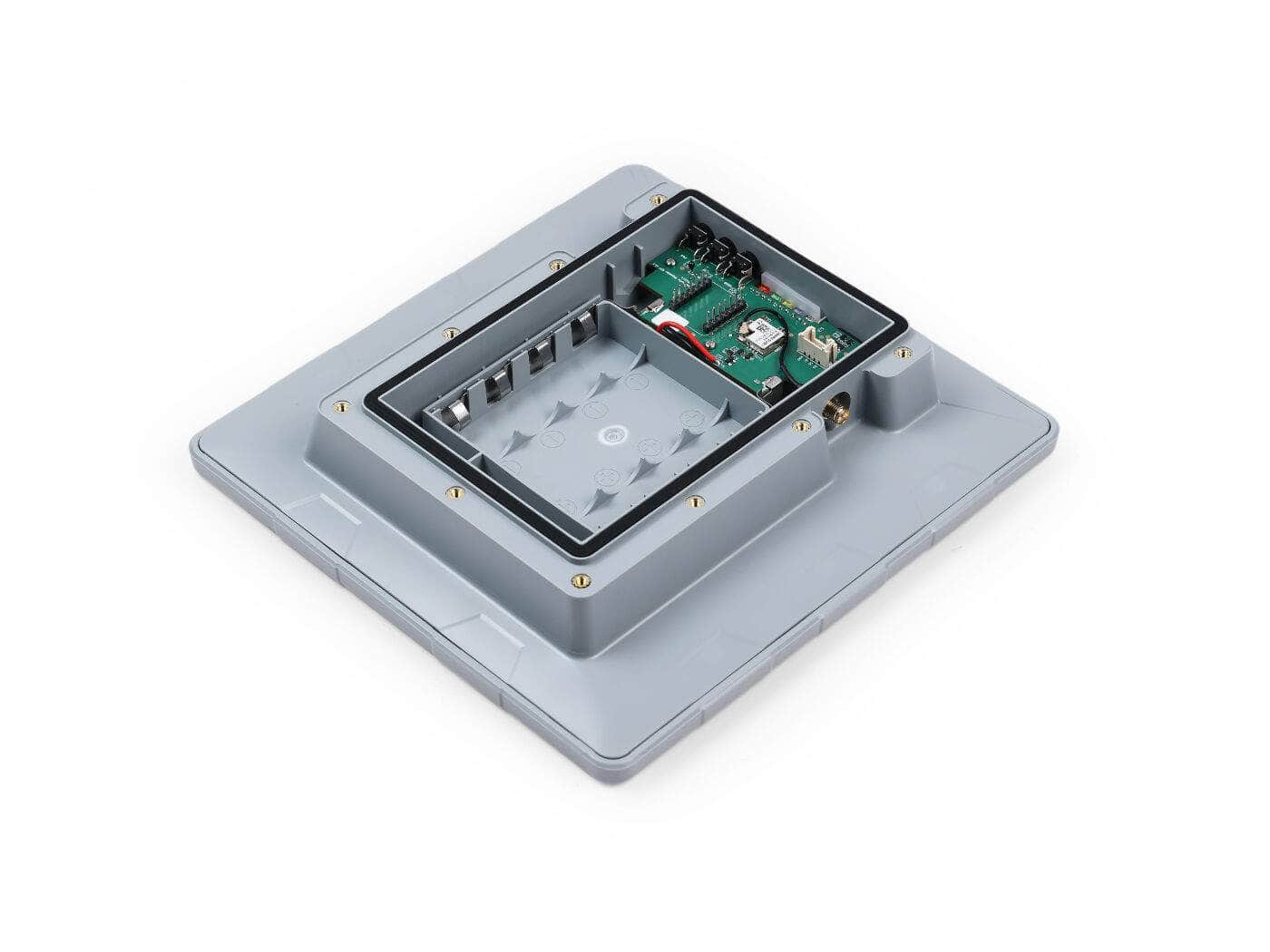

  • Diagram

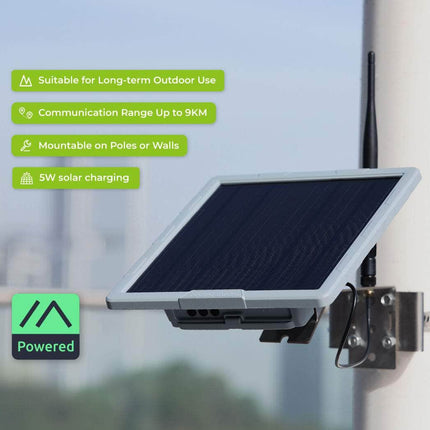

  • Overall effect diagram

  • Accessories diagram

    2dbi, 868~915MHz rubber rod antenna

    Universal joint bracket, angle adjustable.

    Bracket connector, can support the antenna

    RF Cable; RP-SMA Male to RF-SMA Female; 300mm

    Hoop bracket

    Diameter:

    70-100mm

    Hoop ring

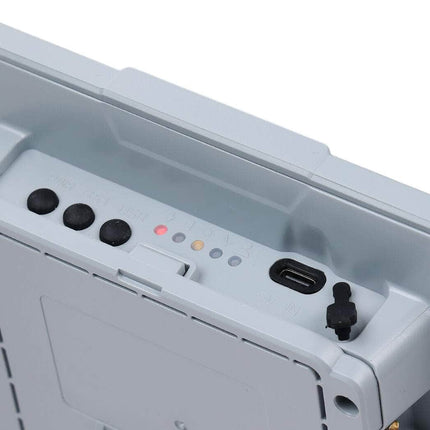

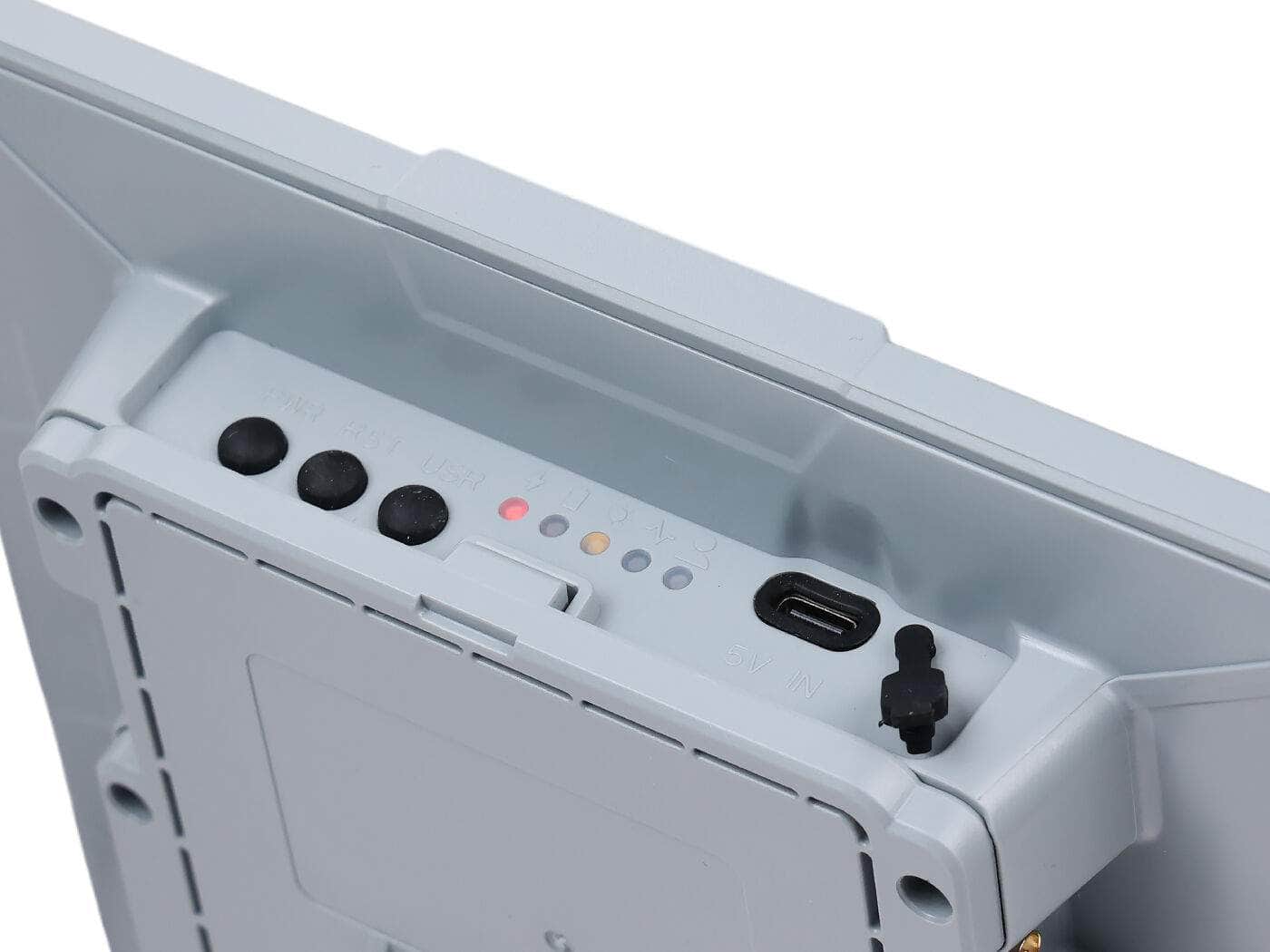

  • Interactive items

    Power switch

    Reset

    User-defined

    Red light on: Charging

    Green light on: Charged

    Yellow light on: Device is exposed to light.

    Blue light: Mesh heartbeat

    White light: User-defined

    Type-C: 5V 1A

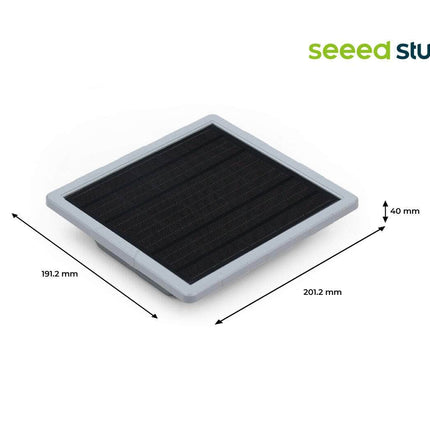

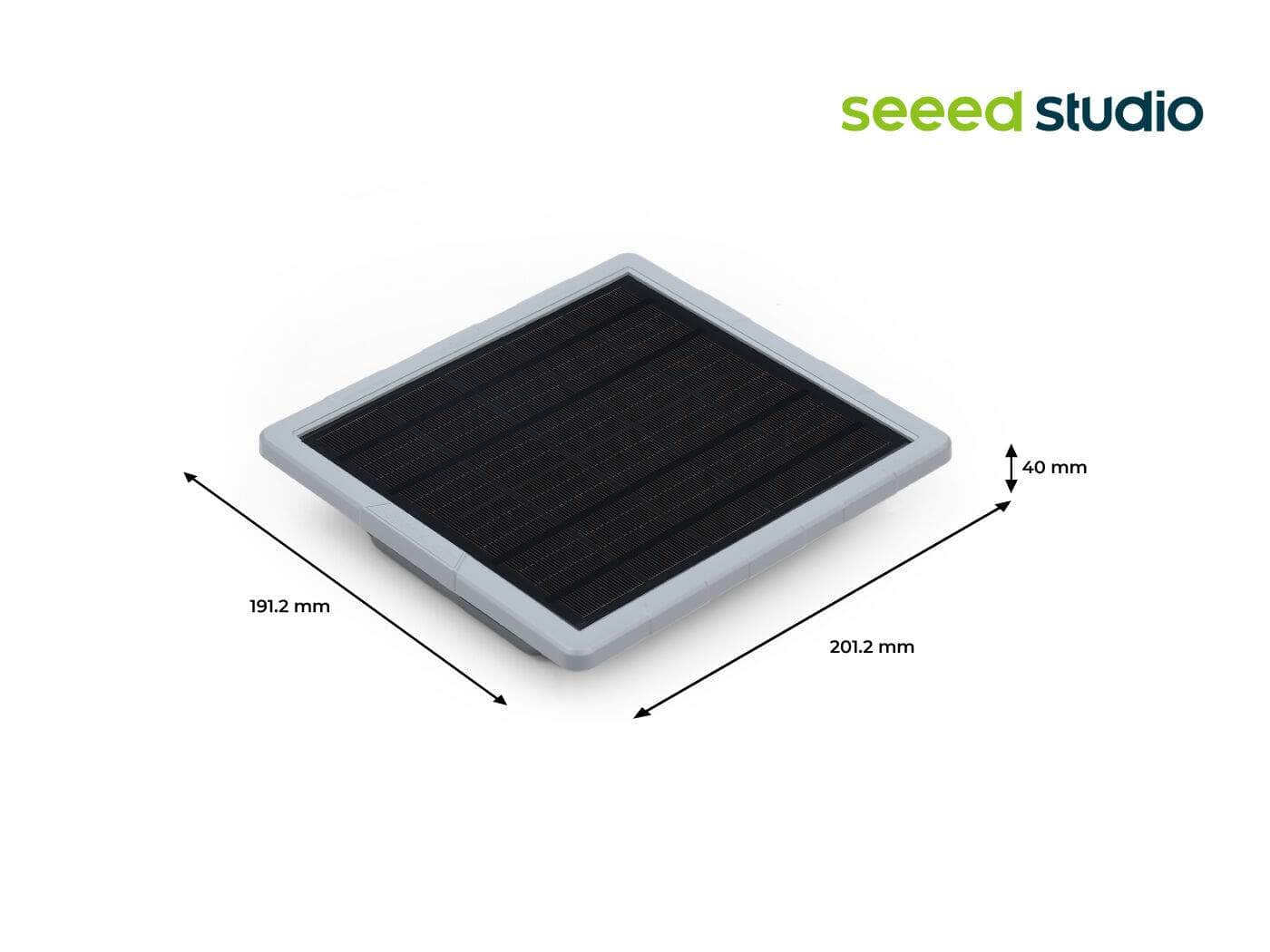

    Dimension diagram

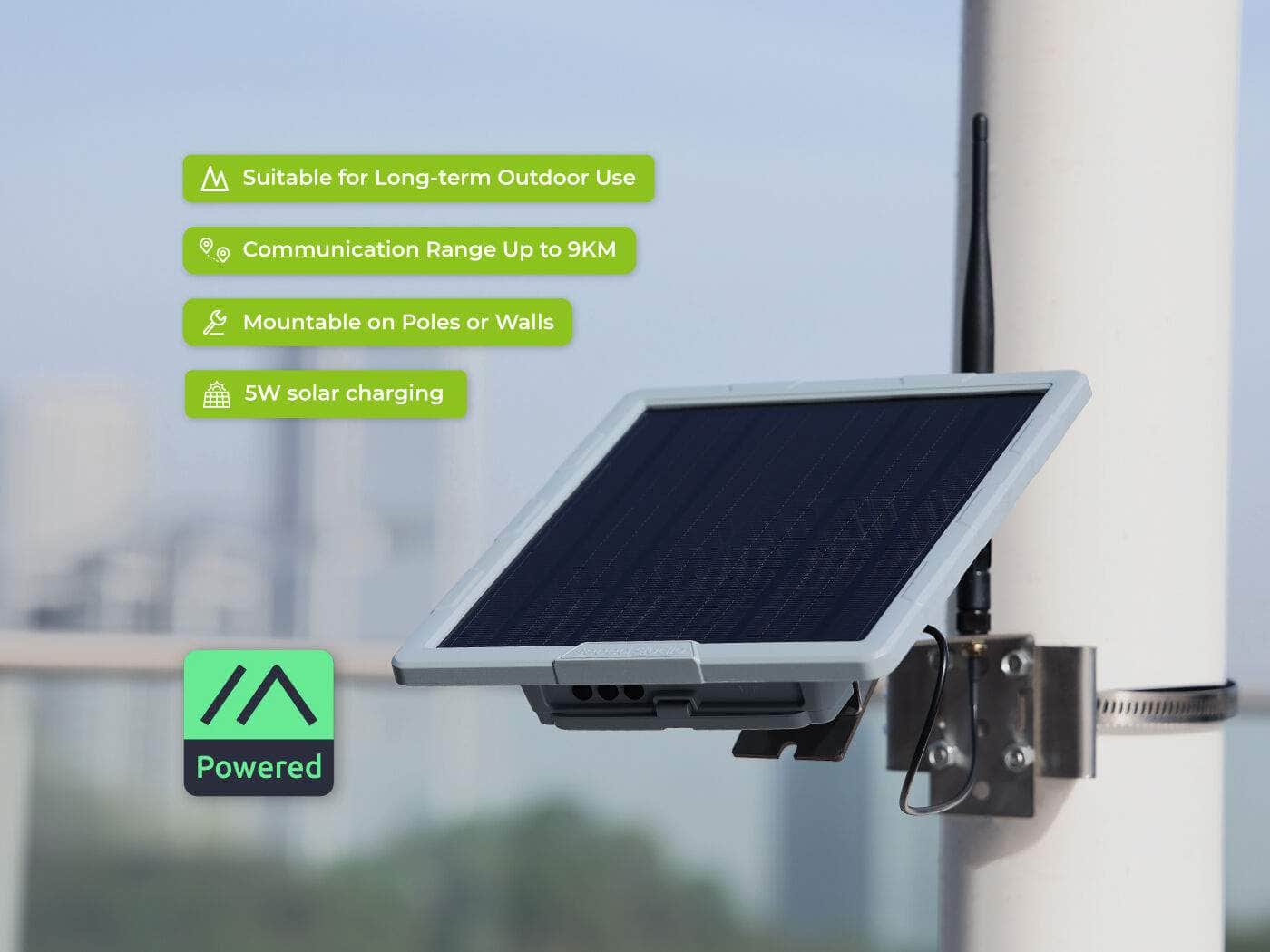

Application

  • Outdoor Adventure: Send real-time location and text messages in areas without network coverage.
  • Mesh Network Expansion: Serve as a Mesh relay node to expand the coverage of the existing Meshtastic network. Support multi-hop transmission, where data can be relayed through multiple nodes, enhancing network reliability.
  • Educational Experiments: Learn about the development of Meshtastic and LoRa decentralized networks.
  • Environmental Monitoring: Provide a Grove interface to connect sensors for remote monitoring of the environment (such as temperature, humidity, air quality, etc.).

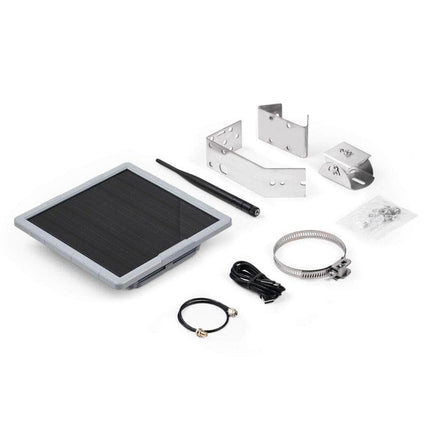

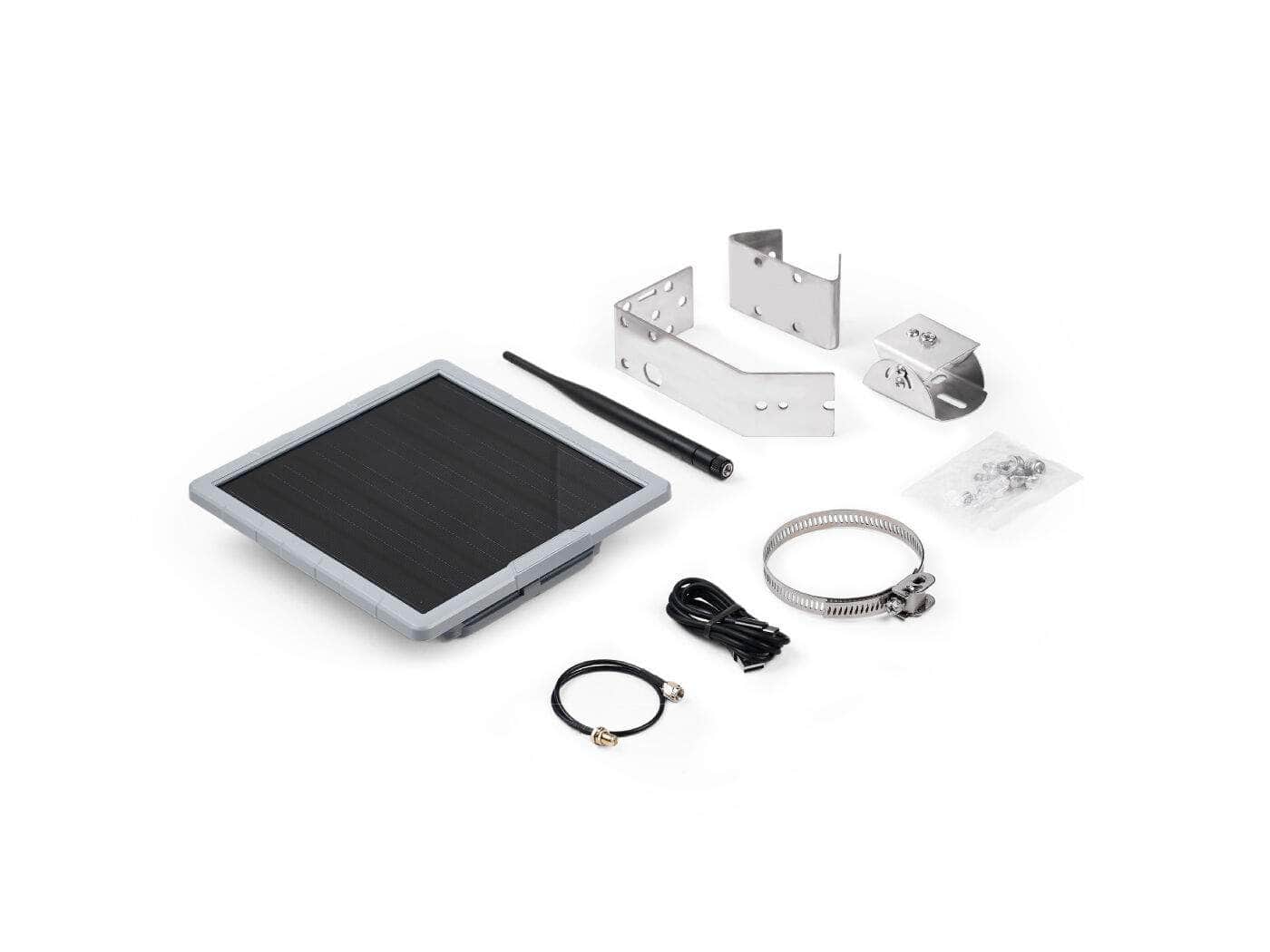

Part List

SenseCAP Solar Node P1 (without GPS & battery)

x1

Mounting Brackets

● Universal Joint

● Connector

● Hoop Bracket

● Hoop Ring

x1

2dBi 868 - 915MHz Rubber Rod Antenna

x1

RF Cable: RP-SMA Male to RF-SMA Female-300mm

x1

Black Type-C Cable

x1

User Manual

x1
