SentryX 4G Cellular Asset Tracker GNSS long-life Replaceable Battery Weather-Proof
Ultra-Long Life 4G GPS Asset Tracker for Containers, Trailers & Industrial Equipment
The SentryX 100 Series 4G Asset Tracker is a rugged, ultra-low-power GNSS tracking device designed for long-term monitoring of valuable assets in logistics, transportation, and industrial environments.
Powered by a long-life replaceable lithium battery, the SentryX 100 can operate for multiple years depending on reporting frequency, making it ideal for large-scale deployments where maintenance access is limited. The device combines 4G LTE connectivity, multi-constellation GNSS positioning, and intelligent power management to provide reliable asset tracking across global supply chains.
Its IP67 waterproof enclosure and robust industrial design ensure dependable performance in harsh outdoor environments such as container yards, rail transport, construction sites, and logistics hubs.
Key Features
Ultra-Long Battery Life
The SentryX 100 series uses non-rechargeable high-capacity lithium batteries designed for multi-year deployments.
Depending on reporting intervals, the tracker can achieve:
-
2.8 years with 2-hour reporting
-
10 years with 12-hour reporting
-
15 years with 24-hour reporting
This makes the device ideal for long-term container or trailer monitoring with minimal maintenance.
4G LTE Connectivity with Global Coverage
Supports 4G LTE Cat-1 with 2G fallback, ensuring reliable data transmission across global cellular networks for asset monitoring and logistics management.
High-Precision GNSS Positioning
The tracker supports multiple satellite systems including:
-
GPS
-
GLONASS
-
BeiDou
-
Galileo
-
QZSS
This multi-GNSS capability provides location accuracy typically better than 1.5 metres CEP, ensuring precise asset positioning.
Multiple Positioning Technologies
The SentryX tracker uses a hybrid positioning system:
GNSS → Wi-Fi scanning → LBS fallback
This ensures reliable positioning even when satellite signals are limited or temporarily unavailable.
Rugged Outdoor Design
Built for harsh industrial environments, the device features:
-
IP67 waterproof enclosure
-
Wide operating temperature range
-
Robust structural housing
-
Flexible mounting with optional magnets
This makes the tracker suitable for long-term outdoor installations.
Smart Motion & Tamper Detection
The built-in vibration sensor allows the device to detect motion events and report asset movement.
Additional security features include:
-
Tamper detection alerts
-
Low battery alerts
-
Geo-fence notifications
-
Theft recovery mode
Flexible Data Communication
Supports a range of communication protocols for integration with IoT platforms and tracking systems:
This enables integration with platforms such as IQFLOW, ThingsBoard, Traccar, and other fleet management systems.
Typical Applications
The SentryX 100 Series is ideal for monitoring and securing:

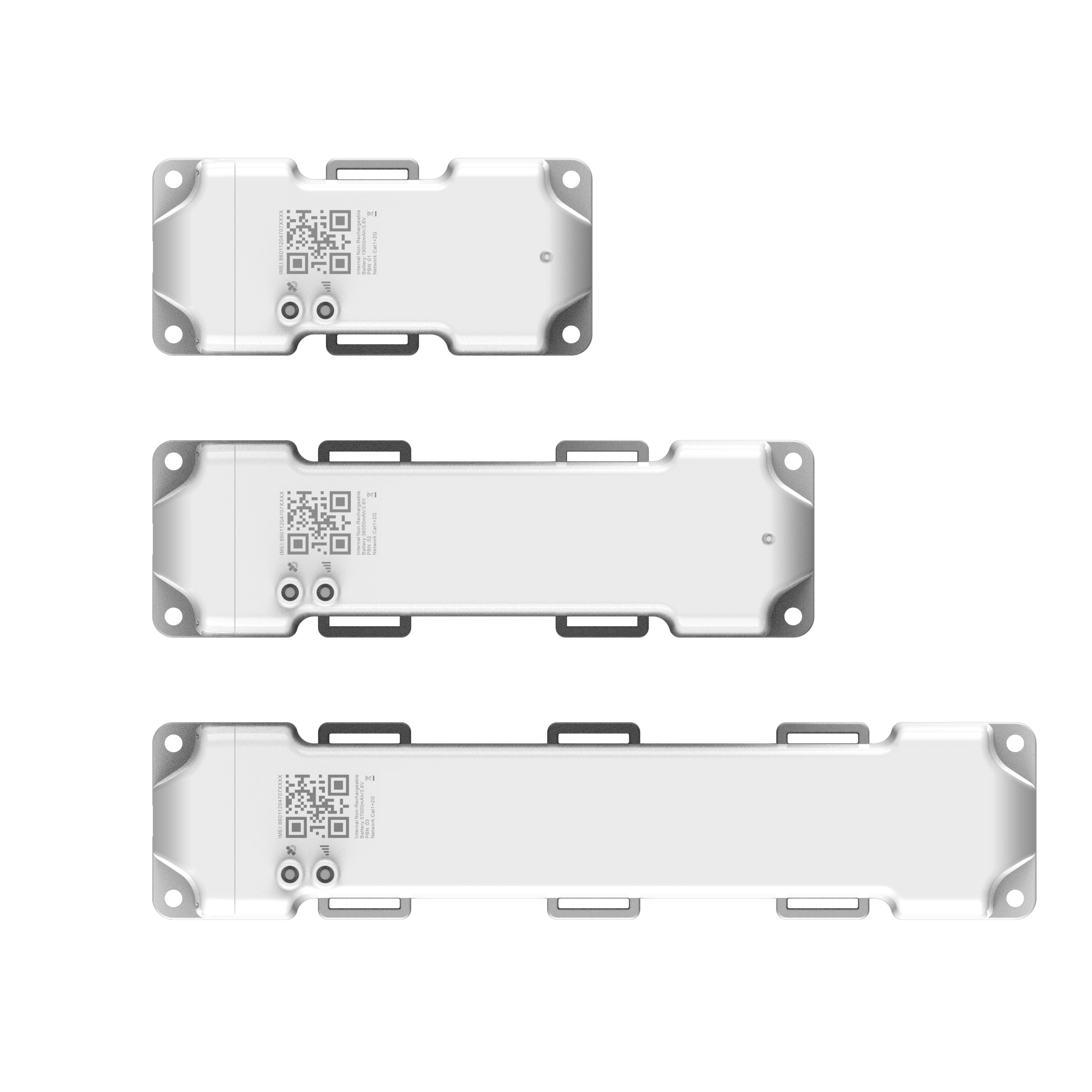

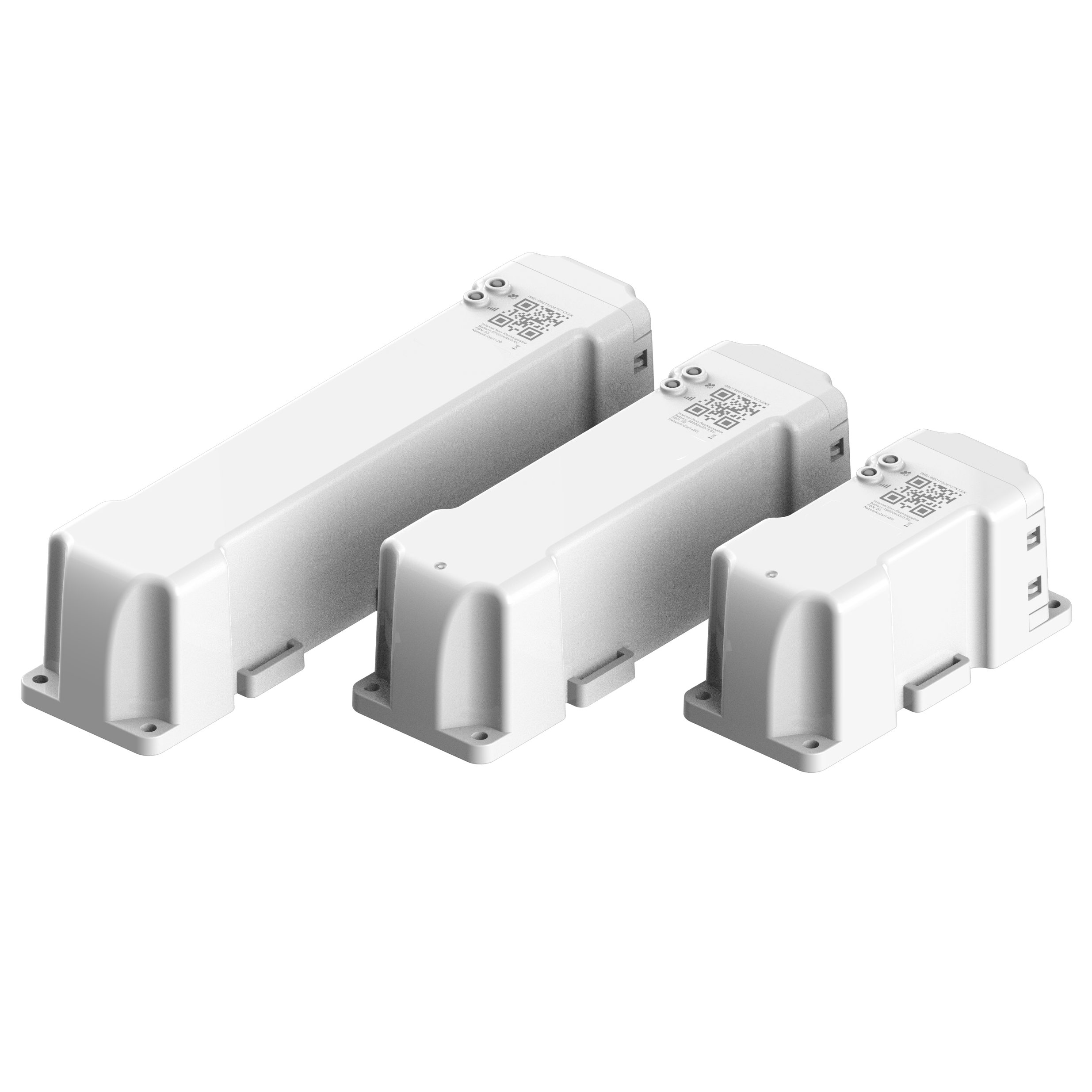

SentryX 100 Series Models
The SentryX series is available with multiple battery capacities to support different deployment durations.
| Model |
Battery Capacity |
Weight |
Dimensions |
| SentryX 100 BN1 |
19,000 mAh |
315 g |
124.7 × 56 × 56 mm |
| SentryX 100 BN2 |
36,000 mAh |
475 g |
187.7 × 56 × 56 mm |
| SentryX 100 BN3 |
57,000 mAh |
665 g |
250.7 × 56 × 56 mm |
Larger battery options provide extended operational lifetime for remote deployments.
Technical Specifications
| Specification |
SentryX 100 |
| Cellular Network |
4G LTE Cat-1 + 2G fallback |
| GNSS Systems |
GPS, GLONASS, Galileo, BeiDou, QZSS |
| Position Accuracy |
<1.5 m CEP |
| Battery |
Replaceable lithium battery (19,000 / 36,000 / 57,000 mAh options) |
| Battery Type |
Non-rechargeable |
| Waterproof Rating |
IP67 |
| Communication Protocols |
TCP, UDP, MQTT, SMS |
| Geo-Fence |
Up to 64 internal regions |
| Motion Detection |
Built-in vibration sensor |
| Temperature Sensor |
Internal |
| Operating Temperature |
−30°C to +85°C |
| Mounting Options |
Magnet or screw mounting |
Key Benefits
✔ Long battery life and replaceable for remote asset monitoring
✔ Accurate multi-GNSS positioning
✔ Rugged waterproof design for outdoor deployment
✔ Supports wireless IoT sensors via BLE
✔ Real-time alerts, including motion detection
✔ Compatible with IoT platforms, including IQFLOW cloud
