SIM7000E NB-IoT & LTE CAT-M1 Raspberry Pi HAT eMTC EDGE GPS GNSS

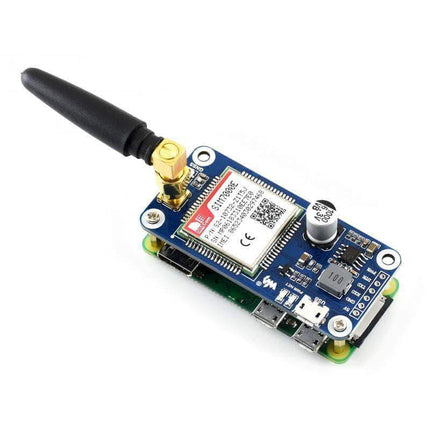

SIM7000E NB-IoT Raspberry Pi HAT eMTC EDGE GPS GNSS
This Raspberry Pi HAT features multi-communication functionalities: NB-IoT, eMTC, EDGE, GPRS, and GNSS.
The NB-IoT (NarrowBand-Internet of Things) and eMTC (enhanced Machine Type Communication) are rising IoT communication technologies evolved from LTE (4G), with advantages include low power, low cost, wide coverage, etc. They are suited for applications such as intelligent instruments, remote controlling, asset tracking, remote monitoring, E-health, mobile POS terminals, sharing bikes, and so on. While the GSM/GPRS, and EDGE are traditional 2G/2.5G technologies capable of sending SMS or making other wireless communications.
Therefore, the SIM7000E NB-IoT & LTE CAT-M1 HAT would be an ideal choice for either evaluating new rising technologies or simply communicating/positioning via multiple ways.

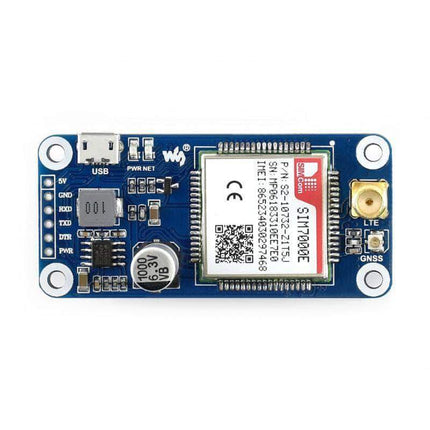

Features

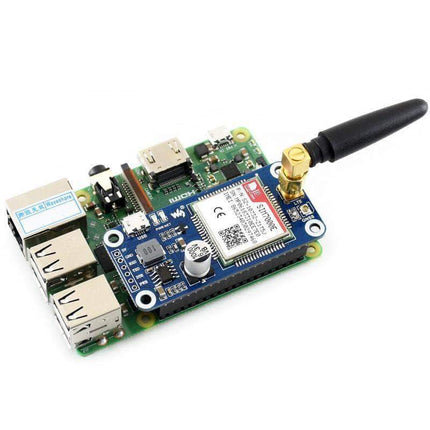

- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
- Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)

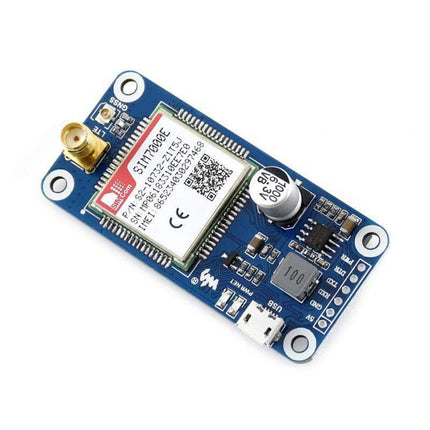

- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows being switched to 5V via 0Ω resistor

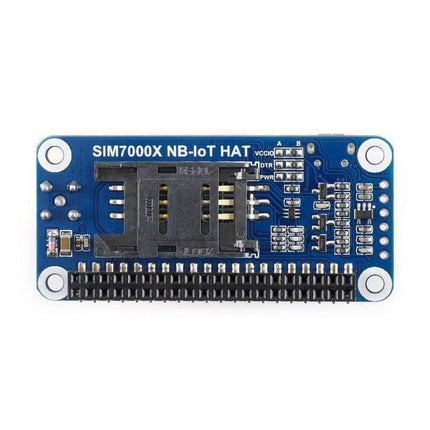

- SIM card slot, compatible with both normal SIM card and NB-IoT specific card
- 2x LED indicators, easy to monitor the working status
- Baudrate: 300bps~3686400bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Communications Specifications
| NB-IoT | eMTC | EDGE | GSM/GPRS | |
|---|---|---|---|---|
| Band | SIM7000E: FDD-LTE B3/B8/B20/B28 | GPRS/EDGE 900/1800 MHz | ||
| SIM7000C: FDD-LTE B1/B3/B5/B8 | ||||
| Power saving | Current in sleep mode: 1.2mA (@DRX=2.56s). Current in PSM mode: 9uA. | |||
| Emitting power | Class 3 (0.25W@LTE) | Class E2 (0.5W@EGSM900) Class E1 (0.4W@DCS1800) |
Class 4 (2W@GSM900) Class 1 (1W@DCS1800) |
|
| Data Speed | Uplink≤66kbps Downlink≤34kbps |
Uplink≤375kbps Downlink≤300kbps |
Uplink≤236.8kbps Downlink≤236.8kbps |
Uplink≤85.6kbps Downlink≤85.6kbps |
| SIM Card | NB Specific (Not Included) | Normal SIM (Not Included) | ||
| Applicable Region | SIM7000E is mainly applicable in Europe, Africa, Australia, Southeast Asia. | |||
GNSS Specifications
- Receiver type
- 16-channel
- C/A code
- Sensitivity
- Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD)
- Cold starts: -148 dBm
- Time-To-First-Fix
- Cold starts: <35s
- Hot starts: <1s
- Accuracy
- Position: <2.5m CEP
Other Specifications
- Power supply: 5V
- Operating voltage: 5V/3.3V (3.3V by default)
- Sleep Mode current: 1.2mA(@DRX=2.56s)
- Power Save Mode current: 9uA
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -45°C ~ 90°C
- Dimension: 30.2mm x 65mm
Dimension
Related Instruction
Resources
Tools
SIM7000 Related
- SIM7000 Series_AT Command Manual_V1.03
- SIM7000 Series UART Application Note_V1.00
- SIM7000 Series_FTP_Application Note_V1.00
- SIM7000 Series_GNSS_Application Note
- SIM7000 Series_HTTP_Application Note
- SIM7000 Series_NTP_Application Note
- SIM7000 Series_PING_Application Note
- SIM7000 Series_TCPIP_Application Note
- SIM7000 Hardware Design
Package Content:
- SIM7000E NB-IoT HAT x1
- GSM Antenna x1

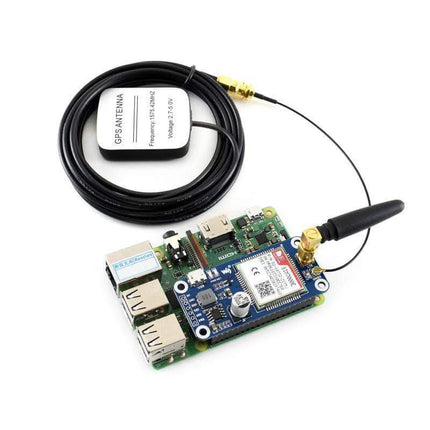

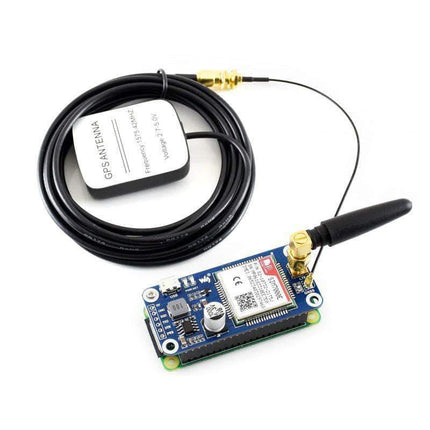

- GPS External Antenna (B) x1
- USB type A plug to micro plug cable x1
- RPi screws pack (2pcs) x1
