SIM7000G NB-IoT Cat-M EDGE GPRS GNSS Raspberry Pi HAT Global

Description

SIM7000G NB-IoT Cat-M EDGE GPRS GNSS Raspberry Pi HAT Global

Low power narrow band cellular IoT communication module for Raspberry Pi Based on SIM7000G



This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Features at a glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
  • Supports GNSS positioning (GPS, BeiDou, GLONASS)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
  • SIM card slot, compatible with both a normal SIM card and an NB-IoT-specific card
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300bps~3686400bps (115200bps by default)
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

NB-IoT / Cat-M / 2G
Frequency bands NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28
Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39
GPRS/EDGE: 850, 900, 1800, 1900MHz
Data rate NB-IoT: 34(DL)/66(UL)
Cat-M: 300(DL)/375(UL)
EDGE: 236.8(DL)/236.8(UL)
GPRS: 85.6(DL)/85.6(UL)
SIM card support NB-IoT: NB Specific (Not Included)
Cat-M/GPRS/EDGE: Normal SIM (Not Included)
Applicable region Global
GNSS
Satellite systems GPS, BeiDou, GLONASS
Receiver type 16-channel
C/A Code
Sensitivity Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD)
Cold starts: -148 dBm
Time-To-First-Fix Cold starts: <35s
Hot starts: <1s
Accuracy Position: <2.5m CEP
Other
Power supply 5V
Operating voltage 5V / 3.3V (3.3V by default)
Sleep Mode current 1.2mA (@DRX=2.56s)
Power Save Mode current 9uA
Operating temperature -40°C ~ 85°C
Storage temperature -45°C ~ 90°C
Dimensions 30.2mm x 65mm
Standard Raspberry Pi 40PIN GPIO Compatible with Raspberry Pi series boards
Global band support of NB-IoT/Cat-M/2G

Cloud Communication Supports communication protocols, including TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail...
GNSS positioning Supports GPS, BeiDou, GLONASS positioning

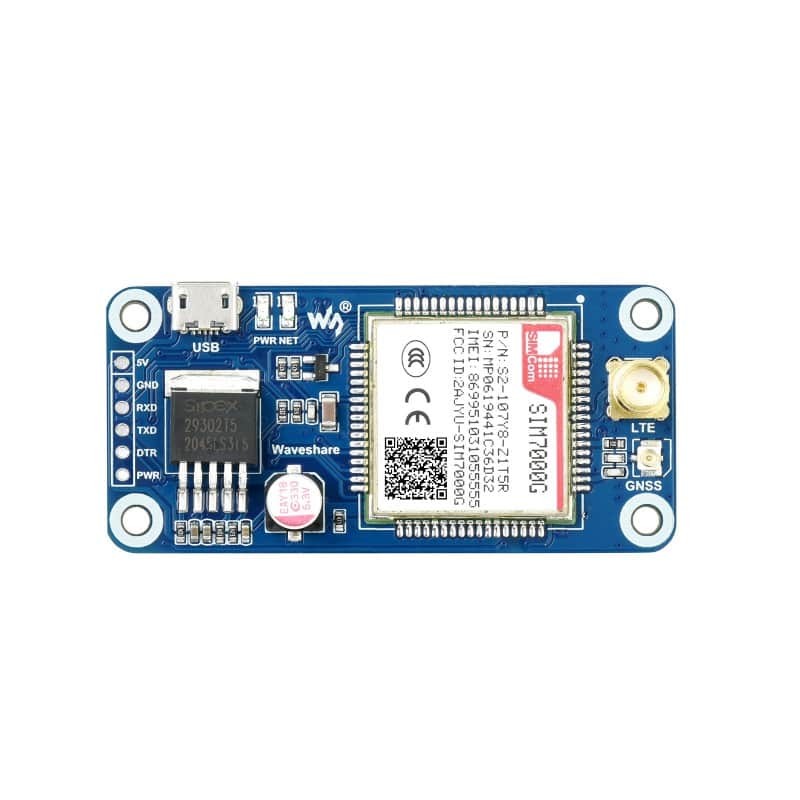

What's on board
  1. SIM7000G
  2. SPX29302 power chip
  3. RT9193-33 power chip
  4. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  5. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
  6. SIM7000G control interface
    for connecting with host boards like Arduino/STM32

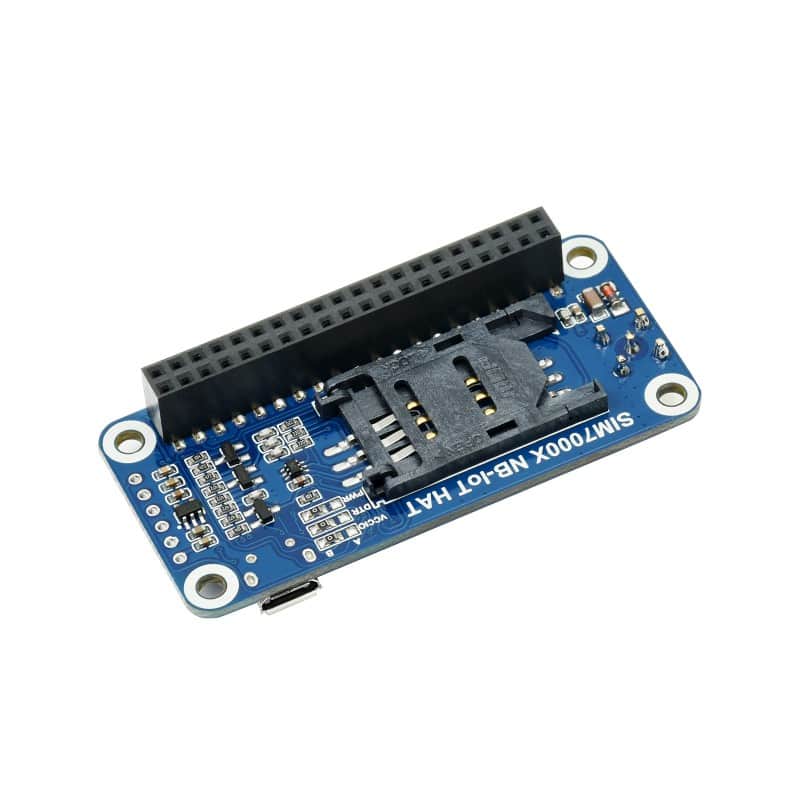

  7. SIM card slot
    supports 1.8V/3V SIM card
  8. GNSS antenna connector
  9. LTE antenna connector

  1. Network status indicator
  2. Power indicator
  3. Operating voltage selection jumper
    configured via 0Ω resistor jumper
    A: set operating voltage as 5V
    B: set operating voltage as 3.3V (default)
  4. DTR configuration jumper
    configured via 0Ω resistor jumper
    A: DTR is controlled by the Raspberry Pi P26 pin
    B: NC (default)
  5. PWR configuration jumper
    configured via 0Ω resistor jumper
    A: startup/shutdown by the Raspberry Pi P4 pin
    B: auto startup on power-up (default)
Pinout definition
Outline Dimensions



Read more
