SIM8200EA-M2 5G Module for Jetson Nano, 5G/4G/3G, Snapdragon X55
Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA, Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage
This 5G/4G/3G Jetson Nano communication module adopts SIMCom 5G module SIM8200EA-M2, supports 5G NSA and SA networking, providing data rate up to 4 Gbps (DL) / 500 Mbps (UL).
The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.
Features at a glance
- Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
- Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
- 5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
- USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
- SIM card slot, supports 1.8V / 3V SIM card
- 2x LED indicators, easy to monitor the working status
- AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
- Onboard audio jack and audio decoder, allows audio operation like making phone call
- Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
- Operating system support: Windows/Linux/Android
Supports 5G NSA (4G+5G common networking) and SA (5G standalone networking), compatible with 4G/3G network.
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
Multi-System Support
Supports Windows/Android/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use
Multi Host Support

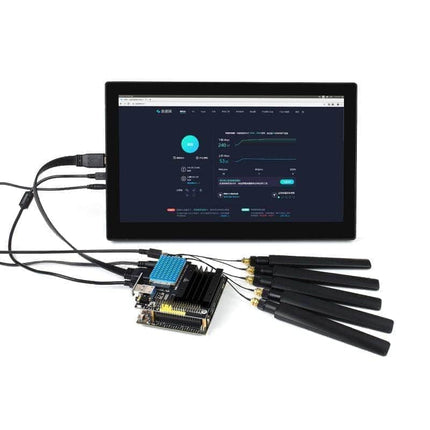

Enabling 5G High Speed Connection For Jetson Nano And Windows Computer
Sub-6G: up to 4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET: up to 2 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*
* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.
Cloud Communication
Supported Communication Protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0
Phone Call & SMS Support
Allows Using AT Commands To Make Phone Call Or Send SMS
Application Examples

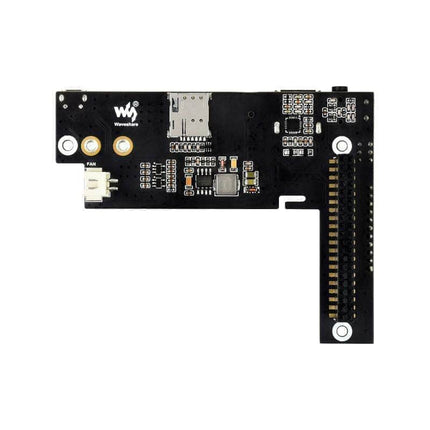

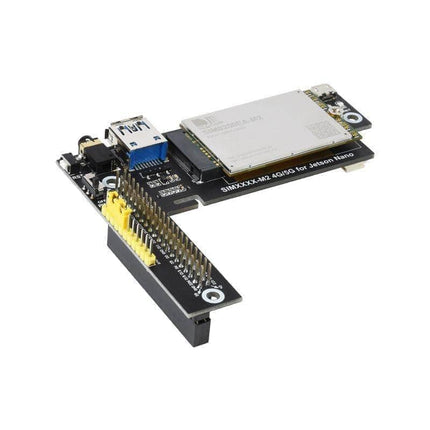

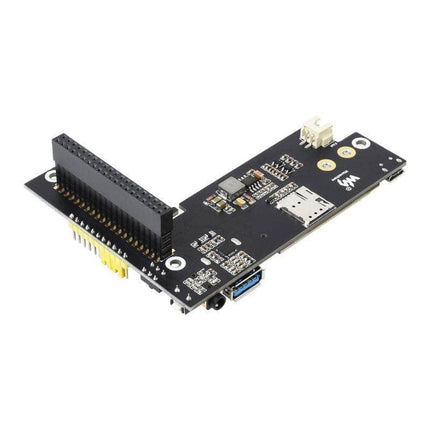

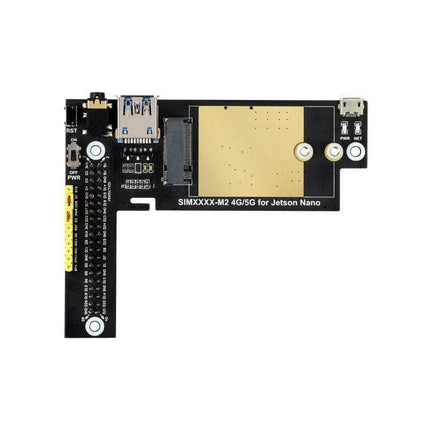

What's On Board
-
M.2 connector
compatible with different 5G/4G modules
-
USB3.1 port
for connecting with computer or Jetson Nano
- 3.5mm headphone/microphone jack
-
40PIN GPIO header
for connecting with Jetson Nano
-
Fan header
for 5V cooling fan
-
nano SIM card slot
supports 1.8V / 3V SIM card
- 5V 3A power input
- Network indicator
- Power indicator
- Reset
- Power switch
- Power supply circuit
- Audio drive circuit
-
Power supply selection jumper
5V - SYS: powered by Jetson Nano 40PIN GPIO
5V - USB: powered by external 5V 3A power adapter
-
Module on/off control pin enable jumper
PWR - D5: enabled by default, Jetson Nano D5 pin can be used to turn on/off the module
-
Module reset pin enable jumper
RST - D6: enabled by default, Jetson Nano D6 pin can be used to reset the module
-
Audio input/output
MIC+/MIC-: for external microphone
SPK+/SPK-: for external speaker
