SmartGPS Board - MikroElektronika GPS Technologies Development Tool

Description

SmartGPS Board - MikroElektronika GPS Technologies Development Tool

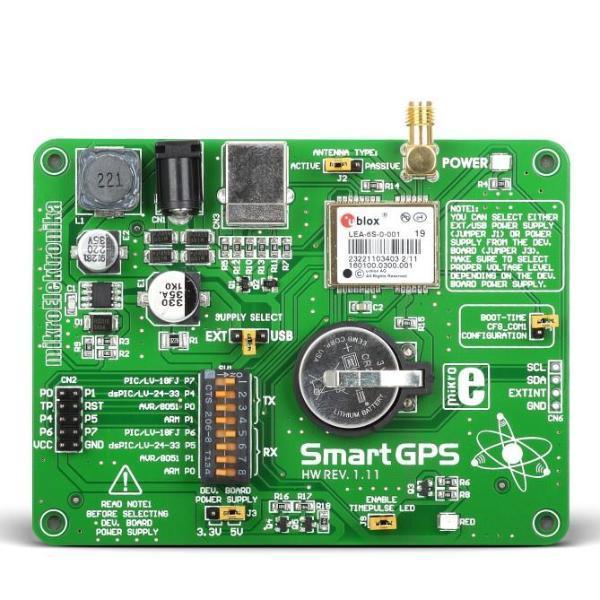

SmartGPS Board is a compact solution for adding GPS functionality to your device. It features popular ublox LEA-6S module, power supply circuit, USB and antenna connectors, li-polymer battery for data retention and IDC10 header for connection with the target board. Board has DIP switches for flexible choice of communication lines with various development systems. Communication is done using UART or USB interface. Board can be used with a microcontroller, or data can be acquired using PC application through USB. All communication lines can be driven with 3.3V or 5V logic.

Downloads

 SmartGPS Board Schematic
 GPS Examples



Type GPS/GNSS
Applications Easily acquire GPS data with minimum settings and with lots of flexibility. Board features one of the most popular LEA modules on the market
On-board modules LEA-6S, USB and antenna connectors, li-polymer battery for data retention and IDC10 header, DIP switches
Key Features Accelerated acquisition of weak signals. Once acquired, satellites are passed on to a power-optimized dedicated tracking engine. Simultaneously track up to 16 satellites while searching for new ones
Key Benefits Supports active and passive antennas. Three separate powering options
Interface UART
Input Voltage 3.3V or 5V
Compatibility IDC10

Read more

SmartGPS Board - MikroElektronika GPS Technologies Development Tool

Product form
Free pickup in our shop(s)

SKU: MIKROE-1381

$70.00 $30.00 Excl. GST

$70.00 $30.00
Product available in stock, Ships same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    SmartGPS Board - MikroElektronika GPS Technologies Development Tool

    SmartGPS Board is a compact solution for adding GPS functionality to your device. It features popular ublox LEA-6S module, power supply circuit, USB and antenna connectors, li-polymer battery for data retention and IDC10 header for connection with the target board. Board has DIP switches for flexible choice of communication lines with various development systems. Communication is done using UART or USB interface. Board can be used with a microcontroller, or data can be acquired using PC application through USB. All communication lines can be driven with 3.3V or 5V logic.

    Downloads

     SmartGPS Board Schematic
     GPS Examples



    Type GPS/GNSS
    Applications Easily acquire GPS data with minimum settings and with lots of flexibility. Board features one of the most popular LEA modules on the market
    On-board modules LEA-6S, USB and antenna connectors, li-polymer battery for data retention and IDC10 header, DIP switches
    Key Features Accelerated acquisition of weak signals. Once acquired, satellites are passed on to a power-optimized dedicated tracking engine. Simultaneously track up to 16 satellites while searching for new ones
    Key Benefits Supports active and passive antennas. Three separate powering options
    Interface UART
    Input Voltage 3.3V or 5V
    Compatibility IDC10

    Read more
