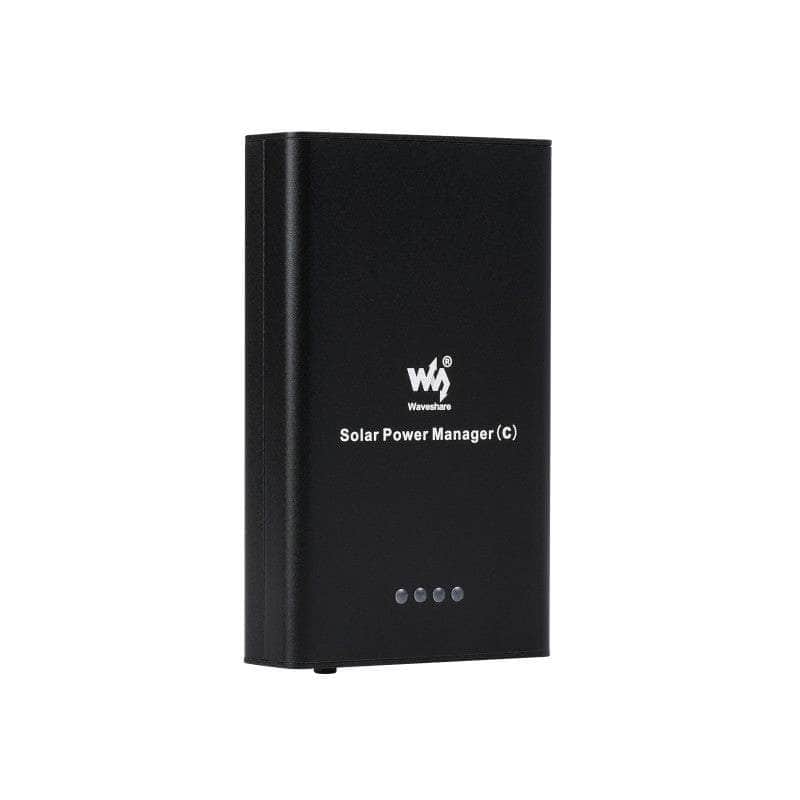

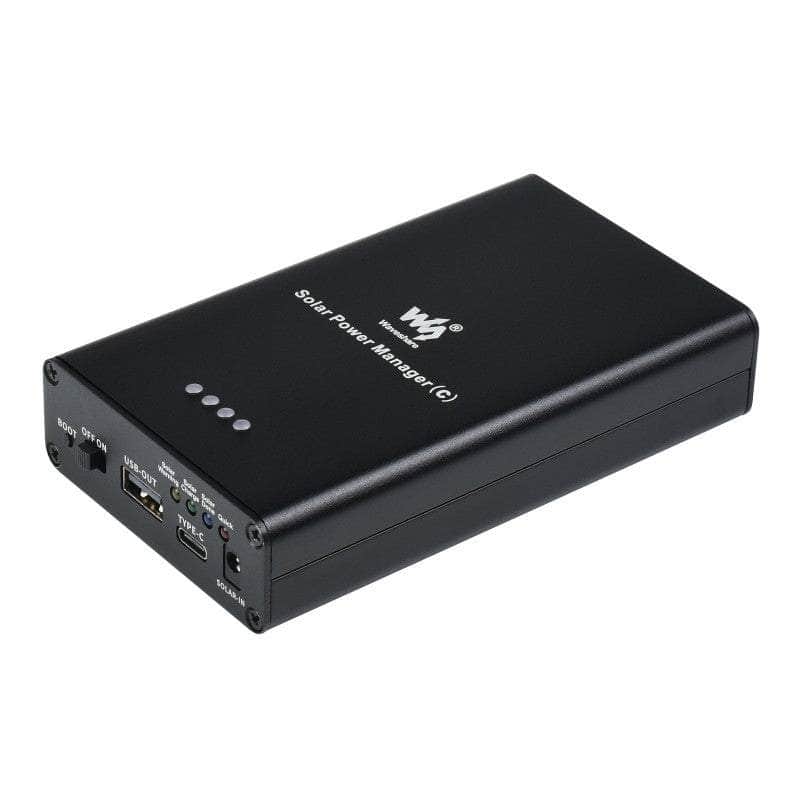

Solar Power Manager (C) 3x 18650 Batteries, Multi-Protection Circuits

Description



Solar Power Manager (C) 3x 18650 Batteries, Multi-Protection Circuits

Compatible with 6V~24V solar panels, supports 3x 18650 batteries
5V/3A Regulated Output

Link to suitable batteries

SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix use old batteries with new ones, avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Product Features

The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
  • Flexible battery recharging: from solar panel or USB TYPE-C power adapter
  • Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
  • Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
  • Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
  • Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
  • Several LED indicators, for monitoring the status of solar panel and battery
  • Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency

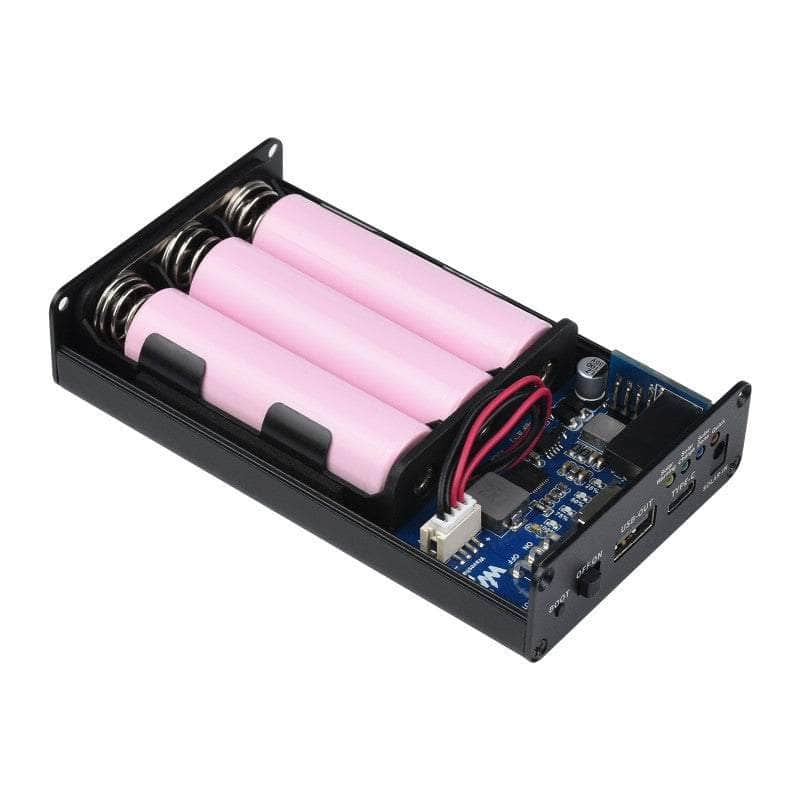

3x 18650 Batteries Support

Embedded Battery Holder For Rechargeable Li-Ion Batteries

DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.

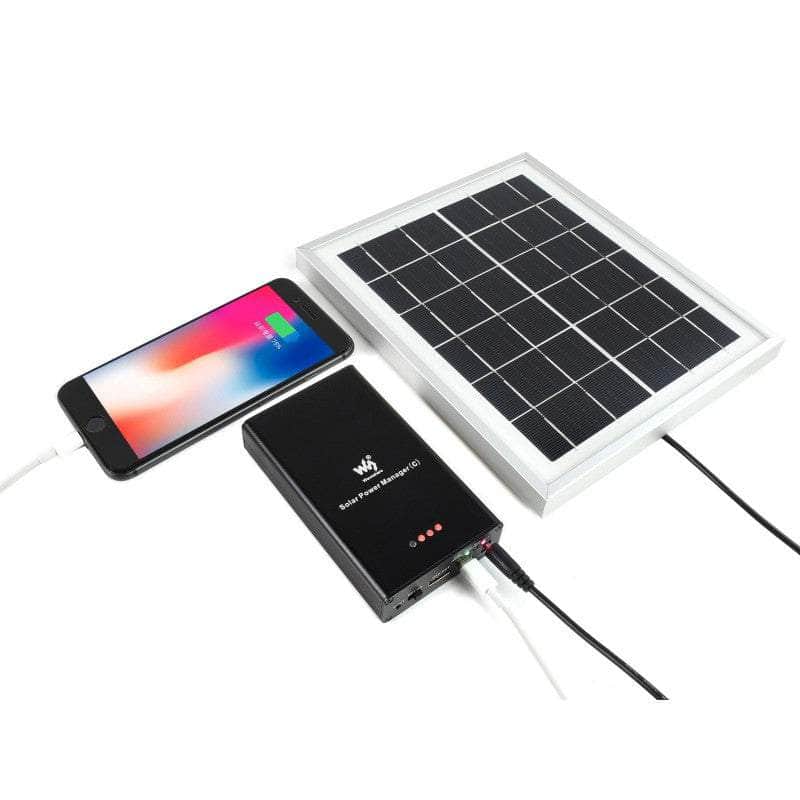

Application Example

Solar-Powered Control System For MCUs / Development Boards Like:
Raspberry Pi / Jetson Nano / Arduino...

for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.
More Possibilities

Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications

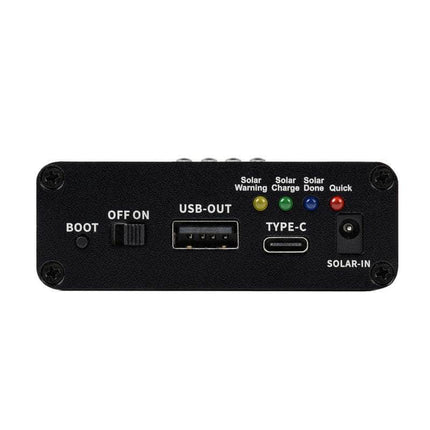

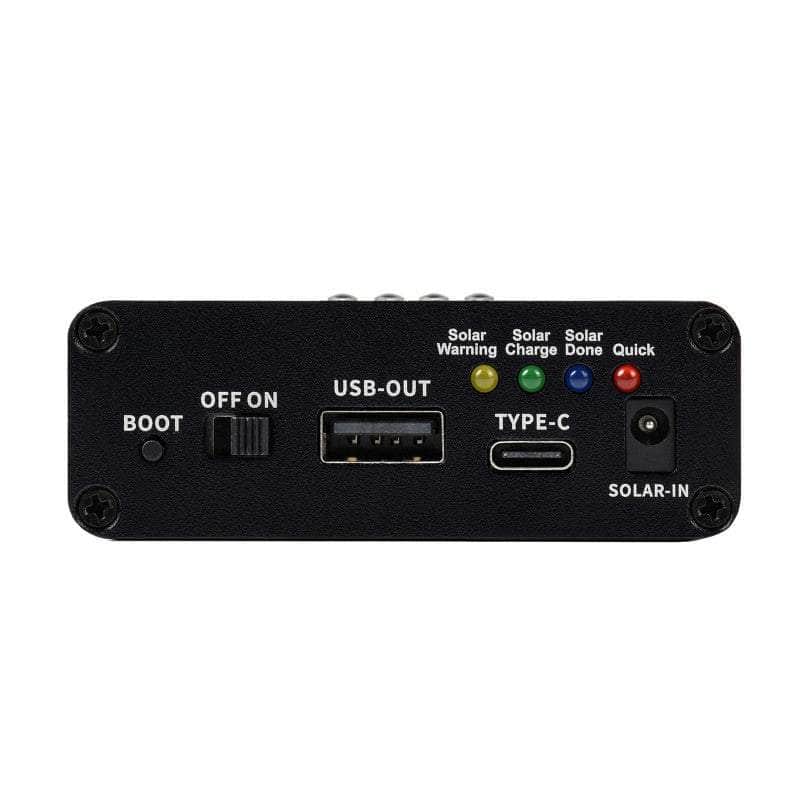

Resources Introduction

  1. Solar panel input
    recharging through DC-002 jack or screw terminal
  2. TYPE-C recharging/output port
    supports 5V power adapter for recharging
    supports PD protocol quick charge adapter
    supports PD/QC/FCP/PE/SFCP multi protocols output
  3. USB output port
    5V/3A regulated output
    supports PD/QC/FCP/PE/SFCP multi protocols output

  1. Battery on/off switch
  2. BOOT button
  3. Quick charge indicator
  4. Solar panel status indicators
    Solar Warning: lights up if solar panel is reversed
    Solar Charge: lights up when recharging from solar panel
    Solar Done: lights up when the battery is fully recharged
  5. Battery life indicators

Outline Dimensions



Read more

Solar Power Manager (C) 3x 18650 Batteries, Multi-Protection Circuits

Product form
Free pickup in our shop(s)

SKU: Solar Power Manager (C)

$99.00 $79.00 Excl. GST

$79.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    Solar Power Manager (C) 3x 18650 Batteries, Multi-Protection Circuits

    Compatible with 6V~24V solar panels, supports 3x 18650 batteries
    5V/3A Regulated Output

    Link to suitable batteries

    SAFETY CAUTIONS

    • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
    • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
    • Do not mix use old batteries with new ones, avoid using batteries of different brands.
    • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
    • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
    • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

    Product Features

    The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).

    The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar-powered, low-power IoT, and other environmental protection projects.

    • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
    • Flexible battery recharging: from solar panel or USB TYPE-C power adapter
    • Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
    • Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
    • Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
    • Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
    • Several LED indicators, for monitoring the status of solar panel and battery
    • Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use

    5-Level Voltage Switch, For Setting Solar Panel Input Voltage To Improve Efficiency

    3x 18650 Batteries Support

    Embedded Battery Holder For Rechargeable Li-Ion Batteries

    DO NOT put any non-rechargeable battery, like dry cell, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.

    Application Example

    Solar-Powered Control System For MCUs / Development Boards Like:
    Raspberry Pi / Jetson Nano / Arduino...

    for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.
    More Possibilities

    Suitable For Mini Solar Road Lamp, Intelligent Agriculture, Or IoT Applications

    Resources Introduction

    1. Solar panel input
      recharging through DC-002 jack or screw terminal
    2. TYPE-C recharging/output port
      supports 5V power adapter for recharging
      supports PD protocol quick charge adapter
      supports PD/QC/FCP/PE/SFCP multi protocols output
    3. USB output port
      5V/3A regulated output
      supports PD/QC/FCP/PE/SFCP multi protocols output

    1. Battery on/off switch
    2. BOOT button
    3. Quick charge indicator
    4. Solar panel status indicators
      Solar Warning: lights up if solar panel is reversed
      Solar Charge: lights up when recharging from solar panel
      Solar Done: lights up when the battery is fully recharged
    5. Battery life indicators

    Outline Dimensions



    Read more
