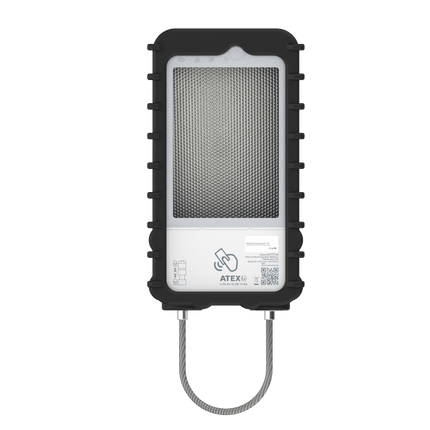

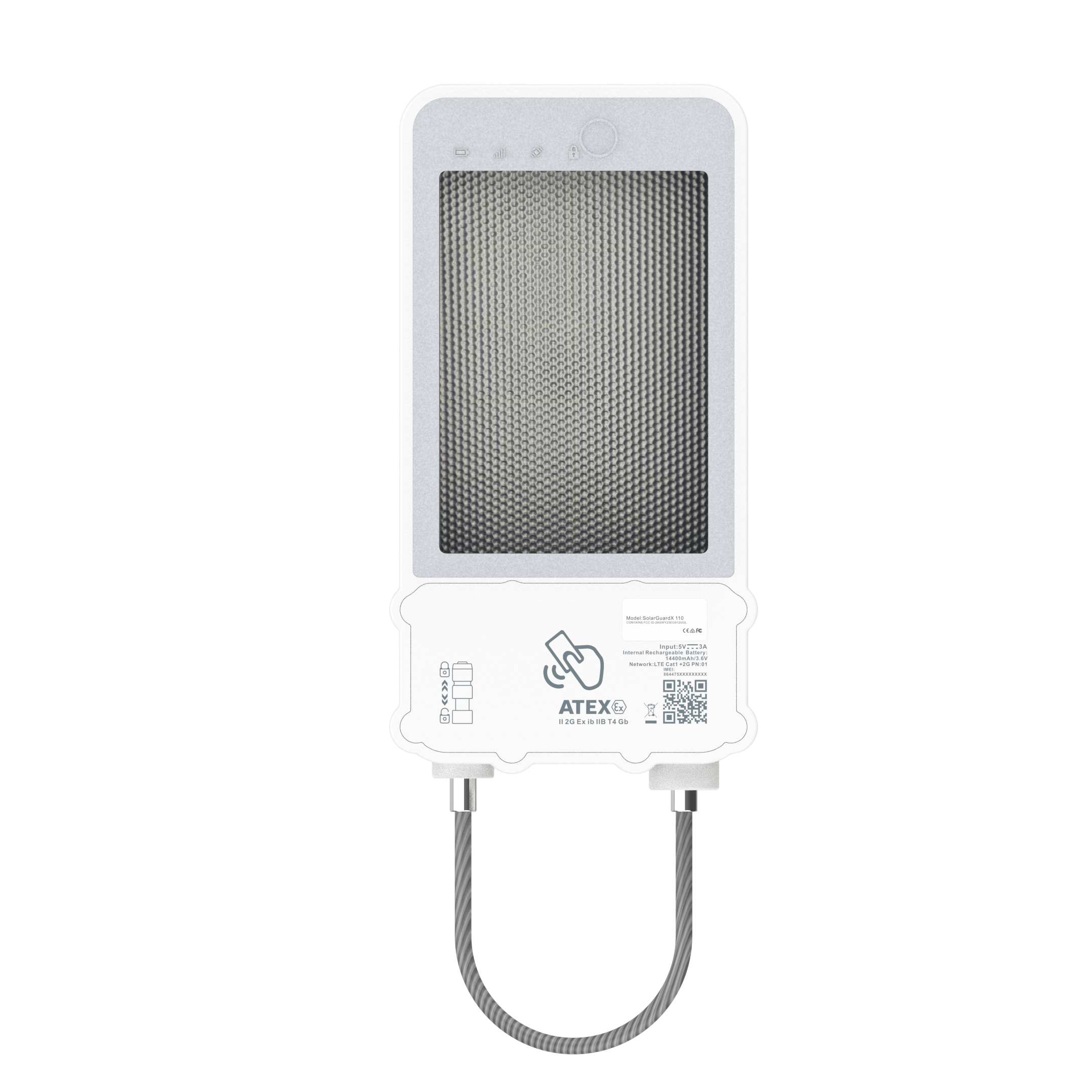

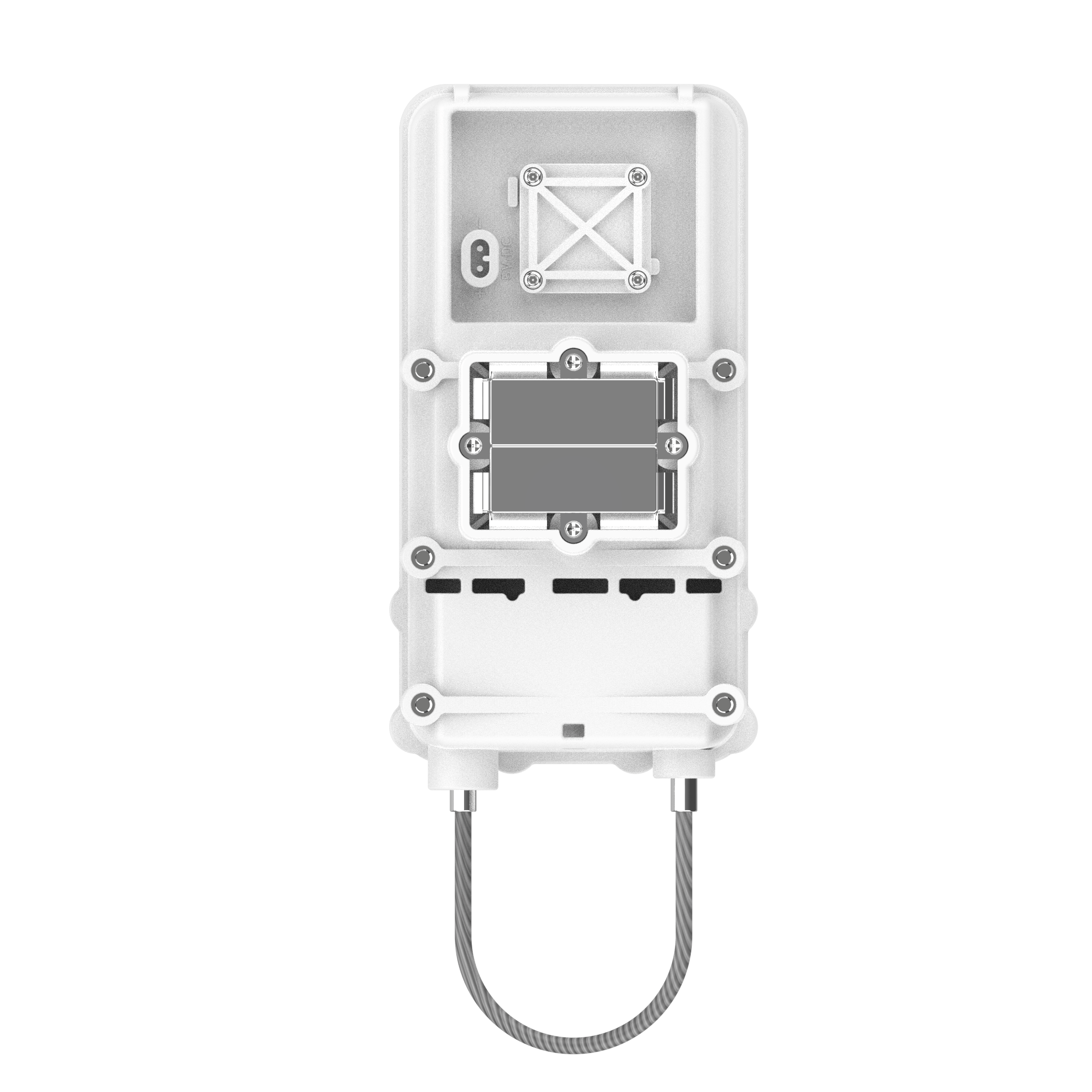

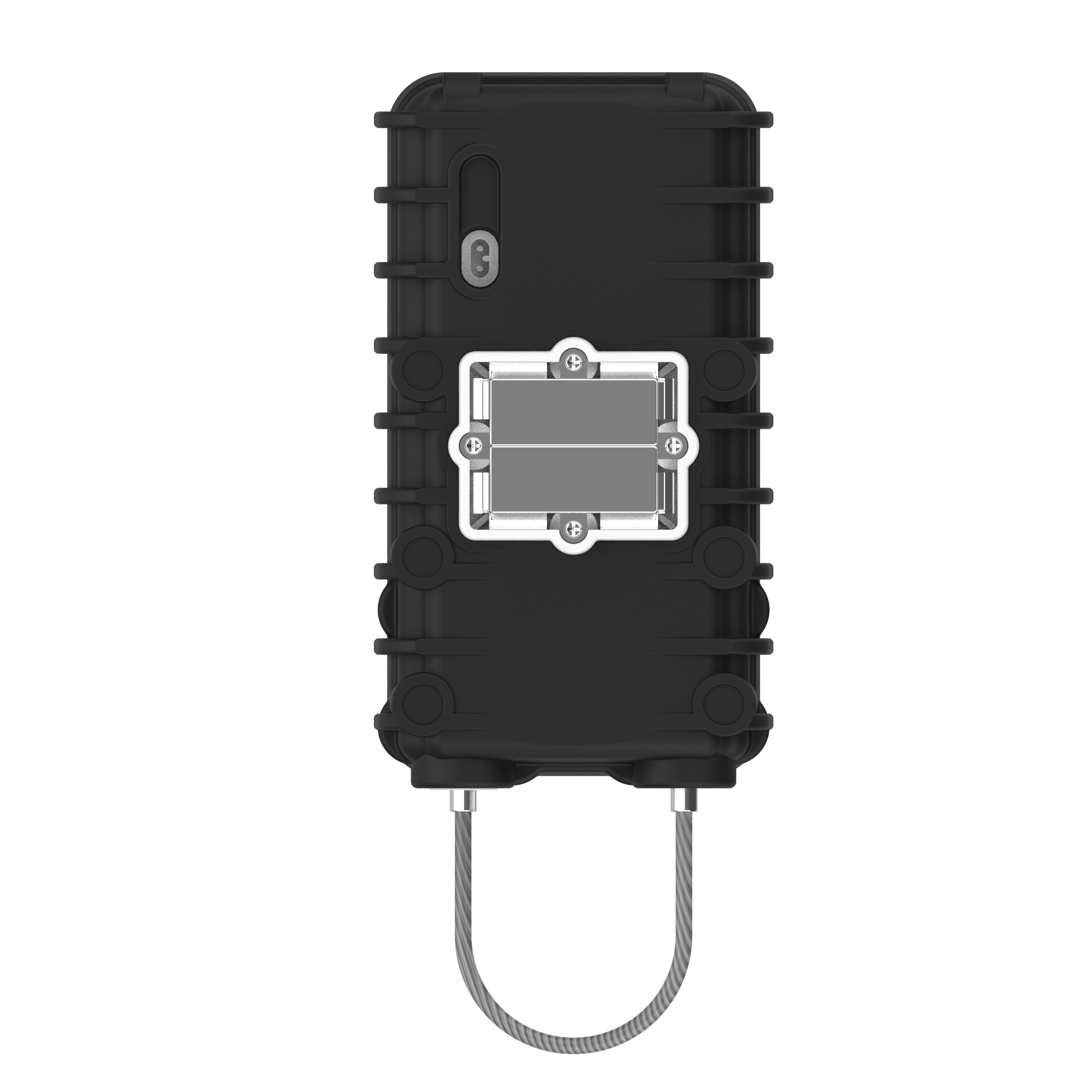

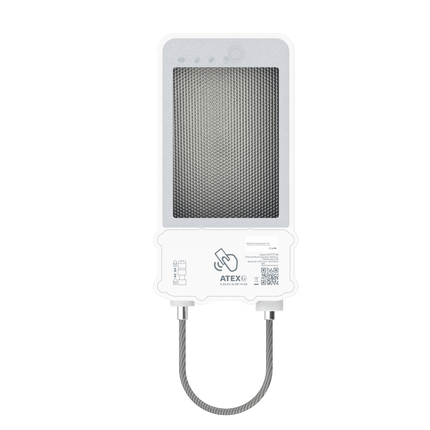

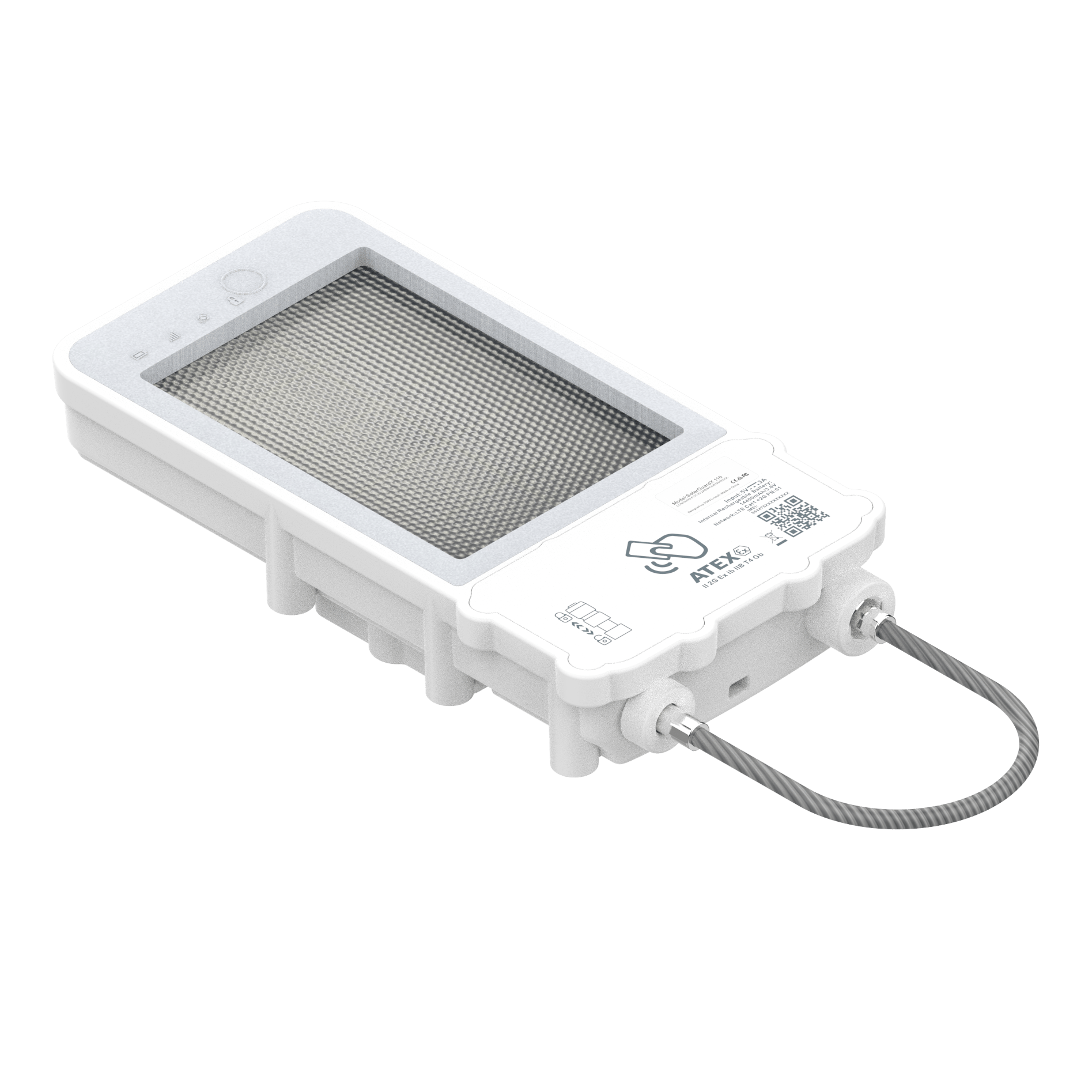

SolarGuardX 110 Solar Powered Cargo GNSS Padlock E-Lock Rechargeable Battery BLE
Solar Powered GPS Smart Lock for Secure Cargo & Container Tracking
The SolarGuardX 110 Solar Powered GPS Smart Lock is an advanced GNSS-enabled electronic padlock designed for high-value cargo security and real-time asset tracking. Combining 4G LTE connectivity, solar charging, and intelligent locking technology, this rugged smart lock enables logistics operators and fleet managers to monitor and protect valuable assets across global supply chains.
The device integrates GNSS positioning, LTE cellular communication, and Bluetooth connectivity, allowing precise location tracking and secure remote management through cloud platforms such as IQFLOW, and other fleet management systems.
Its solar-powered design with a high-capacity rechargeable battery significantly extends operational life while reducing maintenance and charging requirements. With a durable IP67 waterproof enclosure and steel lock cable, the SolarGuardX 110 is built for demanding logistics, transportation, and container monitoring environments.
Key Features
Solar Powered Smart Lock
Equipped with an integrated solar panel and 14,400 mAh rechargeable Li-Polymer battery, the SolarGuardX 110 provides long operational life with minimal maintenance, making it ideal for outdoor logistics deployments.
4G LTE GNSS Tracking
Supports 4G LTE Cat-1 and GSM networks to provide reliable asset tracking and data communication across logistics and fleet monitoring applications.
Smart Electronic Lock with Remote Control
The intelligent locking mechanism allows the device to be unlocked through multiple methods:
-
RFID card
-
BLE mobile app
-
Remote server commands
-
SMS commands
This enables secure and flexible access control for cargo and container security.
High Precision GNSS Positioning
Supports multiple satellite systems, including:
-
GPS
-
GLONASS
-
BeiDou
-
Galileo
-
QZSS
This enables location accuracy typically better than 1.5 metres CEP for reliable cargo tracking.
Advanced Cargo Security Monitoring
The device provides intelligent alarms and monitoring features, including:
-
Rope cut detection
-
Lock and unlock alerts
-
Motion detection
-
SIM cover removal alarm
-
Geo-fence alerts
These features provide real-time visibility and protection for high-value cargo.
BLE 5.1 Sensor Ecosystem
The SolarGuardX 110 supports Bluetooth Low Energy accessories, enabling additional IoT monitoring capabilities such as:
This enables the device to act as a complete cargo monitoring solution.

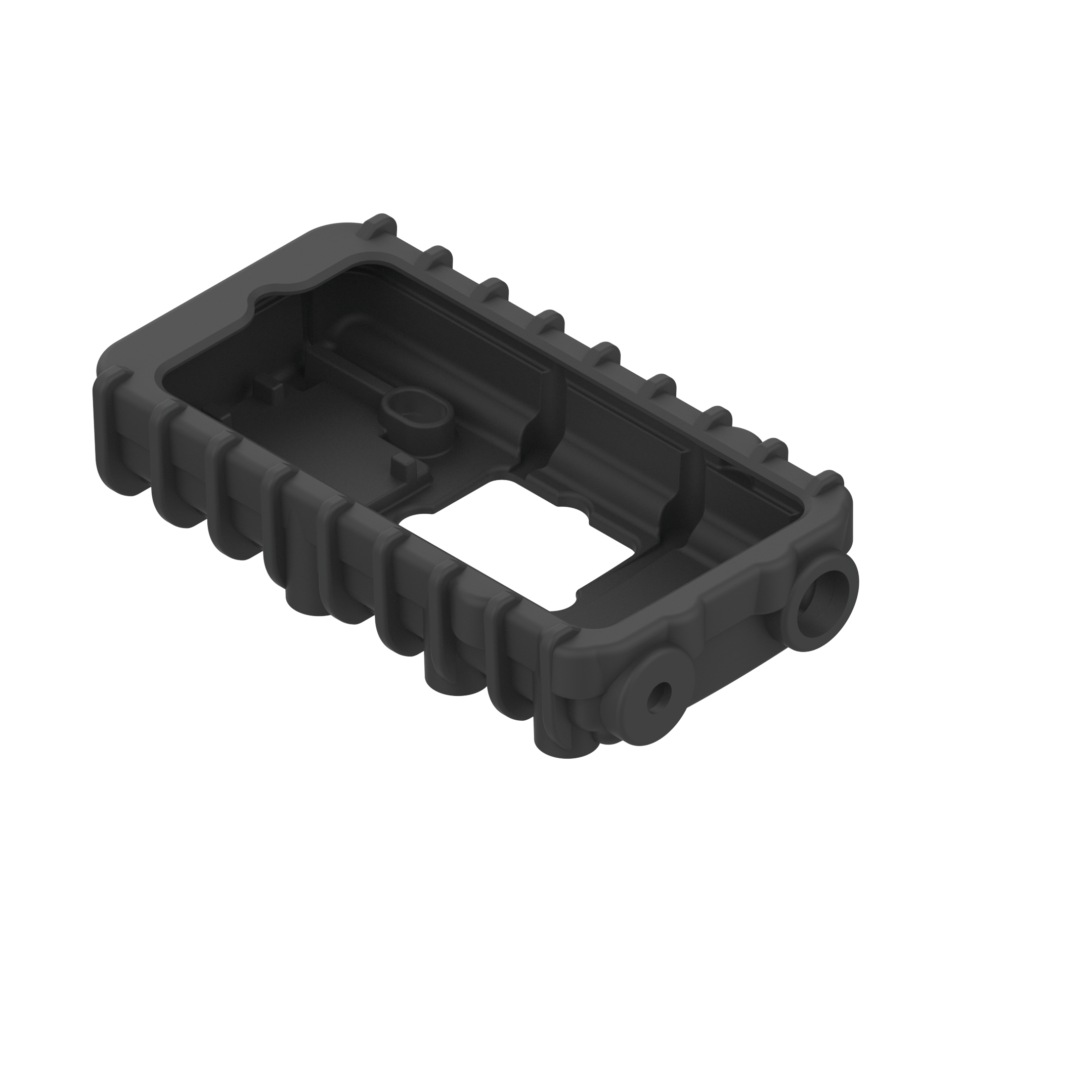

Rugged Industrial Design
Built for harsh logistics environments, the device features:
-
IP67 waterproof protection
-
Built-in strong magnet mounting
-
Wide operating temperature range
-
Durable steel lock cable
This ensures reliable performance across transport, shipping, and industrial operations.
Typical Applications
SolarGuardX 110 is ideal for:
-
Container tracking and security
-
Cargo transport monitoring
-
Fleet logistics management
-
Trailer and freight monitoring
-
High-value shipment protection
-
Cross-border cargo security
Technical Specifications
| Specification |
SolarGuardX 110 |
| Cellular Network |
4G LTE Cat-1 + GSM |
| GNSS Systems |
GPS, GLONASS, Galileo, BeiDou, QZSS |
| Position Accuracy |
<1.5 m CEP |
| Battery |
14,400 mAh rechargeable Li-Polymer |
| Solar Charging |
Integrated solar panel |
| BLE |
Bluetooth 5.1 |
| Data Protocols |
TCP, UDP, MQTT, SMS |
| Geo-Fence |
Up to 64 regions |
| Alarms |
Rope cut, lock/unlock, motion, SIM cover removal |
| Waterproof Rating |
IP67 |
| Dimensions |
207.5 × 110.2 × 48.1 mm |
| Weight |
~1060 g |
| Operating Temperature |
−25°C to +80°C |
Key Benefits
✔ Long battery life and rechargeable for remote asset monitoring
✔ Accurate multi-GNSS positioning
✔ Rugged waterproof design for outdoor deployment
✔ Supports wireless IoT sensors via BLE
✔ Real-time alerts, including motion detection
✔ Compatible with IoT platforms, including IQFLOW cloud
Resources:
SolarGuardX 110 User Manual
SolarGuardX 110 Flyer
Configuration Tool
