SolarX 120 Large 4G Cellular Solar Powered Asset Tracker GNSS Rechargeable Battery BLE
Industrial Solar GPS Asset Tracker for Long-Term Outdoor Monitoring

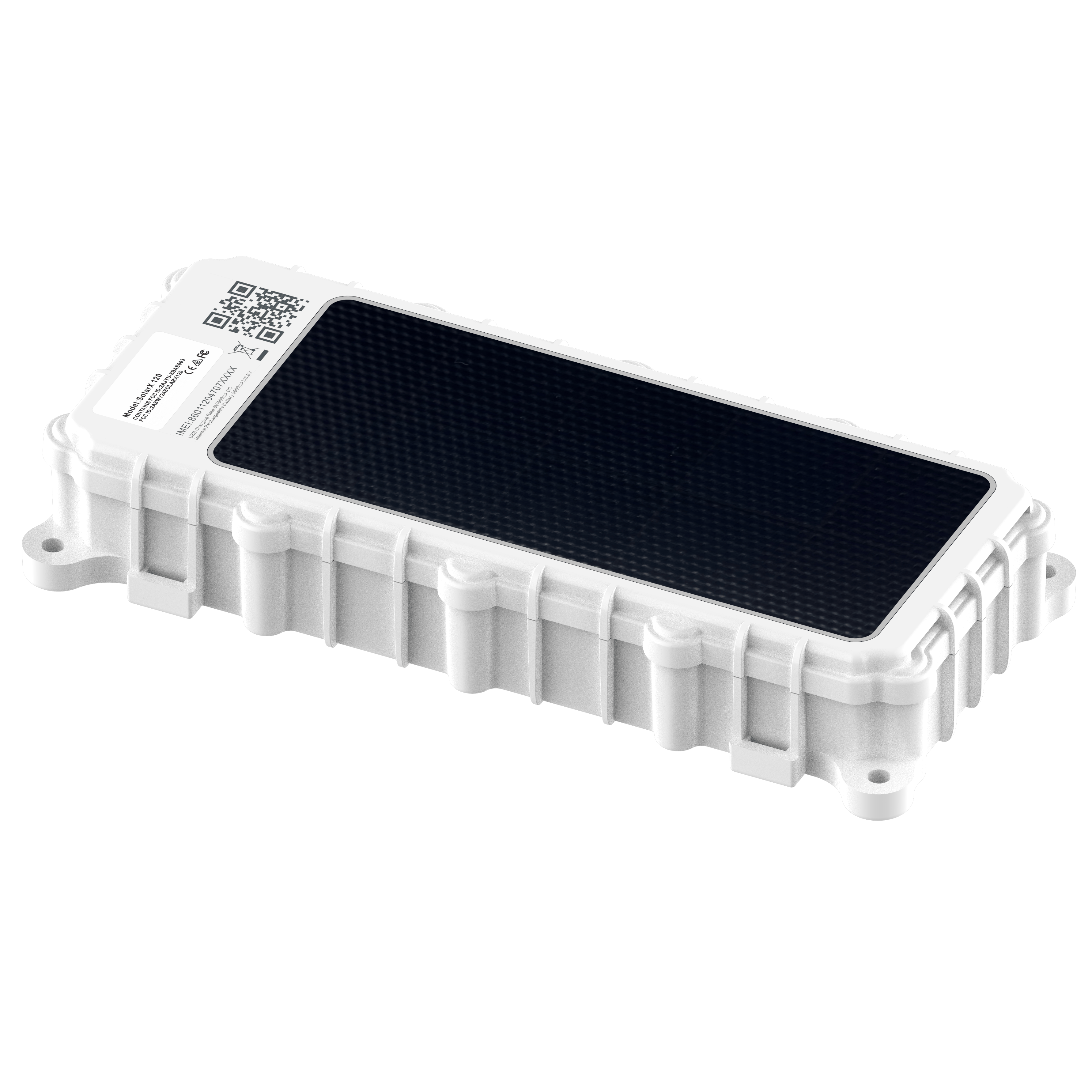

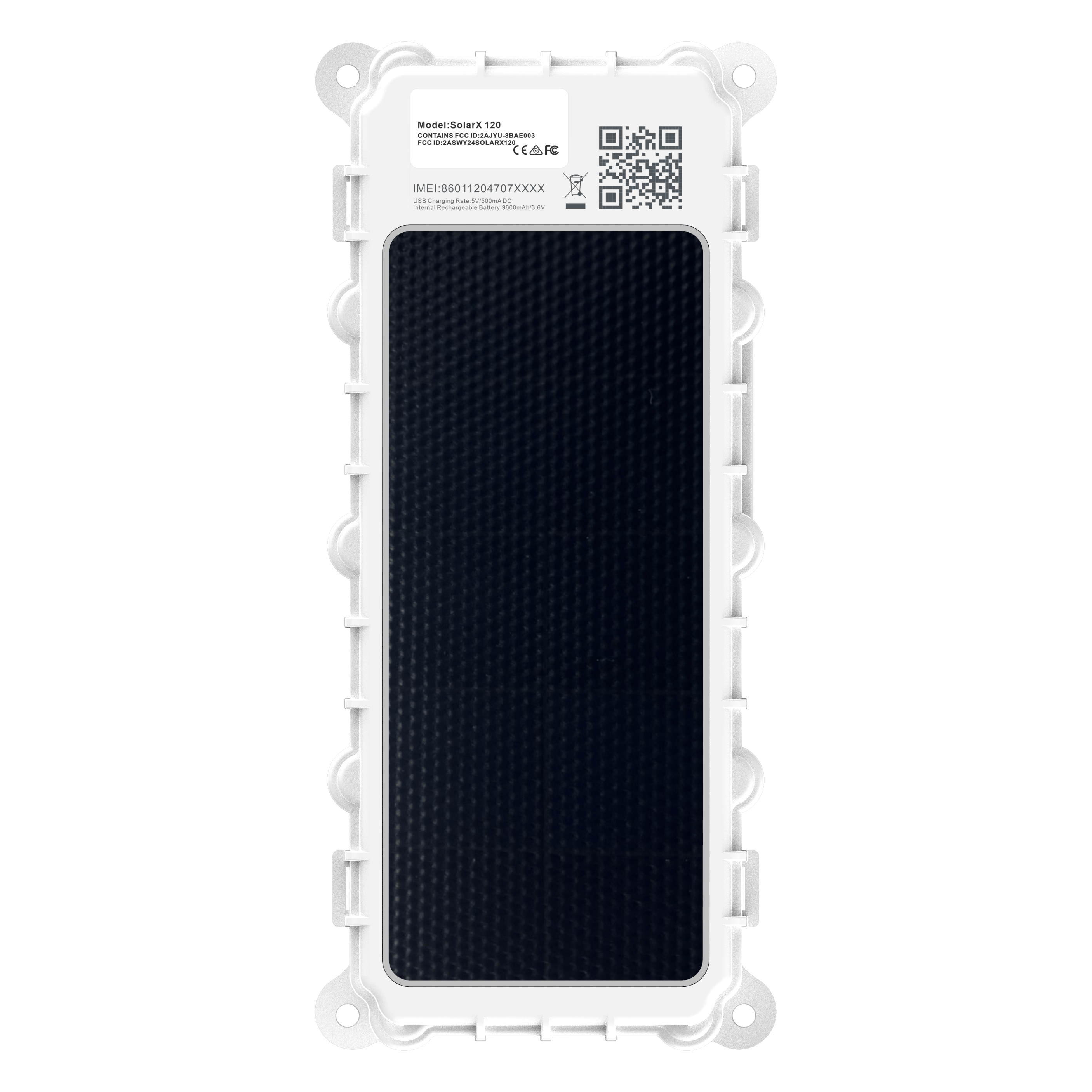

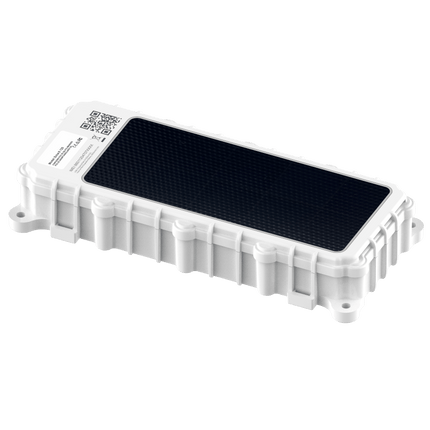

The SolarX 120 Large Solar Powered Asset Tracker is a high-performance 4G GNSS tracking device designed for long-term monitoring of containers, trailers, heavy equipment, and remote assets.
Featuring a large high-efficiency solar panel and high-capacity rechargeable battery, the SolarX 120 delivers extended operational life with minimal maintenance, making it ideal for large outdoor deployments where battery replacement is impractical.
With 4G LTE Cat-1 connectivity, multi-constellation GNSS positioning, and Bluetooth 5.3 sensor integration, the device provides reliable real-time asset tracking and advanced monitoring capabilities across logistics, transportation, and industrial applications.
Its rugged IP67 waterproof design and intelligent power management system ensure reliable performance in harsh environments, while solar charging enables continuous operation in outdoor conditions.
Key Features
Large Solar Panel for Long-Term Operation
The SolarX 120 includes a large integrated solar panel that continuously recharges the internal battery when exposed to sunlight, significantly extending operational lifetime and reducing maintenance requirements.
With proper configuration and adequate sunlight exposure, the tracker can achieve extremely long standby time or near-continuous operation.
High-Capacity Rechargeable Battery
The device is powered by a high-capacity 7500 mAh rechargeable Li-Polymer battery, designed for long-term deployments and reliable operation even in low-light environments.
This large battery capacity makes the SolarX 120 suitable for large assets and remote monitoring scenarios.
4G LTE Cat-1 Connectivity
SolarX 120 supports 4G LTE Cat-1 and GSM networks, providing reliable global connectivity for real-time asset tracking across logistics, fleet management, and infrastructure monitoring.
Multi-Constellation GNSS Positioning
The tracker supports multiple satellite positioning systems, including:
-
GPS
-
GLONASS
-
Galileo
-
BeiDou
-
QZSS
This enables high-precision positioning with accuracy typically better than 2 metres CEP, ensuring reliable location data even in challenging environments.
BLE 5.3 Sensor Ecosystem
Integrated Bluetooth Low Energy (BLE) 5.3 allows the SolarX 120 to connect with a wide range of wireless sensors, enabling advanced monitoring solutions such as:
This allows the tracker to function as a complete IoT asset monitoring hub.
Advanced Asset Security & Monitoring
The SolarX 120 includes intelligent alarm and monitoring functions such as:
These features provide enhanced asset security and operational visibility.
Rugged Industrial Design
Designed for harsh outdoor environments, the SolarX 120 features:
-
IP67 waterproof protection
-
Wide operating temperature range
-
Durable industrial housing
-
Secure mounting options
This ensures reliable operation in logistics yards, construction sites, transportation networks, and outdoor infrastructure deployments.
Typical Applications
The SolarX 120 is ideal for tracking and monitoring:
Technical Specifications
| Specification |
SolarX 120 |
| Cellular Network |
4G LTE Cat-1 + GSM |
| GNSS Systems |
GPS, GLONASS, Galileo, BeiDou, QZSS |
| Position Accuracy |
<2 m CEP |
| Battery |
7500 mAh rechargeable Li-Polymer |
| Solar Charging |
Integrated a large solar panel |
| BLE |
Bluetooth 5.3 |
| Wi-Fi |
2.4 GHz 802.11b (receive only) |
| Data Protocols |
TCP, UDP, MQTT, SMS |
| Geo-Fence |
Up to 64 regions |
| Alarm Types |
Up to 26 alarms |
| Waterproof Rating |
IP67 |
| Dimensions |
185.4 × 84.7 × 31.3 mm |
| Weight |
410 g |
| Operating Temperature |
−30 °C to +80 °C |
Key Benefits
✔ Long battery life and rechargeable for remote asset monitoring
✔ Accurate multi-GNSS positioning
✔ Rugged waterproof design for outdoor deployment
✔ Supports wireless IoT sensors via BLE
✔ Real-time alerts, including motion detection
✔ Compatible with IoT platforms, including IQFLOW cloud
