SolarX 4G Cellular Solar Powered Asset Tracker GNSS Rechargeable Battery BLE
Reliable Solar-Powered GPS Asset Tracking for Long-Term Deployments

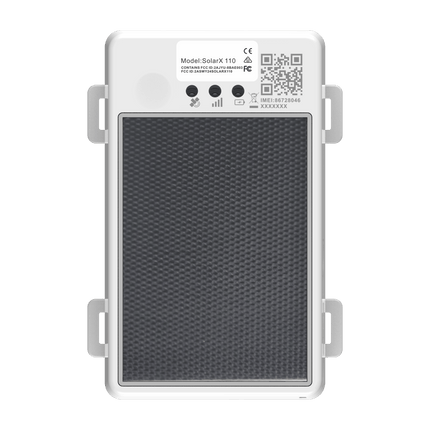

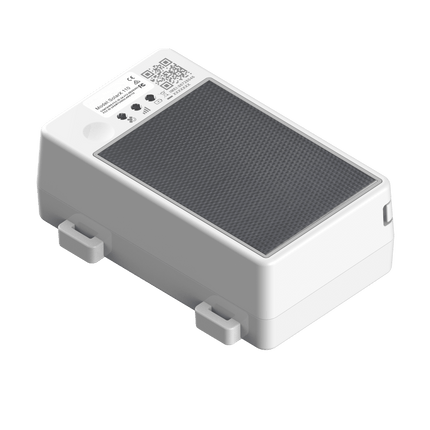

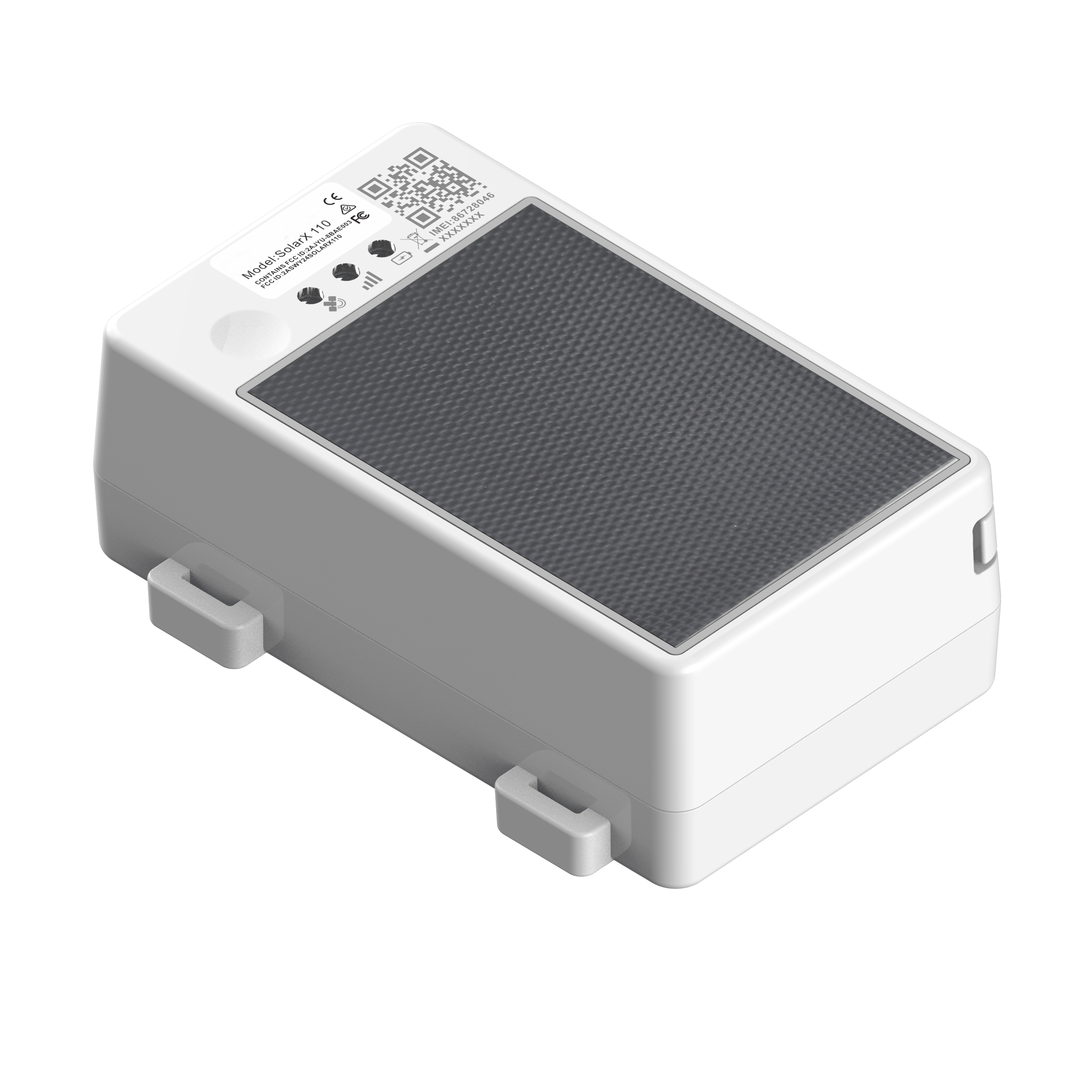

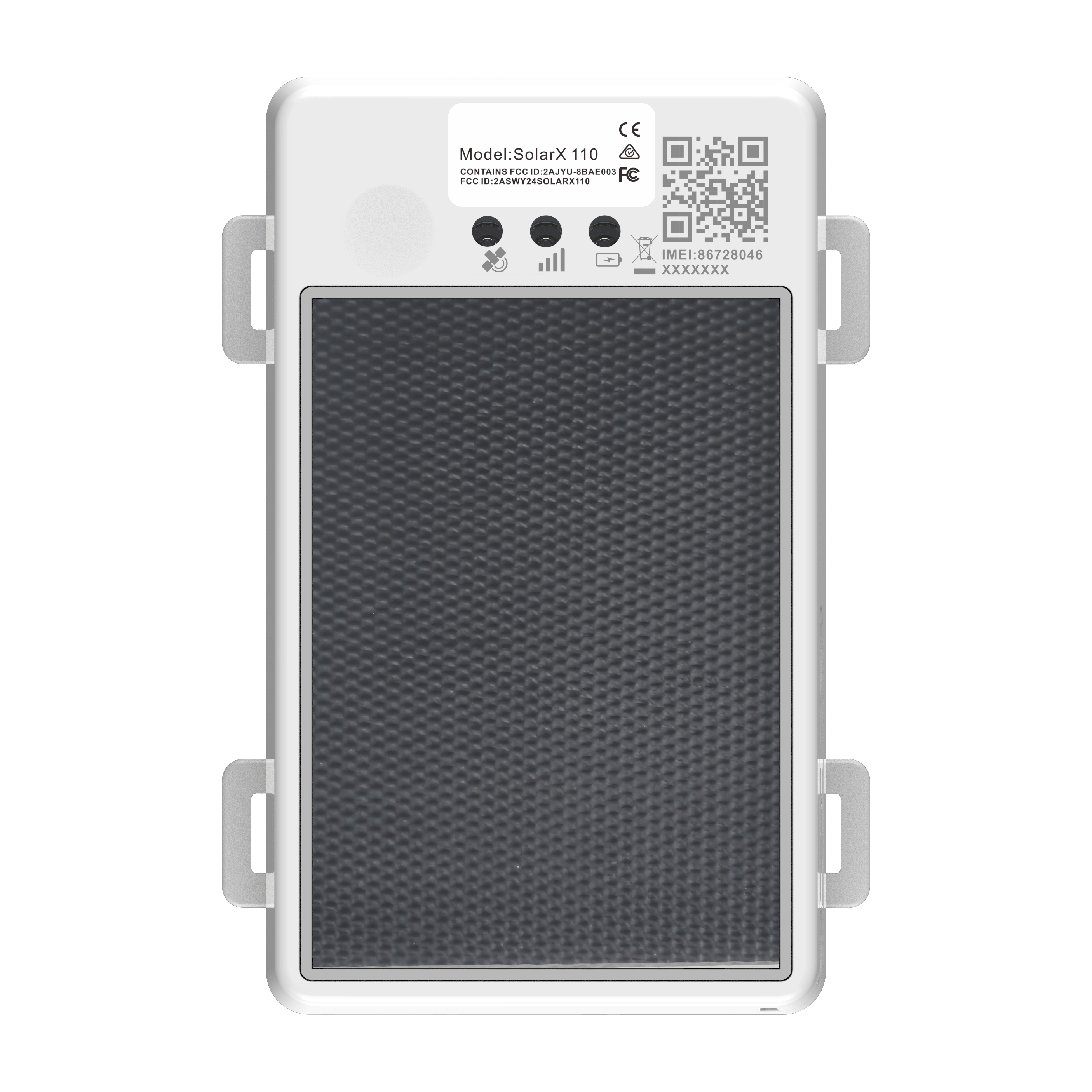

The SolarX 110 4G Solar Asset Tracker is a rugged, solar-powered GNSS tracking device designed for long-term monitoring of outdoor assets such as containers, trailers, heavy equipment, and logistics cargo.
Equipped with a high-efficiency solar panel and a 2500 mAh rechargeable battery, the device can achieve virtually unlimited operating time when exposed to regular sunlight, significantly reducing maintenance and battery replacement requirements.
With 4G LTE Cat-1 or Cat-M1 connectivity, multi-constellation GNSS positioning, and Bluetooth 5.3 sensor integration, the SolarX 110 provides reliable real-time tracking and asset monitoring across a wide range of industrial and logistics applications.
Its IP67 waterproof housing, built-in tamper detection, and intelligent power management make it ideal for harsh outdoor environments and long-term deployments.
Key Features
Solar-Powered Operation
Integrated high-efficiency solar panel continuously charges the internal battery, allowing extended or near-unlimited standby time with proper configuration.
4G LTE Cat-1 or Cat-M1 Connectivity
High-speed LTE Cat-1 communication ensures reliable real-time asset tracking with fallback GSM connectivity.
High-Precision GNSS Positioning
Supports GPS, GLONASS, Galileo, BeiDou, and QZSS for accurate location tracking with positioning accuracy typically better than 2 m CEP.
Bluetooth 5.3 Sensor Ecosystem
Connect BLE accessories such as:
This enables advanced monitoring and IoT integration.
Industrial-Grade Rugged Design
IP67 waterproof enclosure protects the device from dust, rain, and harsh environmental conditions, making it suitable for outdoor logistics and industrial deployments.
Smart Asset Security
Advanced alarms help detect unusual events, including:
-
Motion detection
-
Tilt detection
-
Collision alerts
-
Device removal alerts
-
Low battery alerts
Up to 31 configurable alarms are supported.
Flexible Reporting & Geo-Fencing
Configure position reports based on:
Typical Applications
The SolarX 110 or 310 is ideal for tracking and monitoring:
Technical Specifications
| Specification |
SolarX 110 or X310 |
| Cellular Network |
4G LTE Cat-1 or Cat-M1 |
| GNSS Systems |
GPS, GLONASS, Galileo, BeiDou, QZSS |
| Position Accuracy |
<2 m CEP |
| Battery |
2500 mAh rechargeable Li-Polymer |
| Solar Charging |
Integrated solar panel |
| BLE |
Bluetooth 5.3 |
| Wi-Fi |
2.4 GHz (receive only) |
| Data Protocols |
TCP, UDP, MQTT, SMS |
| Security |
MD5 / AES256 encryption |
| Geo-Fence |
Up to 64 regions |
| Alarm Types |
Up to 31 event alarms |
| Waterproof Rating |
IP67 |
| Dimensions |
88 × 60.4 × 30.7 mm |
| Weight |
150 g |
| Operating Temperature |
−30 °C to +80 °C |
Key Benefits
✔ Long battery life and rechargeable for remote asset monitoring
✔ Accurate multi-GNSS positioning
✔ Rugged waterproof design for outdoor deployment
✔ Supports wireless IoT sensors via BLE
✔ Real-time alerts, including motion detection
✔ Compatible with IoT platforms, including IQFLOW cloud
