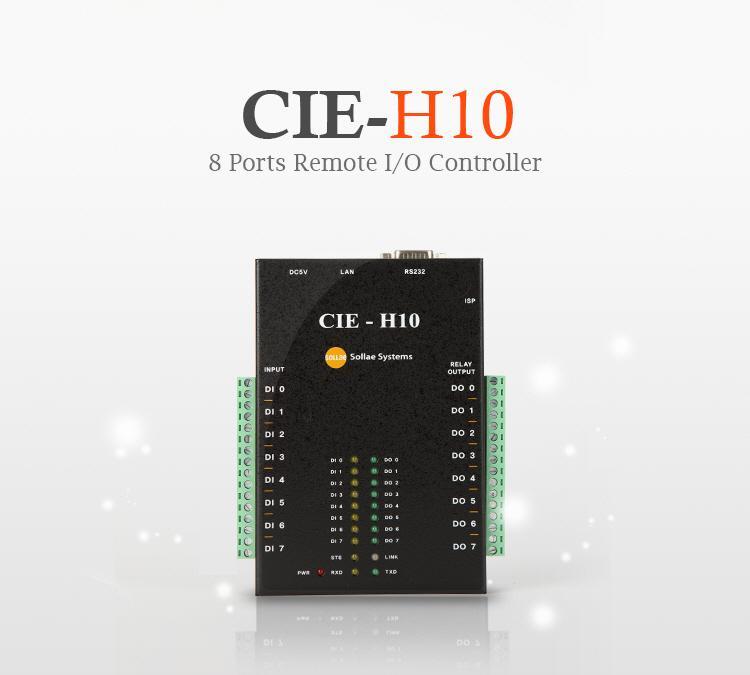

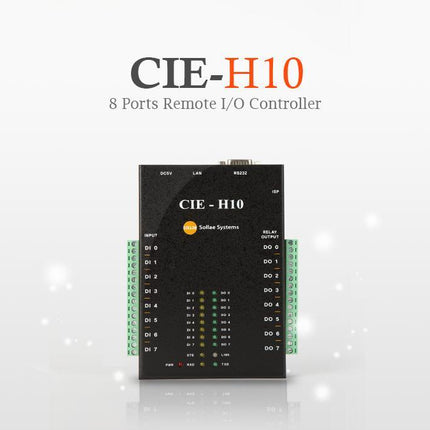

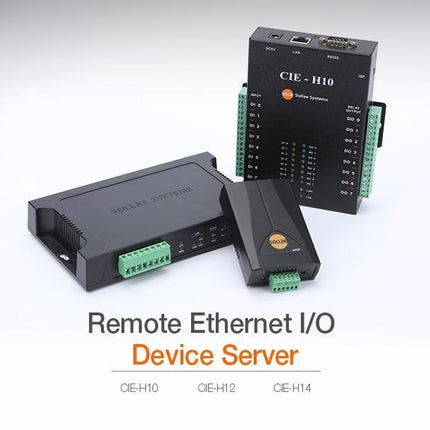

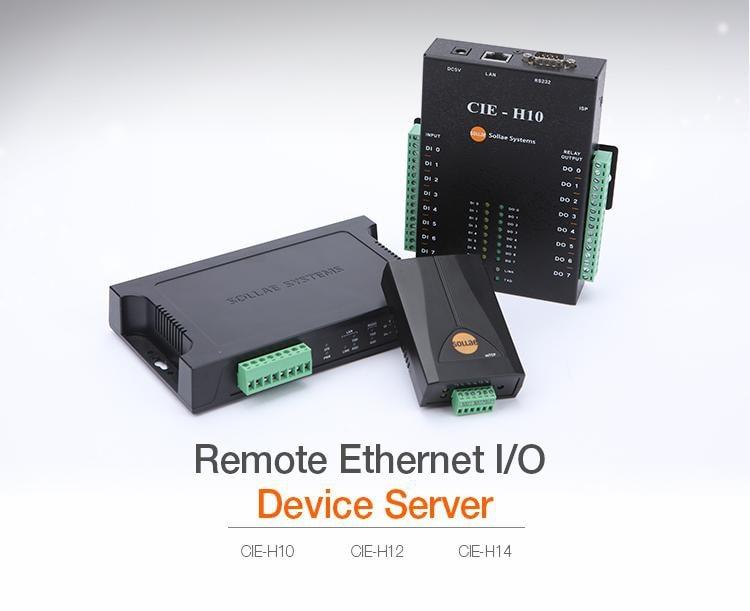

Sollae 8-Port Ethernet Remote I/O Controller Modbus/TCP - CIE-H10
CIE-H10 is an Ethernet remote I/O controller that has 8 photo coupler input ports and 8 relay output ports. This remote I/O controller is additionally equipped with a RS232 serial interface to allow your serial devices to establish an Ethernet networking connection. CIE-H10 mainly enables you to extend the distance of the I/O control system, therefore you are able to remotely control and monitor your I/O devices over the Internet from anywhere in the world.
As well as with a simple management tool (ModMap), this remote I/O controller comes preloaded with a user web page, which is available to customize with your own graphic images, to ease control and surveillance on the website. Besides, a Macro function allows each relay output to be automatically controlled as set by simple logic formula.
Since this Ethernet remote I/O controller has various methods to control relay outputs and monitor the inputs such as HTTP, Modbus/TCP, and Serialized Modbus/TCP, it is available in various environments such as Remote PC Power Control, Internet Switch, etc.
Features:
- Wide range of power input (DC8.5V ~ 38V, polarity auto detection)
- Power input (terminal block)
- Dry contact adapter (optional)
- Modbus/TCP
- Controlled by simple logic formula operating autonomously
- Web-based control over custom web page
- Used as Internet Switch
- Free mobile application
Specifications:
Digital Input Port
Number of Ports: 8
Interface Isolated by Photo-coupler
Electric Parameter: MAX VIL=1.2V, MIN VIH=1.8V
Maximum Input Voltage: DC 24V
Digital Output Port
Number of Ports: 8
Interface Isolated by Relay
Relay Capacity 5A (DC28V)
Serial Physical Interface
Serial Interface: 1 x RS232 Port
RXD, TXD, RTS,CTS, DTR, DSR, GND
± 15KV ESD Protection
Connector DB9M Connector
Serial Port Property
Data Rate: 300bps ~ 230,400bps
Data Bits 5, 6, 7, 8 bits
Parity None, Even, Odd, Mark, Space
Stop Bit 1, 1.5, 2
Network Physical Interface
Network Interface: 10Base-T/100Base-TX Ethernet (RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
1000 VAC Isolation
Software Functions
Protocols TCP, UDP, IP, ICMP, ARTP, Ethernet, TELNET
TFTP, DHCP, PPPoE, DNS, HTTP, Modbus/TCP
Configuration and Monitoring Tool through Ethernet
Telnet Login
Security IP & MAC filtering - Restrict host or network
Password for Configuring
Digital I/O Port
Communication Mode Modbus/TCP, HTTP, Stand alone (by simple equation)
Communication Mode TCP Server (T2S)
TCP Client (COD)
TCP Server/Client with AT Command (ATC)
UDP Mode (U2S)
Additional Functions Remote Debug Function
TCP Server/Client Mode
Sending MAC address Option
Indicators (LEDs)
Power Red
Status Yellow, The Current Status
Ethernet Link Red - 10M Ethernet, Green - 100M Ethernet
Ethernet RXD Yellow
Ethernet TXD Green
Digital Input Yellow x 8
Digital Output Green x 8
Management
ezManager Configuration and Monitoring Tool through Network and Serial
Telnet Telnet Login
AT Command Configuring in ATC Mode
Software
ezManager Configuration Tool for Windows
ModMap Management Tool of I/O controllers for Windows
ezVSP Serial to Network Virtual Driver for Windows
ezTerm Simple TCP/IP Communication Test Tool
Dimension
Size 153mm x 126mm x 32mm
Operating Environment
Input Voltage DC 5±0.5V
Power Consumption 510mA typical
Operating Temperature 0℃ ~ +55℃
Storage Temperature -40℃ ~ +85℃
