Sollae SIG-5560 Temperature Gateway Modbus TCP

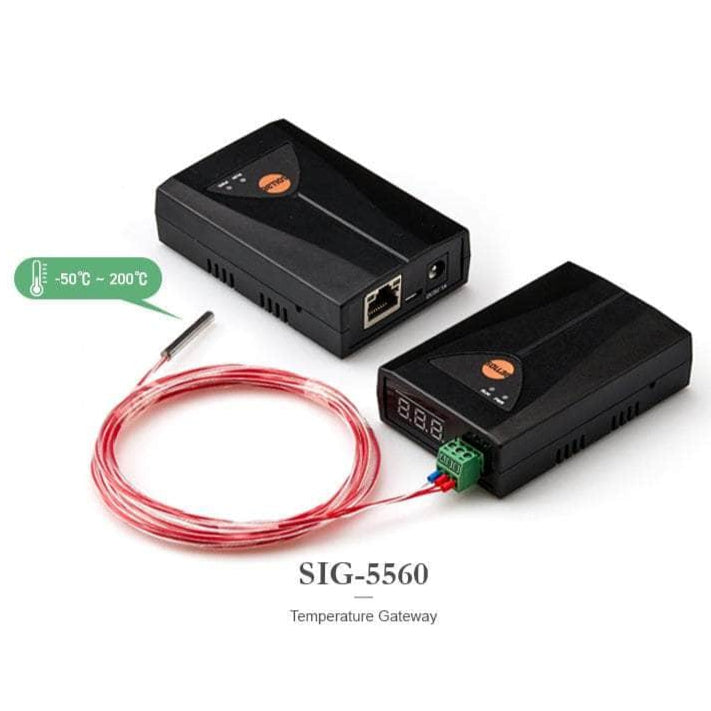

SIG-5560 is a temperature gateway that reads the temperature value from a resistance temperature detector PT100 and sends it via network using Modbus TCP protocol. Users can remotely read the temperature by using any kind of Modbus Software/Apps or HMI devices.
Furthermore, users can config thresholds to make it triggers another Modbus TCP device that has digital output ports. This is called Internet Switch.
Especially, Sollae provides a free software and a smartphone app, called ModMap, which can connect to devices read the temperature.
The SIG-5560 is the ideal solution for integrating PT100 TDR (Temperature-Dependent-Resistor) sensors into SCADA systems. It ensures precise temperature monitoring and seamless data transmission via Modbus TCP.
Features
- PT100 connection port: support 3-wire PT100 sensors
- Display: a red 3-digit 7-segment LED
- Protocol: Modbus/TCP
- Storing the lowest and the highest temperature
- Support multiple TCP connection (Max. 4 channels)
- Support a 1-bit ADC function for the Internet Switch
- Measurement Error: within ±0.3℃ (±0.54℉)
- Maximum Measurement Range: -200℃ ~ 850℃ (-328℉ ~ 1562℉)
- Device operation temperature range (Industrial: -40℃ ~ +85℃)
NOTE: SIG-5560 device supports the PT100 sensors that has the measurement range of -200℃ ~ 850℃ (-328℉ ~ 1562℉). But the measurement range depends on the PT100 sensor. We provide a PT100 sensor that has the measurement range of -50℃ ~ +200℃ as an option. If users need a larger range, use another PT100 sensor.
Specifications:
| Analog Input |
| Input Type |
3-wire PT100 sensor (α=0.00385 Ω/(Ω·°C)) |
| Resolution |
16 bits |
| Number of Ports |
1 port |
|
| Network Physical Interface |
| Network Interface |
10Base-T/100Base-TX Ethernet(RJ45) |
| Ethernet Speed Auto Sense |
| 1:1 or Cross-over Cable Auto Sense |
|
| Software Functions |
| Protocols |
IPv4/IPv6 Dual Stack |
| TCP/UDP |
| ICMP, DHCP, mDNS, Modbus/TCP |
| SSL/TLS |
|
| Indicators |
| LED |
PWR, STS, 3 digit 7-segment LED |
|
| Management |
| spFinder |
Configuration and Monitoring Tool |
| Security |
Password |
|
| Dimension |
| Size |
94mm x 57mm x 23mm |
| Weight |
about 63g |
|
| Operating Environment |
| Power Input |
DC 5±0.25V |
| Protection |
Reverse Voltage Protection / Surge Protection |
| Current Consumption |
Typically, 250mA |
| Operating Temperature |
-40℃ ~ +85℃ |
| Storage Temperature |
-40℃ ~ +85℃ |
