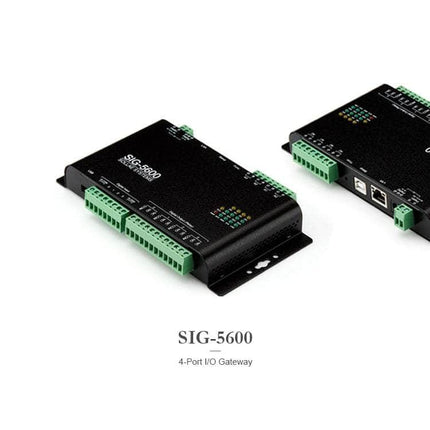

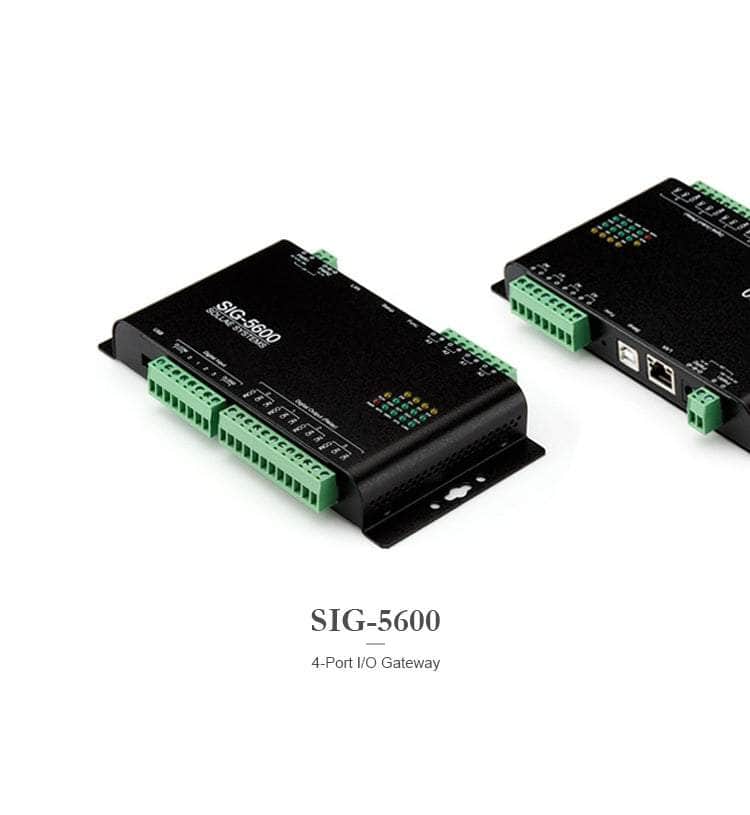

Sollae SIG-5600 4-Port I/O Gateway 4x Analog and Digital IO

Description

Sollae SIG-5600 4-Port I/O Gateway 4x Analog and Digital IO

SIG-5600 is a remote I/O gateway equipped with 4 analog input ports, 4 digital input ports, 4 digital output ports, an Ethernet, and a WiFi interface. The device can collect data from various analog sensors, monitor and control the states of equipment from remote data centers or HMI devices via Modbus TCP protocol. The device can also be monitored and controlled by any Modbus TCP software/app, such as ModMap.

Each individual analog port has three selectable measured modes: voltage (0 ~ 5V), current (4~20mA), and current (0 ~ 20mA). This makes a single SIG-5600 able to work with many kinds of analog sensors.

Each individual digital input port also has a counter function. This makes it able to not only monitor ON/OFF state but also count either falling or rising events.

Each individual digital output port has a relay with both NO (Normal Open) and NC (Normal Closed) mode. Apart from ON/OFF control, each digital output can also generate a pulse when receiving a specific Modbus TCP request from a remote device, software, or smartphone app.

The SIG-5600 is the ideal solution for integrating analog inputs, digital inputs, and relay control into SCADA systems. It ensures accurate data readings and precise control with seamless data transmission via Modbus TCP.

With both Ethernet and WiFi interfaces, SIG-5600 can connect to the Internet, either wired or wirelessly.

The SIG-5600 supports up to four TCP connections simultaneously, enabling to monitor sensors from different HMI / software / apps at the same time.

Features

  • 4 analog input ports: voltage or current
  • 4 digital input ports: Wet contact or Dry contact input
  • 4 digital output ports (Relay): both NO and NC output
  • Support pulse mode on digital output ports
  • Support counter function on digital input ports
  • Support Modbus/TCP
  • Support multiple TCP connections (Max. 4 channels)
  • Support a master mode for the Internet Switch
  • Support a 1-bit ADC function for the Internet Switch
  • Free Modbus/TCP program
  • Industrial temperature range (-40℃ ~ +85℃)

Specifications:

Digital Input
Input Type Dry Contact / Wet Contact / NPN / PNP
Input Voltage Range 4.5V ~ 25V
Number of Ports 4 ports

Digital Output
Output Type Relay (Type C - NO: Max DC 30V/5A with resistive load, NC: Max DC 30V/1A with resistive load)
Number of Ports 4 ports

Analog Input
Input Type Voltage (0V ~ 5V) or Current (4mA ~ 20mA / 0mA ~ 20mA)
Resolution 12 bits
Number of Ports 4 ports

Network Physical Interface
Wired LAN 10Base-T/100Base-TX Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
1000 VAC Isolation
Wireless LAN IEEE802.11b/g Wireless LAN with a USB dongle

Software Functions
Wireless LAN Mode Infrastructure, Soft-AP
Protocols IPv4/IPv6 Dual Stack
TCP/UDP
ICMP, DHCP, Modbus/TCP, mDNS
SSL/TLS
WPA-PSK / WPA2-PSK, WPA-Enterprise (TTLS / PEAP)

Indicators(LEDs)
LED PWR, RUN, STS, LINK, MTX, MRX, Di0~Di3, Do0~Do3

Management
spFinder Configuration and Monitoring Tool
Security Password

Dimension
Size 180mm x 110mm x 26mm
Weight about 485g

Operating Environment
Input Voltage PWR1 - Terminal Block,DC8.5V~38V
PWR2 - DC jack, DC5V±0.2V
USB (Setup) - USB type-B, DC5V±0.2V
Protection Reverse Voltage Protection / Surge Protection
Current Consumption typically, 3.3W
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃



Technical Documents

BASIC
1 SIG-5600 DataSheet
2 SIG-5600 User Manual
3 CE Сertificate
4 FCC Сertificate
5 Declaration of RoHS Compliance
MODBUS/TCP
1 Modbus/TCP Protocol
2 SIG Series I/O Applications (Internet Switch)
SOFTWARE
1 ModMap Users' manual
FAQ
1 SIG-5600 Frequently Asked Questions faq icon


Utilities



Read more
