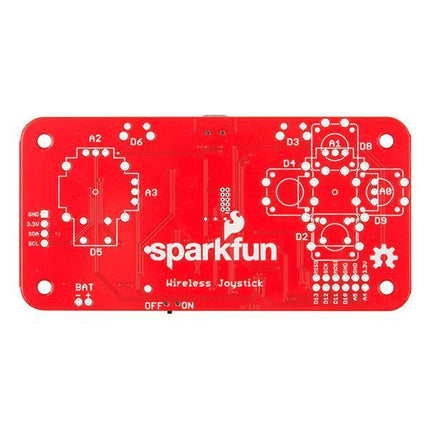

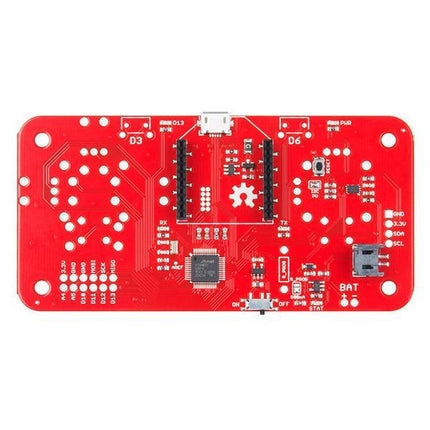

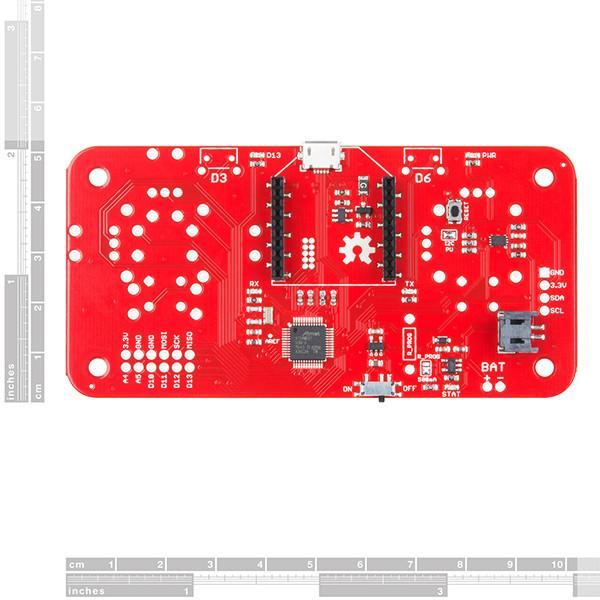

SparkFun Wireless Joystick Kit

The SparkFun Wireless Joystick Kit provides an easy way to control your next XBee project. Before the wireless joystick, radio-controlled projects used hobby RC transmitters, the same ones used for RC cars, boats and planes. The problem with these transmitters is that many aren’t customizable, and the ones that tend to be too expensive for many of us. The Wireless Joystick Kit offers a custom wireless solution for those who want to control their project their own way.

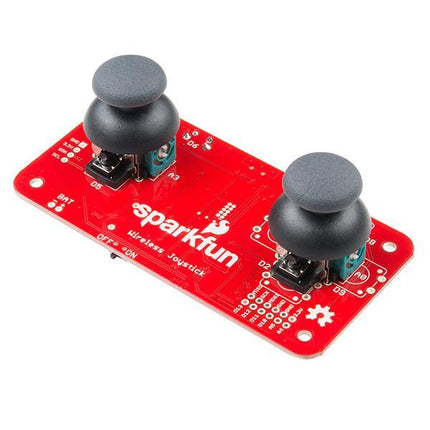

Equipped with the increasingly popular SAMD21 onboard, all you need is to assemble the SparkFun Wireless Joystick into the configuration you want and add your own XBee and lithium ion battery into the provided sockets. The Wireless Joystick Kit can be assembled into a configuration that utilises dual joysticks for better RC steering robots (like tanks) or a single joystick configuration with four 12mm momentary pushbuttons (a setup similar to what older game consoles used). We have provided a full Hookup Guide that gives assembly instructions, as well as a tank-steering motor controller tutorial to help get you started!

Note: This kit will need to be assembled before use, so a beginner’s knowledge of soldering will be required. Additionally, in an effort to keep shipping rates down and make this kit available to people throughout the world without delay, there is no XBee or lithium ion battery included.

GET STARTED WITH THE WIRELESS JOYSTICK KIT GUIDE

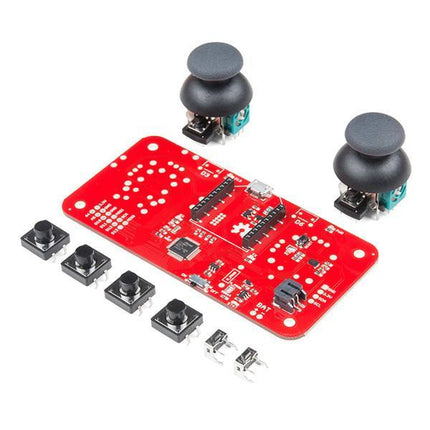

Kit Includes:

1x Wireless Joystick Board
2x Right Angle Tactile Button
2x Thumb Joysticks
4x Momentary Pushbutton Switch - 12mm

Documents:
