Teensy Prop Shield

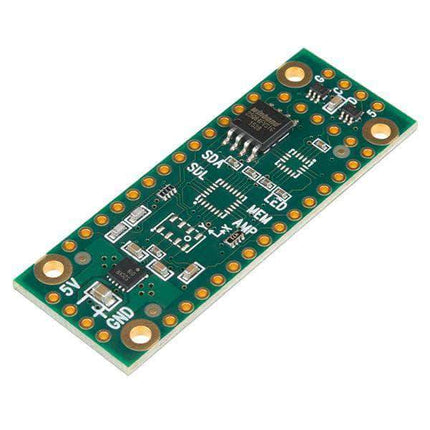

The Teensy Prop Shield is meant for making interactive light and sound effects on small, handheld props and wearable costumes. This shield features a 2W audio amp, high-speed 5V buffers for driving APA102 LEDs, and an 8MB flash memory. This little board is about the size of the Teensy 3.2, just slightly longer to allow space for mounting holes and connections for power, speaker and LEDs.
The Teensy Prop Shield has been equipped with a slew of other features. Need an amplifier? The Teensy Prop Shield has one rated at 2W and is capable of driving 4 or 8 Ohm speakers. Additionally, the Prop Shield has 5V buffers meant to send data to Dotstar or APA102 type addressable LEDs. It also has an onboard 8MB flash memory, meant for storing sound clips and images, logging data and many other uses.
Features:
- Audio Amplifier – Clear quality audio output to a small speaker
- Fast LED Driver – Drive APA102 / Dotstar LEDs for colourful lighting with rapid response
- Flash Memory – 8MB storage for images, sound clips and data logging
