Teltonika ATC700 Mini Asset Tracker 4G LTE Cat 1 Rechargeable Battery
Teltonika ATC700 Compact 4G LTE Cat 1 Rechargeable GPS Asset Tracker

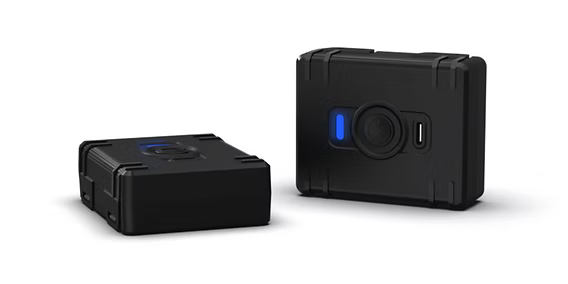

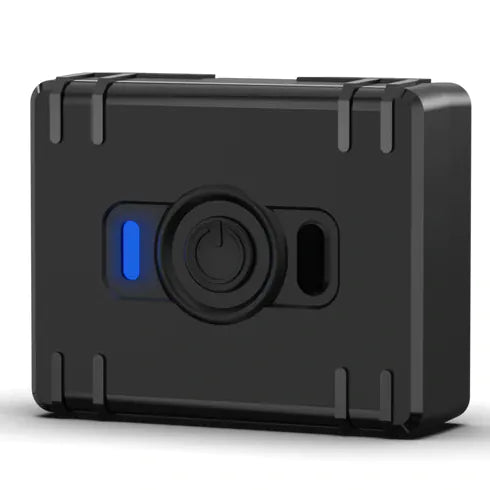

The Teltonika ATC700 is a compact, rechargeable 4G LTE Cat 1 asset tracker designed for reliable tracking of valuable assets, mobile equipment, workforce, parcels, livestock and pets. Featuring a 1,000 mAh rechargeable Li-Po battery, high-precision GNSS positioning, and a rugged IP65-rated enclosure, the ATC700 delivers dependable tracking without external wiring, making deployment fast and effortless.
Built on Teltonika's latest Fleet Telematics (FT) platform, the ATC700 supports movement-based and scheduled tracking, a configurable multi-action button, USB Type-C charging, and compatibility with external USB power banks for extended operation. Its compact design and flexible mounting options make it ideal for tracking assets that frequently change location or have no permanent power source.
Whether you need to protect valuable equipment, monitor field workers, track rental assets or manage livestock, the ATC700 integrates seamlessly with IQFLOW Cloud to provide real-time location tracking, alerts, geofencing and historical reporting.
Key Features
- 4G LTE Cat 1 connectivity with automatic 2G fallback
- Built-in 1,000 mAh rechargeable Li-Po battery
- High-accuracy GPS, GLONASS, Galileo & BeiDou positioning
- Compact wireless asset tracker
- Rugged IP65-rated enclosure (internally tested)
- USB Type-C charging and configuration
- Compatible with external USB power banks
- Multi-action programmable button
- Accelerometer for movement detection
- Internal high-gain GNSS and LTE antennas
- Nano-SIM support
- 128 MB internal flash memory
- Online Sleep and Power Off Sleep modes
- Remote firmware updates via FOTA Web
- Teltonika Configuration Tool (TCT) support
Designed for Mobile Asset Tracking
The ATC700 is engineered for applications where wired power is unavailable or installation needs to be quick and simple.
Ideal for:
- Asset tracking
- Equipment monitoring
- Workforce safety
- Parcel tracking
- Tool tracking
- Rental equipment
- Livestock monitoring
- Pet tracking
- Agriculture
- Construction equipment
- Logistics and transport
Its compact size allows it to be discreetly mounted on a wide variety of assets without complex installation.
Rechargeable Battery for Long-Term Operation
The ATC700 features a 1,000 mAh rechargeable Li-Po battery, providing reliable standalone operation for mobile assets.
Battery features include:
- Rechargeable via USB Type-C
- 1,000 mAh capacity
- Optimised low-power operation
- Compatible with USB power banks for extended runtime
- Online Sleep and Power Off Sleep modes to maximise battery life
This makes the ATC700 an excellent choice for long-duration tracking where permanent vehicle power is unavailable.
Multi-Action Button for Safety & Tracking
A built-in configurable button enables the tracker to perform multiple functions depending on your application.
Typical uses include:
- Panic/SOS button
- Manual location update
- Tracking activation
- Custom event triggering
This feature makes the ATC700 suitable for lone workers, field personnel and security applications.
Accurate GNSS Positioning
The ATC700 supports multiple global navigation satellite systems for reliable worldwide positioning.
Supported constellations include:
- GPS
- GLONASS
- Galileo
- BeiDou
Performance includes:
- Position accuracy: <1.8 m CEP
- 135 tracking/acquisition channels
- Tracking sensitivity: -165 dBm
- Hot start: <1 second
- Warm start: <25 seconds
These specifications ensure dependable positioning in both urban and remote environments.
Flexible Tracking Features
The ATC700 supports a range of intelligent tracking scenarios designed to balance battery life and reporting frequency.
Supported features include:
- Movement-based tracking
- Periodic tracking
- Scheduled reporting
- Alarm button
- Configurable LED indication
- Power bank support
- Geofencing (firmware support)
- On-demand tracking (firmware support)
The factory default configuration transmits a location update every 15 minutes, with all settings configurable through the Teltonika Configuration Tool or FOTA Web.
Easy Installation & Mounting
Because the ATC700 operates from its internal battery, installation requires no wiring.
The Quick Manual recommends several mounting methods, including:
- Zip ties
- Double-sided tape
- Magnetic sticker (optional accessory)
- Neck cord for personnel monitoring
This flexibility allows the tracker to be easily attached to equipment, parcels, machinery or carried by workers.
Easy Configuration & Remote Management
The ATC700 supports several convenient configuration methods:
- USB Type-C configuration
- Teltonika Configuration Tool (TCT)
- SMS configuration
- FOTA Web remote firmware updates
- TCP and UDP communication protocols
Integrated with IQFLOW Cloud, the ATC700 enables live asset tracking, geofence alerts, movement notifications, historical route playback and battery monitoring.
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1 with 2G GSM fallback |
| GNSS |
GPS, GLONASS, Galileo, BeiDou |
| Position Accuracy |
<1.8 m CEP |
| Tracking Channels |
135 |
| Tracking Sensitivity |
-165 dBm |
| Battery |
1,000 mAh Li-Po rechargeable |
| Charging |
USB Type-C |
| Memory |
128 MB Flash |
| SIM |
Nano-SIM |
| Sensors |
Accelerometer |
| Enclosure |
IP65 (internally tested) |
| Dimensions |
62.2 × 54.2 × 20.3 mm |
| Weight |
71 g |
| Operating Temperature |
-20°C to +60°C |
*Specifications sourced from the official Teltonika ATC700 Datasheet.
Typical Applications
- Asset Tracking
- Workforce Monitoring
- Parcel Tracking
- Livestock Monitoring
- Pet Tracking
- Tool & Equipment Tracking
- Construction Site Monitoring
- Rental Asset Management
- Agriculture
- Logistics & Warehousing
- Event Equipment Tracking
- Temporary Asset Protection
