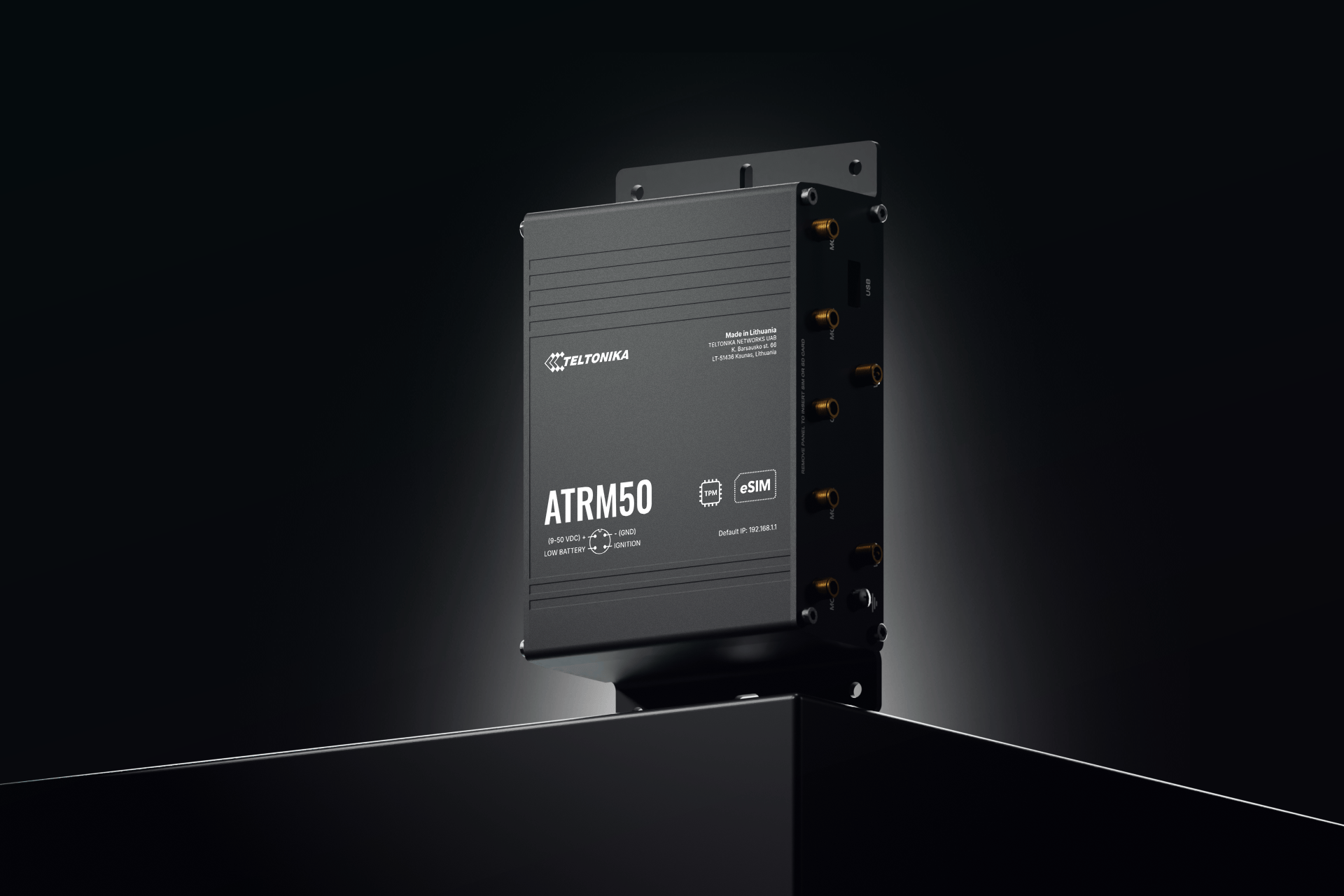

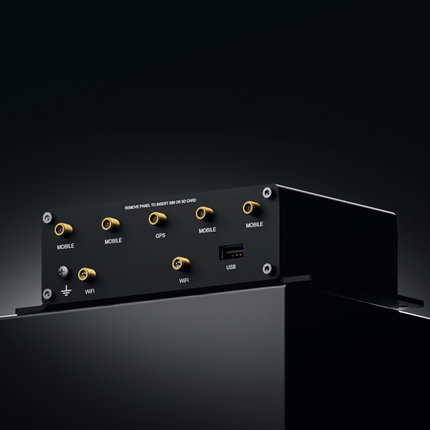

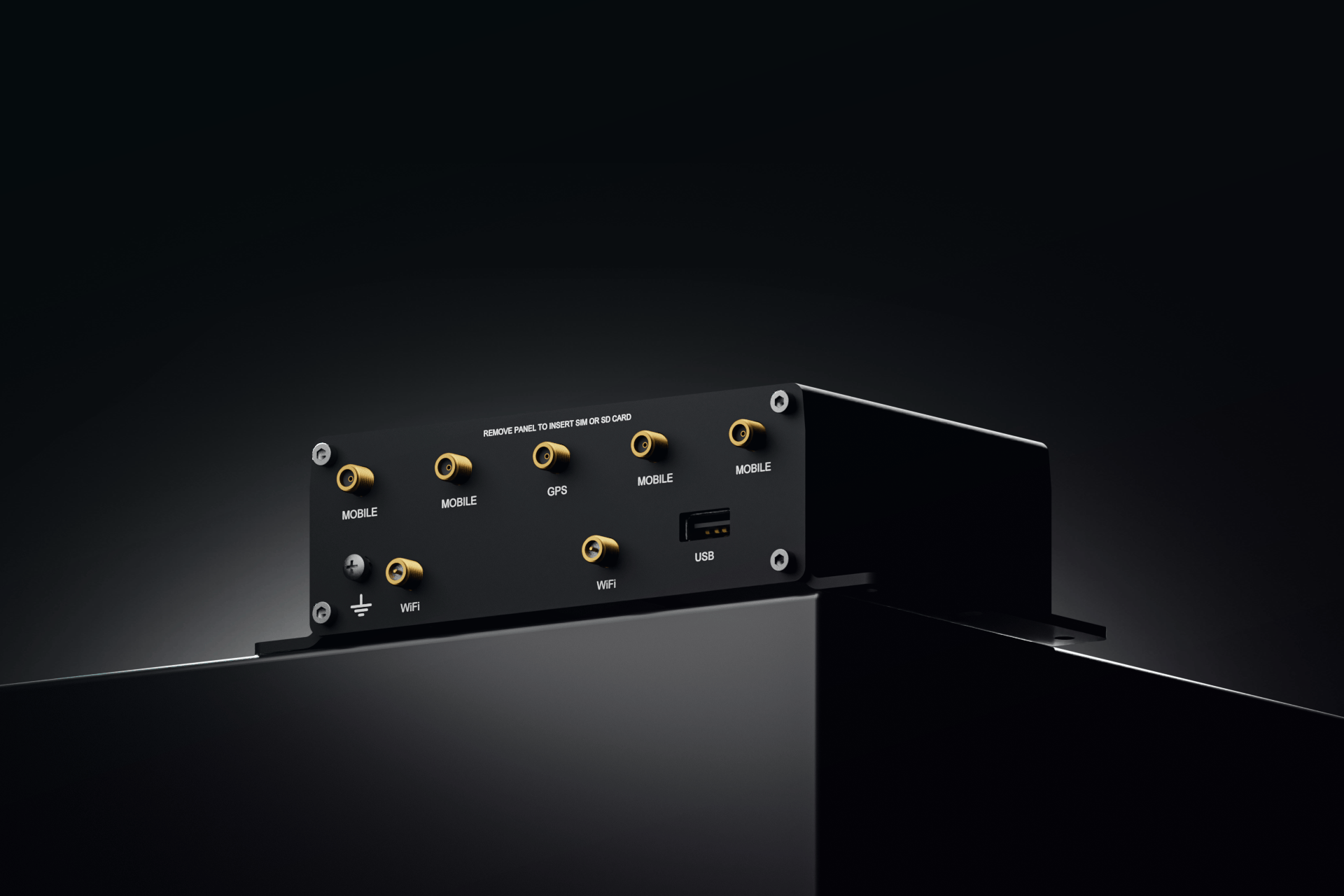

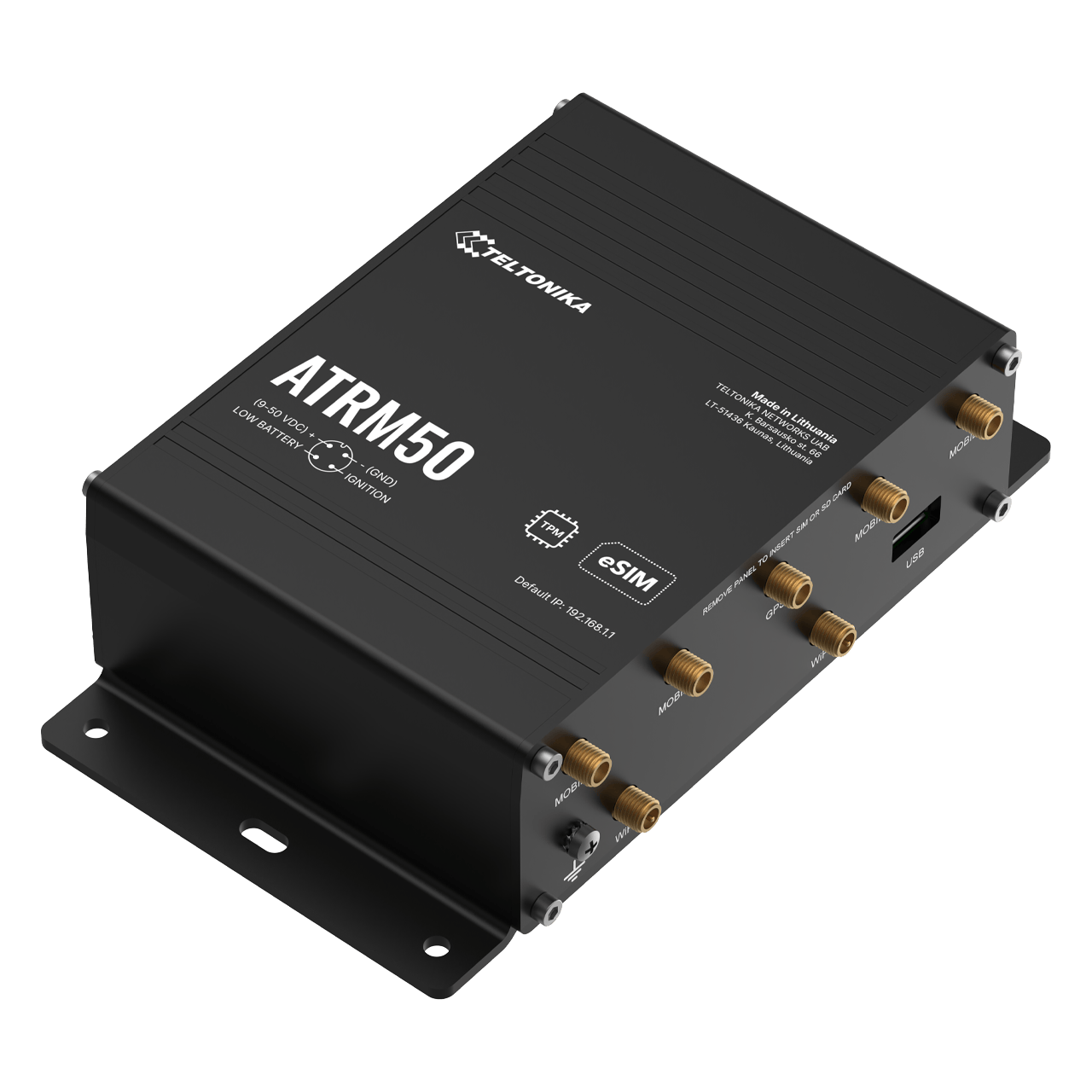

Teltonika ATRM50 Industrial Rugged 5G Router for Transportation (Dual SIM, eSIM, M12, GNSS)
Rail-Certified 5G Industrial Router Built for Transportation & Harsh Environments
The Teltonika ATRM50 Industrial 5G Router is a purpose-built connectivity solution engineered for transportation, rail, and heavy-duty industrial environments. Designed with rugged M12 connectors, dual SIM + eSIM redundancy, GNSS tracking, and ultra-fast 5G connectivity, the ATRM50 delivers reliable, high-speed networking in the most demanding conditions.
According to the datasheet, the ATRM50 supports 5G speeds up to 3.4 Gbps download and 900 Mbps upload, ensuring seamless data transmission for real-time applications.
Key Features
-
5G Sub-6GHz (SA & NSA) Ultra-High Speed
Up to 3.4 Gbps DL / 900 Mbps UL for real-time, data-intensive applications
-
Dual SIM + eSIM (Triple SIM Redundancy)
Automatic failover, backup WAN, and advanced switching scenarios
-

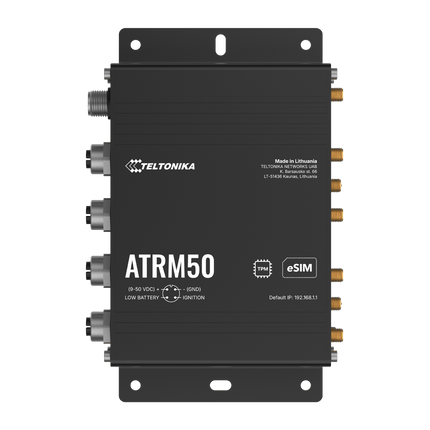

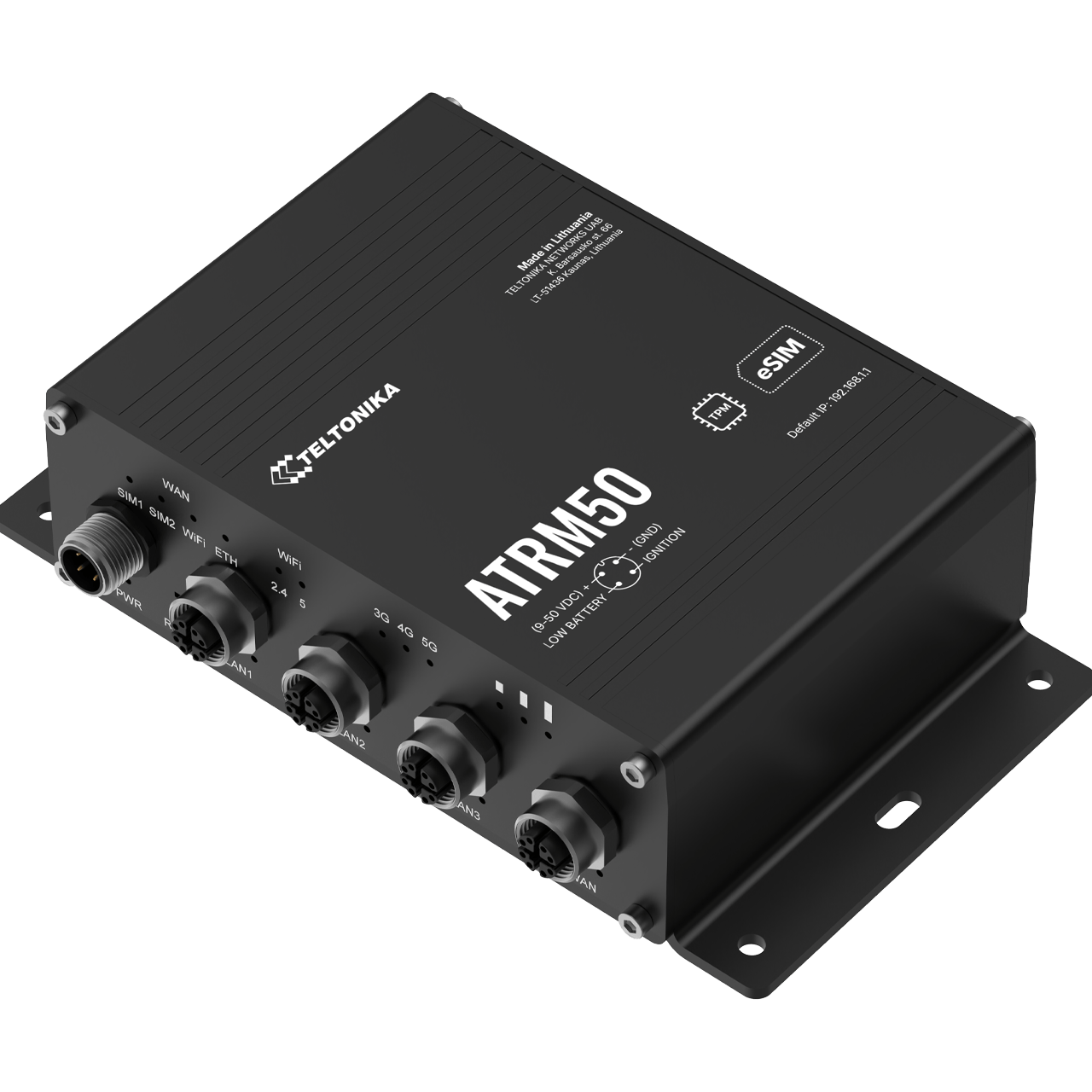

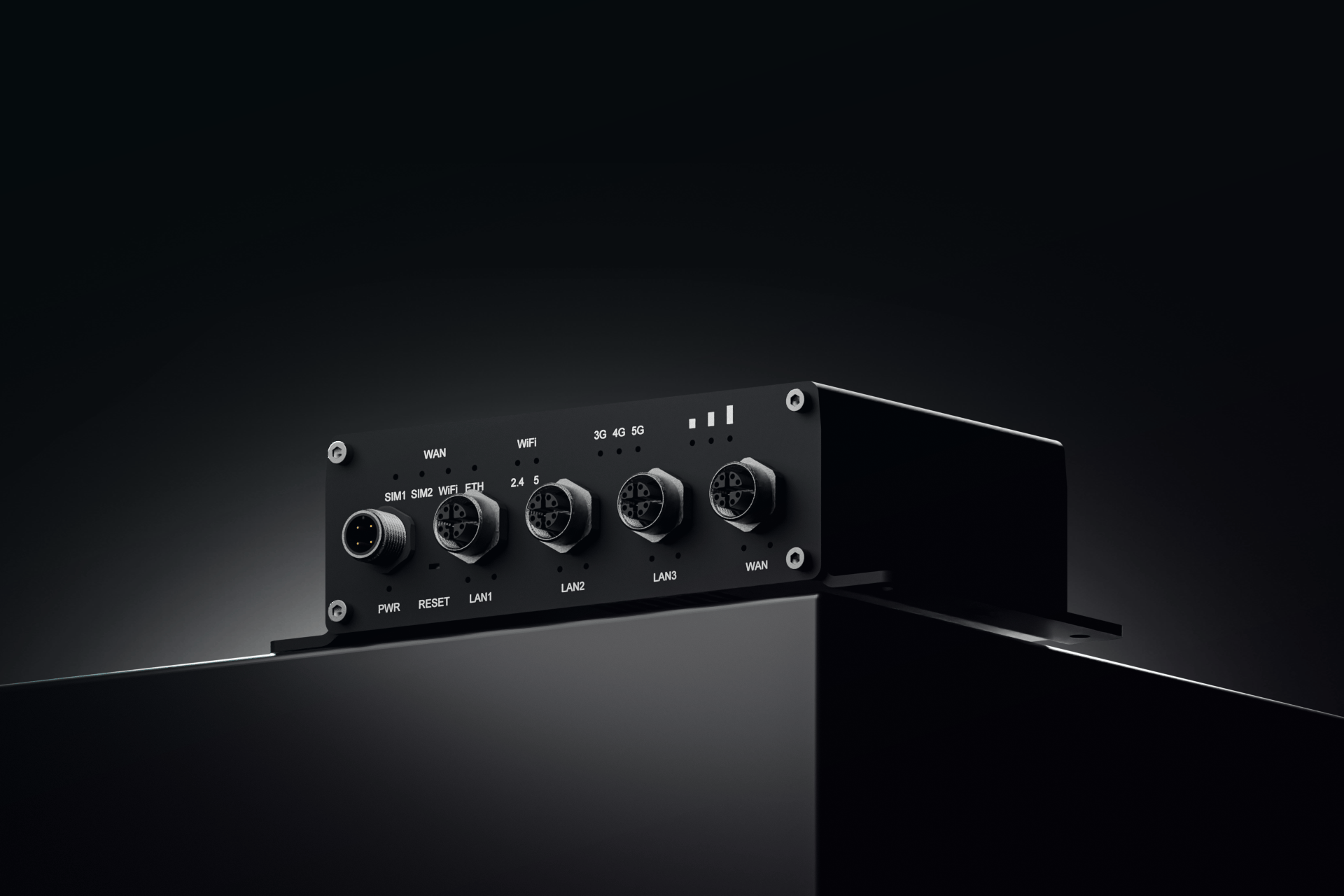

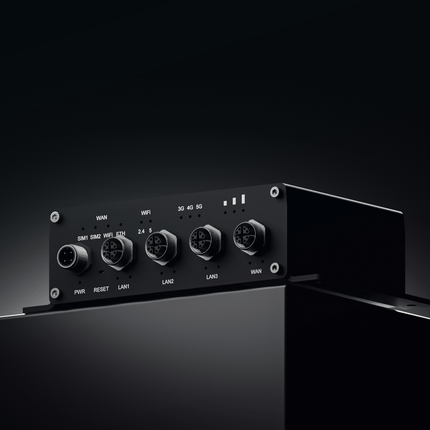

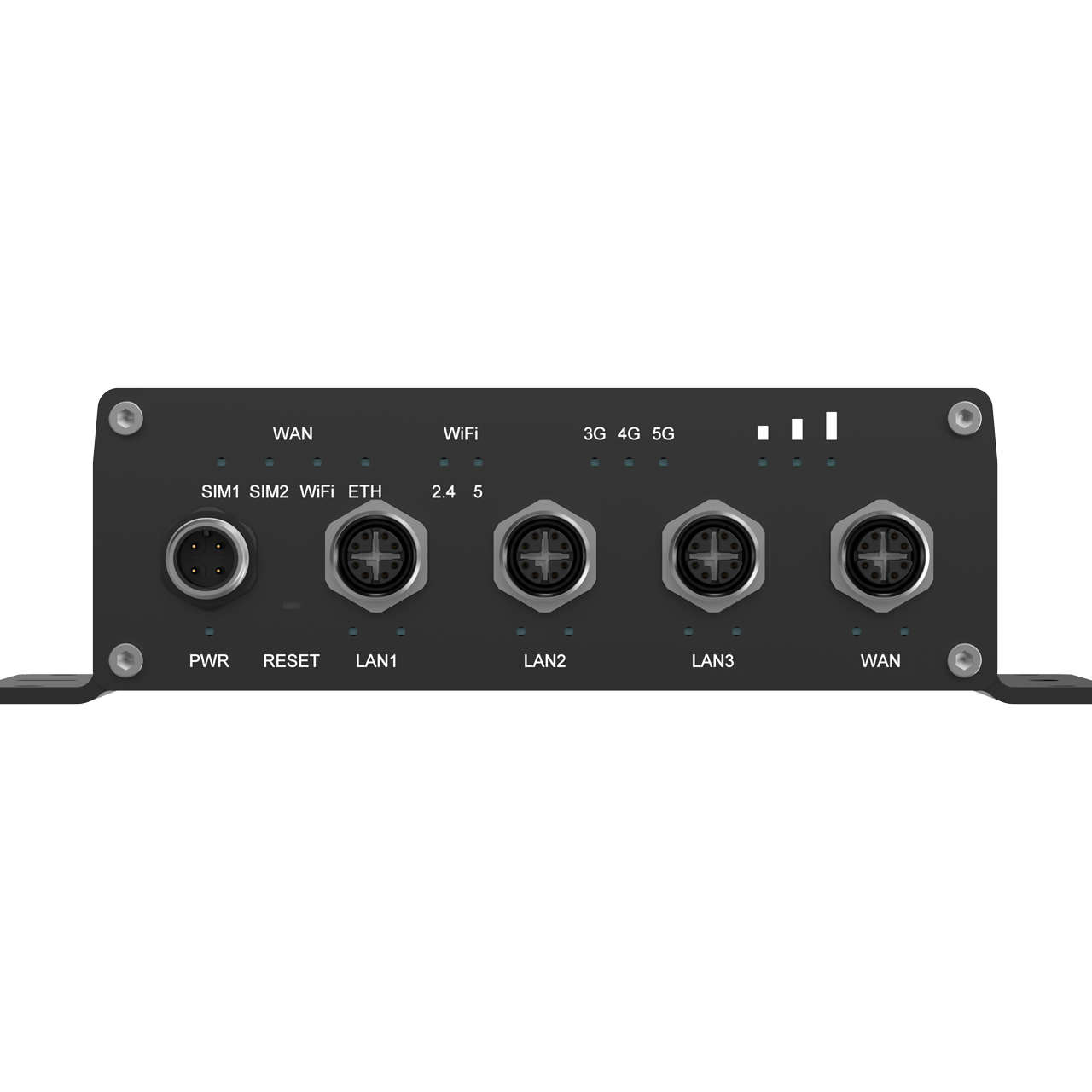

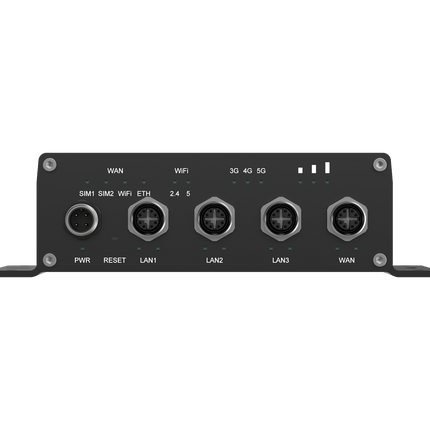

Rugged M12 Industrial Connectors
- 4 × M12 X-coded Gigabit Ethernet ports
- 1 × M12 A-coded power input
Designed for vibration-resistant and secure connections
-
Transport & Rail Certified
Compliant with EN 50155 and EN 45545-2, ensuring safety and reliability in railway environments
-

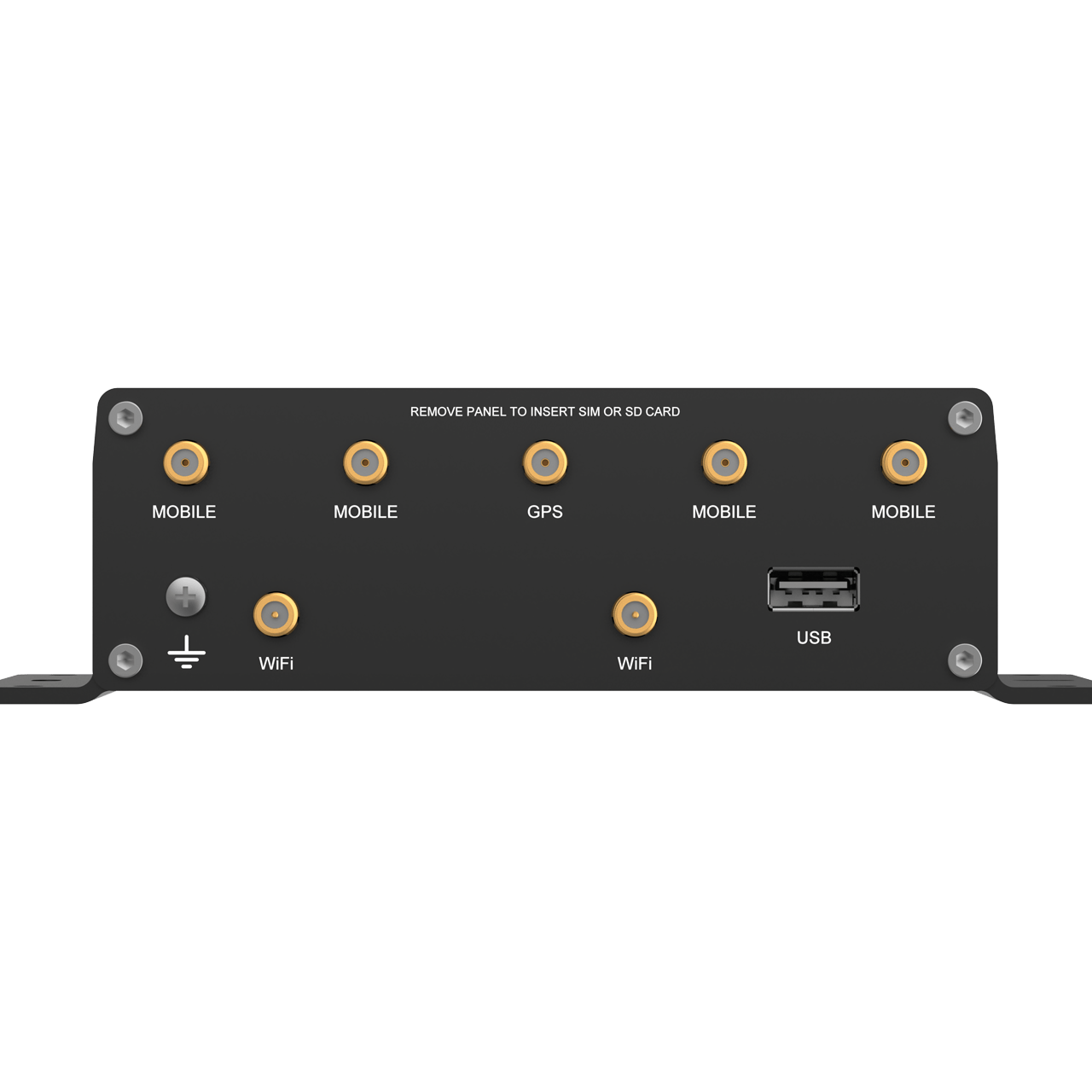

Integrated GNSS (GPS, GLONASS, Galileo, BeiDou)
Enables real-time tracking, fleet management, and geofencing
-
WiFi 5 (802.11ac Wave 2)
Dual-band WiFi with up to 150 concurrent connections
-
Advanced RutOS Platform & RMS Management
Supports MQTT, Modbus, VPNs, cloud platforms, and remote fleet management
Why Choose ATRM50?
-
Designed for Transportation & Mobility
Built specifically for vehicles, rail systems, and heavy-duty transport
-
Extreme Reliability in Harsh Environments
M12 connectors, rugged housing, and wide temperature range
-
Seamless Connectivity Redundancy
Dual SIM + eSIM ensures always-on communication
-
Future-Proof 5G Performance
Supports next-generation applications like real-time video, AI analytics, and edge computing
The ATRM50 is ideal for deployments where network reliability, safety certification, and durability are critical.
Typical Applications
- Railway and public transport connectivity
- Fleet management & vehicle tracking
- Smart city transport infrastructure
- Heavy-duty industrial vehicles
- Mobile CCTV and video streaming systems
- Logistics and asset tracking
Technical Highlights
-
Cellular: 5G Sub-6GHz SA/NSA (up to 3.4 Gbps DL / 900 Mbps UL), LTE Cat 19 fallback
-
SIM: Dual SIM + eSIM (up to 7 profiles supported)
-
WiFi: Dual-band WiFi 5 (802.11ac), MU-MIMO
-
Ethernet: 4 × M12 X-coded Gigabit ports
-

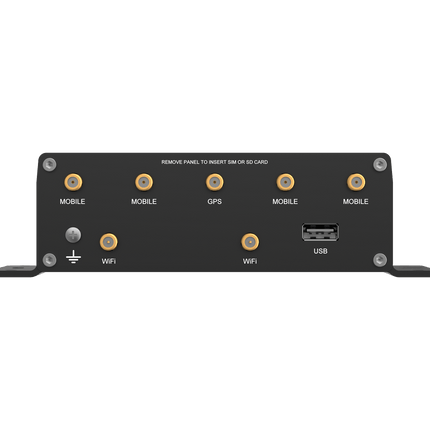

GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
-
I/O: Ignition detection & low battery inputs
-
USB: 1 × USB port for external devices
-

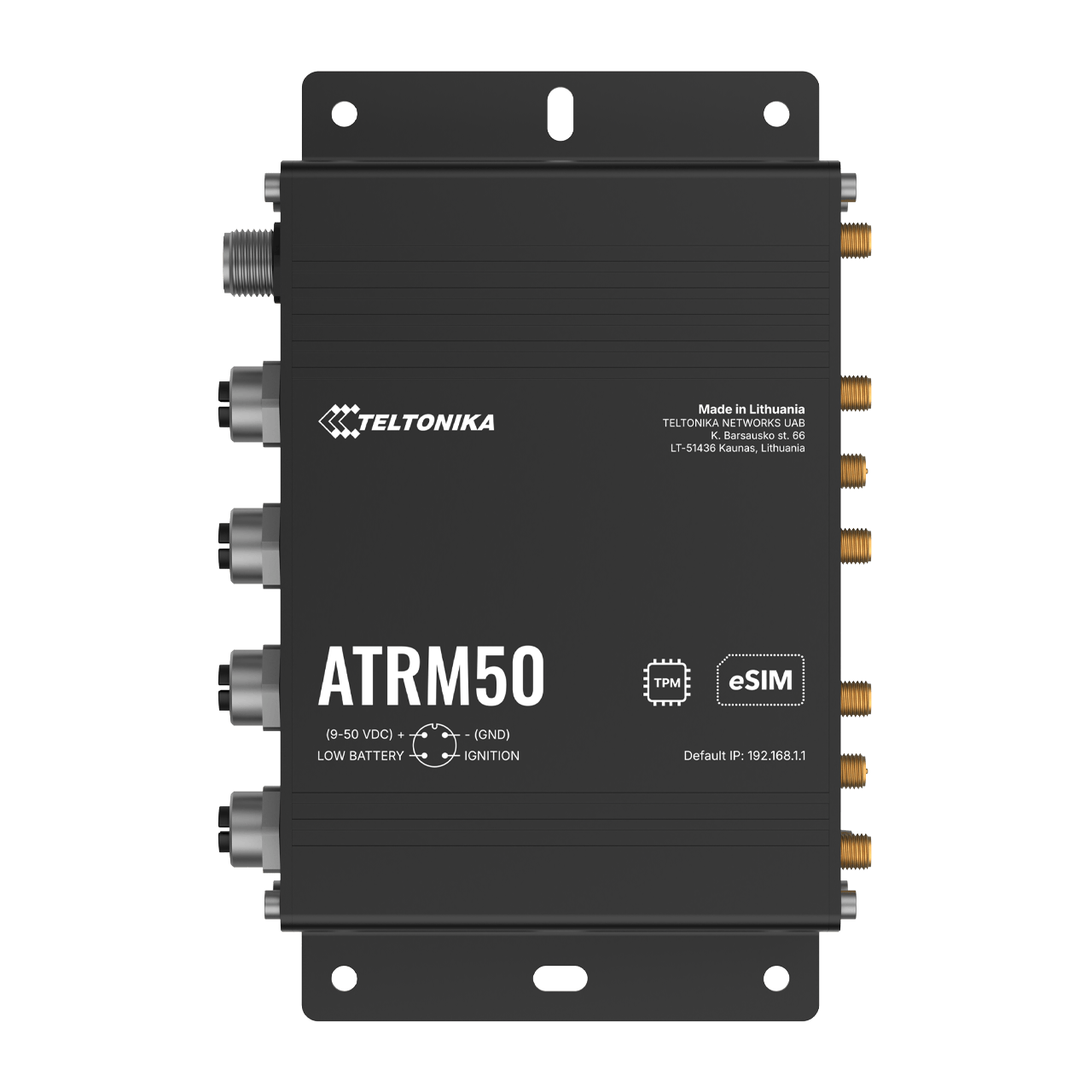

Power: 9–50 VDC via M12 connector, surge protection
-
Operating Temp: -40°C to +75°C
-
Housing: Rugged anodized aluminium
What’s in the Box
- ATRM50 Router
- Quick Start Guide
- Mounting hardware (integrated bracket)
- Hex key
Resources:
Teltonika ATRM50 Flyer
Teltonika ATRM50 Datasheet
Teltonika ATRM50 Quick User Guide
Teltonika ATRM50 User Guide
Teltonika ATRM50 Models
