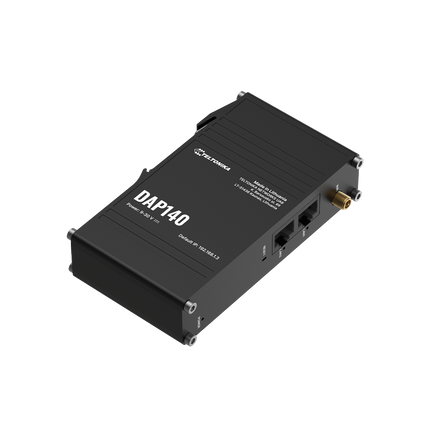

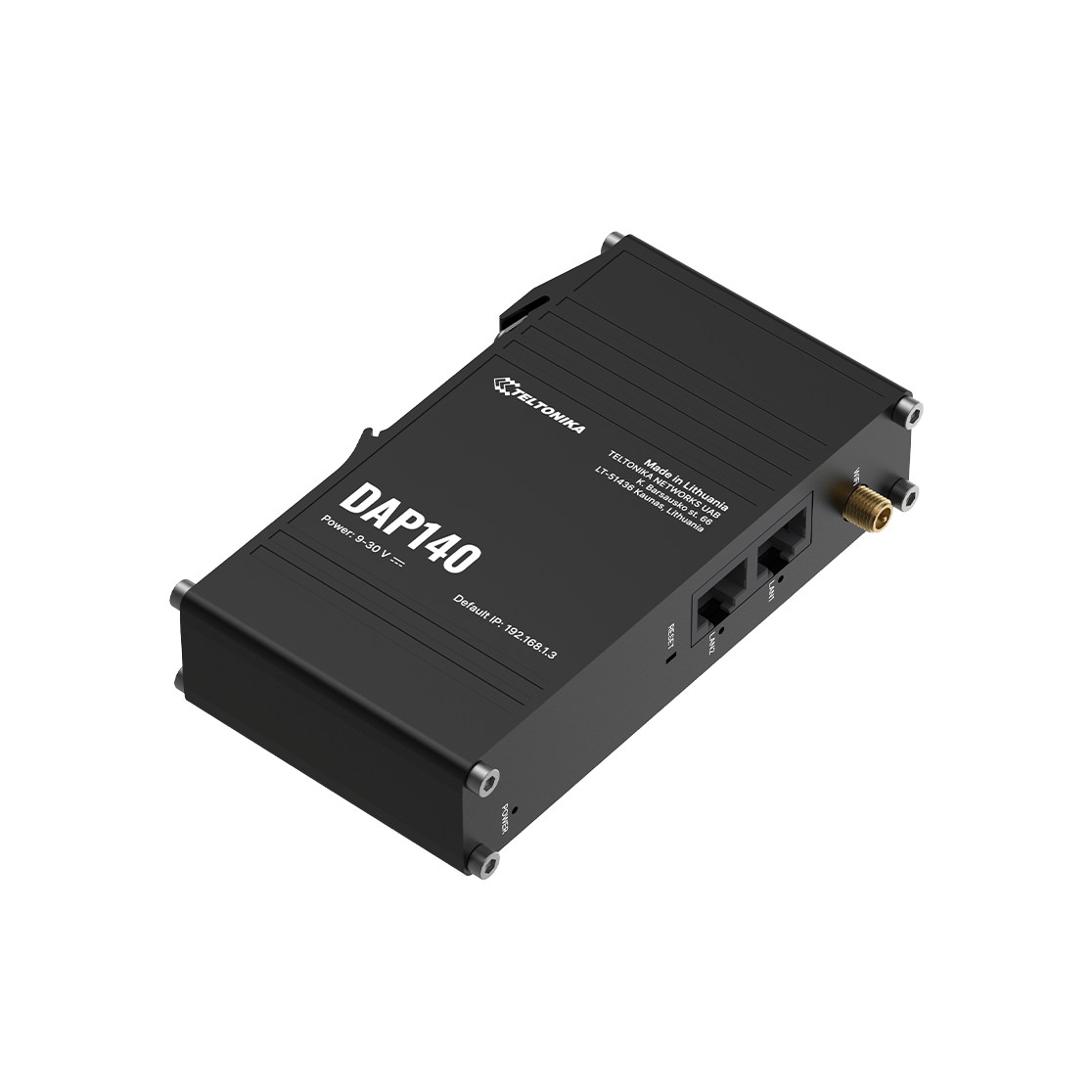

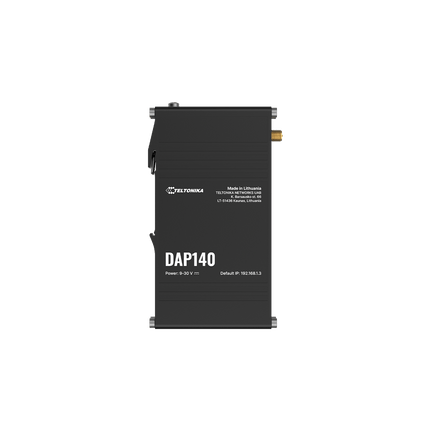

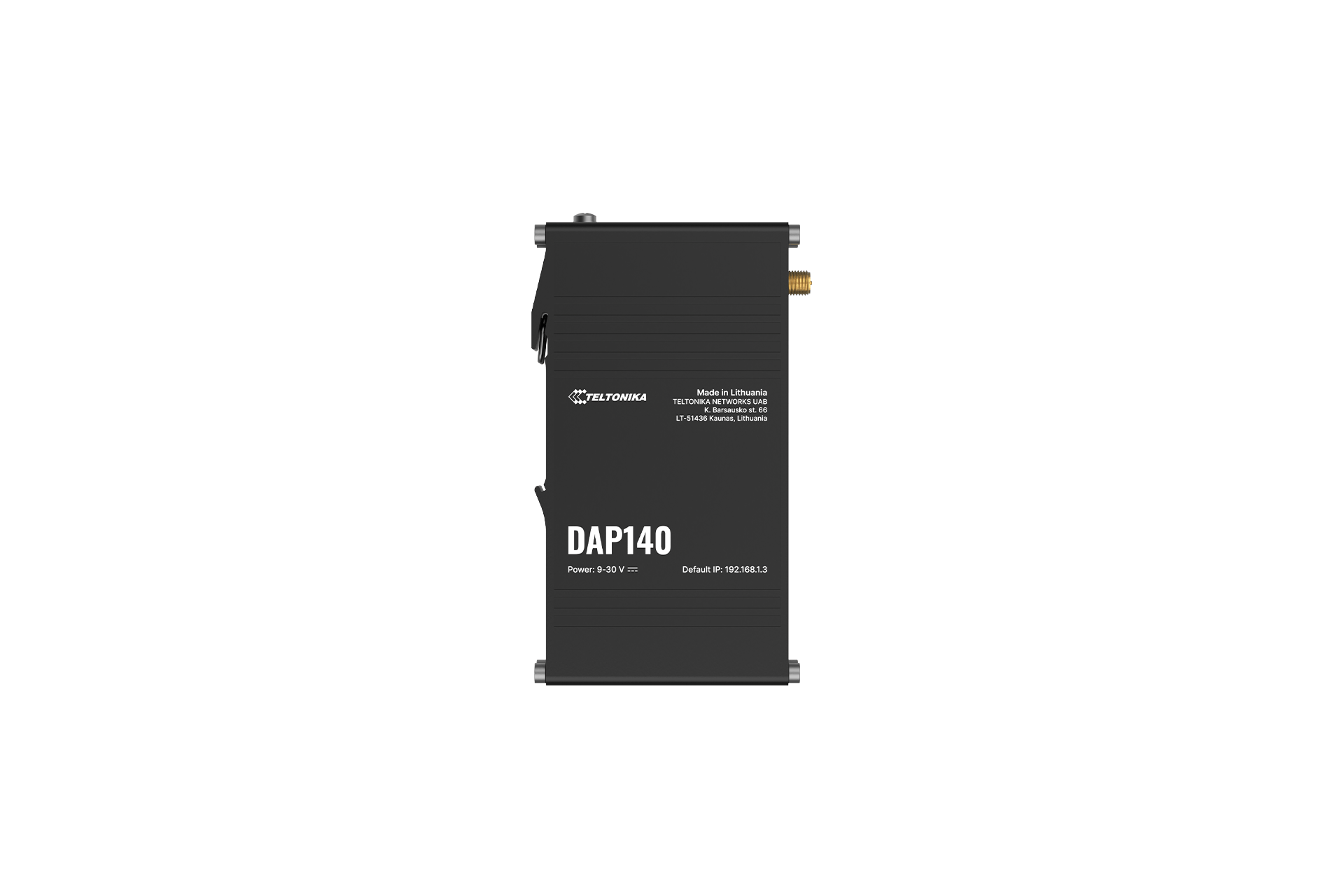

Teltonika DAP140 Industrial Wireless Access Point (PoE, WiFi, DIN Rail Mount)
Industrial Wi-Fi 4 Access Point with Mesh Networking, Fast Roaming & DIN Rail Mounting
The Teltonika DAP140 is a rugged industrial-grade wireless access point designed to extend Wi-Fi coverage and provide reliable wireless connectivity in demanding industrial environments. Featuring Wi-Fi 4 (802.11b/g/n), Wi-Fi Mesh (802.11s), Fast Roaming, dual Ethernet ports, and an integrated DIN rail mounting bracket, the DAP140 is ideal for industrial automation, smart cities, utilities, manufacturing facilities, warehouses, and retail environments.
Built on Teltonika's powerful RutOS platform, the DAP140 provides advanced networking, security, VPN, industrial protocol support, and remote management capabilities while maintaining a compact and energy-efficient design.
Key Features
-
Industrial Wi-Fi 4 Access Point
- IEEE 802.11b/g/n
- Access Point (AP)
- Client (STA)
- Mesh (802.11s)
- Multi-AP support
-
Wi-Fi Mesh & Fast Roaming
- 802.11r Fast Roaming
- 802.11k Radio Resource Management
- 802.11v BSS Transition Management
- Seamless wireless handover between access points
-
Supports Up to 50 Wi-Fi Clients
- Ideal for industrial and commercial wireless deployments
-
Dual Ethernet Ports
- 2 × 10/100 Mbps RJ45 LAN ports
- Auto MDI/MDIX support
-

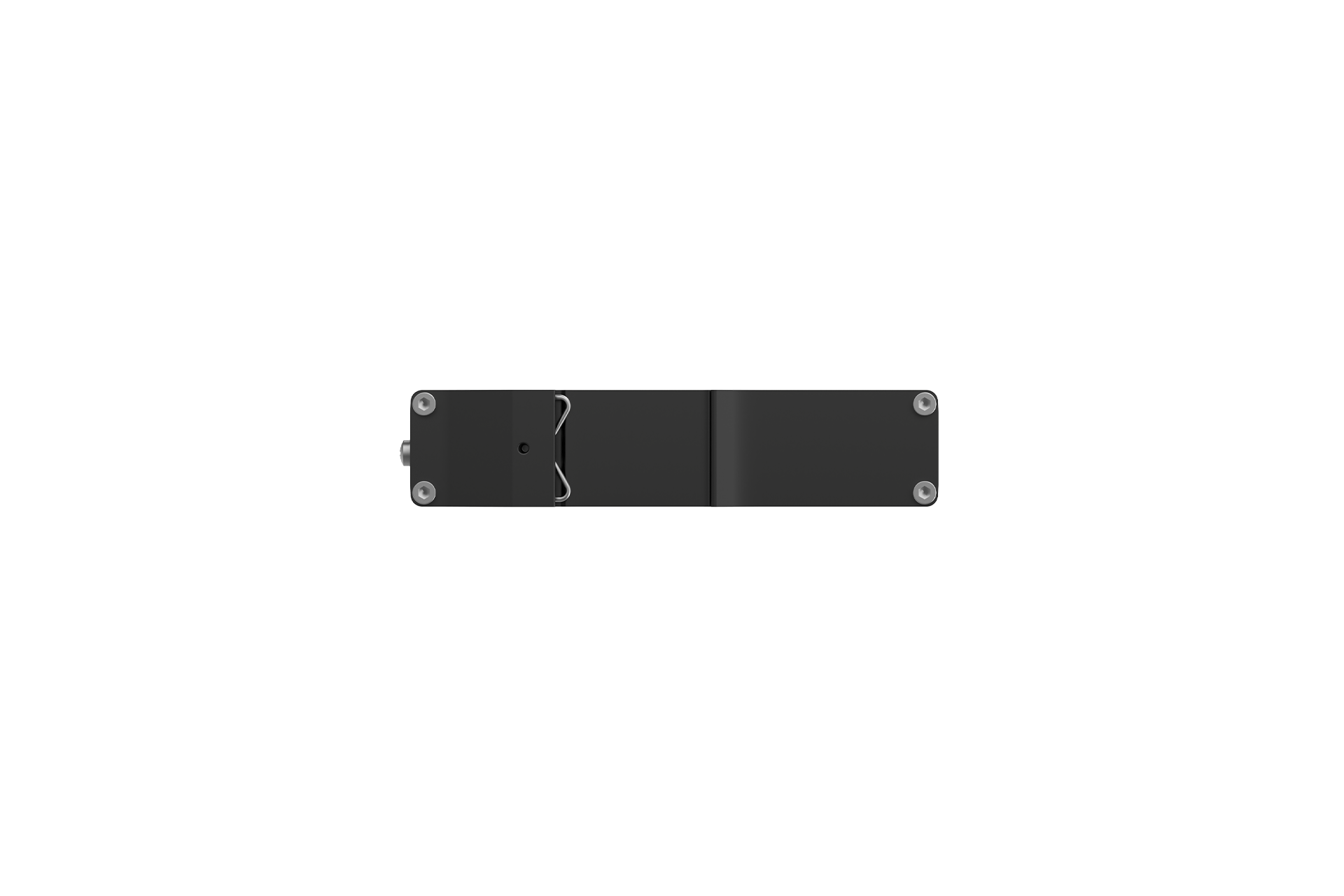

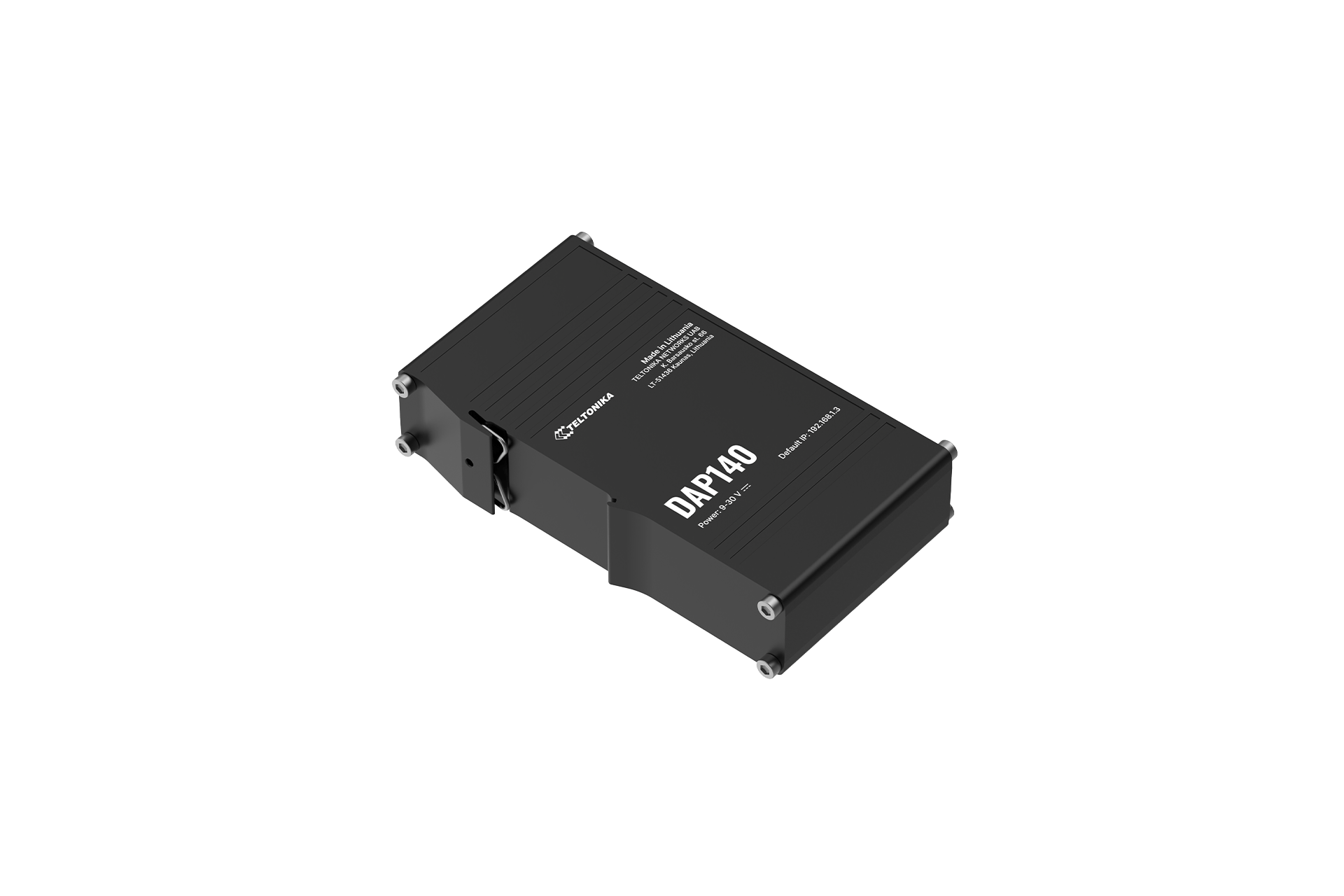

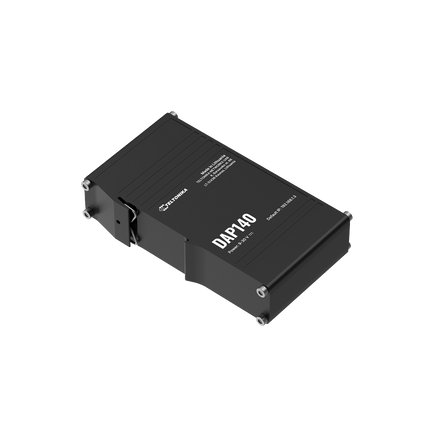

Integrated DIN Rail Bracket
- Quick installation inside industrial control cabinets and panels
-
Passive PoE Input
- Can be powered through LAN2 port
- Simplifies industrial installations
-
RMS Remote Management Compatible
- Remote monitoring
- Configuration
- Firmware upgrades
- Device management
Why Choose the Teltonika DAP140?
The DAP140 is ideal for:
- Industrial Wi-Fi coverage expansion
- Factory automation networks
- Warehouse wireless infrastructure
- Utility and energy networks
- Smart city deployments
- Industrial control cabinets
- Retail and commercial Wi-Fi
- Remote equipment connectivity
- Mesh networking deployments
- Secure enterprise wireless networks
Its industrial-grade design, advanced wireless roaming, and extensive RutOS feature set make it significantly more capable than standard commercial access points.
Typical Applications
- Industrial automation
- Manufacturing facilities
- Mining operations
- Utility infrastructure
- Smart buildings
- Smart city projects
- Transportation systems
- Warehouses & logistics
- Retail networks
- Remote monitoring systems
Technical Highlights
Wireless Connectivity
- Wi-Fi 4 (802.11b/g/n)
- Access Point mode
- Client mode
- Mesh networking (802.11s)
- Multi AP support
- Up to 50 simultaneous users
- Wi-Fi QR code onboarding
- TravelMate support
Fast Roaming Features
Supports:
- 802.11r Fast Roaming
- 802.11k Radio Resource Measurement
- 802.11v BSS Transition Management
- Client isolation
- Hidden SSID
- WMM QoS support
Wi-Fi Security
- WPA-PSK
- WPA2-PSK
- WPA3-SAE
- WPA-EAP
- WPA2-EAP
- WPA3-EAP
- OWE encryption
- MAC address filtering
- SSID hiding

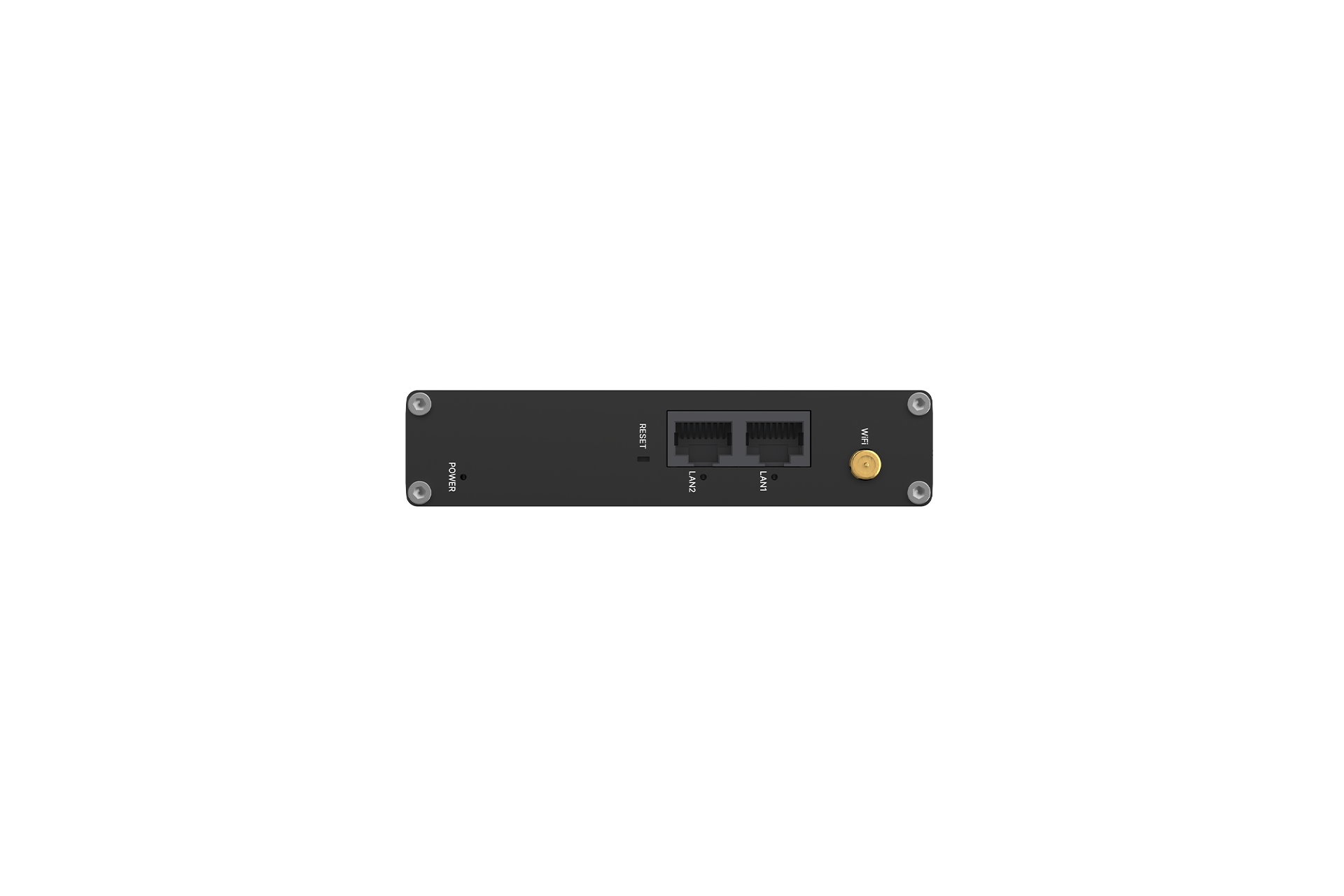

Ethernet Interfaces
- 2 × 10/100 Mbps RJ45 LAN ports
- IEEE 802.3 compliant
- Auto MDI/MDIX support
- Energy Efficient Ethernet (802.3az)
Advanced Networking
Supports:
- Static Routing
- RIP
- OSPF
- EIGRP
- BGP
- Policy Based Routing
- VLANs
- QoS
- DHCP Server
- Load Balancing
- Failover
- DDNS
- DNS over HTTPS
- Hotspot 2.0
- VRF support
Industrial Protocol Support
Supports:
- OPC UA Client & Server
- Modbus TCP Client & Server
- Modbus MQTT Gateway
- MQTT
- DNP3
- DLMS/COSEM
- HTTP(S)
- Azure MQTT
- REST API Integration
VPN & Security Features
Supports:
- OpenVPN
- IPsec
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- WireGuard
- Tailscale
- ZeroTier
- Tinc VPN
- Certificate Management
- Firewall
- DDoS Protection
- VLAN Segmentation
- 802.1X Authentication
Remote Management
- Web UI
- SSH
- SNMP v1/v2/v3
- TR-069
- MQTT
- JSON-RPC
- RMS
- FOTA Updates
- Modbus TCP Management
Cloud Platform Integration
Compatible with:
- Teltonika RMS
- AWS IoT Core
- Azure IoT Hub
- ThingWorx
- Cumulocity IoT
Hardware Specifications
- CPU: MediaTek 580 MHz MIPS 24KEc
- RAM: 128 MB DDR2
- Flash: 16 MB NOR Flash
- RutOS (OpenWrt-based Linux OS)

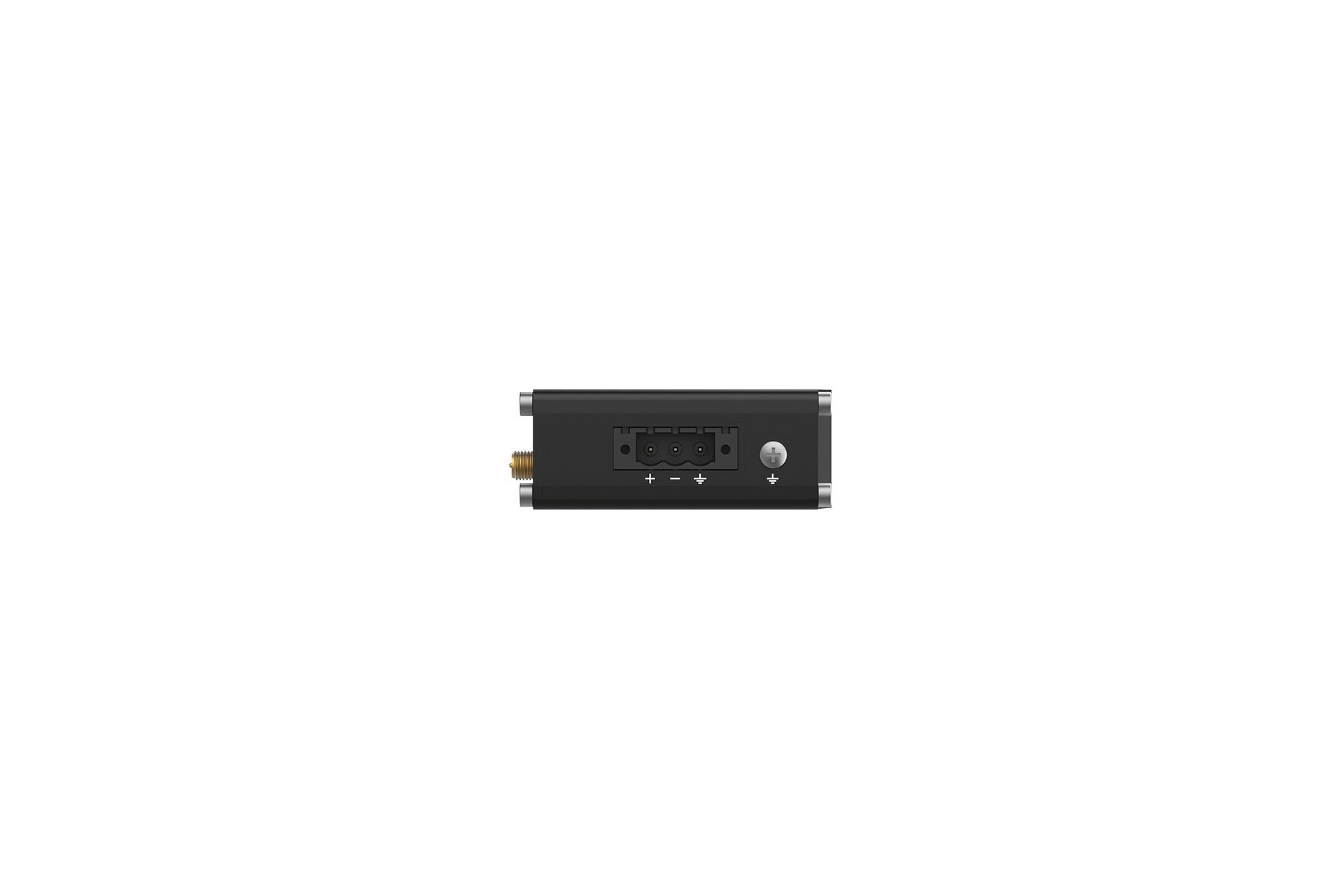

Power Options
- 9–30 VDC input
- 3-pin industrial terminal block
- Passive PoE input via LAN2
- Reverse polarity protection
- Surge protection
- Power consumption:
Physical Specifications
- Aluminium housing
- Integrated DIN rail bracket
- Dimensions: 113.1 × 25 × 68.6 mm
- Weight: 142.3 g
- Grounding screw included
Environmental Specifications
- Operating temperature: -40°C to +75°C
- Humidity: 10%–90% non-condensing
- IP30 rated enclosure
Resources:
Teltonika DAP140 Flyer
Teltonika DAP140 Datasheet
Teltonika DAP140 Quick User Guide
Teltonika DAP140 User Guide
Teltonika DAP140 3D Models
