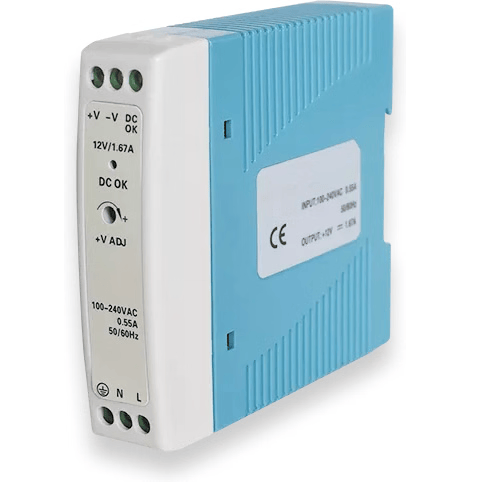

Teltonika DIN Rail Power Supply PR3PDNP0 20W 12V
Teltonika | PR3PDNP0 | DIN Rail Power Supply Unit 20W | Suitable for RUT2xx, RUT9xx, RUT3xx, RUTXxx, TRB14x, TRB24x, TRB500, TSW010, TSW304, etc.
SPECIFICATIONS:
-
Single output power: 20 W
-
Input voltage: 100 – 240 VAC
-
Input frequency: 50 / 60 Hz
-
DC output voltage: 12 V
-
DC output current: 0 – 1.67 A
-
Output ripple and noise: 120 mVp-p
-
Line regulation: ±1 %
-
Load regulation: ±1 %
-
Adjustable range for DC voltage: ±1 %
-
Maximum input inrush current: Cold start current 20 A / 115 VAC; 40 A / 230 VAC
-
Overload protection: 105 % ~ 160 % cut off the output, automatic recovery
-
Over voltage protection: 120 % ~ 140 % shut down O/P voltage, off/on cycle required for recovery
-
Setup, rise, hold up time: 500 ms, 30 ms / 230 VAC at full load; 1000 ms, 30 ms / 115 VAC at full load
-
Withstand voltage: I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute
-
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500 VDC / 1000 MΩ
-
Working temperature: –10 °C ~ +50 °C
-
Mounting options: 35 mm DIN Rail
-
Dimensions: 22.5 x 90 x 100 mm
-
Weight: 1900g
-
Certification: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 55022:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010/A1:2015
