Teltonika EYE Beacon Bluetooth Low Energy ID Beacon
Teltonika EYE Beacon Bluetooth® Low Energy Asset Identification & Indoor Tracking Beacon

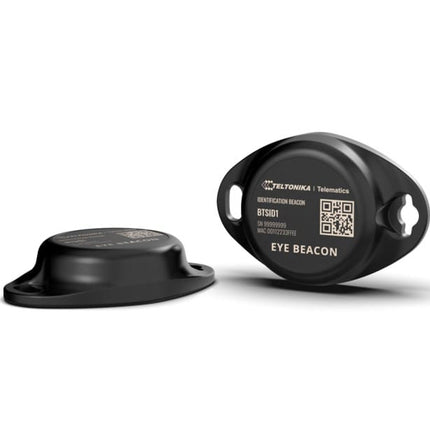

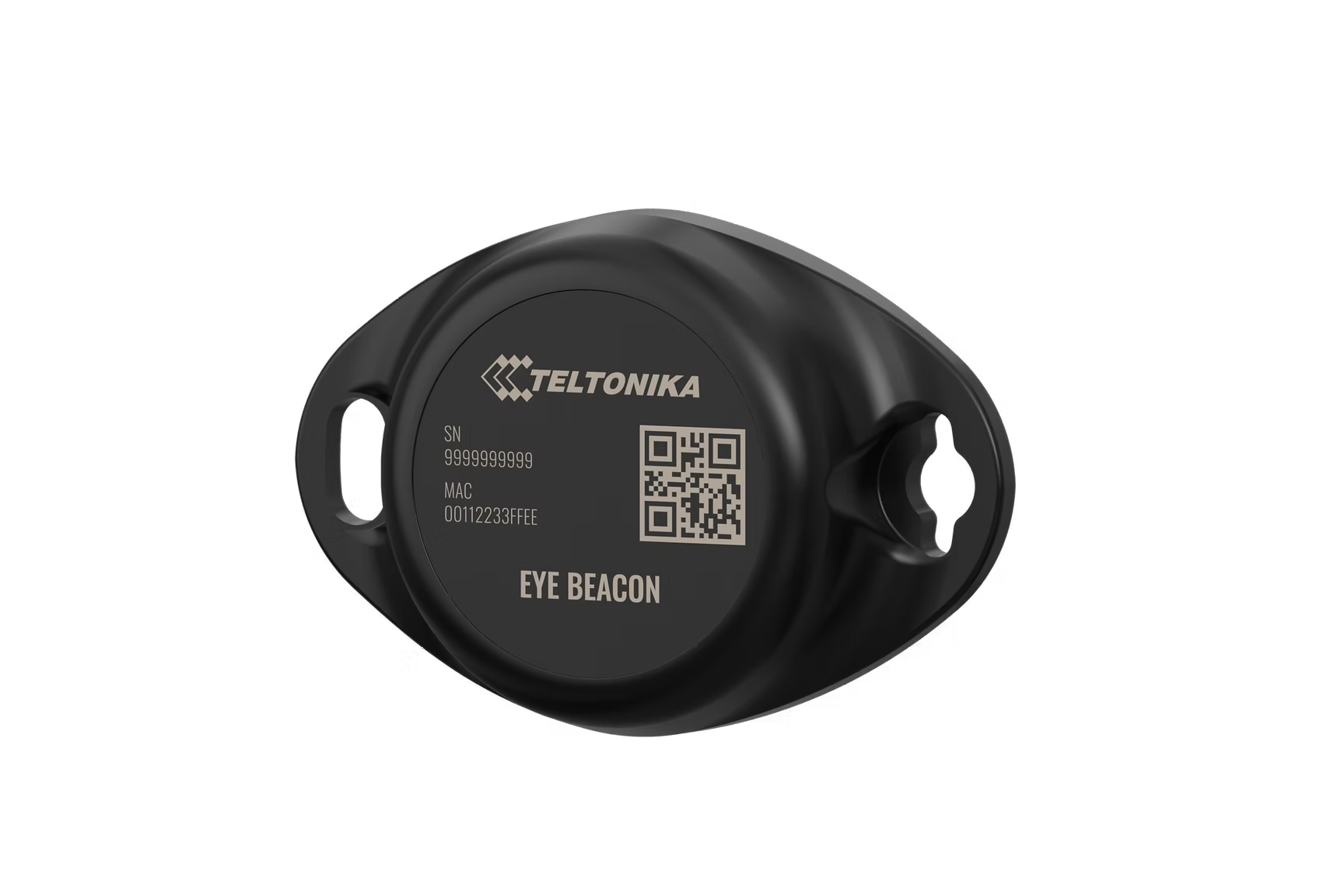

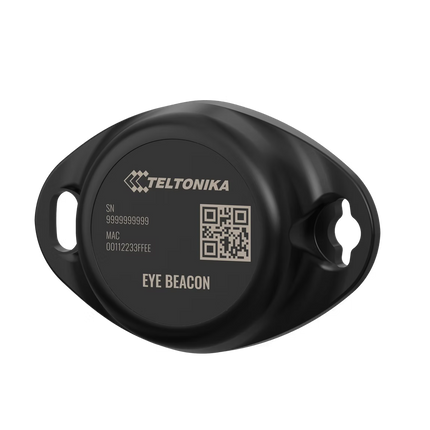

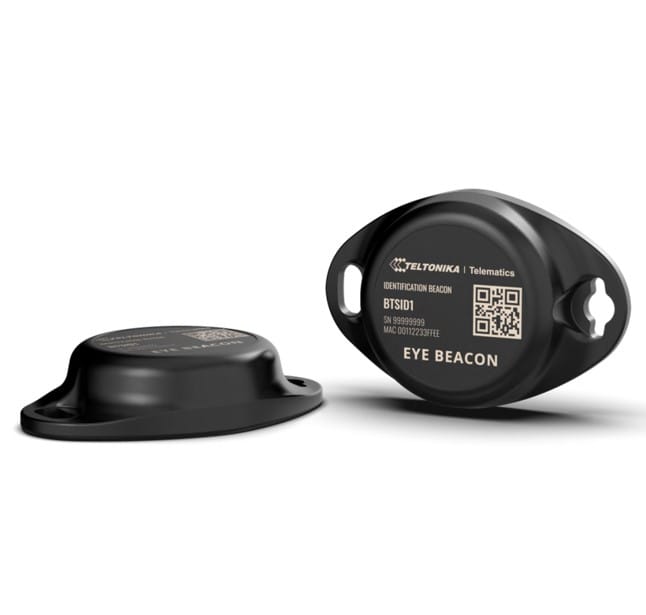

The Teltonika EYE Beacon (BTSID1) is a compact Bluetooth® Low Energy (BLE) ID beacon designed for wireless asset identification, indoor positioning and proximity-based tracking. Featuring an IP67-rated waterproof enclosure, long-range Bluetooth® connectivity and an exceptional 10+ year battery life, the EYE Beacon provides a reliable and maintenance-free solution for asset visibility across industrial, commercial and logistics environments.
Supporting iBeacon®, Eddystone and Teltonika proprietary protocols, the EYE Beacon integrates seamlessly with Teltonika GPS trackers and gateways, allowing businesses to identify and locate assets in real time. When combined with IQFLOW Cloud, organisations can monitor asset locations, automate inventory management and improve operational efficiency without the need for complex infrastructure.
Key Features
- Bluetooth® Low Energy (BLE) ID Beacon
- Up to 80 metres wireless communication range
- Exceptional 10+ year battery life
- IP67 waterproof and dustproof enclosure
- Supports iBeacon®, Eddystone and Teltonika protocols
- Bluetooth® 4.2 compliant and Bluetooth® 5.2 certified
- Compact, lightweight industrial design
- Integrated LED status indicator
- Optional magnetic field detection (new hardware revision)
- Dedicated Teltonika EYE mobile app
- Multiple mounting options
- Maintenance-free operation
Reliable Bluetooth® Asset Identification
The EYE Beacon continuously broadcasts a unique Bluetooth® identifier that can be detected by compatible Teltonika GPS trackers, smartphones and Bluetooth® gateways.
This enables businesses to:
- Identify nearby assets
- Track equipment movement
- Monitor asset presence
- Automate inventory processes
- Improve operational visibility
The beacon operates without GPS, making it ideal for indoor and close-range location-based applications.
Indoor Positioning & Asset Tracking
The EYE Beacon is well suited to environments where GPS signals are unavailable or unreliable.
Typical deployment scenarios include:
- Warehouses
- Hospitals
- Distribution centres
- Manufacturing facilities
- Transport hubs
- Retail stores
- Office buildings
- Logistics centres
By installing Bluetooth-enabled Teltonika trackers or gateways, businesses can determine when assets enter, leave or move within designated areas.
Long Battery Life
Powered by an integrated 600 mAh CR2450 lithium battery, the EYE Beacon delivers years of maintenance-free operation.
Typical battery life:
-
8+ years (default 5-second advertising interval)
-
10+ years (10-second advertising interval)
-
4+ years (3-second advertising interval)
This extended battery life significantly reduces maintenance costs, making the EYE Beacon ideal for large-scale asset deployments.
Rugged IP67 Waterproof Design
The EYE Beacon features a durable IP67-rated enclosure, allowing it to operate reliably in demanding industrial and outdoor environments.
Suitable for:
- Logistics yards
- Warehouses
- Construction sites
- Agriculture
- Manufacturing plants
- Outdoor storage areas
- Fleet equipment
Its compact housing includes two mounting holes for secure installation using screws, cable ties, adhesive pads or lanyards.
Bluetooth® Connectivity
The EYE Beacon uses Bluetooth® Low Energy technology to deliver long-range wireless communication while minimising battery consumption.
Features include:
- Bluetooth® 4.2 compliant
- Bluetooth® 5.2 certified
- Up to 80 m communication range
- Up to 8 dBm transmission power
- High receiver sensitivity
- Reliable low-power operation
This allows a single deployment to cover large indoor spaces while maintaining excellent battery performance.
Multi-Protocol Compatibility
The EYE Beacon supports multiple Bluetooth® broadcasting protocols for maximum compatibility.
Supported protocols include:
- iBeacon®
- Eddystone
- Teltonika proprietary protocol
This flexibility enables integration with a wide range of Teltonika telematics devices, Bluetooth gateways and mobile applications. New hardware revisions also support magnetic field detection status through the Teltonika protocol.
Easy Configuration with the Teltonika EYE App
The EYE Beacon can be configured and managed using the Teltonika EYE mobile application.
The app allows users to:
- Configure beacon settings
- Change transmission power
- Adjust advertising intervals
- Scan nearby beacons
- View beacon information
- Update firmware
- Configure advanced parameters
This simplifies deployment and ongoing device management.
IQFLOW Cloud Integration
When paired with compatible Teltonika GPS trackers or Bluetooth® gateways, the EYE Beacon integrates seamlessly with IQFLOW Cloud.
IQFLOW Cloud enables:
- Real-time asset identification
- Indoor asset visibility
- Proximity-based alerts
- Inventory management
- Equipment utilisation reporting
- Asset movement history
- Location-based automation
- Custom dashboards and notifications
This provides organisations with greater visibility over valuable assets while reducing manual tracking efforts.
Technical Specifications
| Feature |
Specification |
| Connectivity |
Bluetooth® Low Energy |
| Bluetooth Version |
Bluetooth® 4.2 compliant, Bluetooth® 5.2 certified |
| Wireless Range |
Up to 80 m |
| Transmission Power |
Up to 8 dBm |
| Battery |
CR2450 Lithium, 600 mAh |
| Battery Life |
Up to 10+ years (configuration dependent) |
| Protocols |
iBeacon®, Eddystone, Teltonika |
| Additional Features |
LED indicator, Hibernate mode, Optional magnetic field detection* |
| Waterproof Rating |
IP67 |
| Operating Temperature |
-20°C to +60°C |
| Humidity |
0–100% RH (non-condensing) |
| Dimensions |
56.6 × 38 × 13 mm |
| Weight |
18 g |
| Mounting |
Screws, adhesive, cable ties, lanyard |
Magnetic field detection is available on newer hardware revisions.
Specifications are based on the official Teltonika EYE Beacon Datasheet and Quick Manual.
Typical Applications
- Indoor Asset Tracking
- Warehouse Inventory Management
- Hospital Equipment Tracking
- Logistics & Distribution
- Transport Hubs
- Construction Tool Tracking
- Manufacturing Asset Monitoring
- Fleet Equipment Identification
- Retail Asset Management
- Smart Buildings
- Industrial IoT
- Proximity-Based Automation
