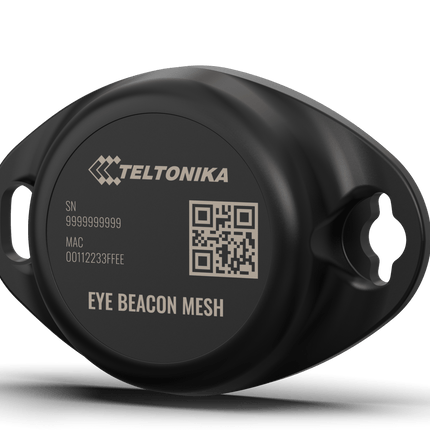

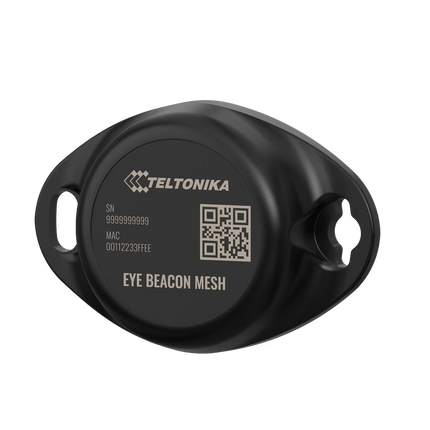

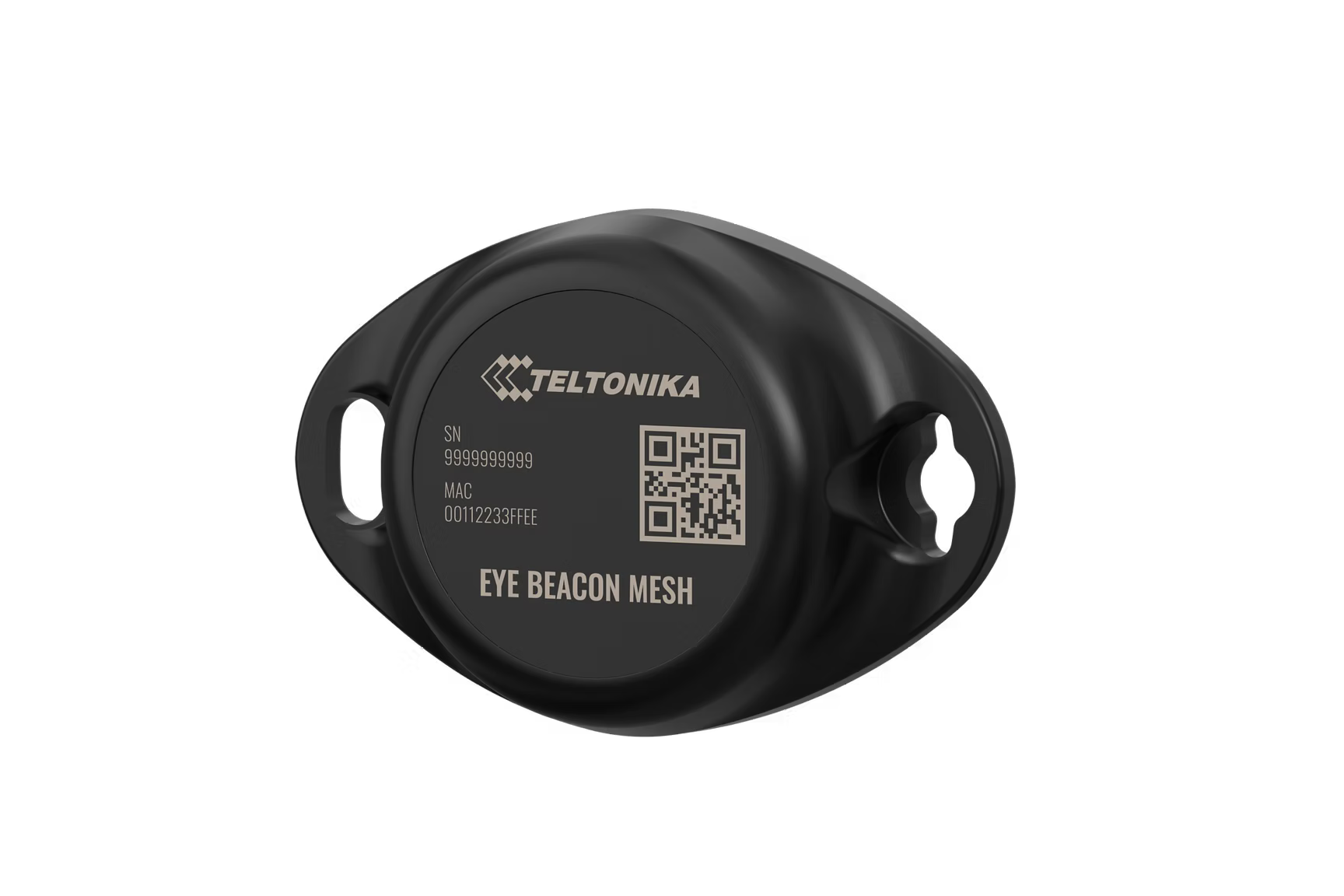

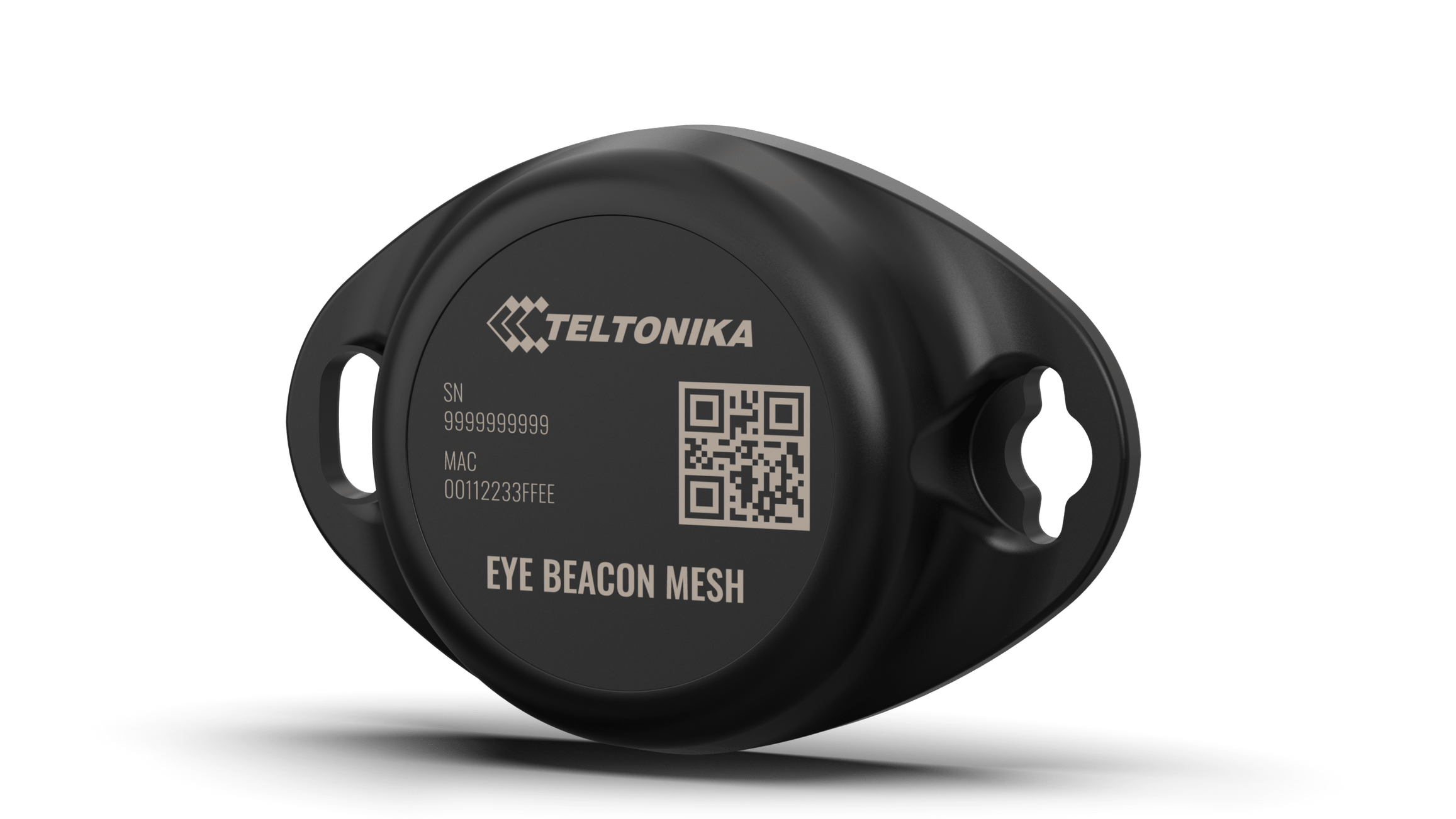

Teltonika EYE Beacon Mesh Bluetooth ID Beacon for Indoor Tracking
Teltonika EYE Beacon Mesh Wirepas® Bluetooth® ID Beacon for Large-Scale Indoor Asset Tracking
The Teltonika EYE Beacon Mesh (MTSID1) is a next-generation Wirepas Mesh-powered Bluetooth® ID beacon designed for reliable indoor asset tracking across warehouses, hospitals, manufacturing facilities, retail environments and other large-scale indoor spaces. Built for enterprise IoT deployments, it provides room-level asset positioning, magnet detection, and scalable mesh networking capable of supporting thousands of devices without network congestion.
Powered by Wirepas Mesh v5.4, the EYE Beacon Mesh automatically forms a self-healing wireless network that delivers dependable indoor tracking even in complex environments. With its IP67-rated enclosure, compact industrial design, and up to 10 years of battery life, it offers a low-maintenance solution for long-term asset visibility. When integrated with IQFLOW Cloud, businesses can monitor equipment location, automate workflows, improve inventory management and reduce time spent searching for valuable assets.
Key Features
- Wirepas Mesh v5.4 networking
- Bluetooth® ID beacon for indoor positioning
- Room-level indoor asset tracking
- Built-in magnet detection
- Supports thousands of mesh devices
- Self-healing wireless mesh network
- Up to 10 years battery life
- IP67 waterproof enclosure
- Remote configuration via Mesh network
- Compact lightweight industrial design
- Up to 6 dBm transmit power
- Suitable for enterprise-scale indoor tracking
Designed for Enterprise Indoor Asset Tracking
The EYE Beacon Mesh enables organisations to locate and monitor valuable assets throughout large indoor environments with room-level accuracy.
Ideal for:
- Warehouses
- Hospitals
- Manufacturing plants
- Distribution centres
- Retail stores
- Office facilities
- Logistics hubs
Its decentralised Wirepas Mesh architecture ensures excellent scalability without introducing bottlenecks or single points of failure.
Wirepas Mesh Technology
Unlike traditional Bluetooth beacons, the EYE Beacon Mesh operates on a Wirepas Mesh v5.4 network where every device contributes to extending network coverage.
Benefits include:
- Self-healing mesh communication
- Highly scalable architecture
- Reliable indoor coverage
- Automatic route optimisation
- Efficient network expansion
- Low infrastructure requirements
This makes the solution ideal for enterprise IoT deployments involving thousands of connected assets.
Integrated Magnet Detection
The built-in magnet detection sensor expands the beacon beyond simple asset identification by enabling monitoring of magnetic events.
Typical applications include:
- Door open/close monitoring
- Cabinet access detection
- Equipment enclosure monitoring
- Security notifications
- Operational event tracking
This additional capability provides greater flexibility for industrial, healthcare and commercial applications.
Long Battery Life
Designed for maintenance-free operation, the EYE Beacon Mesh is powered by a 600 mAh CR2450 lithium battery.
Typical battery life:
- Up to 10 years (60-minute advertising interval)
- Up to 8 years (30-minute interval)
- Up to 3.5 years (default 10-minute interval)
- Up to 2 years (5-minute interval)
The long battery life reduces maintenance costs and makes the beacon ideal for large-scale deployments where replacing batteries frequently is impractical.
Rugged Industrial Design
Built for demanding environments, the EYE Beacon Mesh features an industrial-grade enclosure designed for long-term indoor operation.
Features include:
- IP67 dust and water protection
- Operating temperature: -20°C to +60°C
- Compact 56.6 × 38 × 13 mm housing
- Lightweight 19 g design
- Multiple mounting options including screws, adhesive pads, cable ties and lanyards
The durable design makes installation simple across a wide variety of assets and facilities.
Flexible Indoor Tracking Applications
The EYE Beacon Mesh is suitable for numerous enterprise asset management projects.
Typical applications include:
- Warehouse inventory tracking
- Medical equipment tracking
- Manufacturing tool tracking
- Smart factory automation
- Equipment monitoring
- Indoor logistics
- Asset identification
- High-value inventory management
- Retail stock tracking
- Industrial IoT deployments
IQFLOW Cloud Integration
When deployed within a compatible Wirepas Mesh infrastructure, the EYE Beacon Mesh integrates seamlessly with IQFLOW Cloud, enabling:
- Indoor asset location dashboards
- Real-time asset visibility
- Inventory tracking
- Asset utilisation reporting
- Door and cabinet monitoring
- Automated alerts
- Historical movement records
- Enterprise analytics and reporting
IQFLOW Cloud provides organisations with a scalable platform for managing large indoor tracking deployments across multiple facilities.
Technical Specifications
| Feature |
Specification |
| Network Technology |
Wirepas Mesh v5.4 |
| Device Type |
Bluetooth® Mesh ID Beacon |
| Transmit Power |
Up to 6 dBm |
| Battery |
CR2450 Lithium (600 mAh) |
| Battery Life |
Up to 10 years (configuration dependent) |
| Sensors |
Magnet Detection |
| Sleep Mode |
Hibernate |
| Protection Rating |
IP67 |
| Operating Temperature |
-20°C to +60°C |
| Humidity |
0–100% RH (non-condensing) |
| Dimensions |
56.6 × 38 × 13 mm |
| Weight |
19 g |
| Mounting |
Screws, adhesive, cable ties, lanyard |
| Firmware Configuration |
Mesh Network |
| Certifications |
CE/RED, RoHS, REACH |
Specifications are based on the official Teltonika EYE Beacon Mesh Datasheet and Wirepas Quick Manual.
Typical Applications
- Indoor Asset Tracking
- Warehouse Inventory Management
- Medical Equipment Tracking
- Smart Manufacturing
- Tool Tracking
- Retail Asset Management
- Equipment Monitoring
- Industrial IoT
- Indoor Positioning
- Logistics Operations
- Cabinet Monitoring
- Door Status Detection
