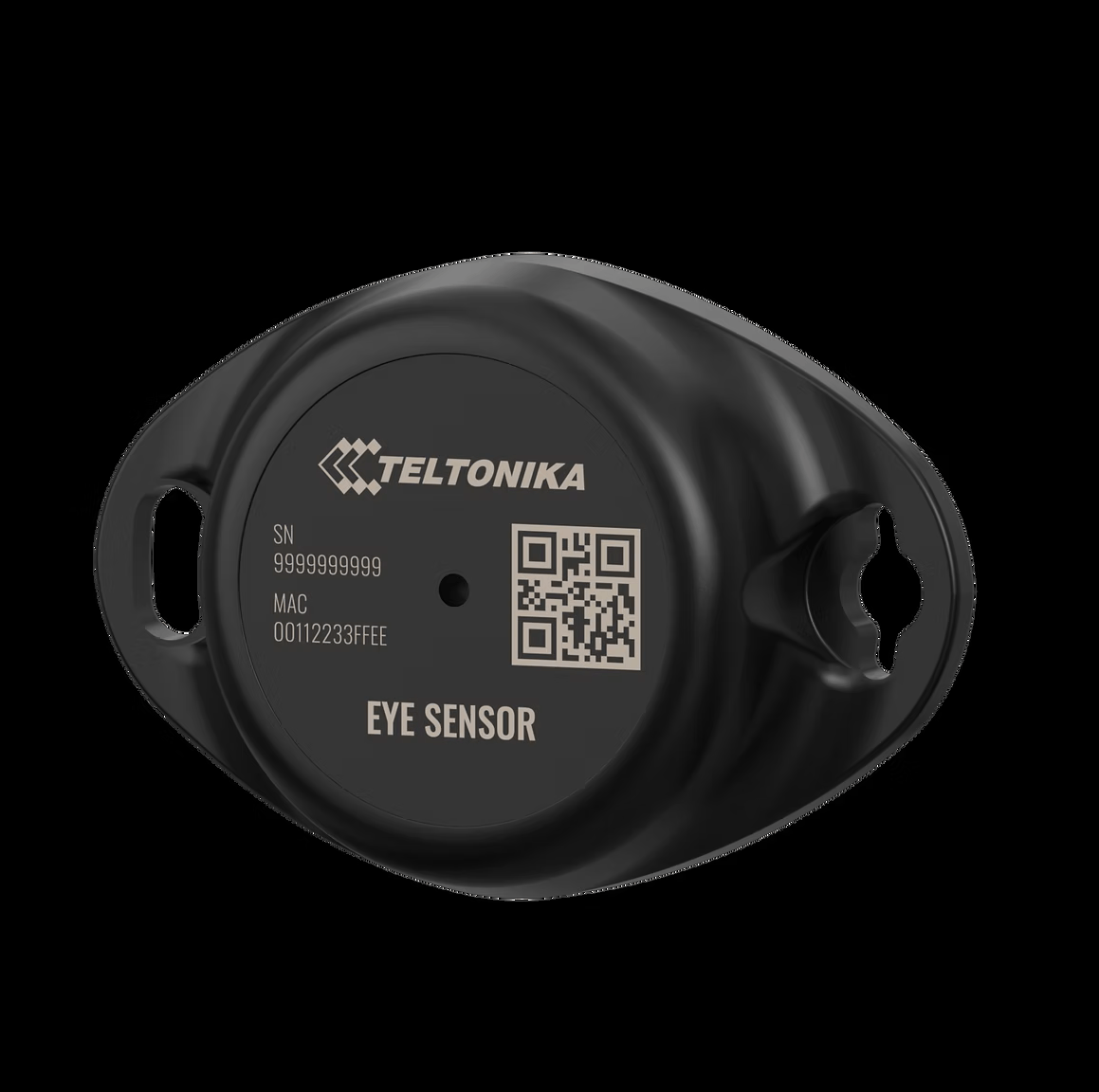

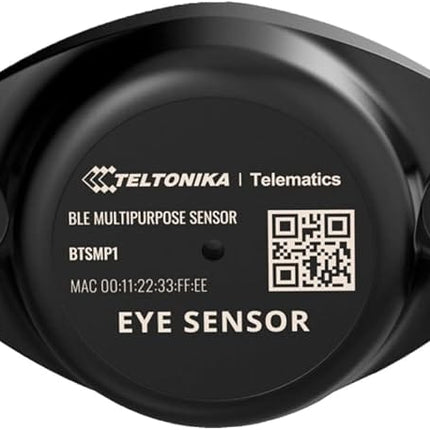

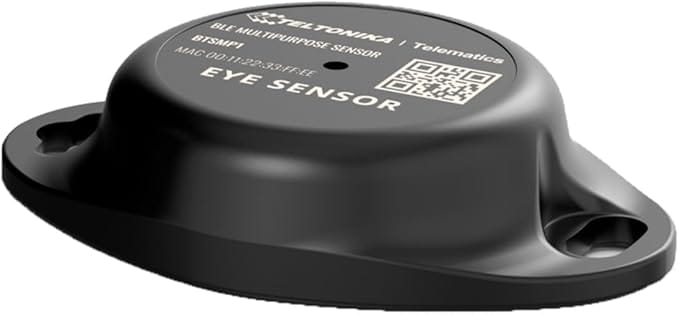

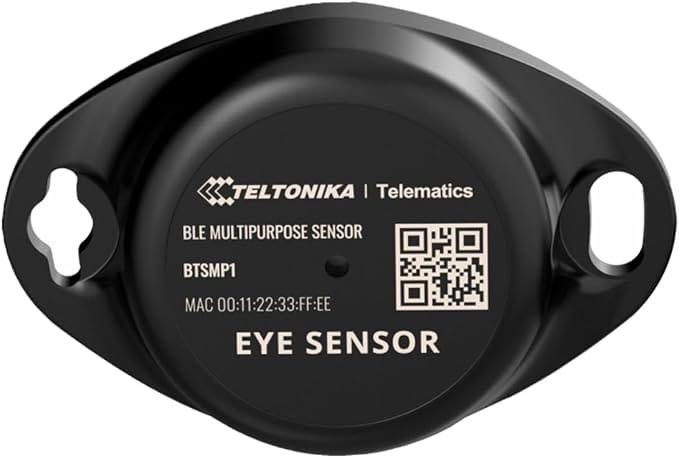

Teltonika EYE Sensor Bluetooth Temperature Humidity Movement and Magnet status
Teltonika EYE Sensor Bluetooth® Low Energy Environmental & Asset Monitoring Sensor
The Teltonika EYE Sensor (BTSMP1) is a compact, wireless Bluetooth® Low Energy (BLE) sensor designed for real-time environmental monitoring, asset tracking and condition monitoring. Equipped with temperature, humidity, movement and magnet detection sensors, the EYE Sensor provides valuable insights into the status of mobile and fixed assets without requiring complex wiring or external power.
Built with a rugged IP67-rated enclosure, an integrated 600 mAh battery and up to 5+ years of battery life, the EYE Sensor is ideal for logistics, cold chain monitoring, warehouses, hospitals, construction sites, agriculture and industrial IoT applications. It communicates wirelessly with compatible Teltonika GPS trackers via Bluetooth®, allowing sensor data to be transmitted to IQFLOW Cloud for real-time monitoring, alerts and reporting.
Key Features
- Bluetooth® Low Energy (BLE) environmental sensor
- Measures temperature and humidity
- Built-in movement (accelerometer) detection
- Built-in magnetic field detection for open/close monitoring
- IP67 waterproof and dustproof enclosure
- Up to 5+ years battery life
- Bluetooth® 4.2 compliant and Bluetooth® 5.2 certified
- Wireless range up to 80 metres
- Supports iBeacon®, Eddystone and Teltonika protocols
- Dedicated Teltonika EYE mobile app
- Compact and lightweight design
- Multiple mounting options
Four Integrated Sensors
The EYE Sensor combines four essential sensing technologies into one compact wireless device.
Integrated sensors include:
- Temperature
- Humidity
- Movement (Accelerometer)
- Magnet Detection
These sensors enable continuous monitoring of environmental conditions and asset status, making the device suitable for both indoor and outdoor IoT deployments.
Cold Chain Temperature & Humidity Monitoring
The EYE Sensor is an excellent solution for monitoring environmental conditions throughout the cold chain.
Typical applications include:
- Refrigerated transport
- Vaccine storage
- Medical refrigerators
- Food logistics
- Pharmaceutical distribution
- Cold rooms
- Warehouse climate monitoring
Real-time temperature and humidity measurements help ensure sensitive products remain within required storage conditions.
Movement & Magnet Detection
The integrated accelerometer detects movement, pitch and roll, while the built-in magnetic sensor can detect open and closed states.
Ideal use cases include:
- Trailer door monitoring
- Container door status
- Cabinet access monitoring
- Equipment movement detection
- Asset tamper detection
- Tool tracking
- Inventory monitoring
These capabilities enable instant notifications when valuable assets are moved or accessed.
Long Battery Life
Powered by an integrated 600 mAh CR2450 lithium battery, the EYE Sensor is designed for years of maintenance-free operation.
Typical battery life:
-
4+ years (default 5-second advertising interval)
-
5+ years (10-second interval)
-
7+ years (10-second interval with accelerometer disabled)
The long battery life makes the sensor ideal for large-scale deployments where minimal maintenance is essential.
Rugged IP67 Waterproof Design
The EYE Sensor features a durable IP67-rated enclosure that protects against dust and water ingress, making it suitable for demanding industrial environments.
Suitable for:
- Outdoor logistics
- Warehouses
- Construction sites
- Agriculture
- Manufacturing facilities
- Utility applications
Its compact housing also includes two mounting holes for secure installation using screws, cable ties, adhesive pads or lanyards.
Bluetooth® Connectivity
The EYE Sensor communicates using Bluetooth® Low Energy technology, allowing seamless integration with compatible Teltonika GPS trackers and gateways.
Features include:
- Bluetooth® 4.2 compliant
- Bluetooth® 5.2 certified
- Up to 80 m wireless range
- Up to 8 dBm transmission power
- iBeacon® support
- Eddystone support
- Teltonika proprietary protocol
This allows multiple sensors to operate efficiently while minimising battery consumption.
Simple Configuration with the Teltonika EYE App
The EYE Sensor can be quickly configured and managed using the Teltonika EYE mobile application.
The app allows users to:
- Configure device settings
- Change Bluetooth transmission power
- Adjust advertising intervals
- View live sensor readings
- Update firmware
- Scan nearby devices
- Configure advanced settings
This makes deployment fast and straightforward without requiring specialised equipment.
IQFLOW Cloud Integration
When paired with a compatible Teltonika GPS tracker, the EYE Sensor can transmit environmental and status data directly to IQFLOW Cloud.
IQFLOW Cloud enables:
- Live temperature monitoring
- Humidity trend reporting
- Door open/close alerts
- Movement notifications
- Cold chain compliance reporting
- Asset tracking dashboards
- Historical data logging
- Custom alarm notifications
This provides businesses with complete visibility over valuable assets and environmental conditions.
Technical Specifications
| Feature |
Specification |
| Connectivity |
Bluetooth® Low Energy |
| Bluetooth Version |
Bluetooth® 4.2 compliant, Bluetooth® 5.2 certified |
| Wireless Range |
Up to 80 m |
| Transmission Power |
Up to 8 dBm |
| Sensors |
Temperature, Humidity, Accelerometer, Magnet Detection |
| Temperature Range |
-20°C to +60°C |
| Humidity Range |
0% to 100% RH (non-condensing) |
| Battery |
CR2450 Lithium, 600 mAh |
| Battery Life |
Up to 7+ years (configuration dependent) |
| Waterproof Rating |
IP67 |
| Protocols |
iBeacon®, Eddystone, Teltonika |
| Dimensions |
56.6 × 38 × 13 mm |
| Weight |
18 g |
| Mounting |
Screws, adhesive, cable ties, lanyard |
Specifications are based on the official Teltonika EYE Sensor Datasheet and Quick Manual.
Typical Applications
- Cold Chain Monitoring
- Refrigerated Transport
- Pharmaceutical Logistics
- Food Distribution
- Warehouse Monitoring
- Asset Tracking
- Trailer Door Monitoring
- Container Monitoring
- Hospital Equipment Tracking
- Construction Tool Tracking
- Agriculture Equipment Monitoring
- Inventory Management
- Smart Buildings
- Industrial IoT
