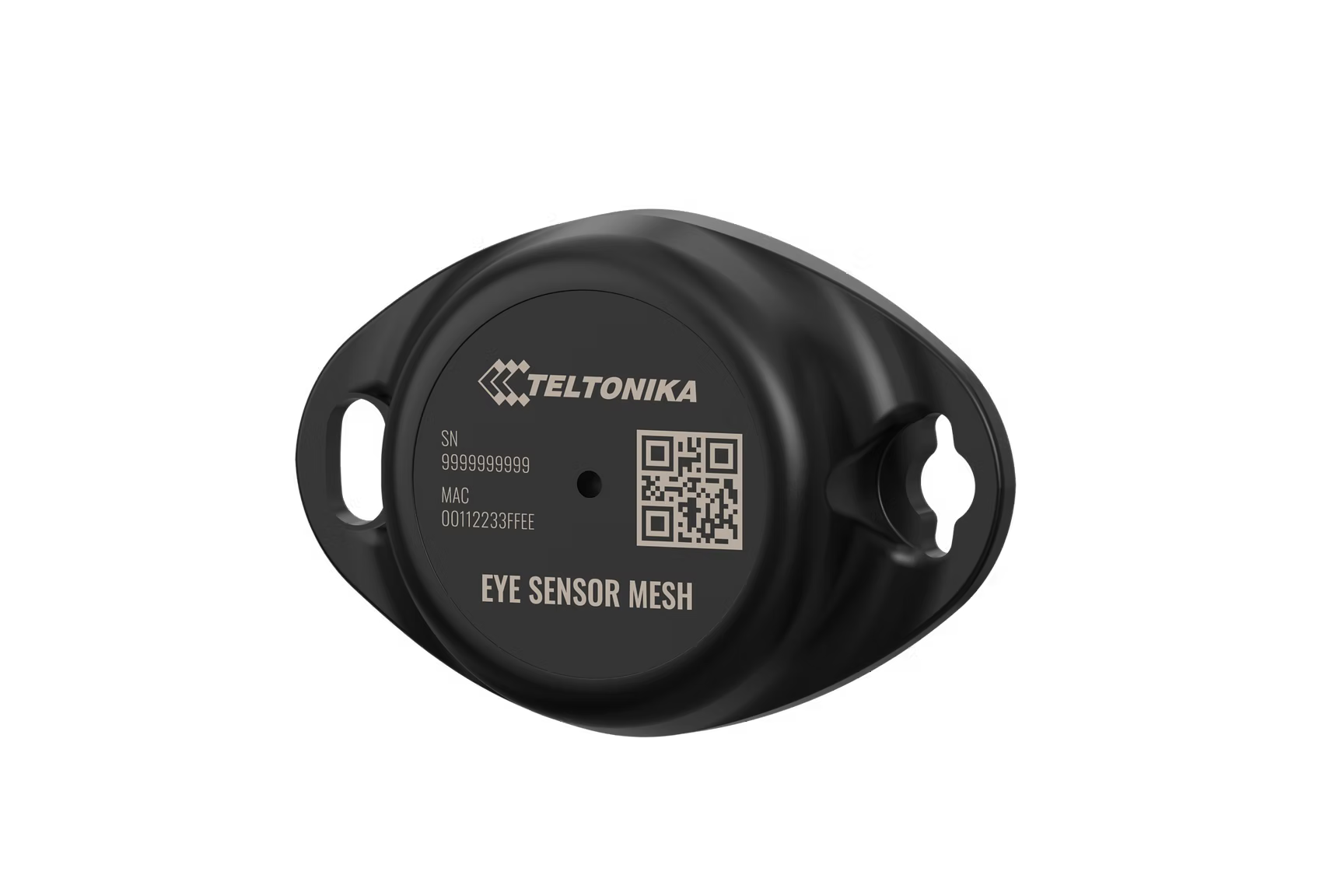

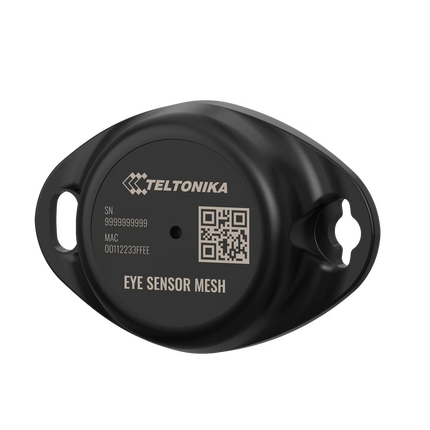

Teltonika EYE Sensor Mesh Bluetooth Temperature Humidity and Movement for Indoor Tracking
Teltonika EYE Sensor Mesh Wirepas® Indoor Asset Tracking Sensor with Temperature, Humidity, Movement & Magnet Detection
The Teltonika EYE Sensor Mesh (MTSMP1) is a next-generation Wirepas Mesh-powered Bluetooth® sensor designed for large-scale indoor asset tracking and environmental monitoring. Combining temperature, humidity, movement and magnet detection in a single compact device, it provides organisations with valuable real-time insights into asset location and condition across warehouses, hospitals, manufacturing facilities and other complex indoor environments.
Built on the Wirepas Mesh v5.4 networking platform, the EYE Sensor Mesh enables thousands of devices to communicate efficiently without network congestion or single points of failure. With room-level location accuracy, an IP67-rated enclosure, and up to 10 years of battery life, it is an ideal solution for scalable Industrial IoT (IIoT) deployments. When integrated with IQFLOW Cloud, businesses can visualise sensor data, monitor environmental conditions, automate alerts and improve asset utilisation across multiple sites.
Key Features
- Wirepas Mesh v5.4 networking
- Indoor asset tracking with room-level accuracy
- Temperature monitoring
- Humidity monitoring
- Movement detection with built-in accelerometer
- Magnet detection for door and cabinet monitoring
- Up to 10 years battery life
- IP67 waterproof enclosure
- Supports large-scale mesh deployments
- Up to 6 dBm transmit power
- Compact lightweight design
- OTA configuration through Mesh network
- Suitable for industrial, healthcare and logistics environments
Designed for Large-Scale Indoor Tracking
Unlike traditional Bluetooth beacons that rely on point-to-point communication, the EYE Sensor Mesh uses a self-healing Wirepas Mesh network, allowing thousands of sensors to communicate reliably across large buildings and campuses.
Benefits include:
- Highly scalable deployments
- Reliable communication without system overload
- No central gateway dependency
- Excellent coverage across complex indoor environments
- Simplified network expansion
This makes it ideal for enterprise-scale indoor positioning and Industrial IoT projects.
Environmental Monitoring in One Device
The EYE Sensor Mesh combines multiple sensors into a single compact device, allowing organisations to monitor both asset location and environmental conditions simultaneously.
Integrated sensors include:
- Temperature
- Humidity
- Movement
- Magnet detection
This reduces hardware requirements while providing richer operational insights for logistics, healthcare and industrial applications.
Intelligent Movement & Asset Monitoring
A built-in accelerometer continuously monitors asset movement and orientation.
Features include:
- Motion detection
- Stationary detection
- Configurable reporting intervals
- Pitch monitoring
- Roll monitoring
- Asset handling detection
This enables businesses to monitor equipment usage, movement history and asset handling without requiring additional sensors.
Temperature & Humidity Monitoring
The integrated environmental sensors make the EYE Sensor Mesh suitable for monitoring storage conditions where temperature and humidity are critical.
Typical applications include:
- Pharmaceutical storage
- Medical equipment
- Warehouses
- Cold chain logistics
- Manufacturing environments
- Equipment rooms
Combining environmental monitoring with asset tracking allows organisations to protect valuable equipment and maintain compliance.
Long Battery Life
Powered by an integrated 600 mAh CR2450 lithium battery, the EYE Sensor Mesh delivers long-term, maintenance-free operation.
Typical battery life includes:
- Up to 10 years (60-minute reporting interval)
- Up to 6.5 years (30-minute interval)
- Around 3 years with the default reporting profile (15 minutes when stationary, 1 minute while moving)
- Up to 2 years with frequent 5-minute reporting
This extended battery life minimises maintenance and reduces total cost of ownership for large deployments.
Rugged Industrial Design
Designed for demanding indoor environments, the EYE Sensor Mesh features an IP67-rated enclosure that protects against dust and water ingress.
Features include:
- IP67 protection
- Operating temperature: -20°C to +60°C
- Compact 56.6 × 38 × 13 mm housing
- Lightweight 19 g design
- Multiple mounting options including screws, adhesive pads, cable ties and lanyards
The robust construction makes it suitable for warehouses, factories, hospitals and industrial facilities.
Flexible Indoor Asset Tracking Applications
The EYE Sensor Mesh is ideal for organisations requiring real-time indoor asset visibility.
Typical use cases include:
- Warehouse inventory tracking
- Medical equipment tracking
- Manufacturing tools and equipment
- Smart factories
- Hospital asset management
- Indoor logistics
- Storage condition monitoring
- High-value equipment protection
- Industrial automation
IQFLOW Cloud Integration
When deployed within a compatible Wirepas Mesh infrastructure, the EYE Sensor Mesh integrates seamlessly with IQFLOW Cloud to provide:
- Indoor asset visibility
- Temperature and humidity dashboards
- Equipment movement history
- Environmental alarms
- Condition monitoring
- Predictive maintenance insights
- Asset utilisation reports
- Custom notifications and analytics
IQFLOW Cloud helps organisations improve operational efficiency while reducing manual asset searches and environmental risks.
Technical Specifications
| Feature |
Specification |
| Network Technology |
Wirepas Mesh v5.4 |
| Transmit Power |
Up to 6 dBm |
| Battery |
CR2450 Lithium (600 mAh) |
| Battery Life |
Up to 10 years (configuration dependent) |
| Sensors |
Temperature, Humidity, Movement, Magnet Detection |
| Sleep Mode |
Hibernate |
| Protection Rating |
IP67 |
| Operating Temperature |
-20°C to +60°C |
| Humidity |
0–100% RH (non-condensing) |
| Dimensions |
56.6 × 38 × 13 mm |
| Weight |
19 g |
| Mounting |
Screws, adhesive, cable ties, lanyard |
| Firmware Configuration |
Mesh Network |
| Certifications |
CE/RED, RoHS, REACH |
Specifications are based on the official Teltonika EYE Sensor Mesh Datasheet and Quick Manual.
Typical Applications
- Indoor Asset Tracking
- Warehouse Inventory Management
- Hospital Equipment Tracking
- Medical Asset Monitoring
- Smart Manufacturing
- Tool Tracking
- Environmental Monitoring
- Cold Chain Logistics
- Industrial IoT
- Condition Monitoring
- Equipment Utilisation
- Smart Warehouses
