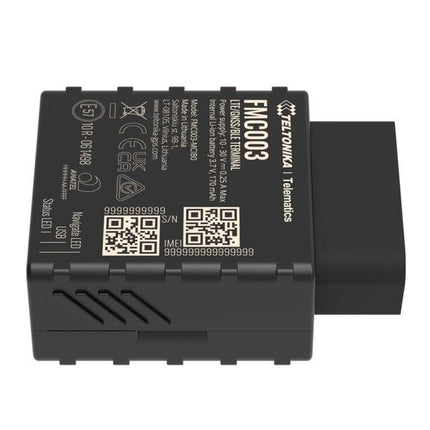

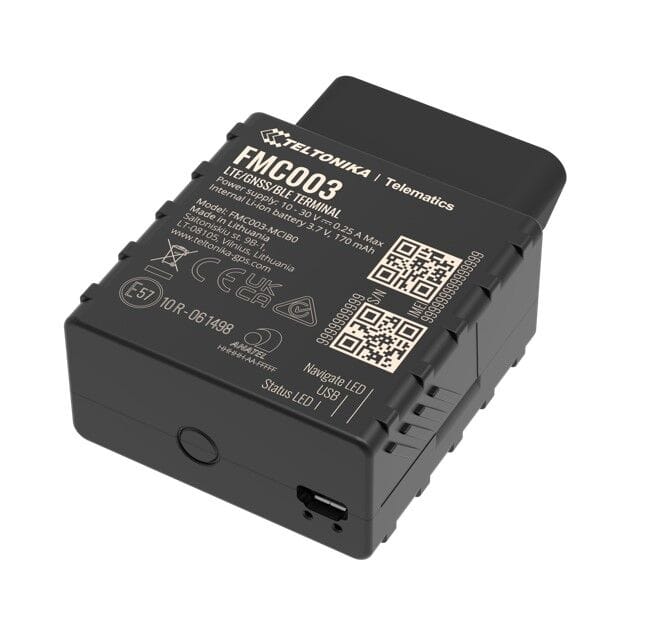

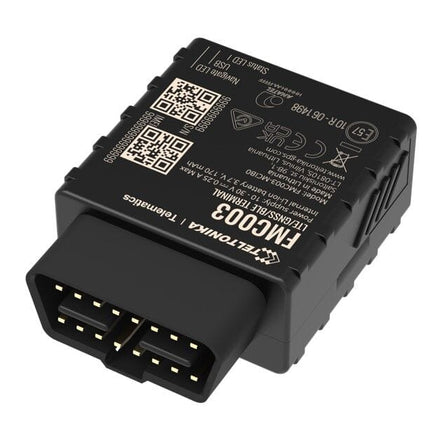

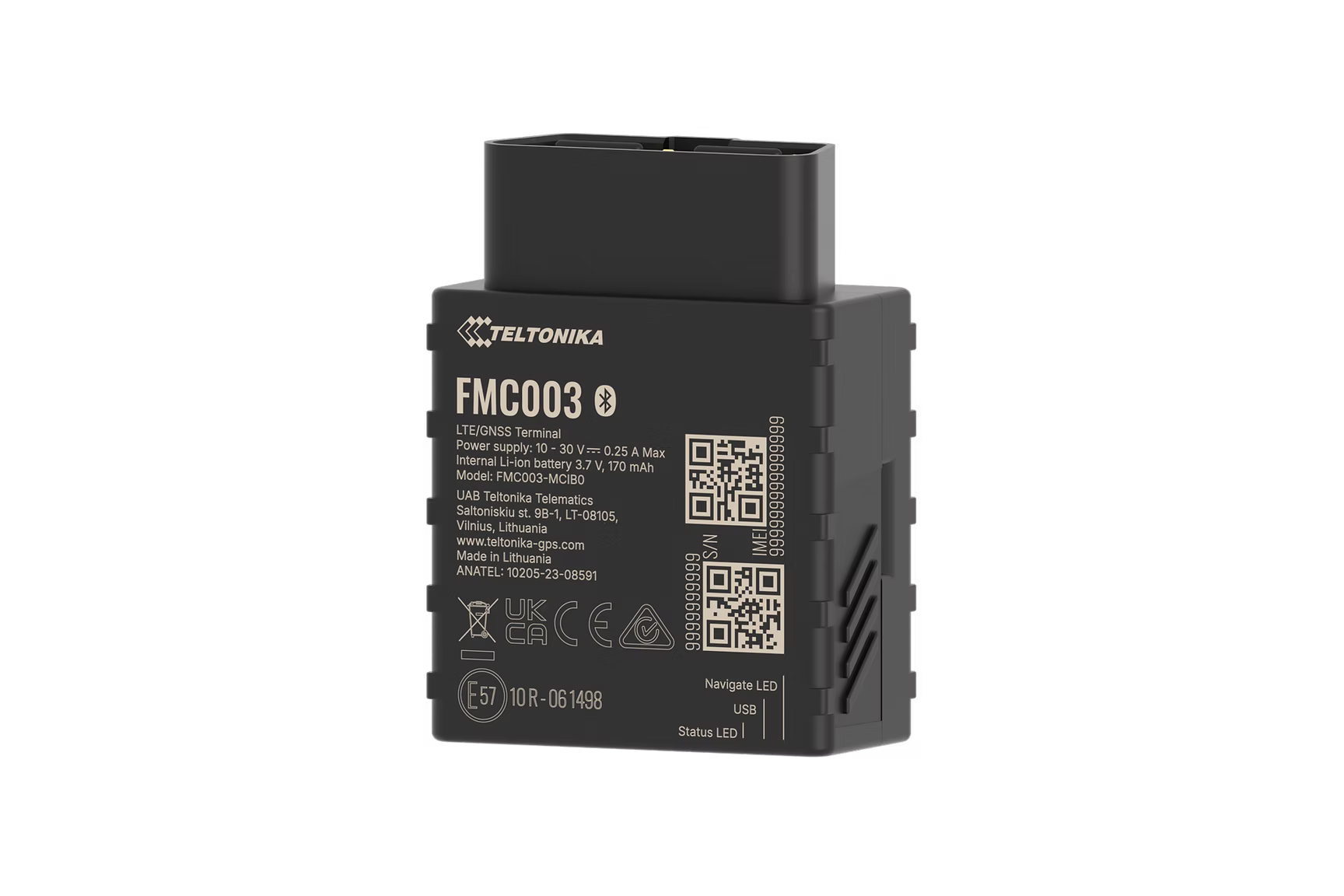

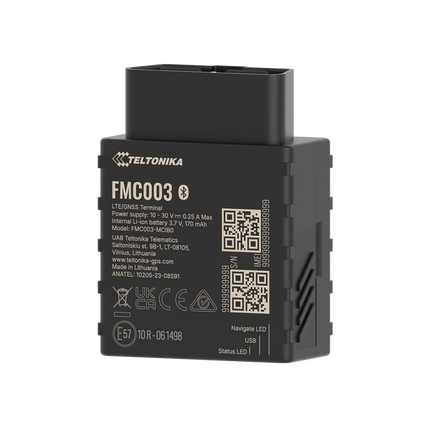

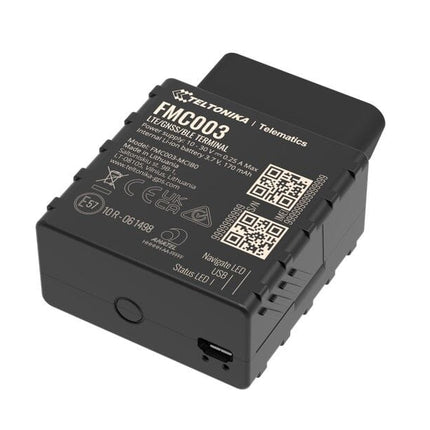

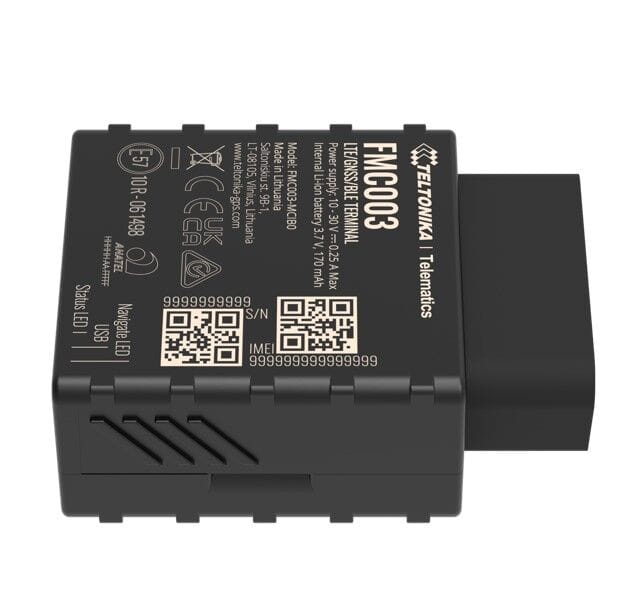

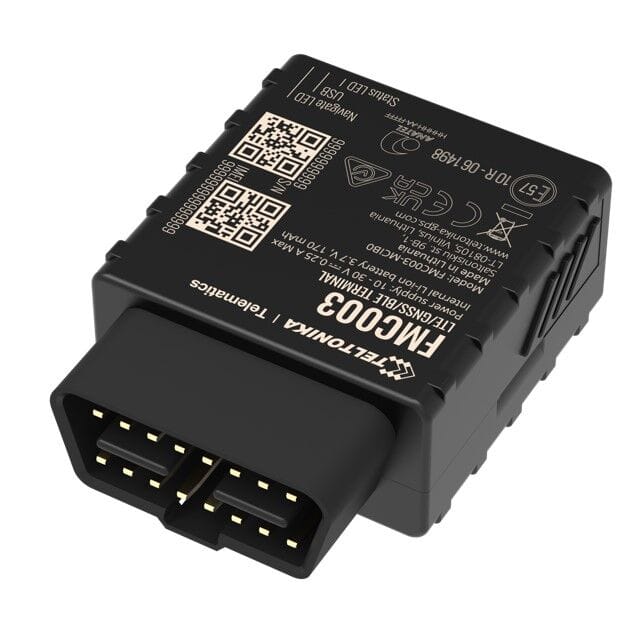

Teltonika FMC003 4G LTE Cat 1 GPS Tracker with OBD OEM data reading
Teltonika FMC003 4G LTE OBDII GPS Tracker with OEM Vehicle Data Reading
The Teltonika FMC003 is a compact plug-and-play 4G LTE Cat 1 GPS tracker designed for fast installation through the vehicle's OBDII port. Unlike standard OBD trackers, the FMC003 supports OEM (Original Equipment Manufacturer) data reading, enabling access to valuable vehicle information such as real odometer, real fuel level, and up to 32 onboard vehicle parameters, depending on vehicle compatibility.
Ideal for fleet operators, insurance telematics, vehicle leasing, car rental businesses and connected vehicle applications, the FMC003 combines accurate GNSS positioning, Bluetooth® Low Energy connectivity and advanced OBDII diagnostics in a compact, easy-to-deploy solution. With 4G LTE Cat 1 connectivity and automatic 2G fallback, it provides reliable real-time vehicle tracking across Australia and worldwide.
Fully compatible with IQFLOW Cloud, the FMC003 delivers live GPS tracking, trip history, vehicle diagnostics, alerts and reporting, making it an ideal solution for modern fleet management.
Key Features
- Plug-and-play installation via standard OBDII connector
- 4G LTE Cat 1 connectivity with 2G GSM fallback
- Reads OEM vehicle data (supported vehicle list available)
- Standard OBDII ECU data reading
- Real fuel level monitoring
- Real odometer reading
- Reads up to 32 OEM vehicle parameters
- Bluetooth® 4.0 + Low Energy (BLE)
- Multi-constellation GNSS positioning
- Built-in 170 mAh backup battery
- Internal high-gain GNSS and LTE antennas
- Micro-SIM support
- 128 MB internal flash memory
- USB and Bluetooth configuration
- Remote firmware updates via FOTA Web
- Compact plug-and-play design
Advanced OEM Vehicle Data Reading
One of the FMC003's key advantages is its ability to read OEM-specific vehicle parameters, providing significantly more information than traditional OBDII GPS trackers.
Depending on the supported vehicle, the tracker can access:
- Real vehicle odometer
- Real fuel level
- Fuel consumption data
- Vehicle diagnostic information
- Up to 32 OEM vehicle parameters
Teltonika provides a compatibility list showing exactly which OEM parameters are available for supported vehicle makes and models, eliminating uncertainty during deployment.
Standard OBDII Diagnostics
In addition to OEM data, the FMC003 supports standard OBDII communication with the vehicle ECU.
Supported OBD protocols include:
- ISO 9141-2
- ISO 14230-4 (KWP)
- ISO 15765-4 CAN
- ISO 14229 (UDS)
- J2819 (VW TP2.0)
The device supports multiple vehicle communication interfaces including:
- HS CAN
- MS CAN
- SW CAN
- K-Line
This broad protocol support ensures compatibility with a wide range of modern vehicles.
Simple Plug-and-Play Installation
The FMC003 installs directly into the vehicle's OBDII diagnostic port, requiring no complex wiring or professional installation.
Benefits include:
- Quick deployment in minutes
- No vehicle wiring modifications
- Easy transfer between vehicles
- Ideal for temporary fleet installations
- Perfect for rental and leased vehicles
The Quick Manual includes illustrations showing the typical OBDII connector location and installation process.
Bluetooth® Low Energy Connectivity
Integrated Bluetooth® 4.0 LE enables wireless communication with external accessories and sensors.
Supported Bluetooth peripherals include:
- Temperature sensors
- Humidity sensors
- Universal BLE sensors
- Barcode scanners
This allows the FMC003 to expand beyond GPS tracking into cold-chain monitoring and specialised fleet applications.
Accurate GNSS Positioning
The FMC003 supports multiple global satellite systems for reliable positioning worldwide.
Supported GNSS constellations include:
- GPS
- GLONASS
- Galileo
- BeiDou
- SBAS
- QZSS
- DGPS
- Assisted GPS (A-GPS)
Performance includes:
- Position accuracy: <3 metres
- Tracking sensitivity: -165 dBm
- Hot start: <1 second
These features provide dependable vehicle tracking in urban and remote environments.
Fleet Management Features
The FMC003 includes a comprehensive range of telematics functions designed to improve fleet efficiency and vehicle security.
Features include:
- Live GPS tracking
- Driver logbook
- Green Driving analysis
- Over-speed alerts
- Crash detection
- Towing detection
- Excessive idling detection
- Fuel monitoring
- Ignition detection
- Auto and manual geofencing
- Trip recording
- Unplug detection
- Jamming detection
These capabilities help reduce operating costs, improve driver behaviour and enhance fleet visibility.
Remote Configuration & Management
The FMC003 can be configured and managed through several convenient methods.
Supported options include:
- USB configuration
- Bluetooth wireless configuration
- Teltonika Configurator
- SMS configuration
- FOTA Web remote firmware updates
- FMBT mobile application
When integrated with IQFLOW Cloud, users gain access to real-time vehicle tracking, OEM vehicle data, trip reports, event notifications and fleet dashboards from a single platform.
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1 with 2G GSM fallback |
| Installation |
Plug-and-play OBDII connector |
| GNSS |
GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, A-GPS |
| Position Accuracy |
<3 m |
| Tracking Sensitivity |
-165 dBm |
| Bluetooth |
Bluetooth® 4.0 + LE |
| Input Voltage |
10–30 V DC |
| Backup Battery |
170 mAh Li-Ion |
| Memory |
128 MB Flash |
| SIM |
Micro-SIM |
| Dimensions |
67.2 × 49.6 × 25 mm |
| Weight |
63 g |
| OBD Interfaces |
HS CAN, MS CAN, SW CAN, K-Line |
| Operating Temperature |
-40°C to +85°C (without battery) |
| Protection Rating |
IP41 |
*Specifications sourced from the official Teltonika FMC003 Datasheet.
Typical Applications
- Fleet Management
- Driver Logbook
- Insurance Telematics (UBI)
- Rental Vehicle Tracking
- Vehicle Leasing
- Connected Car Solutions
- Company Vehicle Monitoring
- Fleet Fuel Management
- Vehicle Usage Monitoring
- Business Fleet Optimisation
- OEM Vehicle Diagnostics
