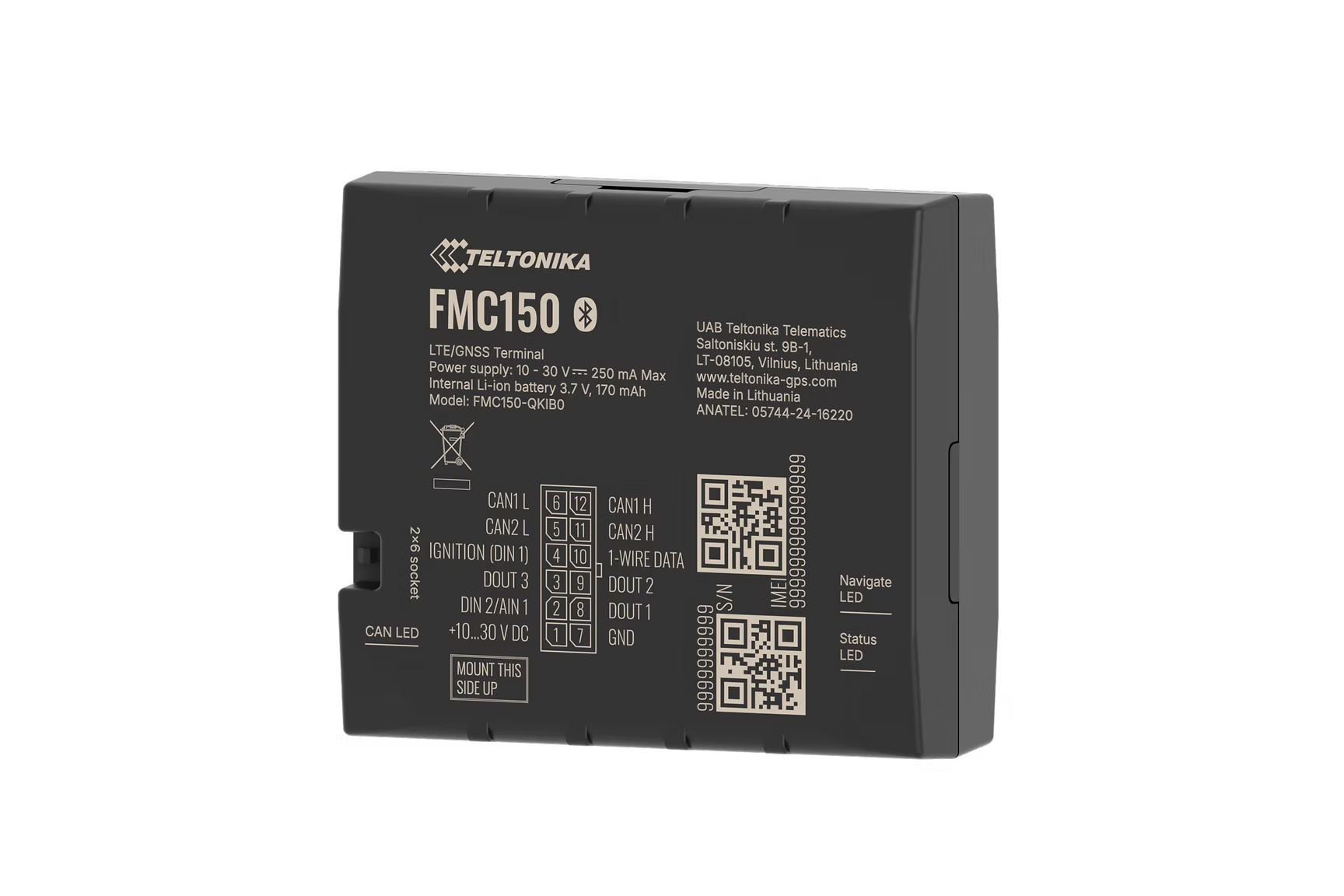

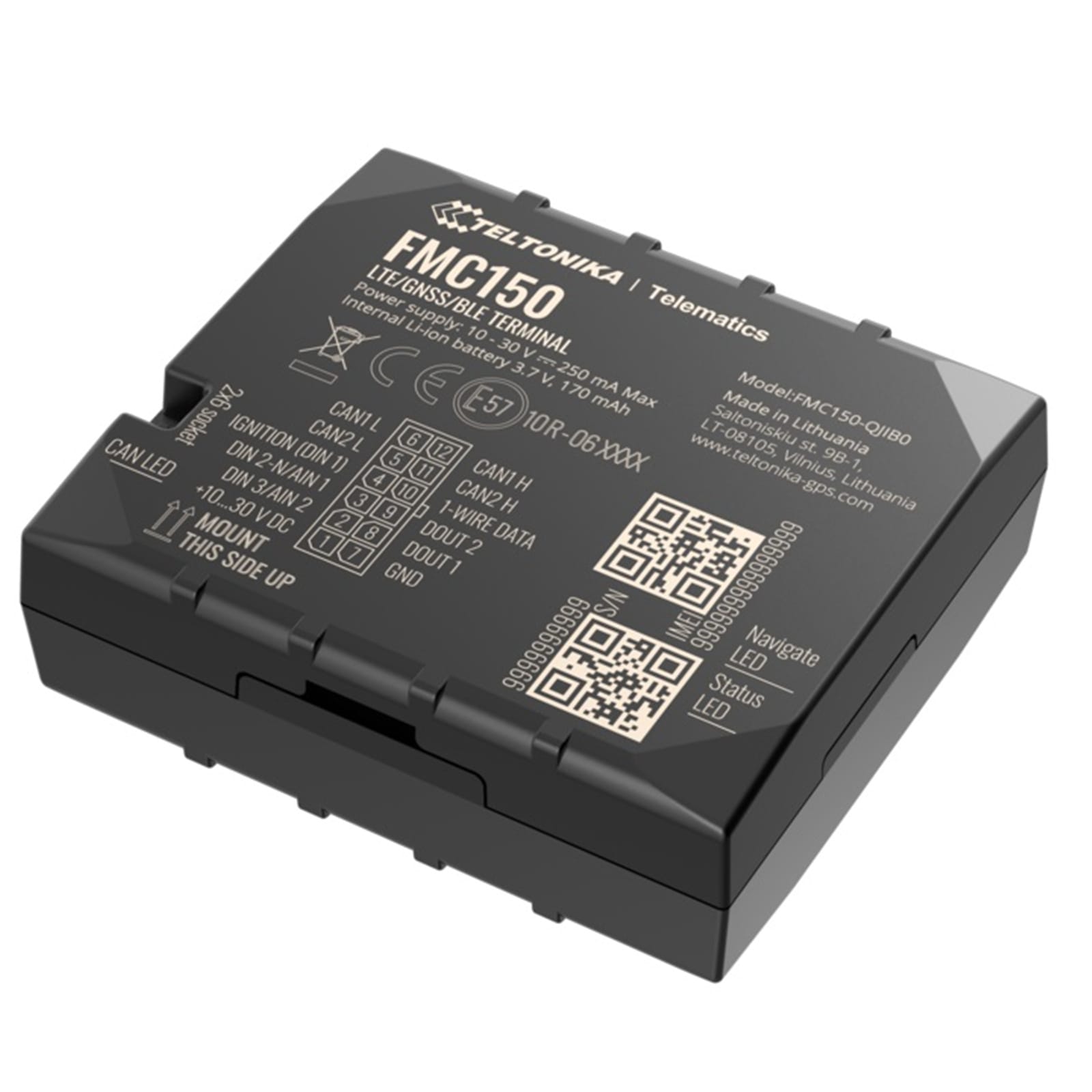

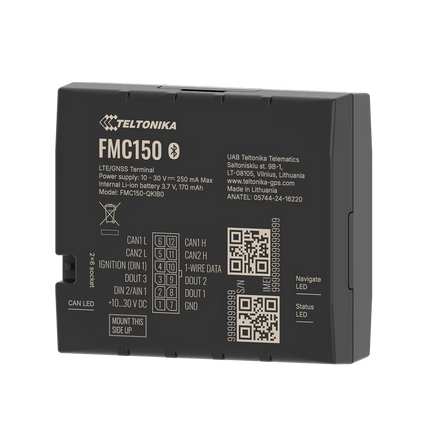

Teltonika FMC150 Advanced 4G LTE GPS Tracker integrated CAN data processor
Teltonika FMC150 4G LTE GPS Tracker with Built-in CAN Bus Reader
The Teltonika FMC150 is a powerful 4G LTE Cat 1 GPS tracker featuring an integrated CAN data processor, providing a compact all-in-one solution for advanced vehicle telematics. Combining high-accuracy GPS tracking with direct CAN bus data acquisition, the FMC150 enables fleet operators to monitor real-time vehicle diagnostics, fuel consumption, mileage, engine parameters, and driver behaviour without requiring a separate CAN adapter.
Designed for professional fleet management, logistics, insurance telematics, rental fleets and electric vehicle monitoring, the FMC150 supports light vehicles, electric vehicles (EVs), trucks and buses. With reliable 4G LTE Cat 1 connectivity, Bluetooth® Low Energy, dual CAN interfaces and multiple configurable inputs and outputs, it delivers comprehensive vehicle data for improved operational efficiency and reduced running costs.
Whether you're managing commercial fleets, monitoring heavy vehicles or deploying advanced IoT telematics, the FMC150 provides seamless integration with IQFLOW Cloud for real-time tracking, alerts, reporting and remote fleet management.
Key Features
- Integrated CAN Bus data processor (GPS tracker + CAN adapter in one device)
- 4G LTE Cat 1 connectivity with 2G GSM fallback
- Supports light vehicles, electric vehicles, trucks and buses
- Reads vehicle CAN data without an external CAN adapter
- Bluetooth® 4.0 + Low Energy (LE)
- Multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)
- Dual CAN interfaces
- Internal high-gain GNSS and LTE antennas
- Built-in 170 mAh backup battery
- Supports Micro-SIM or eSIM
- 128 MB internal flash memory
- USB and Bluetooth configuration
- Remote firmware updates via FOTA Web
- Teltonika Configurator support
- Advanced sleep modes for low power consumption
Integrated CAN Bus Data Processing
Unlike standard GPS trackers, the FMC150 includes an integrated CAN data processor, eliminating the need for a separate CAN adapter and simplifying installation.
Depending on the supported vehicle model, the tracker can retrieve valuable vehicle information including:
- Fuel level
- Total fuel consumption
- Vehicle speed
- Engine RPM
- Accelerator pedal position
- Vehicle odometer
- Distance travelled
This enables more accurate fleet reporting, fuel management and preventative maintenance while reducing installation costs.
Ideal for Electric Vehicles (EV)
The FMC150 is fully compatible with many electric vehicles, allowing fleet managers to collect CAN data directly from supported EVs.
Applications include:
- Electric fleet management
- EV rental vehicles
- Government fleets
- Corporate vehicle fleets
- Shared mobility
- Delivery vehicles
By combining GPS tracking with EV CAN data, fleet operators gain greater visibility into vehicle performance and utilisation.
Advanced Fleet Management
The FMC150 supports intelligent fleet monitoring features including:
- Real-time GPS tracking
- Driver behaviour monitoring
- Green Driving analysis
- Over-speed alerts
- Crash detection
- Towing detection
- Excessive idling detection
- Fuel monitoring
- Immobiliser support
- Ignition detection
- Geofencing
- Trip recording
- Unplug detection
- Jamming detection
These features help improve driver safety, reduce operating costs and enhance vehicle security.
Bluetooth® LE Connectivity
Built-in Bluetooth® 4.0 Low Energy enables wireless connectivity with compatible accessories and sensors.
Supported peripherals include:
- Temperature sensors
- Humidity sensors
- Bluetooth LE sensors
- OBDII dongles
- Barcode scanners
- Bluetooth headsets
This allows additional monitoring without complex wiring, making the FMC150 suitable for cold-chain logistics, asset monitoring and specialised fleet applications.
High-Accuracy GNSS Positioning
The FMC150 supports multiple global navigation satellite systems for reliable positioning worldwide.
Supported constellations include:
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
- Assisted GPS (A-GPS)
The receiver offers:
- Position accuracy: <2.5 m CEP
- Tracking sensitivity: -165 dBm
- Fast hot start: <1 second
This ensures dependable tracking performance even in challenging environments.
Flexible Inputs & Outputs
The FMC150 provides extensive I/O options for integrating external accessories and monitoring additional vehicle systems.
Features include:
- Dual CAN interfaces
- Digital inputs
- Digital outputs
- Analogue inputs
- Negative input (selected model variants)
- 1-Wire interface for temperature sensors and iButton identification
These interfaces support custom fleet, security and industrial telematics applications.
Easy Installation & Remote Management
Configuration and management options include:
- USB configuration
- Bluetooth wireless configuration
- SMS configuration
- Teltonika Configurator
- FOTA Web remote firmware updates
- FMBT mobile application
The FMC150 integrates seamlessly with IQFLOW Cloud, enabling live GPS tracking, CAN data visualisation, event notifications, reports, dashboards and remote device management.
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1 with 2G GSM fallback |
| CAN Interfaces |
2 |
| Bluetooth |
Bluetooth® 4.0 + LE |
| GNSS |
GPS, GLONASS, Galileo, BeiDou, QZSS, A-GPS |
| Position Accuracy |
<2.5 m CEP |
| Tracking Sensitivity |
-165 dBm |
| Input Voltage |
10–30 V DC |
| Backup Battery |
170 mAh Li-Ion |
| Memory |
128 MB Flash |
| SIM |
Micro-SIM or eSIM |
| Dimensions |
65 × 56.6 × 20.6 mm |
| Weight |
55 g |
| Operating Temperature |
-40°C to +85°C (without battery) |
| Protection Rating |
IP41 |
*Specifications sourced from the official Teltonika FMC150 Datasheet.
Typical Applications
- Fleet Management
- Commercial Vehicle Tracking
- Electric Vehicle Monitoring
- Truck Fleet Management
- Bus Fleet Tracking
- Fuel Consumption Monitoring
- Driver Behaviour Analysis
- Insurance Telematics
- Rental Vehicle Tracking
- Logistics & Delivery Fleets
- Utility Vehicles
- Asset Tracking
- Car Sharing
- Preventative Vehicle Maintenance
