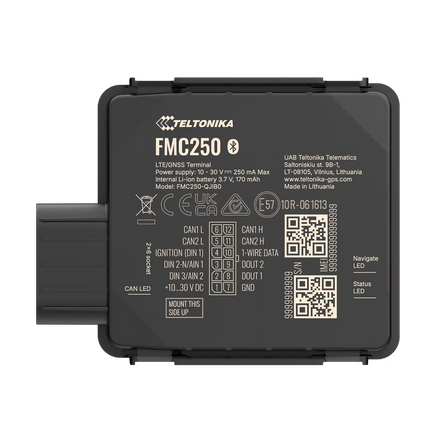

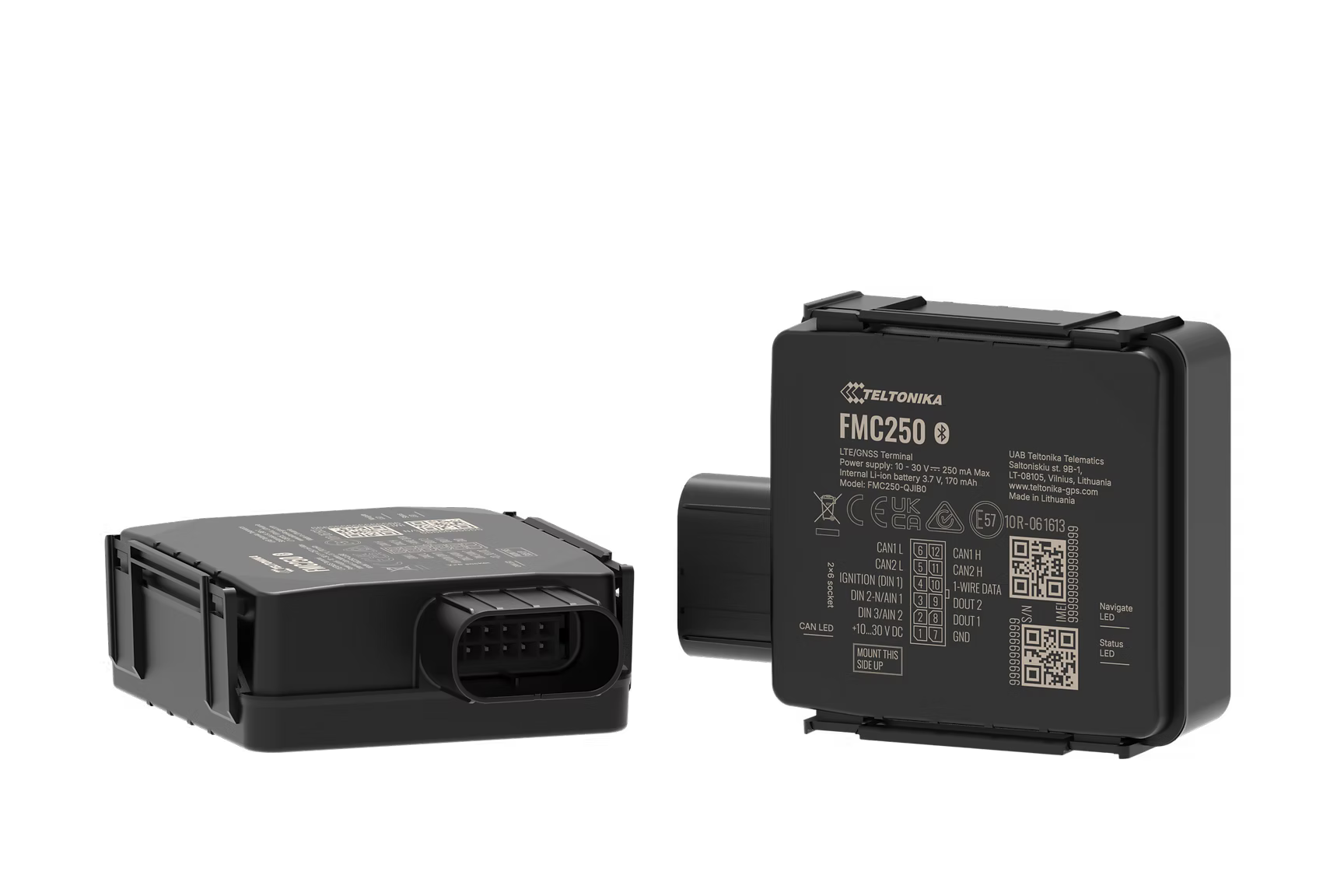

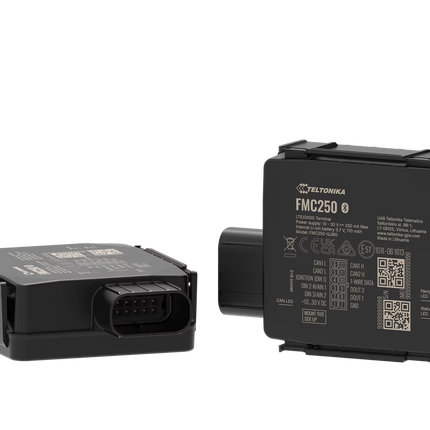

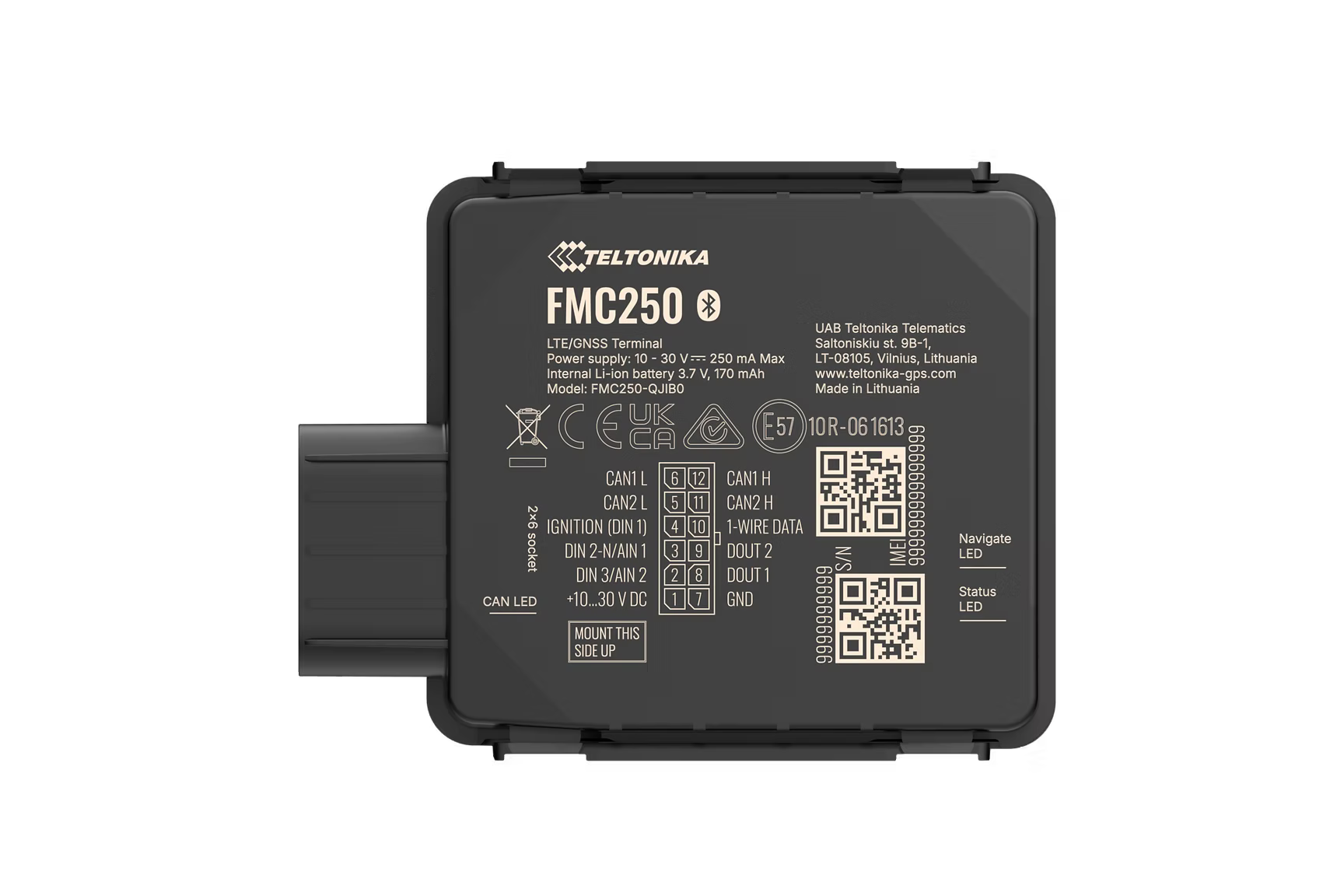

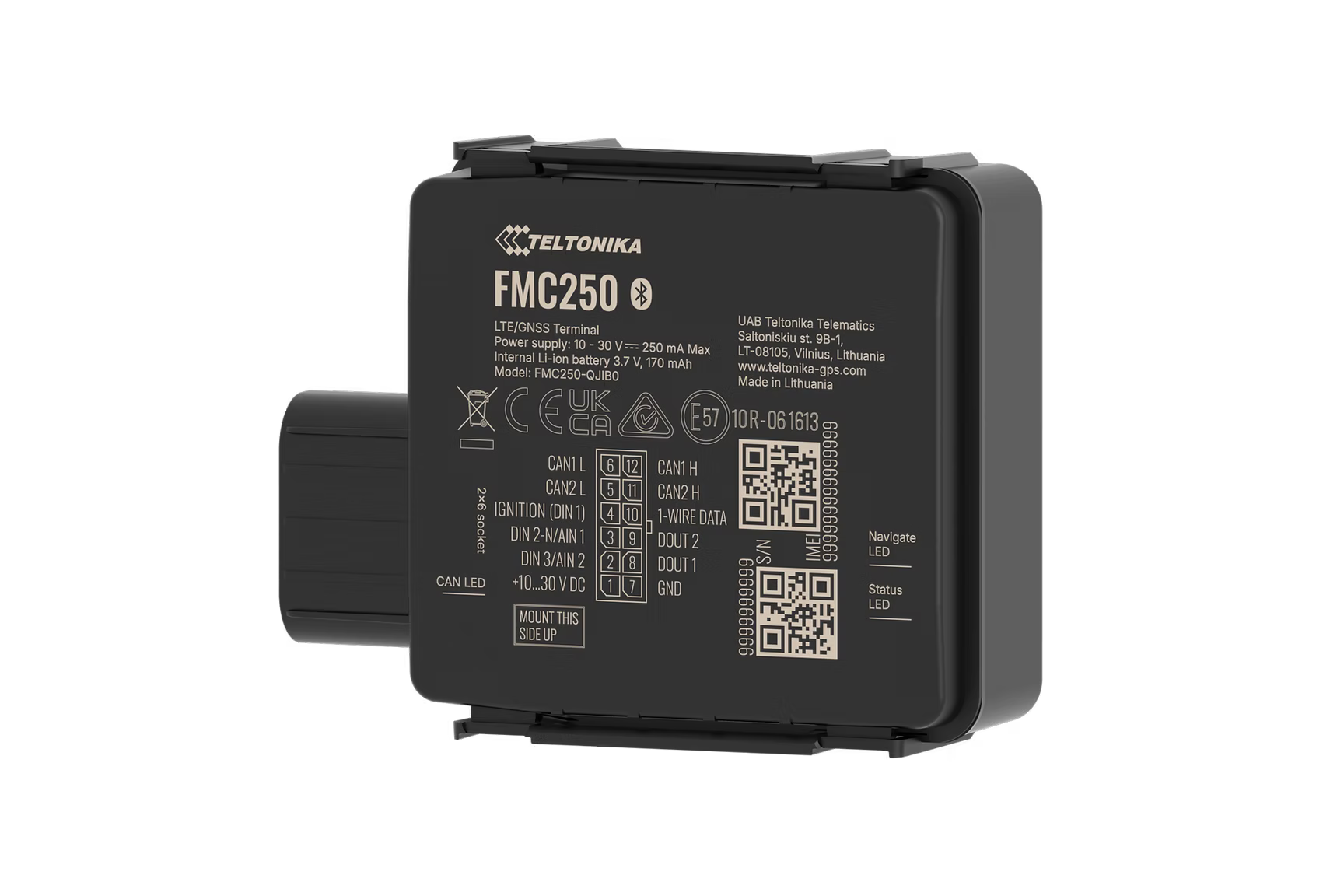

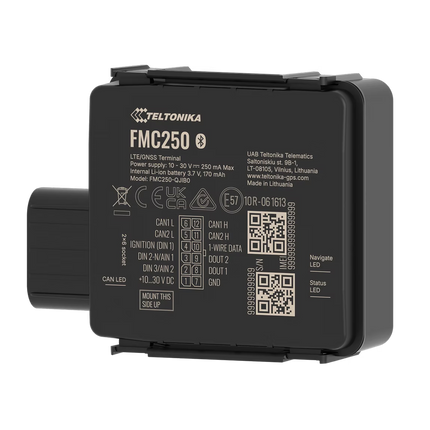

Teltonika FMC250 4G LTE Cat 1 GPS Tracker integrated CAN data processor
Teltonika FMC250 4G LTE Cat 1 GPS Tracker with Integrated CAN Data Processor & IP67 Waterproof Protection
The Teltonika FMC250 is a rugged 4G LTE Cat 1 GPS tracker with an integrated CAN data processor, designed to deliver accurate vehicle tracking and advanced CAN bus diagnostics in a single compact device. Featuring an IP67-rated waterproof enclosure, Bluetooth® connectivity, dual CAN interfaces and support for both conventional and electric vehicles, the FMC250 is ideal for fleet operators requiring reliable tracking and comprehensive vehicle data in demanding environments.
By combining a professional GPS tracker with an integrated CAN adapter, the FMC250 eliminates the need for separate CAN hardware, simplifying installation while reducing costs. It enables real-time monitoring of fuel consumption, fuel level, engine RPM, odometer, vehicle speed, accelerator pedal position and many other vehicle parameters directly from the CAN bus.
When integrated with IQFLOW Cloud, the FMC250 provides real-time fleet visibility, CAN diagnostics, driver behaviour monitoring, geofencing, maintenance reporting and intelligent fleet analytics.
Key Features
- 4G LTE Cat 1 with 2G GSM fallback
- Integrated CAN data processor
- IP67 waterproof and dustproof enclosure
- Supports light vehicles, trucks, buses and electric vehicles
- Reads fuel, engine and vehicle CAN data
- Bluetooth® 4.0 Low Energy
- Dual CAN interfaces
- Internal GNSS and GSM antennas
- Internal 170 mAh backup battery
- 3 Digital Inputs
- 2 Analog Inputs
- 2 Digital Outputs
- 1-Wire interface
- Micro-USB configuration
- 128 MB internal flash memory
- FOTA Web firmware updates
Integrated CAN Data Processor
The FMC250 combines GPS tracking and CAN bus reading in one compact device, making it an ideal solution for fleet management applications that require detailed vehicle diagnostics.
Supported CAN parameters include:
- Fuel level
- Fuel consumption
- Vehicle speed
- Odometer
- Engine RPM
- Accelerator pedal position
- Engine temperature (vehicle dependent)
- Other manufacturer-supported CAN parameters
This integrated approach reduces installation complexity while delivering valuable operational insights for fleet managers.
Electric Vehicle (EV) CAN Monitoring
The FMC250 supports CAN data reading from electric vehicles, enabling fleet operators to monitor key EV operating parameters without additional hardware.
Suitable applications include:
- Electric commercial vehicles
- EV fleet management
- Corporate electric fleets
- Car sharing services
- Government vehicle fleets
By combining EV CAN data with GPS tracking, businesses can optimise vehicle utilisation, monitor performance and improve operational efficiency.
Rugged IP67 Waterproof Design
Designed for harsh operating environments, the FMC250 features an IP67-rated enclosure that protects against water, dust and vibration.
Ideal for installations in:
- Utility vehicles
- Construction equipment
- Agricultural machinery
- Outdoor fleet vehicles
- Delivery vehicles
- Mining support equipment
The sealed enclosure provides dependable performance even in challenging weather and operating conditions.
Advanced Vehicle Interfaces
The FMC250 offers extensive connectivity, allowing integration with a wide range of vehicle systems and external accessories.
Interfaces include:
- 2 CAN Bus interfaces
- 3 Digital Inputs
- 2 Analog Inputs
- 2 Digital Outputs
- 1-Wire interface
- Bluetooth® Low Energy
- Micro-USB
- Internal GNSS antenna
- Internal GSM antenna
These interfaces support advanced fleet management applications such as immobilisation, driver identification, fuel monitoring, temperature sensing and alarm systems.
Intelligent Fleet Monitoring
The integrated accelerometer and intelligent firmware provide comprehensive fleet monitoring capabilities.
Supported features include:
- Green driving analysis
- Overspeed detection
- Crash detection
- Excessive idling alerts
- Auto and Manual Geofencing
- Towing detection
- Unplug detection
- GNSS Fuel Counter
- Immobiliser support
- Driver identification (iButton)
- Trip recording
- Jamming detection
These features help improve driver safety, reduce operating costs and enhance fleet productivity.
Bluetooth® Sensor Integration
Built-in Bluetooth® 4.0 LE enables wireless connectivity with compatible sensors and accessories.
Applications include:
- Temperature monitoring
- Humidity monitoring
- Bluetooth® beacons
- Barcode scanners
- Driver identification
- Wireless asset monitoring
Bluetooth support expands the functionality of the FMC250 without requiring additional wiring.
Easy Configuration & IQFLOW Cloud Integration
The FMC250 is designed for rapid deployment using Teltonika's professional configuration tools.
Supported configuration methods include:
- Teltonika Configurator
- Bluetooth® configuration
- Micro-USB configuration
- SMS configuration
- FOTA Web firmware updates
- FMBT mobile application
When connected to IQFLOW Cloud, the FMC250 enables:
- Live GPS tracking
- CAN bus diagnostics
- Fuel monitoring dashboards
- Maintenance scheduling
- Driver behaviour reports
- Geofence alerts
- Vehicle utilisation reports
- Remote device management
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1, 2G GSM |
| GNSS |
GPS, GLONASS, Galileo, BeiDou, QZSS, AGPS |
| Position Accuracy |
<2.5 m CEP |
| Bluetooth |
Bluetooth® 4.0 LE |
| CAN Interfaces |
2 |
| Digital Inputs |
3 |
| Analog Inputs |
2 |
| Digital Outputs |
2 |
| 1-Wire |
1 |
| Input Voltage |
10–30 V DC |
| Backup Battery |
170 mAh Li-Ion |
| Memory |
128 MB Flash |
| Waterproof Rating |
IP67 |
| SIM |
Micro-SIM or eSIM |
| USB |
Micro-USB |
| Dimensions |
70.5 × 67 × 25.6 mm |
| Weight |
73.5 g |
| Operating Temperature |
-40°C to +85°C |
Specifications are based on the official Teltonika FMC250 Datasheet and Quick Manual.
Typical Applications
- Fleet Management
- Commercial Vehicle Tracking
- Electric Vehicle Monitoring
- Fuel Consumption Monitoring
- Logistics & Transport
- Bus Fleet Management
- Truck Telematics
- Utility Vehicle Monitoring
- Car Sharing Platforms
- Construction Equipment
- Agricultural Machinery
- Preventive Maintenance
- Driver Behaviour Monitoring
