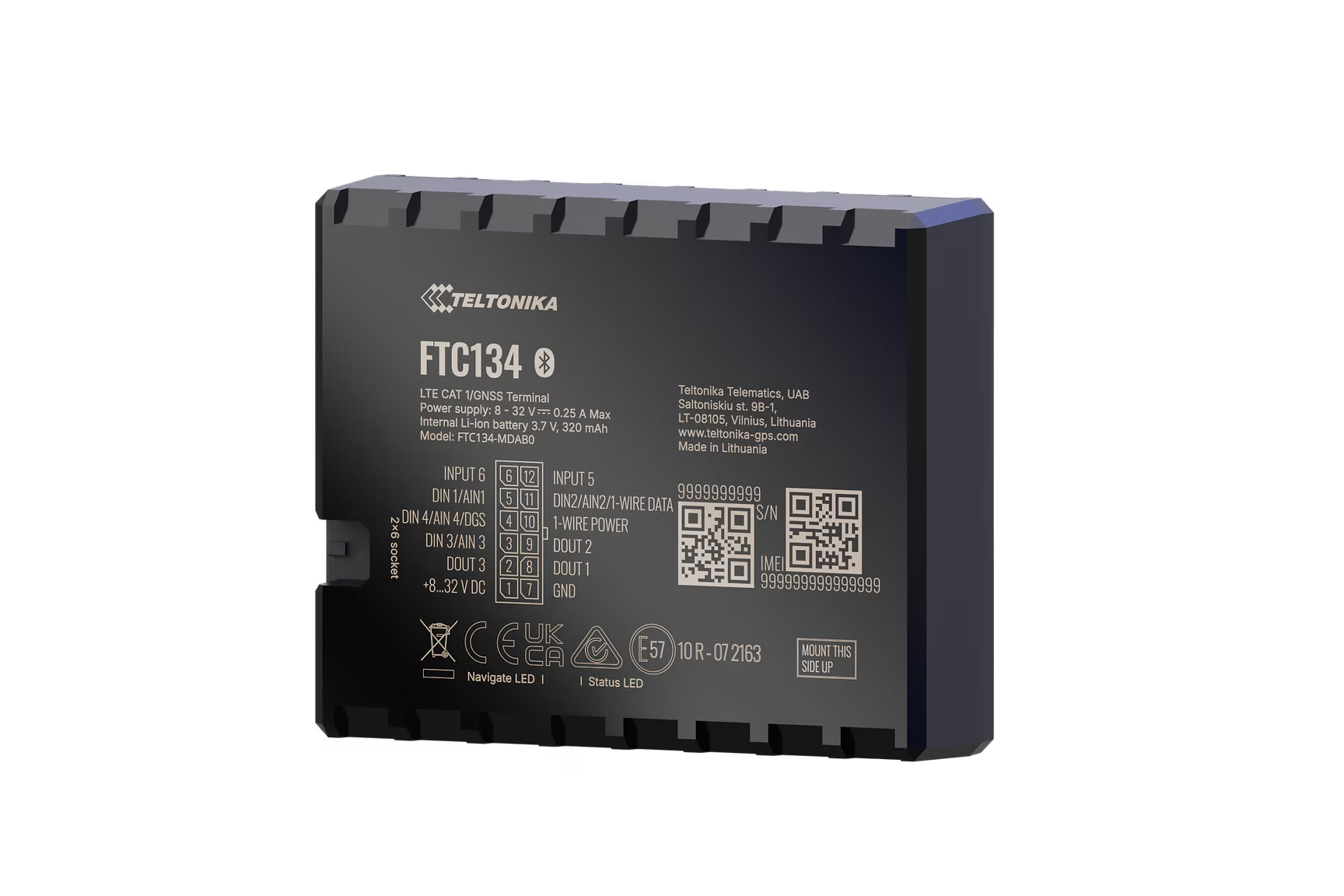

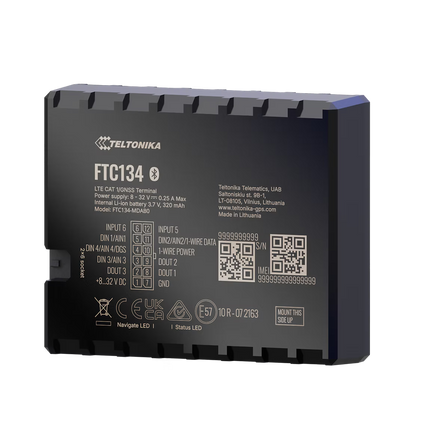

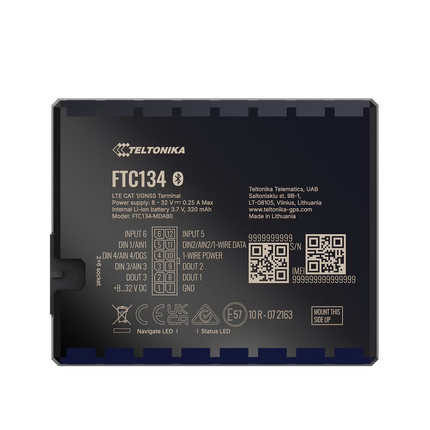

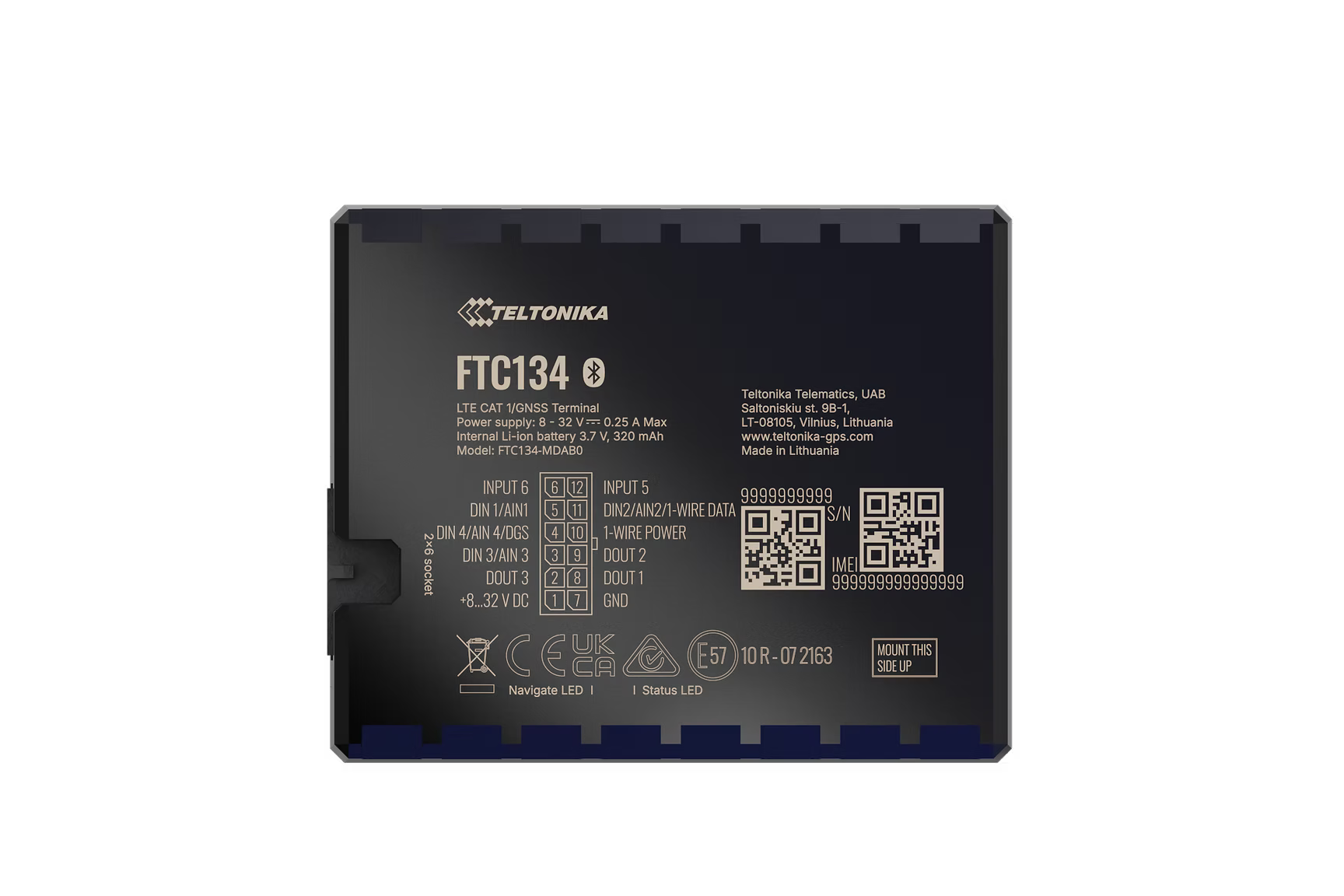

Teltonika FTC134 Next-gen Advanced 4G LTE Cat 1 GPS Vehicle Tracker with flexible inputs
Teltonika FTC134 Advanced 4G LTE GPS Vehicle Tracker
The Teltonika FTC134 is a next-generation 4G LTE Cat 1 GPS tracker designed for advanced fleet telematics, vehicle security, trailer tracking, industrial machinery, and electric vehicle monitoring. Built on Teltonika's latest telematics platform, the FTC134 combines high-precision GNSS positioning, flexible software-configurable inputs, and Bluetooth® Low Energy (LE) connectivity, making it one of the most versatile vehicle tracking solutions available.
Unlike conventional GPS trackers, the FTC134 features customisable pinouts, allowing installers to configure inputs and outputs to suit virtually any application. Whether monitoring ignition, temperature sensors, door status, immobilisers, fuel systems, or external accessories, the FTC134 adapts to your installation rather than forcing you into fixed wiring configurations.
With support for GPS, GLONASS, Galileo and BeiDou satellite systems, the FTC134 delivers positioning accuracy of less than 1.5 metres CEP, while Bluetooth® LE enables wireless integration with external beacons and sensors for monitoring temperature, humidity, movement and asset security.
Ideal for demanding fleet operators and IoT integrators, the FTC134 provides reliable real-time tracking, intelligent event monitoring, and seamless integration with modern telematics platforms, including IQFLOW Cloud.
Key Features
- 4G LTE Cat 1 connectivity with 2G fallback
- High-precision GPS, GLONASS, Galileo & BeiDou positioning
-
Bluetooth® 5.4 Low Energy (LE) connectivity
- Flexible software-defined pin configuration
- Position accuracy <1.5 m CEP
- Supports up to 135 GNSS tracking channels
- 4 Digital Inputs
- 4 Analogue Inputs
- 3 Digital Outputs
- 1 Negative Input
-
1-Wire interface for temperature sensors and accessories
- Configurable CAN/LVCAN interface via software-defined pins
- Built-in 320 mAh backup battery
- USB Type-C configuration
- Internal GNSS and LTE antennas
- 128 MB internal flash memory
- Remote firmware updates via FOTA Web
- Teltonika Configuration Tool (TCT) support
- Intelligent low-power sleep modes
Designed For
The FTC134 is ideal for:
- Fleet management
- Commercial vehicle tracking
- Trailer security
- Last-mile delivery fleets
- International logistics
- Industrial machinery
- Construction equipment
- Electric vehicle management
- Rental & leasing fleets
- Heavy equipment monitoring
- IoT telemetry applications
- Asset security
Flexible Inputs for Advanced Installations
One of the FTC134's biggest advantages is its software-configurable pin architecture, allowing installers to tailor the device to virtually any monitoring application.
Possible monitoring applications include:
- Ignition detection
- Door sensors
- Temperature monitoring
- Fuel level monitoring
- Immobiliser control
- Alarm systems
- External switches
- Digital sensors
- Analogue sensors
- CAN/LVCAN integration
This flexibility reduces installation complexity while allowing the same tracker to be deployed across multiple vehicle types and industries.
Bluetooth® LE Sensor Integration
The built-in Bluetooth® 5.4 Low Energy interface enables wireless communication with compatible Bluetooth beacons and sensors, allowing additional environmental and asset monitoring without extra wiring.
Typical Bluetooth applications include:
- Temperature monitoring
- Humidity monitoring
- Asset identification
- Driver authentication
- Magnet detection
- Movement sensing
- Cargo monitoring
This makes the FTC134 ideal for cold-chain logistics, trailers, industrial equipment, and smart fleet applications.
High-Accuracy GNSS Tracking
The FTC134 uses multi-constellation satellite positioning, supporting:
- GPS
- GLONASS
- Galileo
- BeiDou
With up to 135 tracking channels and positioning accuracy of less than 1.5 metres CEP, the tracker delivers fast satellite acquisition and dependable location updates, even in challenging environments.
Intelligent Fleet Monitoring
The FTC134 supports a comprehensive range of telematics features, including:
- Eco Driving analysis
- Overspeed alerts
- Excessive idling detection
- Crash detection
- Towing detection
- Immobiliser control
- Jamming detection
- Unplug detection
- Dallas 1-Wire sensor support
- Ignition detection
- Trip recording
These capabilities help improve fleet safety, reduce operating costs, and enhance vehicle security.
Efficient Power Management
Optimised sleep modes minimise vehicle battery consumption while maintaining reliable monitoring.
Available power-saving modes include:
- Online Deep Sleep
- Deep Sleep
- Power Off Sleep
Combined with the built-in 320 mAh backup battery, the FTC134 continues to provide valuable tracking functionality even during temporary power interruptions.
Easy Configuration & Integration
The FTC134 supports:
- USB Type-C configuration
- SMS configuration
- TCP & UDP communications
- Remote firmware updates via FOTA Web
- Teltonika Configuration Tool (TCT)
- Codec 8 Extended protocol
The tracker integrates seamlessly with IQFLOW Cloud, providing real-time GPS tracking, geofencing, event notifications, reporting, dashboards, and remote fleet management.
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1 with 2G fallback |
| Bluetooth |
Bluetooth® 5.4 Low Energy |
| GNSS |
GPS, GLONASS, Galileo, BeiDou |
| GNSS Channels |
135 |
| Position Accuracy |
<1.5 m CEP |
| Input Voltage |
8–32 V DC |
| Backup Battery |
320 mAh Li-Ion |
| Digital Inputs |
4 |
| Analogue Inputs |
4 |
| Digital Outputs |
3 |
| Negative Inputs |
1 |
| 1-Wire |
Yes |
| USB |
USB Type-C |
| Memory |
128 MB Flash |
| Operating Temperature |
-30°C to +85°C (without battery) |
| Dimensions |
77 × 63 × 21.25 mm |
| Weight |
73.7 g |
*Specifications sourced from the official Teltonika FTC134 Datasheet.
Typical Applications
- Fleet Telematics
- Trailer Tracking
- Fleet Security
- Cold Chain Logistics
- Last Mile Delivery
- Vehicle Immobilisation
- Industrial Equipment Monitoring
- Construction Machinery
- Electric Vehicle Tracking
- Rental & Leasing
- Heavy Vehicle Monitoring
- Smart Logistics
- Asset Tracking
