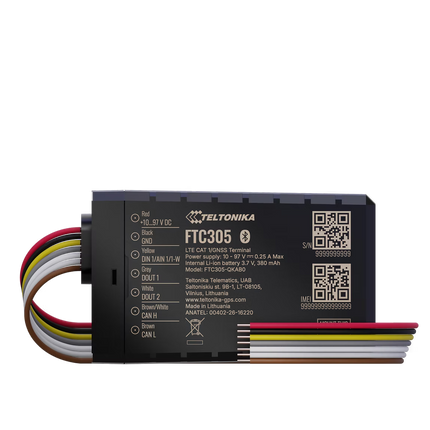

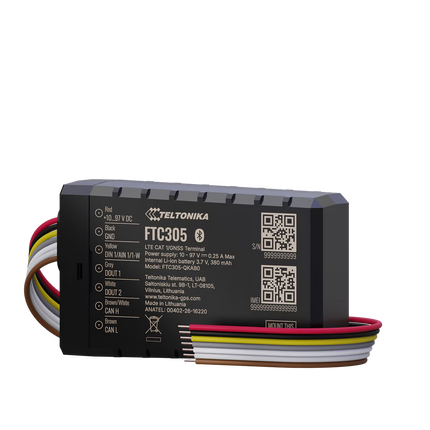

Teltonika FTC305 Compact 4G LTE Cat 1 E-mobility GPS Tracker with CAN data reading
Teltonika FTC305 4G LTE Cat 1 GPS Tracker for E-Bikes, Electric Motorcycles, Scooters & Industrial E-Mobility
The Teltonika FTC305 is a compact 4G LTE Cat 1 GPS tracker purpose-built for the rapidly growing e-mobility industry. Designed specifically for electric bikes, electric scooters, motorcycles, forklifts, utility vehicles and other battery-powered machinery, it combines accurate GNSS positioning with CAN bus data reading, wide operating voltage support and an IP67-rated enclosure for reliable operation in demanding environments.
Supporting 10–97 V DC input, the FTC305 is ideal for both low- and high-voltage electric vehicles. It enables fleet operators, manufacturers and rental companies to remotely monitor vehicle location, battery status, CAN parameters and operational performance through IQFLOW Cloud, helping improve fleet utilisation, security and maintenance planning.
Key Features
- 4G LTE Cat 1 connectivity with automatic 2G fallback
- Built-in CAN bus data reading for electric vehicles
- Wide operating voltage: 10–97 V DC
- High-accuracy multi-constellation GNSS receiver
- Bluetooth® 5.3 Low Energy
- Compact IP67-rated enclosure (casing version)
- Available in casing and factory-install no-casing versions
- Internal or external antenna options
- USB Type-C configuration
- 128 MB internal flash memory
- 1 Digital Input
- 2 Digital Outputs
- 1 Analog Input / 1-Wire interface
- Accelerometer for motion and crash detection
- OTA firmware updates via FOTA WEB
Designed for E-Mobility Applications
Unlike conventional vehicle trackers, the FTC305 has been developed specifically for electric mobility platforms where compact size, low power consumption and CAN integration are essential.
Ideal applications include:
- Electric bicycles
- E-bikes
- Electric scooters
- Electric motorcycles
- Delivery scooters
- Forklifts
- Industrial machinery
- Utility vehicles
- Recreational electric vehicles
- Shared mobility fleets
Its small footprint and optional factory-integrated no-casing version make it easy to install inside vehicle frames and compact equipment.
CAN Bus Data for Electric Vehicle Monitoring
The FTC305 reads valuable information directly from a vehicle's CAN network, allowing fleet operators and manufacturers to monitor critical operational data.
Typical CAN-based applications include:
- Battery management monitoring
- Vehicle operating status
- Motor performance
- Energy consumption
- Vehicle diagnostics
- Custom CAN parameter reading
- Manufacturer-specific CAN commands
The tracker also supports manual CAN data reading and manual CAN commands, making it suitable for specialised electric vehicle applications.
Built for High-Voltage Electric Systems
One of the FTC305's biggest advantages is its exceptionally wide power input range.
Features include:
- Operating voltage: 10–97 V DC
- Suitable for 12 V, 24 V, 48 V, 60 V, 72 V and higher-voltage systems
- Ideal for electric forklifts
- Suitable for industrial utility vehicles
- Designed for electric transport equipment
- Reliable operation across diverse battery systems
This flexibility allows a single tracker model to support a wide range of electric vehicles and machinery.
Rugged IP67 Protection
The casing version of the FTC305 is engineered for harsh operating environments.
Benefits include:
- IP67 dustproof and waterproof enclosure
- Vibration-resistant construction
- Suitable for outdoor installations
- Reliable operation in wet and dusty environments
- Compact size for concealed installation

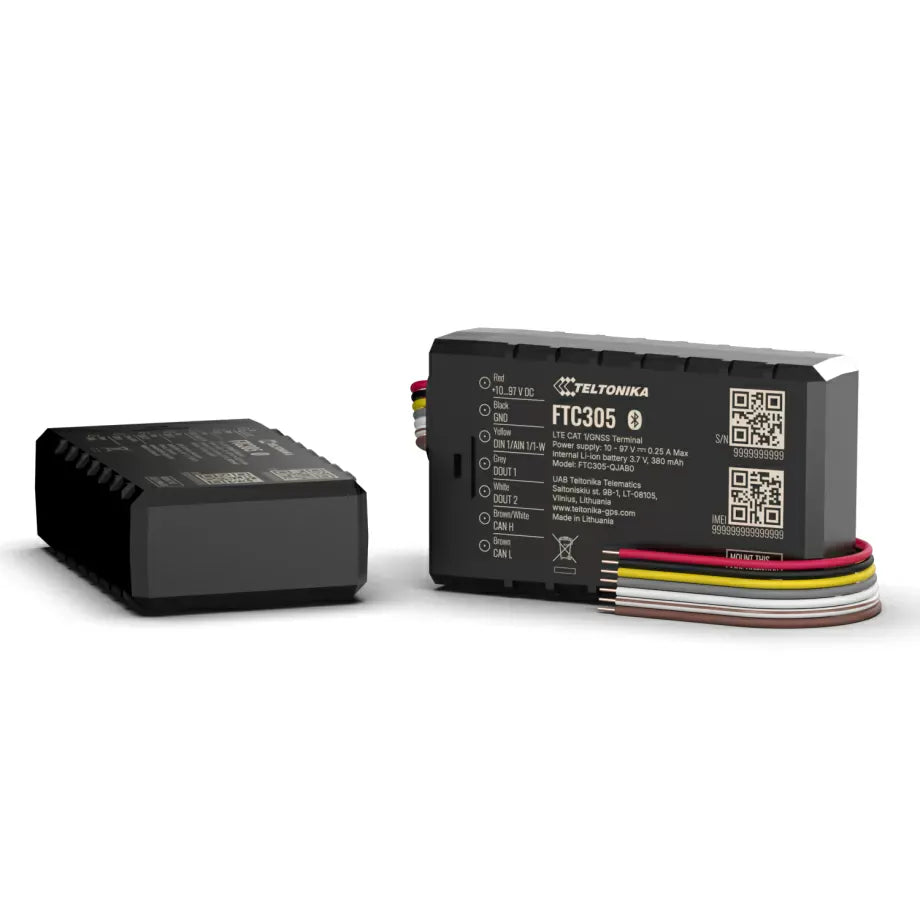

For OEMs and vehicle manufacturers, Teltonika also offers a no-casing version with external antennas and a larger external backup battery for integration directly into vehicle frames during production.
High-Accuracy GNSS Tracking
The FTC305 delivers accurate positioning using multiple global satellite constellations.
Supported systems include:
- GPS
- GLONASS
- Galileo
- BeiDou
Performance specifications include:
- Position accuracy: <1.8 m CEP
- Tracking sensitivity: -165 dBm
- 75-channel GNSS receiver
- Hot start: <1 second
- Warm start: <25 seconds
These capabilities provide fast and reliable positioning in urban and industrial environments.
Intelligent Fleet & Security Features
The built-in accelerometer and intelligent firmware enable advanced monitoring and protection features.
Supported functions include:
- Real-time GPS tracking
- Green Driving analysis
- Over-speed detection
- Crash detection
- Jamming detection
- Unplug detection
- Ignition detection
- Online sleep mode
- Deep sleep mode
- Power-off sleep mode
These features help improve fleet security, reduce unauthorised vehicle use and extend battery life.
Flexible Interfaces
Despite its compact design, the FTC305 offers a versatile set of interfaces for connecting external equipment.
Interfaces include:
- 1 × CAN
- 1 × Digital Input
- 2 × Digital Outputs
- 1 × Analog Input
- 1-Wire interface
- USB Type-C
- Bluetooth® 5.3 LE
- Nano-SIM
Compatible peripherals include:
- iButton driver identification
- Temperature sensors
- Buzzers
- Warning lights
- Relays
- 1-Wire accessories
- CAN-enabled vehicle systems
The Quick Manual also includes detailed wiring diagrams for integrating these peripherals into vehicle electrical systems.
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1 with 2G fallback |
| GNSS |
GPS, GLONASS, Galileo, BeiDou |
| Position Accuracy |
<1.8 m CEP |
| Tracking Sensitivity |
-165 dBm |
| Operating Voltage |
10–97 V DC |
| Backup Battery |
380 mAh Li-ion (casing version) / 1200 mAh external Li-ion (no-casing version) |
| Bluetooth |
Bluetooth® 5.3 LE |
| Digital Inputs |
1 |
| Digital Outputs |
2 |
| Analog Inputs |
1 |
| CAN |
1 |
| 1-Wire |
Yes |
| USB |
USB Type-C |
| Memory |
128 MB Flash |
| SIM |
Nano-SIM |
| Enclosure |
IP67 (casing version) |
| Dimensions |
69 × 41 × 20.9 mm (casing version) |
| Weight |
76.8 g (casing version) |
| Operating Temperature |
-30°C to +85°C |
*Specifications sourced from the official Teltonika FTC305 Datasheet v1.3.
Typical Applications
- E-bike Fleet Management
- Electric Scooter Tracking
- Electric Motorcycle Monitoring
- Shared Mobility Platforms
- Forklift Fleet Tracking
- Utility Vehicle Management
- Industrial Equipment Monitoring
- Recreational Electric Vehicles
- Anti-Theft Vehicle Protection
- Battery Fleet Monitoring
- OEM Factory Vehicle Integration
- Smart City Mobility Solutions
