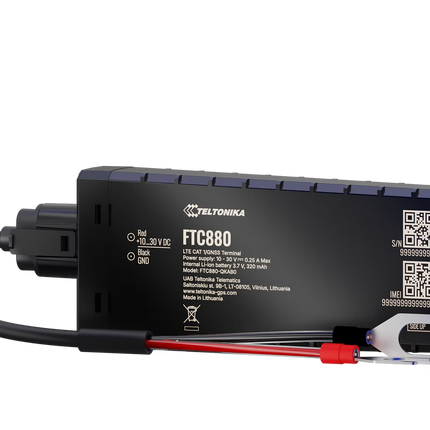

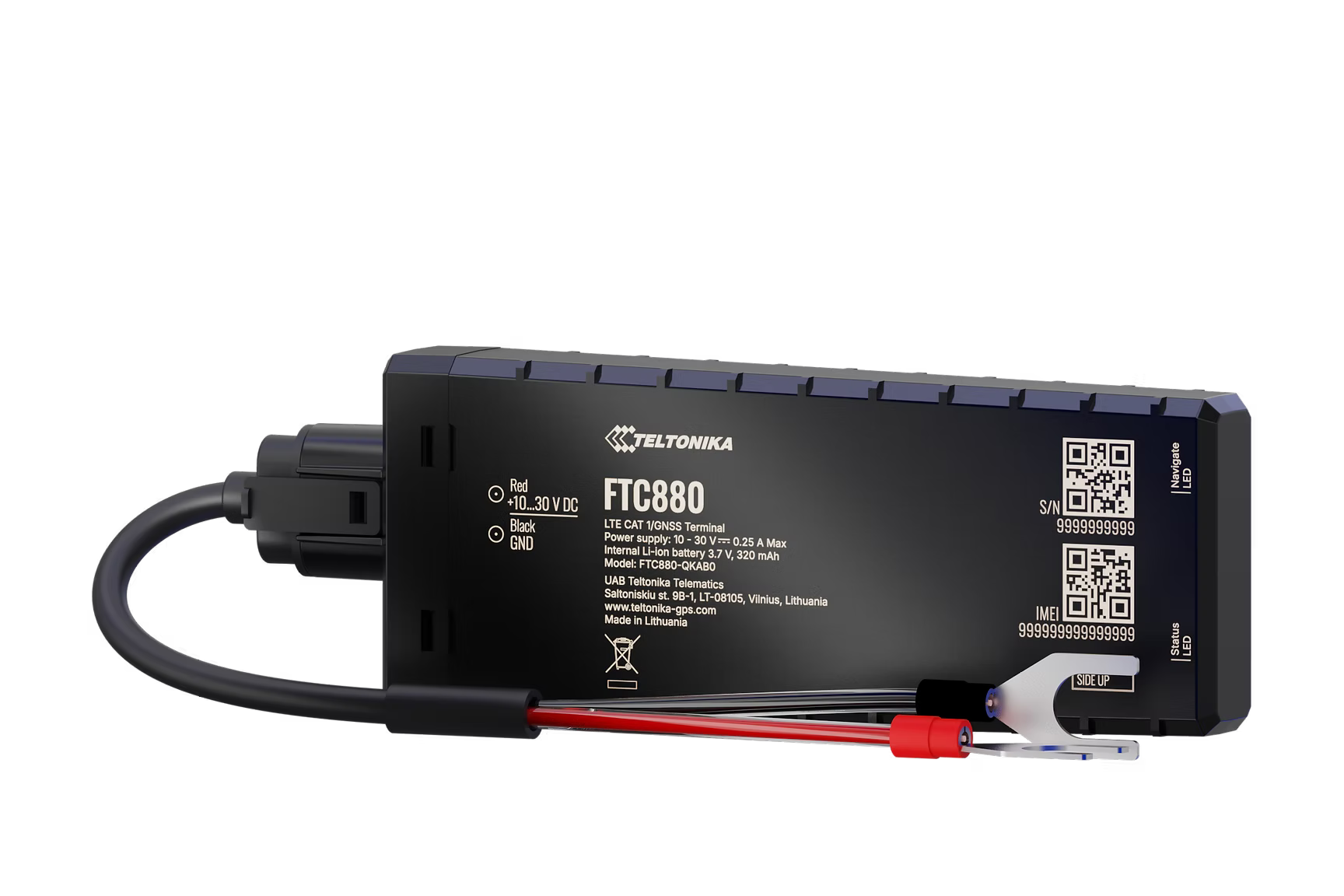

Teltonika FTC880 Next-generation 4G LTE Cat 1 battery-mounted vehicle GPS Tracker IP69K
Rugged 4G LTE Cat 1 Vehicle GPS Tracker with Enhanced GNSS Accuracy, Internal Backup Battery and IP69K Protection
The Teltonika FTC880 is a next-generation 4G LTE Cat 1 vehicle GPS tracker engineered for fast installation and reliable fleet tracking. Designed to mount directly onto a vehicle battery, it combines LTE Cat 1 connectivity, high-precision multi-constellation GNSS, an internal 320 mAh backup battery, and an IP69K-rated waterproof enclosure for dependable operation in harsh automotive environments. Powered by Teltonika's new Fleet Telematics (FT) Platform, the FTC880 delivers improved positioning accuracy, lower power consumption, and advanced telematics features for fleet management, insurance telematics, driver behaviour monitoring, and last-mile delivery applications.
Key Features
Next-Generation Fleet Telematics Platform
The FTC880 is built on Teltonika's new FT Platform, providing:
- Enhanced hardware architecture
- Improved firmware performance
- Faster processing
- Lower power consumption
- Future-ready telematics capabilities
The new platform delivers a more efficient and reliable tracking experience.
High-Precision GNSS Tracking
The FTC880 supports multiple satellite constellations:
- GPS
- GLONASS
- Galileo
- BeiDou
Key GNSS performance:
| Specification |
Value |
| Receiver |
75 Channels |
| Tracking Sensitivity |
-165 dBm |
| Position Accuracy |
<1.8 m CEP |
| Velocity Accuracy |
<0.1 m/s |
| Visible Satellites |
Up to 41 |
The improved GNSS receiver enables highly accurate location tracking for fleet and asset management.
Why Choose the FTC880?
The FTC880 combines easy installation with industrial-grade durability and advanced tracking capabilities.
Key advantages include:
- LTE Cat 1 Connectivity
- Battery-Mounted Installation
- IP69K Waterproof Housing
- Enhanced GNSS Accuracy
- Internal Backup Battery
- Ultra-Low Power Consumption
- Internal LTE & GNSS Antennas
- USB Type-C Configuration
- Accelerometer-Based Detection
- Fleet Telematics Platform
LTE Cat 1 Connectivity
The FTC880 provides reliable 4G connectivity for modern fleet applications.
Cellular Technology
- LTE Cat 1
- GSM / GPRS fallback
Data Performance
| Network |
Speed |
| LTE Cat 1 |
Up to 10 Mbps Downlink / 5 Mbps Uplink
|
| GPRS |
Up to 85.6 kbps |
Supports TCP, UDP, SMS (Text and PDU) communication protocols.
Easy Battery-Mounted Installation
The FTC880 is designed for rapid installation directly onto the vehicle battery.
Installation features include:
- Compact battery-mounted design
- Double-sided adhesive mounting
- Direct battery connection
- Two-wire installation
- Internal antennas
- USB Type-C configuration port
The quick installation process reduces installation time while maintaining a professional fit.
Rugged IP69K Protection
Designed for demanding automotive environments.
Protection includes:
- IP69K waterproof rating
- Dustproof enclosure
- High-pressure water resistance
- Steam cleaning resistance
Ideal for commercial vehicles, construction equipment, agricultural machinery, and harsh outdoor environments.
Backup Battery
The integrated backup battery allows the tracker to continue operating if vehicle power is interrupted.
| Specification |
Value |
| Battery Type |
Li-Ion |
| Capacity |
320 mAh |
| Voltage |
3.7 V |
| Energy |
1.18 Wh |
The backup battery also supports unplug detection and tamper monitoring.
Ultra-Low Power Consumption
Optimised sleep modes minimise vehicle battery drain.
| Operating Mode |
Current Consumption @12V |
| Normal Mode |
<22.7 mA |
| Online Deep Sleep |
<5.31 mA |
| Deep Sleep |
<2.51 mA |
| Power-Off Sleep |
<0.60 mA |
These advanced sleep modes allow extended operation while significantly reducing battery consumption.
Intelligent Tracking Features
Built-in telematics scenarios include:
- Crash Detection
- Driver Behaviour Monitoring
- Overspeed Detection
- Eco Driving Analysis
- Excessive Idling Detection
- Odometer
- Trip Detection
- Auto Geofence
- Towing Detection
- Network Jamming Detection
- Unplug Detection
- Static Navigation
- Custom Scenarios
The integrated accelerometer enables intelligent event detection without additional sensors.
Internal Sensors
The FTC880 includes:
Used for:
- Movement Detection
- Ignition Detection
- Crash Detection
- Driver Behaviour Analysis
- Towing Detection
Interfaces
The FTC880 provides:
- Nano-SIM Slot
- USB Type-C
- Internal High-Gain LTE Antenna
- Internal High-Gain GNSS Antenna
- Two Status LEDs
- U-Type Power Cable
This simple interface minimises installation complexity while maintaining reliability.
Power Specifications
| Specification |
Value |
| Input Voltage |
10–30 VDC |
| Internal Fuse |
3 A |
| Power Cable |
U-Type |
Suitable for both 12V and 24V vehicle electrical systems.
Memory
- 128 MB Internal Flash Memory
Provides sufficient storage for tracking records during temporary network outages before synchronisation.
Configuration & Management
The FTC880 supports multiple configuration methods:
- Teltonika Configuration Tool (TCT)
- FOTA Web (Firmware Over-The-Air)
- SMS Configuration
- GPRS Commands
- USB Type-C Connection
Time synchronisation options include:
This allows flexible deployment and remote device maintenance.
Physical Specifications
| Specification |
Value |
| Dimensions |
118 × 48 × 18.5 mm |
| Weight |
118 g |
The compact form factor allows discreet installation on most vehicle batteries.
Environmental Specifications
| Specification |
Value |
| Operating Temperature (without battery) |
-40°C to +85°C |
| Operating Temperature (with battery) |
0°C to +40°C |
| Operating Humidity |
5–95% Non-condensing |
| Protection Rating |
IP69K |
Built to withstand demanding automotive and industrial environments.
Certifications
The FTC880 complies with major international standards including:
- CE / RED
- UKCA
- E-Mark
- RoHS
- REACH
- Pulse 5b
- RCM (Australia & New Zealand)
Suitable for commercial fleet deployments across global markets.
Typical Applications
The FTC880 is ideal for:
- Fleet Management
- Vehicle Tracking
- Rental Vehicles
- Insurance Telematics
- Driver Behaviour Monitoring
- Last-Mile Delivery
- Construction Equipment
- Agricultural Machinery
- Utility Vehicles
- Logistics & Transportation
- Government Fleets
- Asset Recovery
Resources:
Teltonika FTC880 Datasheet
Teltonika FTC880 Quick Manual
