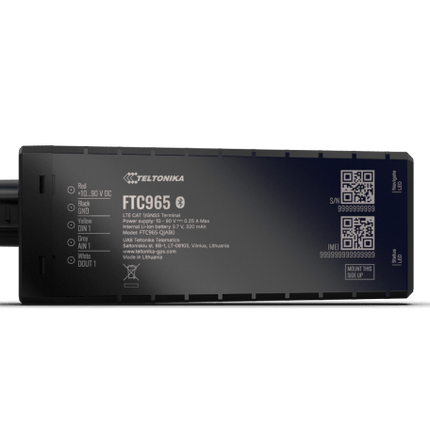

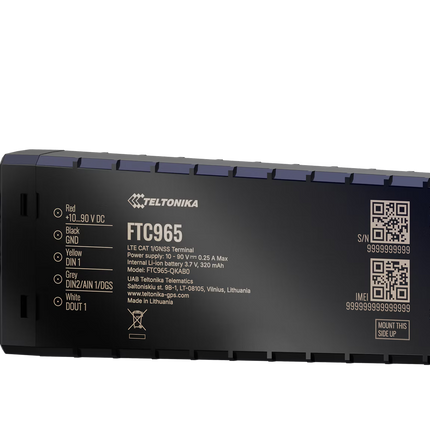

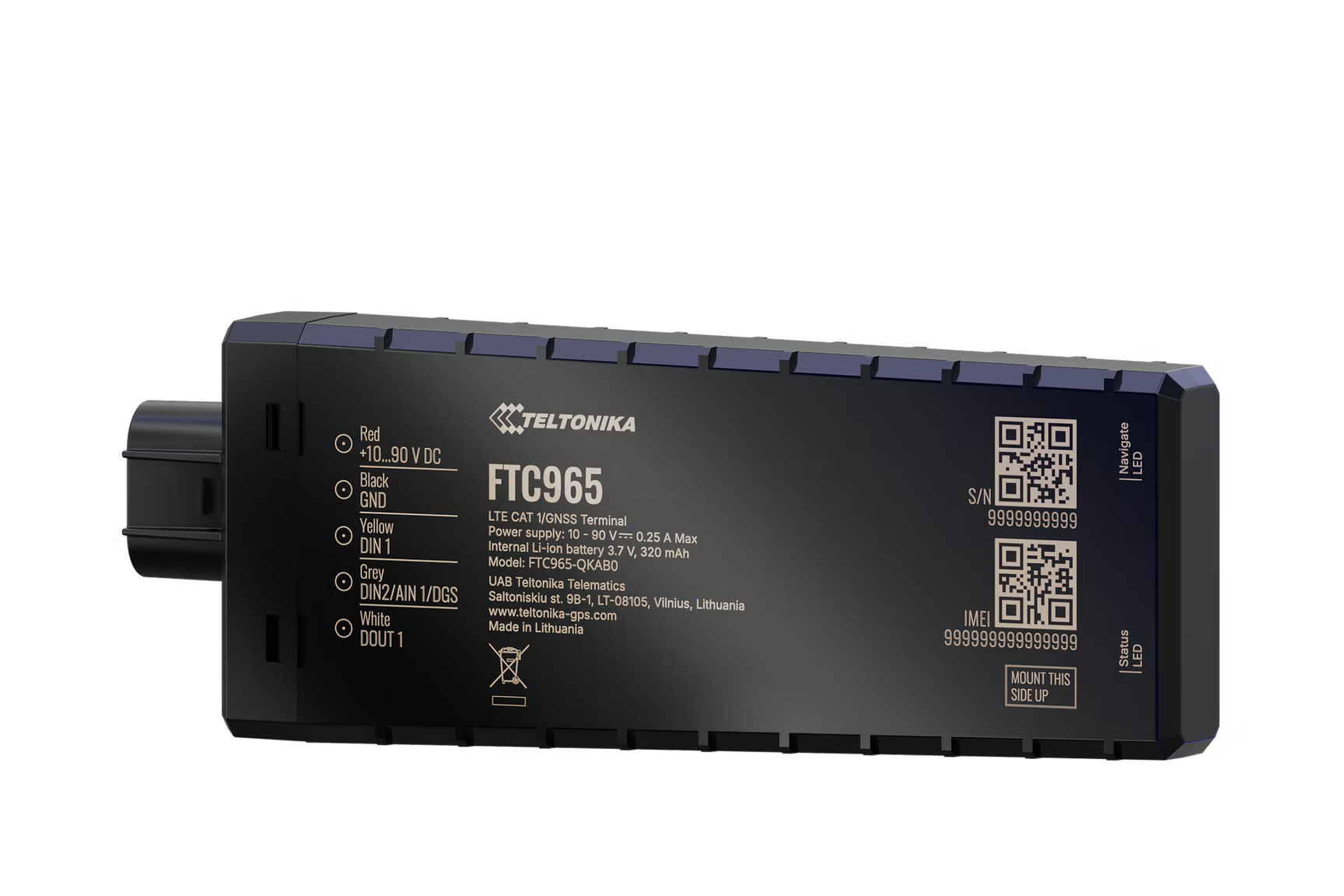

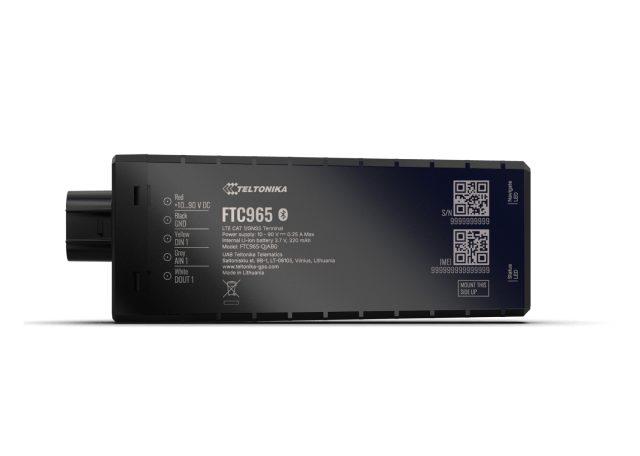

Teltonika FTC965 Next-gen high voltage 4G LTE Cat 1 vehicle GPS tracker IP69K
Teltonika FTC965 Next-Generation High Voltage 4G LTE Cat 1 Vehicle GPS Tracker with IP69K Protection & Bluetooth® 5.4
The Teltonika FTC965 is a next-generation 4G LTE Cat 1 vehicle GPS tracker engineered for commercial, industrial and heavy-duty vehicles operating on both standard and high-voltage electrical systems. Featuring an ultra-wide 10–90 V DC input range, rugged IP69K waterproof housing, enhanced GNSS accuracy and Bluetooth® 5.4 Low Energy connectivity, the FTC965 is designed for reliable fleet tracking in the most demanding environments.
Built on Teltonika's latest Fleet Telematics platform, the FTC965 supports passenger cars, trucks, buses, construction machinery, agricultural equipment and electric vehicles. Its high-voltage compatibility and robust enclosure make it ideal for permanent installations where reliability, durability and accurate positioning are essential.
When integrated with IQFLOW Cloud, the FTC965 provides real-time vehicle tracking, historical trip reports, geofencing, driver behaviour monitoring, remote diagnostics and fleet analytics.
Key Features
- 4G LTE Cat 1 with 2G GSM fallback
- Wide 10–90 V DC input for high-voltage vehicles
- IP69K waterproof and dustproof enclosure
- Enhanced GNSS positioning with up to 41 visible satellites
- Bluetooth® 5.4 Low Energy connectivity
- Internal 320 mAh backup battery
- Accelerometer for driver behaviour monitoring
- 1 Digital Input
- 1 Digital Output
- 1 Analog Input
- USB Type-C configuration
- 128 MB internal flash memory
- FOTA Web remote firmware updates
High Voltage Vehicle Compatibility
The FTC965 is specifically designed to support both conventional and high-voltage vehicle electrical systems.
Its 10–90 V DC input range enables installation across a wide variety of vehicle types without additional voltage converters.
Ideal for:
- Heavy trucks
- Buses
- Construction equipment
- Mining machinery
- Agricultural vehicles
- Utility fleets
- Electric commercial vehicles
- Industrial equipment
This flexibility allows fleet operators to standardise on a single tracking solution across mixed vehicle fleets.
Rugged IP69K Waterproof Design
The FTC965 features a durable IP69K-rated enclosure, providing the highest level of protection against harsh environmental conditions.
Benefits include protection from:
- High-pressure water jets
- Steam cleaning
- Dust ingress
- Mud
- Heavy rain
- Vibrations
- Industrial operating environments
This makes the tracker well suited for outdoor installations where long-term durability is essential.
Enhanced GNSS Positioning
The FTC965 delivers reliable and highly accurate positioning using multiple global satellite systems.
Supported GNSS constellations include:
- GPS
- GLONASS
- Galileo
- BeiDou
Performance highlights:
- Up to 41 visible satellites
- 135 tracking/acquisition channels
- Position accuracy: <1.8 m CEP
- Tracking sensitivity: -165 dBm
- Hot start: <1 second
- Warm start: <25 seconds
These capabilities ensure dependable tracking performance in urban, rural and remote environments.
Bluetooth® 5.4 Low Energy Integration
Built-in Bluetooth® 5.4 LE expands the functionality of the FTC965 by allowing wireless communication with compatible sensors and accessories.
Compatible applications include:
- Temperature monitoring
- Humidity monitoring
- Low Energy beacons
- Magnet detection
- Movement monitoring
- Driver identification
- Asset monitoring
This enables the tracker to support more advanced IoT and fleet management applications without additional wiring.
Intelligent Fleet Monitoring
The integrated accelerometer and configurable I/O enable the FTC965 to monitor vehicle activity and generate valuable operational insights.
Supported features include:
- Green driving analysis
- Overspeed detection
- Crash detection
- Excessive idling alerts
- Auto geofence
- Trip recording
- Unplug detection
- Jamming detection
- Ignition monitoring
These intelligent features help improve driver safety, reduce operating costs and enhance fleet visibility.
Low Power Consumption & Backup Battery
The FTC965 is designed for efficient power management, helping minimise vehicle battery consumption during extended periods of inactivity.
Features include:
- Deep Sleep mode
- Online Sleep mode
- Power-Off Sleep mode
- 320 mAh integrated Li-Ion backup battery
The internal battery enables the tracker to continue reporting during temporary power interruptions and supports anti-tamper applications.
Easy Configuration & IQFLOW Cloud Integration
The FTC965 is simple to deploy using Teltonika's professional configuration tools.
Supported management options include:
- Teltonika Configuration Tool (TCT)
- USB Type-C configuration
- SMS configuration
- FOTA Web firmware updates
When connected to IQFLOW Cloud, users gain access to:
- Live GPS tracking
- Vehicle history and route playback
- Geofence notifications
- Driver behaviour reports
- Fleet dashboards
- Device health monitoring
- Remote diagnostics
- Custom alerts and reporting
Technical Specifications
| Feature |
Specification |
| Cellular |
4G LTE Cat 1, 2G GSM/GPRS |
| GNSS |
GPS, GLONASS, Galileo, BeiDou |
| GNSS Channels |
135 Tracking/Acquisition |
| Position Accuracy |
<1.8 m CEP |
| Bluetooth |
Bluetooth® 5.4 LE |
| Input Voltage |
10–90 V DC |
| Backup Battery |
320 mAh Li-Ion |
| Digital Inputs |
1 |
| Digital Outputs |
1 |
| Analog Inputs |
1 |
| Memory |
128 MB Flash |
| Waterproof Rating |
IP69K |
| SIM |
Nano-SIM |
| USB |
USB Type-C |
| Dimensions |
118 × 48 × 18.5 mm |
| Weight |
118 g |
| Operating Temperature |
-40°C to +85°C (without battery) |
Specifications are based on the official Teltonika FTC965 Datasheet and Quick Manual.
Typical Applications
- Commercial Fleet Management
- Heavy Truck Tracking
- Bus & Coach Fleets
- Construction Equipment
- Mining Machinery
- Agricultural Vehicles
- Utility Vehicles
- Logistics & Delivery Services
- E-Mobility Management
- Fleet Telematics
- Vehicle Recovery
- Industrial Equipment Monitoring
