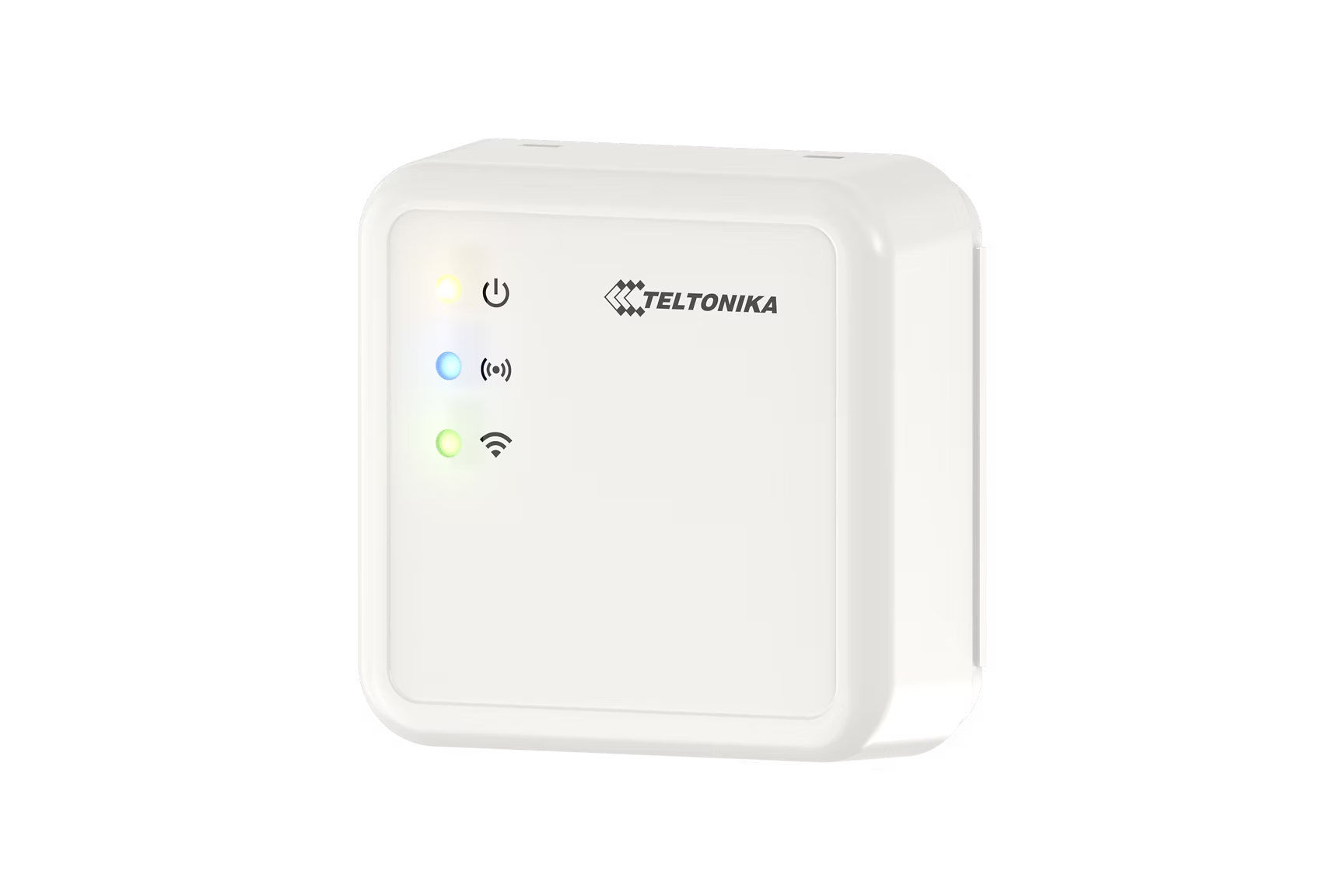

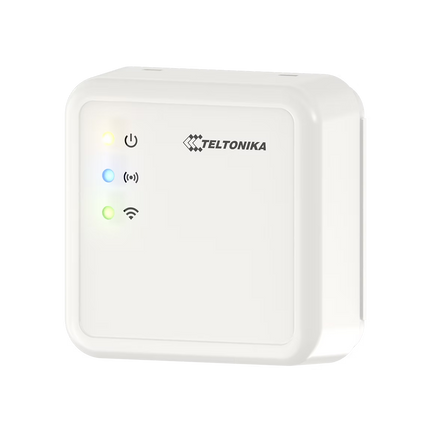

Teltonika Mesh Gateway Wi-Fi for Wirepas Mesh Devices
Teltonika Mesh Gateway Wi-Fi for Wirepas® Mesh Indoor Asset Tracking Networks
The Teltonika Mesh Gateway Wi-Fi is a high-performance Wirepas Mesh gateway designed to collect data from Wirepas Mesh devices and securely forward it to cloud platforms using Wi-Fi connectivity. Acting as the central communication bridge between Mesh Anchors, EYE Mesh Sensors, EYE Mesh Beacons and your IoT platform, the gateway enables scalable, real-time indoor asset tracking without the need for Ethernet cabling or cellular subscriptions.
Designed for enterprise indoor positioning and Industrial IoT (IIoT) applications, the Mesh Gateway Wi-Fi supports direct integration with AWS, Microsoft Azure, local MQTT brokers and IQFLOW Cloud via the standard MQTT protocol. Its compact, discreet design allows installation on ceilings or walls while delivering reliable coverage throughout warehouses, hospitals, manufacturing facilities and logistics centres.
Key Features
- Wirepas Mesh v5.x gateway
- Wi-Fi connectivity (IEEE 802.11 b/g/n)
- Direct MQTT integration
- Supports AWS, Microsoft Azure and local MQTT brokers
- Collects data from Mesh Anchors and EYE Mesh devices
- No Ethernet cabling required
- No cellular SIM card required
- USB-C or DC power input
- Compact wall or ceiling mounting
- Industrial-grade design
- Remote firmware updates
- LED status indicators
Central Gateway for Wirepas Mesh Networks
The Mesh Gateway Wi-Fi acts as the communication hub for the entire Wirepas Mesh ecosystem.
It collects data from:
- Mesh Anchors
- EYE Sensor Mesh devices
- EYE Beacon Mesh devices
The gateway then securely forwards all collected information to your preferred IoT platform, enabling centralised monitoring, analytics and reporting.
Low Infrastructure Costs with Wi-Fi
Unlike traditional gateways that require Ethernet cabling or mobile connectivity, the Mesh Gateway Wi-Fi connects directly to an existing wireless network.
Benefits include:
- No Ethernet installation
- No SIM cards
- No ongoing cellular subscription costs
- Simplified deployment
- Lower installation costs
- Flexible installation locations
This makes it particularly suitable for warehouses, factories and commercial buildings with existing Wi-Fi infrastructure.
Instant IoT Platform Integration
The Mesh Gateway Wi-Fi supports the standard MQTT protocol, enabling fast integration with leading IoT platforms.
Supported platforms include:
- Amazon Web Services (AWS)
- Microsoft Azure
- Local MQTT brokers
- IQFLOW Cloud
This allows organisations to rapidly deploy enterprise indoor positioning and monitoring solutions without complex middleware or proprietary software.
Reliable Wirepas Mesh Communication
The gateway combines Wi-Fi networking with Wirepas Mesh technology to provide dependable indoor communications.
Features include:
- Wirepas Mesh v5.x support
- Self-healing mesh networking
- Automatic routing
- Reliable data forwarding
- Scalable enterprise deployments
- Continuous communication across large facilities
The decentralised Wirepas Mesh architecture ensures data continues flowing even if individual devices move or become temporarily unavailable.
Flexible Installation Options
The Mesh Gateway Wi-Fi is designed for fast installation across a wide variety of environments.
Power options include:
- USB-C (5 V DC)
- 4.5–30 V DC internal terminal connection
Installation options include:
- Ceiling mounting
- Wall mounting
- Dual adhesive mounting
- Screw mounting
Its compact neutral design blends discreetly into commercial and industrial environments while providing excellent wireless coverage.
Industrial Hardware Platform
Powered by the Espressif ESP32-S3 platform and a dedicated Nordic Wirepas radio, the gateway delivers reliable processing performance for enterprise IoT deployments.
Hardware highlights include:
- ESP32-S3 dual-core 32-bit processor (up to 240 MHz)
- Nordic nRF52832 Wirepas radio
- Up to 8 MB PSRAM
- 512 KB SRAM
- Wi-Fi and Wirepas Mesh radios
- Factory reset button
- Power, Wirepas and Wi-Fi LED indicators
These components provide dependable operation in demanding industrial environments.
IQFLOW Cloud Integration
The Mesh Gateway Wi-Fi integrates seamlessly with IQFLOW Cloud, providing a complete platform for managing indoor positioning and Industrial IoT applications.
IQFLOW Cloud enables:
- Real-time indoor asset tracking
- Warehouse inventory dashboards
- Medical equipment monitoring
- Environmental monitoring
- Equipment utilisation reporting
- Indoor location analytics
- Custom alerts and notifications
- Historical asset movement reporting
By combining Wirepas Mesh infrastructure with IQFLOW Cloud, organisations gain complete visibility over assets, equipment and environmental conditions across multiple sites.
Technical Specifications
| Feature |
Specification |
| Network Technology |
Wirepas Mesh v5.x |
| Cloud Connectivity |
Wi-Fi (IEEE 802.11 b/g/n) |
| Platform |
Espressif ESP32-S3-WROOM-1 |
| Wirepas Radio |
Nordic nRF52832 SoC |
| Processor |
Dual-core Xtensa® LX7, up to 240 MHz |
| Memory |
384 KB ROM, 512 KB SRAM, Up to 8 MB PSRAM |
| MQTT Support |
Yes |
| Power Input |
USB-C 5 V DC or 4.5–30 V DC |
| Wi-Fi Frequency |
2.412–2.484 GHz |
| Wirepas Frequency |
2.402–2.480 GHz |
| LEDs |
Power, Wirepas, Wi-Fi |
| Mounting |
Adhesive or screws |
| Protection Rating |
IP40 |
| Dimensions |
74 × 74 × 25.5 mm |
| Weight |
50 g |
| Operating Temperature |
-20°C to +65°C |
Specifications are based on the official Teltonika Mesh Gateway Wi-Fi Datasheet.
Typical Applications
- Indoor Asset Tracking
- Warehouse Inventory Management
- Medical Equipment Tracking
- Smart Manufacturing
- Industrial IoT
- Logistics & Distribution Centres
- Temperature & Humidity Monitoring
- Tool & Equipment Tracking
- Factory Automation
- Smart Warehouses
- Enterprise Indoor Positioning
- Wirepas Mesh Infrastructure
