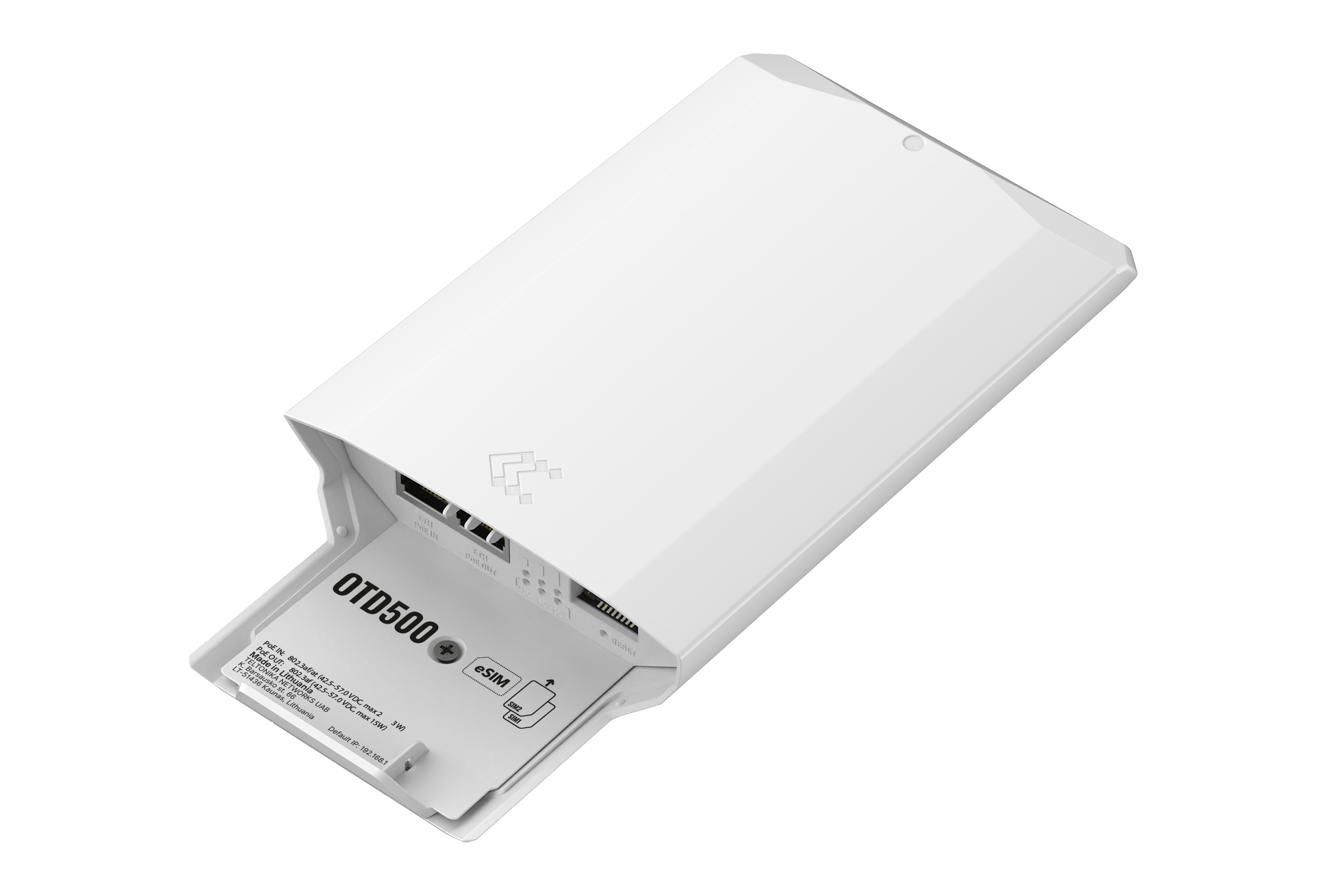

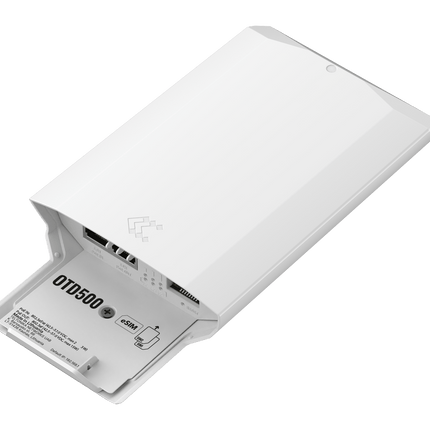

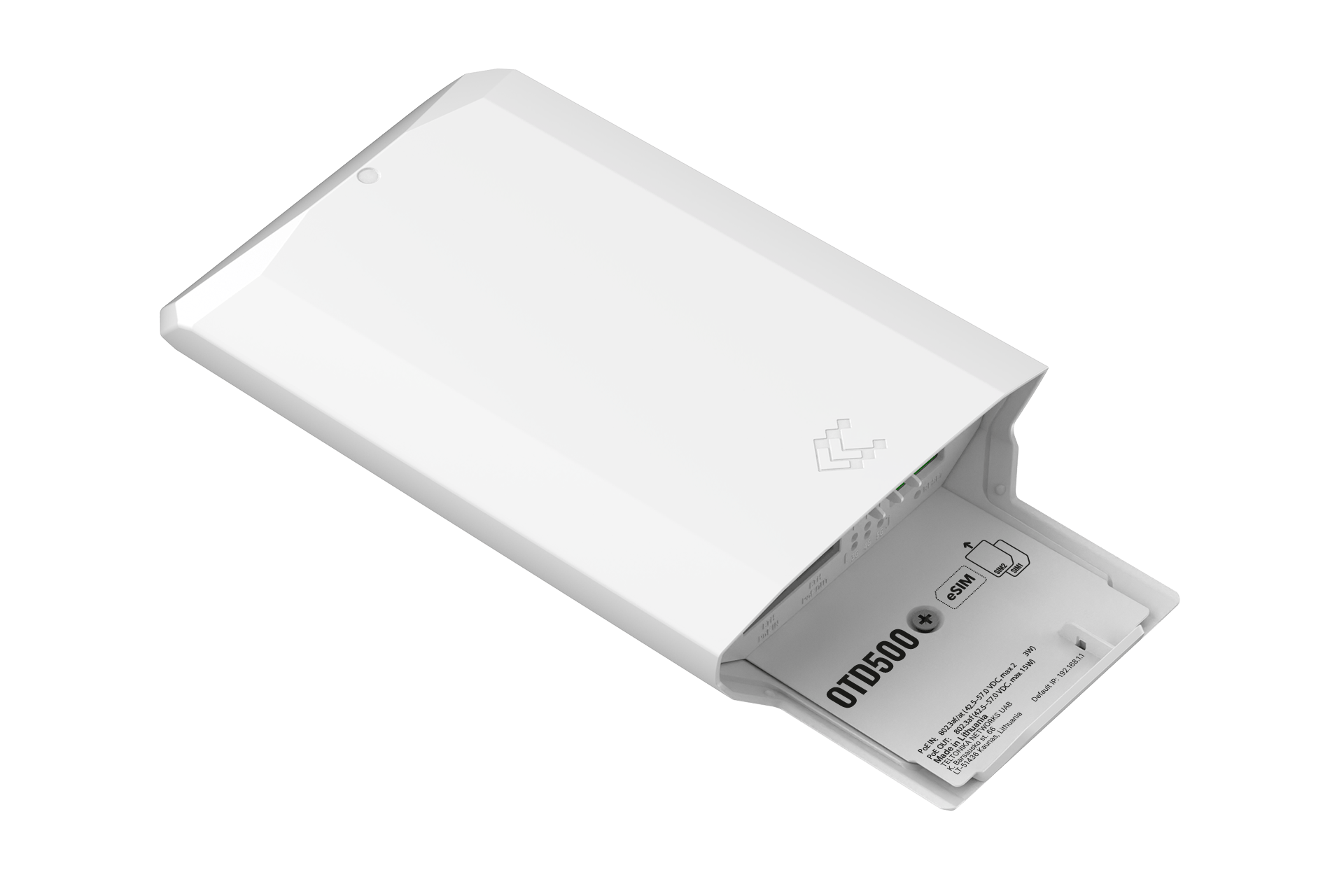

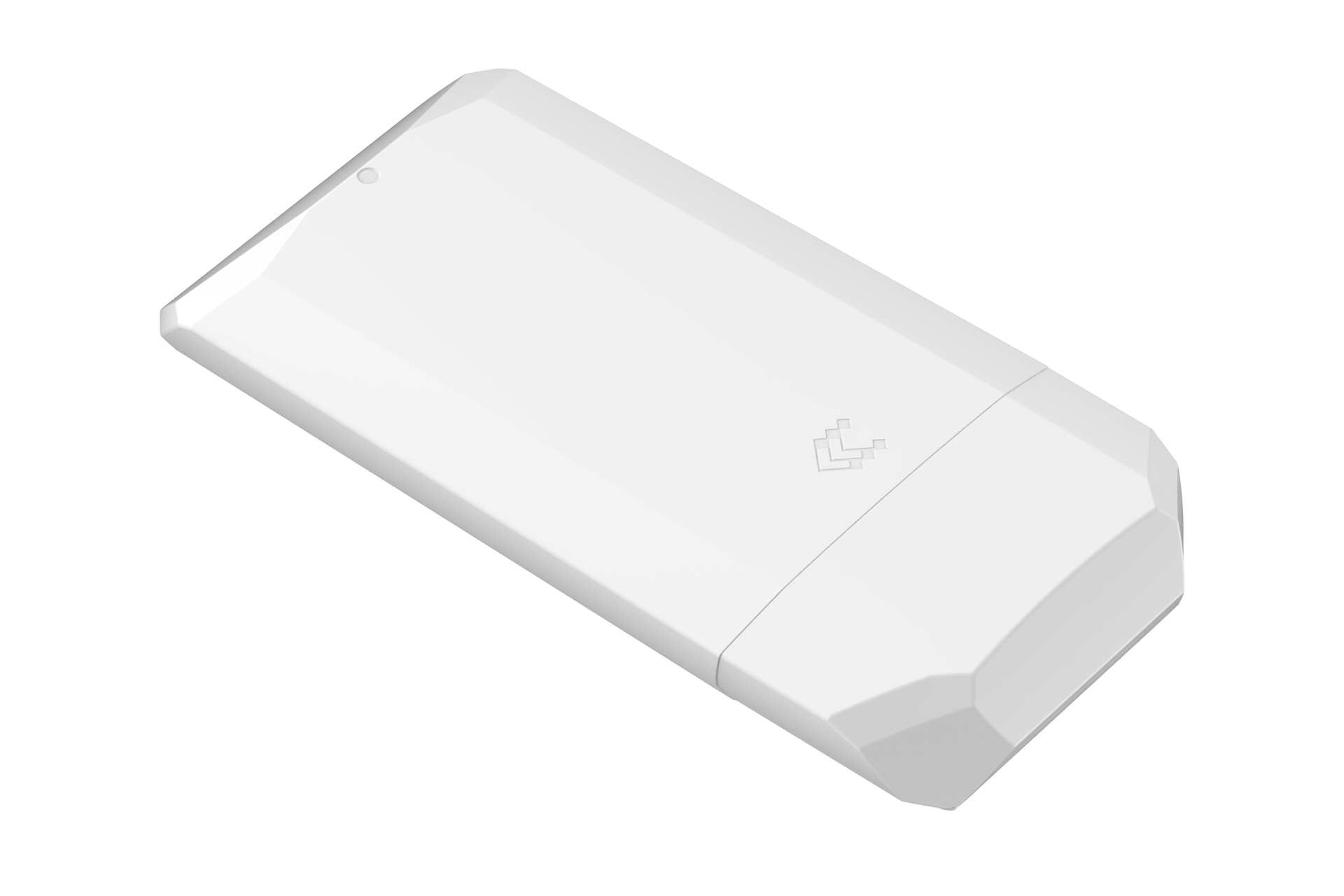

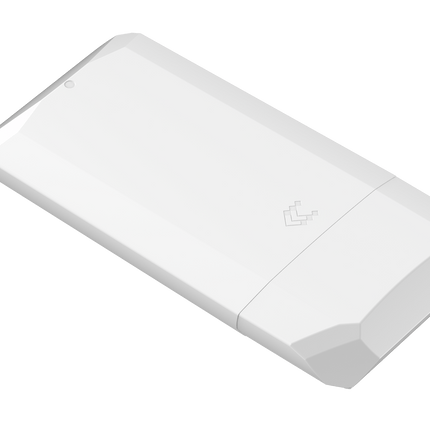

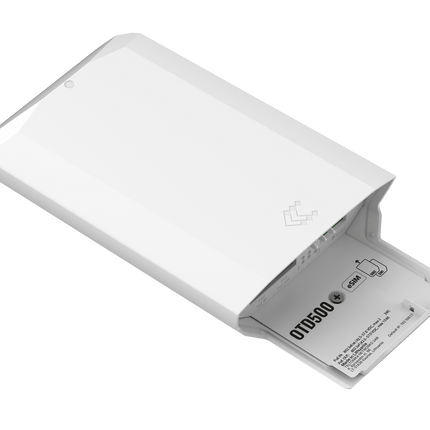

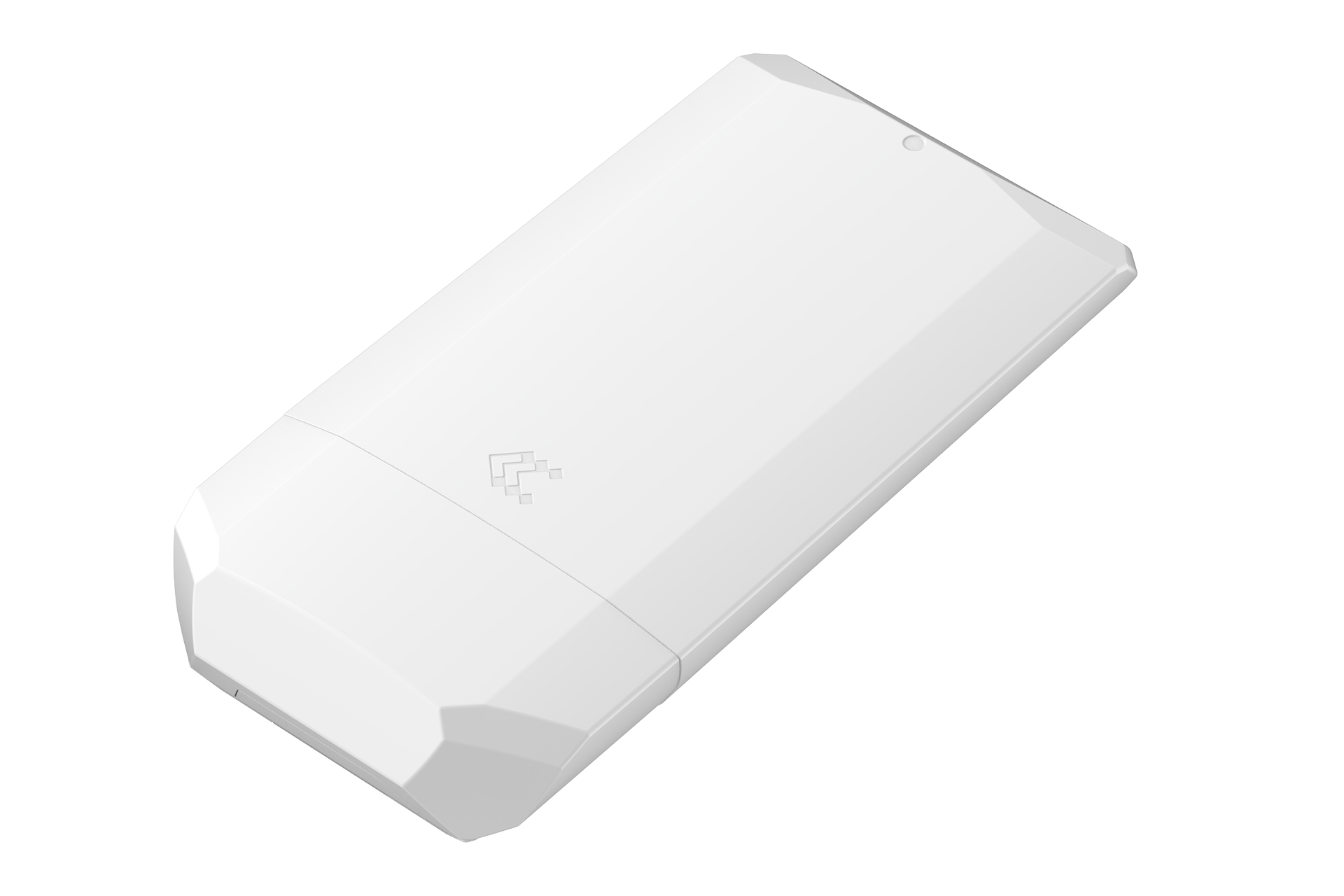

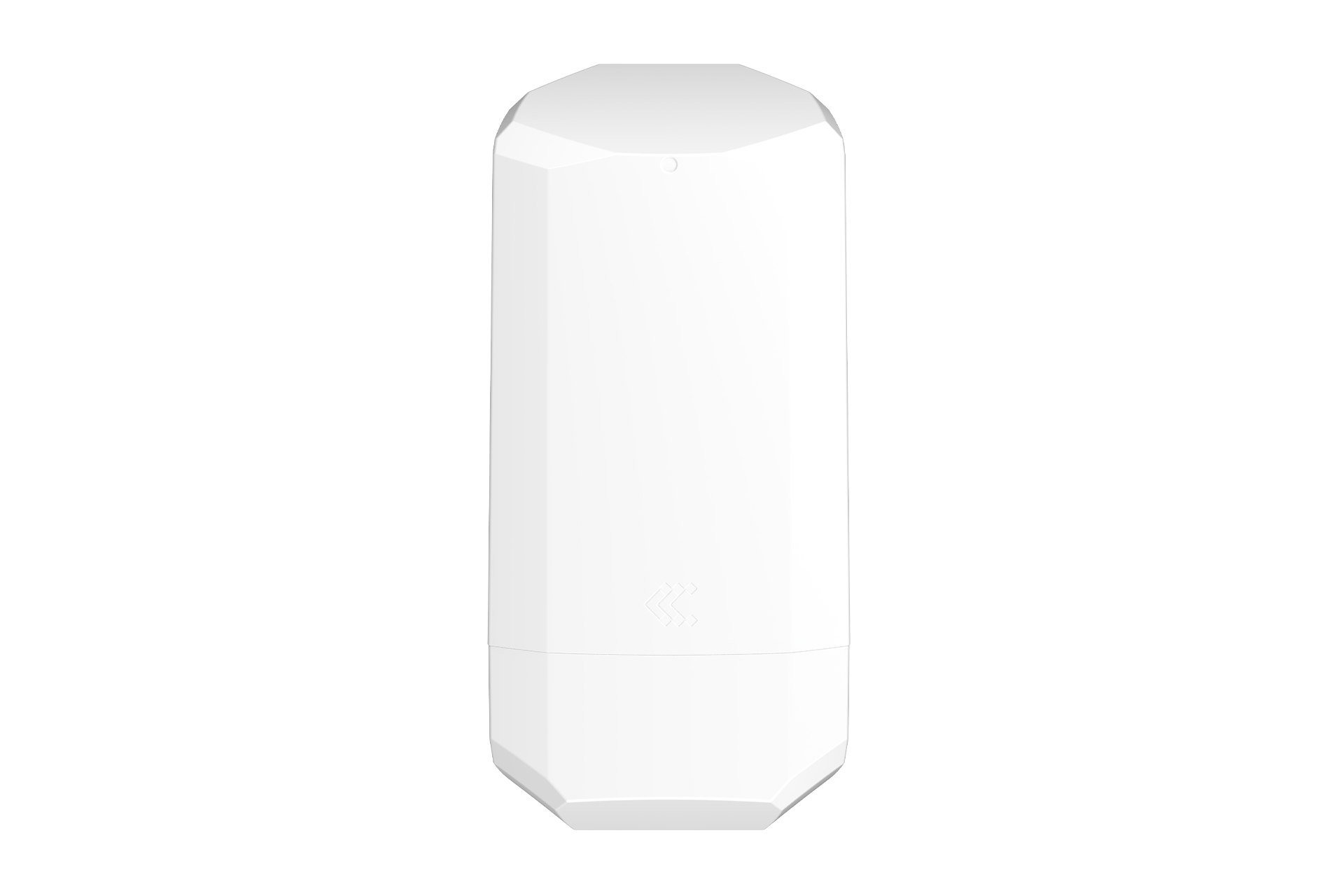

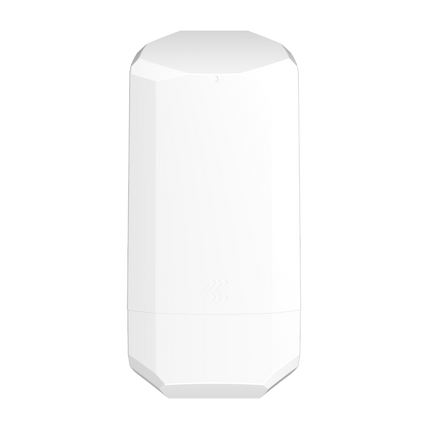

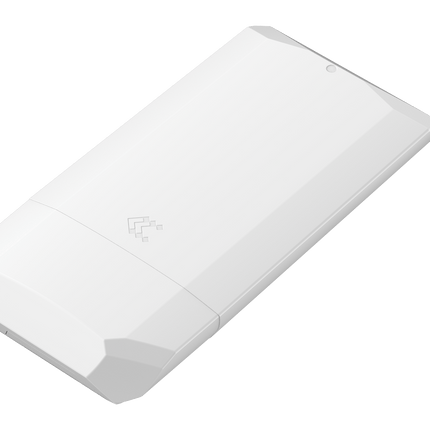

Teltonika OTD500 Industrial Rugged Outdoor 5G Router eSIM PoE IP55
Industrial Outdoor 5G Router with IP55 Protection, eSIM & PoE for Harsh Environments
The Teltonika OTD500 Outdoor 5G Router is a rugged, high-performance connectivity solution engineered for outdoor industrial IoT, smart city, surveillance, and remote networking applications. Featuring 5G Sub-6GHz connectivity, dual SIM + eSIM redundancy, integrated high-gain antennas, and IP55 weather-resistant housing, the OTD500 delivers ultra-fast and reliable connectivity in demanding environments.
According to the official datasheet and flyer, the OTD500 supports 5G speeds up to 3.4 Gbps download, dual Gigabit Ethernet ports with PoE-In and PoE-Out, and seamless remote management via Teltonika RMS
Key Features
-
Ultra-Fast 5G Connectivity
Supports 5G Sub-6GHz SA/NSA with speeds up to 3.4 Gbps download / 900 Mbps upload
-
Outdoor IP55 Rugged Design
Weather-resistant enclosure designed for outdoor deployments in harsh conditions
-
Dual SIM + eSIM Redundancy
Automatic SIM switching and support for up to 7 eSIM profiles
-
Integrated High-Gain Internal Antennas
Optimised outdoor signal performance with integrated omnidirectional antennas
-
PoE-In & PoE-Out Support
Simplified deployment using a single Ethernet cable for power and data
-
Dual Gigabit Ethernet Ports
2 × Gigabit RJ45 ports configurable as WAN/LAN
-
Advanced RutOS Platform
Supports MQTT, Modbus, OPC UA, VPNs, RMS, Azure IoT, AWS IoT, and advanced routing
Why Choose OTD500?
-
Designed for Outdoor Industrial Deployments
IP55 enclosure protects against dust and water ingress
-
Fast & Reliable 5G Connectivity
Perfect for bandwidth-intensive applications such as surveillance and edge networking
-
Simplified Installation
Integrated mounting bracket and PoE support reduce deployment complexity
-
Enterprise-Grade Networking & Security
Advanced VPNs, firewall, VLAN, TPM 2.0 security, and cloud integration
The OTD500 is ideal for deployments requiring rugged outdoor connectivity with enterprise-grade performance.
Typical Applications
- Outdoor CCTV & surveillance systems
- Smart city infrastructure
- Construction site connectivity
- Remote industrial monitoring
- Renewable energy & utility sites
- Temporary event and outdoor networking
- Remote IoT gateways and edge deployments
Technical Highlights
-
Cellular: 5G Sub-6GHz SA/NSA, LTE Cat 19 fallback
-
5G Speed: Up to 3.4 Gbps DL / 900 Mbps UL
-
SIM: Dual SIM + eSIM (up to 7 profiles)
-

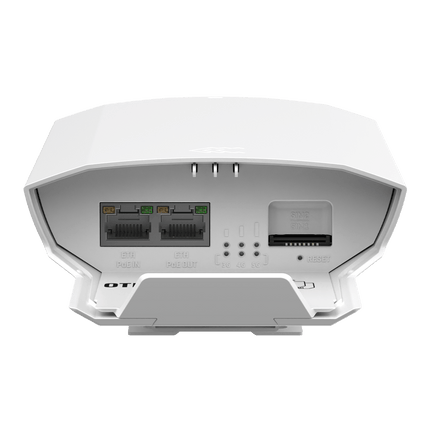

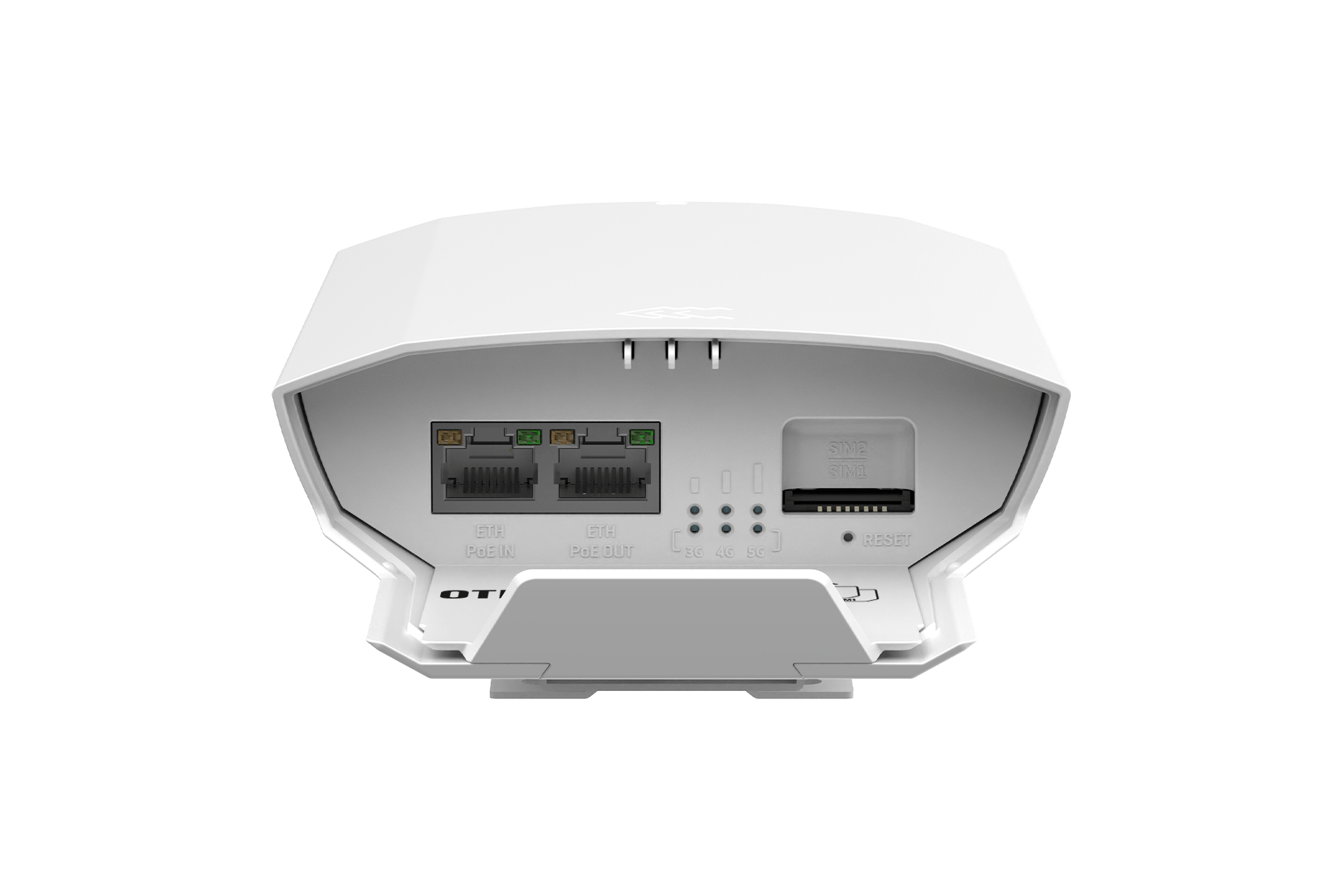

Ethernet: 2 × Gigabit RJ45 ports (configurable as WAN/LAN)
-
PoE:
- 1 × PoE-In (802.3af/at)
- 1 × PoE-Out (802.3af, max 15W)
-
CPU: MediaTek Dual-Core 880 MHz
-
Memory: 256 MB RAM, 256 MB NAND flash
-
Security: TPM 2.0, firewall, VLAN, VPN, SSL certificates
-
Operating Temp: -40°C to +55°C
-
Ingress Protection: IP55 outdoor-rated enclosure
-
Dimensions: 110 × 49.3 × 235 mm
-

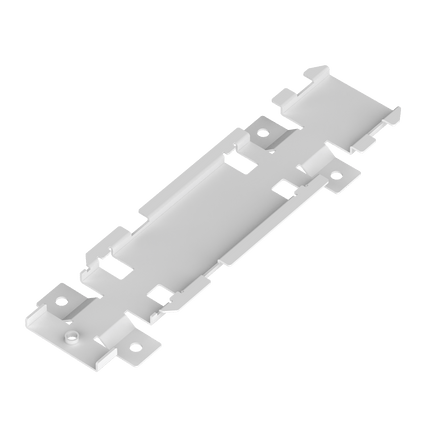

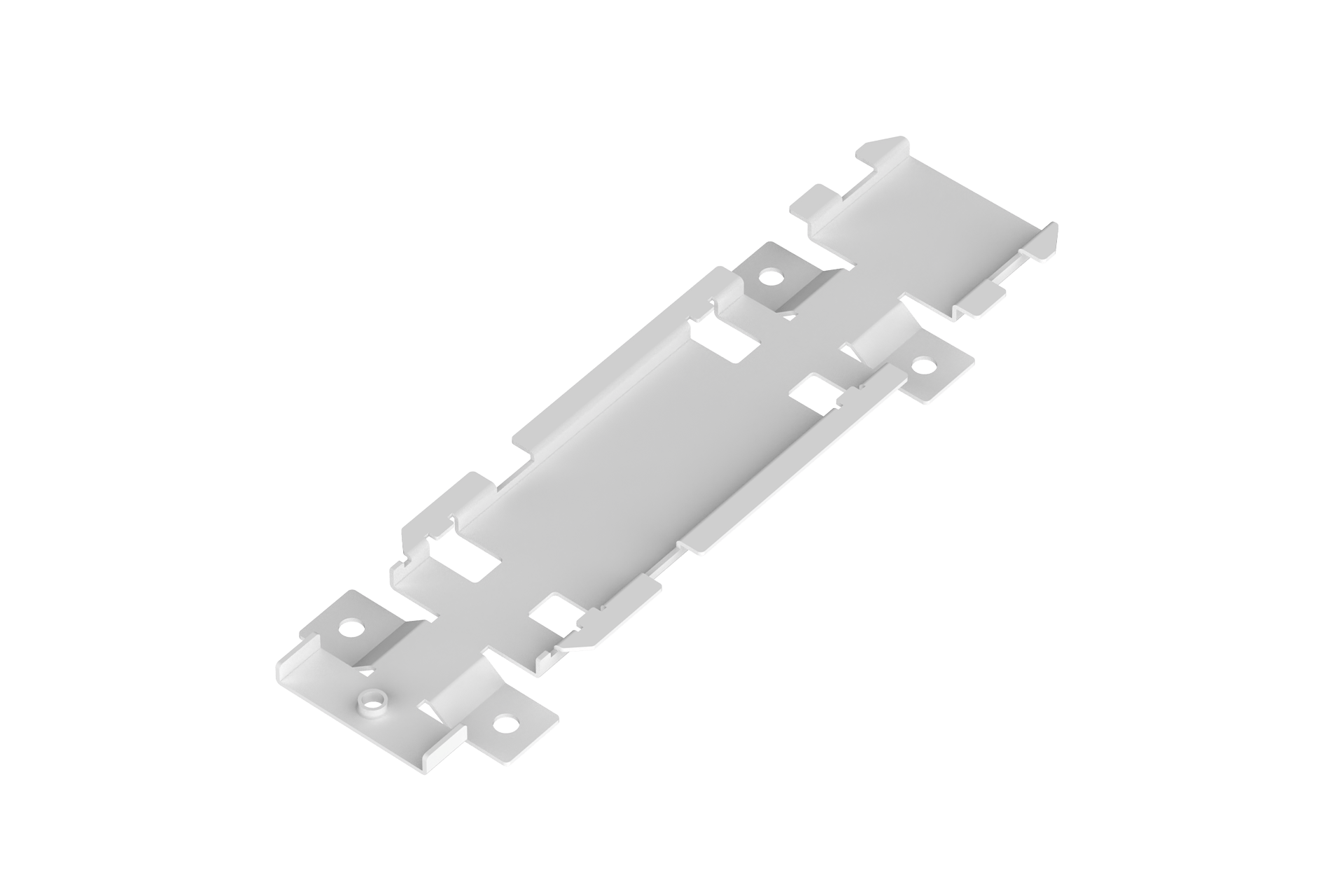

Mounting: Pole or flat surface mounting bracket included
-
OS: RutOS (OpenWrt-based Linux OS)
Resources:
Teltonika OTD500 Flyer
Teltonika OTD500 Datasheet
Teltonika OTD500 Quick User Guide
Teltonika OTD500 User Guide
Teltonika OTD500 3D Models
