Teltonika PR313AU3 AU Power Supply 130W 4-pin connector 50V 2.6A
Genuine Australian 130W High-Power Supply for Teltonika Industrial PoE Switches and Networking Equipment
The Teltonika PR313AU3 AU Power Supply 130W is an official Teltonika high-performance power adapter designed for industrial networking equipment requiring a 50V DC power input. Featuring an Australian Type I mains plug, 50V DC output, 2.6A current rating, and a 4-pin industrial connector, the PR313AU3 delivers reliable power for industrial PoE switches, routers, gateways, surveillance systems, and high-power networking applications.
Designed for continuous commercial and industrial operation, the PR313AU3 incorporates a universal AC input, DoE Level VI energy efficiency, integrated short-circuit protection, 4242V isolation, and an exceptional 50,000-hour MTBF, making it ideal for demanding industrial networking environments.
Key Features
Genuine Teltonika Power Supply
Designed specifically for compatible Teltonika networking products, including:
- Industrial PoE Ethernet Switches
- Industrial Routers
- Industrial Gateways
- High-Power Networking Equipment
- Industrial IoT Infrastructure
- Smart Building Systems
The high-output 50V DC supply is ideal for powering devices with greater power requirements, particularly PoE-enabled networking hardware.
Australian Type I Plug
The PR313AU3 includes:
- Australian Type I AC Plug
- Desktop Power Supply Design
- Suitable for Australian and New Zealand power outlets
Ready for immediate deployment without additional adapters.
Why Choose the PR313AU3?
The PR313AU3 is the ideal replacement or spare power supply for high-power Teltonika networking equipment.
Key advantages include:
- Genuine Teltonika Accessory
- Australian Type I Plug
- Regulated 50V DC Output
- 2.6A Output Current
- 130W Maximum Output
- Industrial 4-Pin Connector
- DoE Level VI Efficiency
- Built-in Status LED
- Short Circuit Protection
- 4242V Isolation Protection
- 50,000 Hour MTBF
Electrical Specifications
AC Input
| Specification |
Value |
| Input Voltage |
100–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
2.5 A |
| Input Connector |
Australian Type I Plug |
The universal AC input range enables deployment across a wide variety of industrial and commercial power systems.
DC Output
| Specification |
Value |
| Output Voltage |
50 VDC |
| Output Current |
2.6 A |
| Maximum Output Power |
130 W |
| Output Connector |
4-Pin Connector (3 mm Pitch) |
Provides stable regulated power for compatible Teltonika networking devices requiring higher power capacity.
Industrial 4-Pin Connector
The PR313AU3 uses Teltonika's standard industrial connector.
Connector Specifications
- 4-Pin Connector
- 3 mm Pin Pitch
- Connector Length: 27 mm
- Secure Pre-Moulded Design
Provides a reliable connection for compatible Teltonika equipment.
Protection Features
The PR313AU3 incorporates comprehensive electrical protection to maximise equipment safety.
Protection Functions
- Short Circuit Protection
- Stable Regulated Output
- High Voltage Isolation
HIPOT (Dielectric Withstand Test)
- Primary to Secondary Isolation: 4242 VDC
These protection mechanisms help safeguard connected equipment against electrical faults and power disturbances.
Input and Output Tolerances
Input Operating Range
| Specification |
Value |
| Input Voltage Range |
90–264 VAC |
| Frequency Range |
47–63 Hz |
| Maximum Inrush Current |
50 A |
Output Voltage Range
Ensures consistent operation even under fluctuating mains supply conditions.
Energy Efficiency
The PR313AU3 complies with:
Efficiency Standard
Benefits include:
- Lower Standby Power Consumption
- Improved Energy Efficiency
- Reduced Operating Costs
- Environmentally Friendly Performance
Suitable for continuous 24/7 industrial operation.
Reliability
MTBF
Designed for dependable long-term operation in demanding industrial and commercial environments.

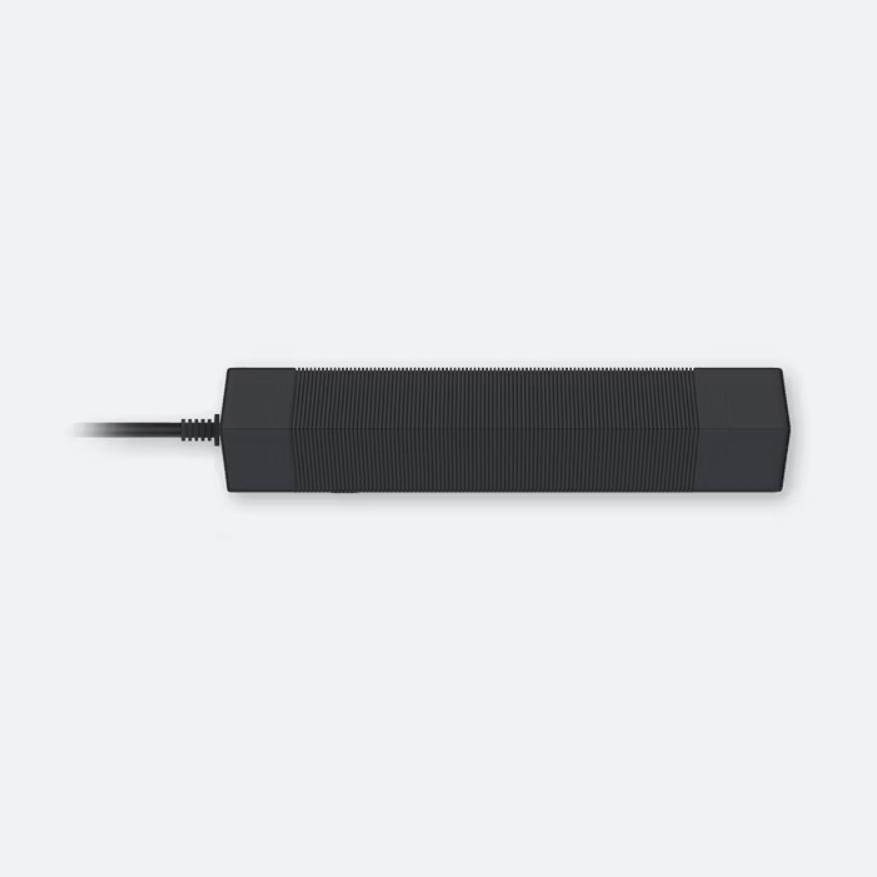

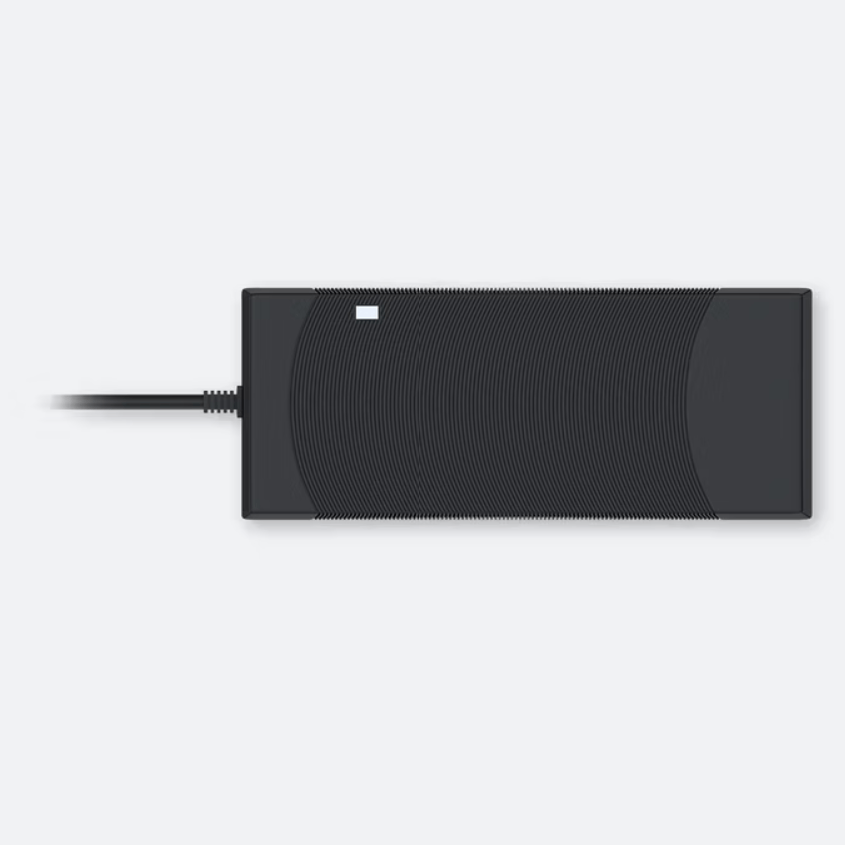

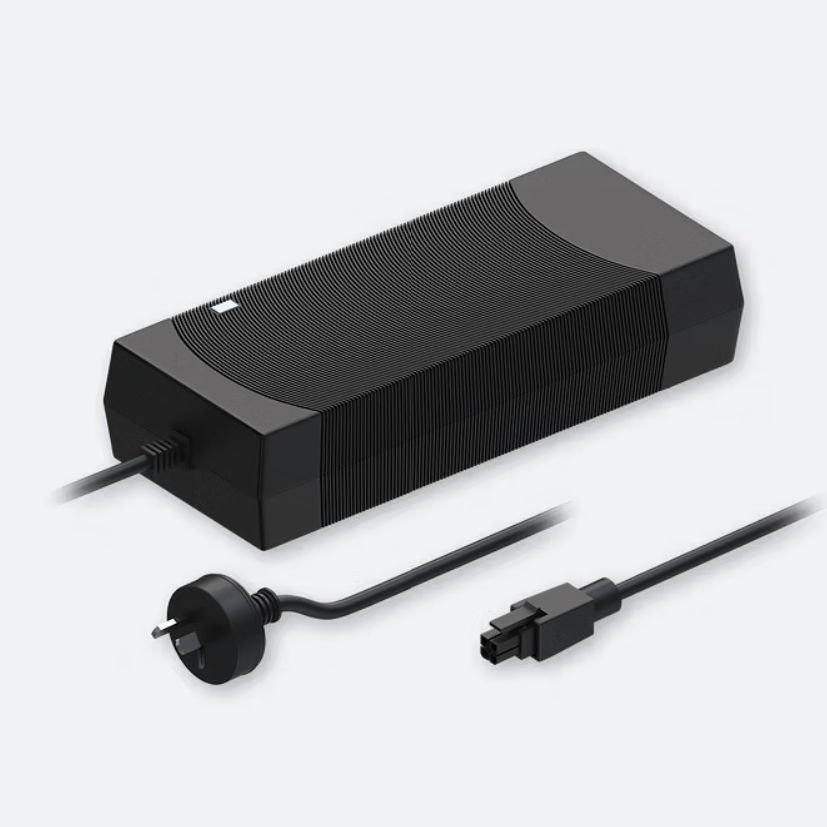

Desktop Power Supply Design
The PR313AU3 features a robust external desktop-style enclosure designed for high-power applications.
Design Features
- Integrated Status LED
- External Power Brick
- Separate Australian AC Power Lead
- 2 Metre DC Output Cable
The larger enclosure provides effective heat dissipation during continuous operation.
Physical Specifications
Power Supply Dimensions
| Dimension |
Size |
| Length |
170 mm |
| Width |
65 mm |
| Height |
42 mm |
Cable Lengths
- AC Input Cable: 1500 mm
- DC Output Cable: 2000 mm
Connector
- 4-Pin, 3 mm Pitch
- Connector Length: 27 mm
Weight
The generous cable lengths allow flexible installation within industrial control cabinets, racks, and equipment enclosures.
Compatible Applications
The PR313AU3 is suitable for powering compatible Teltonika devices requiring a 50V DC input and 4-pin power connector, including:
- Industrial PoE Ethernet Switches
- Industrial Routers
- Industrial Gateways
- High-Power Network Infrastructure
- Smart City Equipment
- Industrial Automation Systems
- CCTV and IP Surveillance Networks
- Industrial IoT Platforms
Always verify voltage and connector compatibility before installation.
Certifications and Compliance
Safety Standards
- AS/NZS 61558.1:2008 + A1:2009 + A2:2015
- AS/NZS 61558.2.16:2010
Energy Efficiency
Designed to meet Australian electrical safety and efficiency requirements.
