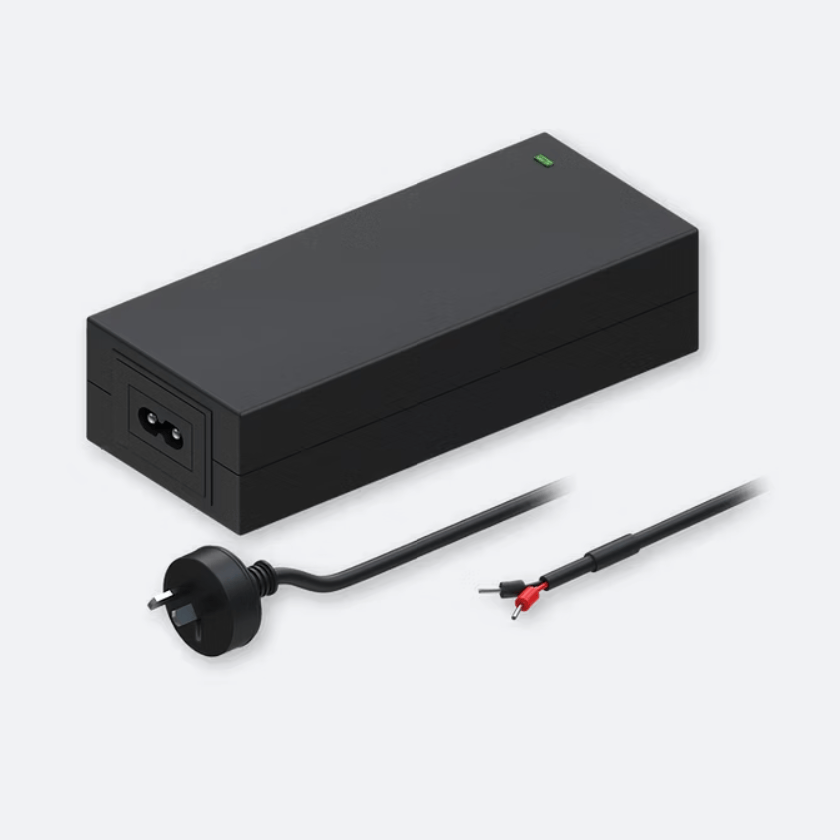

Teltonika PR317AUA AU Power Supply 62.4W 2-pin crimped wire 48V 1.3A
Genuine Australian 62W 48V Power Supply with 2-Pin Crimped Wire Output for Industrial Networking Equipment
The Teltonika PR317AUA AU 2-Pin Power Supply 62W is an official Teltonika power adapter designed for industrial networking devices that require a 48V DC power input via 2-pin terminal connections. Featuring an Australian Type I mains plug, 48V DC output, 1.3A current rating, and pre-crimped 2-pin wire terminals, the PR317AUA provides a reliable power solution for industrial Ethernet switches, routers, gateways, automation equipment, and PoE networking installations.
Designed for continuous industrial operation, the PR317AUA features a universal AC input, integrated status LED, short circuit protection, 4000V isolation, and an impressive 50,000-hour MTBF, making it ideal for demanding commercial and industrial environments.
Key Features
Genuine Teltonika Power Supply
Designed specifically for compatible Teltonika industrial networking equipment, including:
- Industrial Ethernet Switches
- Industrial Routers
- Industrial Gateways
- PoE Network Devices
- Industrial IoT Controllers
- Automation Equipment
The 48V output is ideal for networking hardware and devices requiring higher-voltage DC input.
Australian Type I Plug
The PR317AUA features:
- Australian Type I AC Plug
- Desktop Power Supply Design
- Suitable for Australian and New Zealand installations
No plug adapters are required for local deployments.
Why Choose the PR317AUA?
The PR317AUA is an ideal replacement or spare power supply for Teltonika devices with 2-pin DC terminal inputs.
Key advantages include:
- Genuine Teltonika Accessory
- Australian Type I Plug
- Regulated 48V DC Output
- 1.3A Output Current
- 62W Maximum Output
- 2-Pin Crimped Wire Terminals
- 2 Metre DC Output Cable
- Built-in Status LED
- Short Circuit Protection
- 4000V Isolation Protection
- 50,000 Hour MTBF
Electrical Specifications
AC Input
| Specification |
Value |
| Input Voltage |
100–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
1.5 A |
| Input Connector |
Australian Type I Plug |
The universal AC input allows deployment across a wide range of commercial and industrial power systems.
DC Output
| Specification |
Value |
| Output Voltage |
48 VDC |
| Output Current |
1.3 A |
| Maximum Output Power |
62 W |
| Output Connector |
2-Pin Wire with Cord-End Terminals |
The regulated 48V output is ideal for industrial networking devices requiring direct terminal wiring.
2-Pin Crimped Wire Output
Unlike models fitted with a moulded connector, the PR317AUA provides:
- Pre-Crimped 2-Pin Wire Output
- Red Positive (+) Wire
- Black Negative (–) Wire
- Cord-End Ferrules
- Ready for Screw-Terminal Installation
This design enables fast, secure installation into industrial devices with 2-pin terminal blocks.
Protection Features
The PR317AUA incorporates built-in protection to maximise safety and equipment reliability.
Protection Functions
- Short Circuit Protection
- Stable Regulated Output
- High Voltage Isolation
HIPOT (Dielectric Withstand Test)
- Primary to Secondary Isolation: 4000 VDC
These features help protect connected equipment from electrical faults and power disturbances.
Input and Output Tolerances
Input Operating Range
| Specification |
Value |
| Input Voltage Range |
90–264 VAC |
| Frequency Range |
47–63 Hz |
| Maximum Inrush Current |
50 A |
Output Voltage Range
Provides reliable and stable output even when the mains supply fluctuates.
Reliability
MTBF
Engineered for dependable long-term performance in industrial and commercial networking environments.
Desktop Power Supply Design
The PR317AUA features a desktop-style enclosure designed for higher-power applications.
Design Features
- External Power Supply Housing
- Integrated Power LED
- Separate AC Power Lead
- 2 Metre DC Output Cable
The larger enclosure improves thermal performance during continuous operation.
Physical Specifications
Power Supply Dimensions
| Dimension |
Size |
| Length |
111.0 mm |
| Width |
51.5 mm |
| Height |
33.5 mm |
Cable Lengths
- AC Input Cable: 1500 mm
- DC Output Cable: 2000 mm
Weight
The long cables provide flexible installation inside industrial cabinets and equipment racks.
Compatible Applications
The PR317AUA is suitable for powering compatible Teltonika equipment requiring a 48V DC input with 2-pin terminal connections, including:
- Industrial Ethernet Switches
- Industrial Routers
- Industrial Gateways
- PoE Networking Equipment
- Industrial IoT Controllers
- Remote Monitoring Systems
- SCADA Equipment
- Automation Control Panels
Always verify voltage and connector compatibility before installation.
Certifications and Compliance
Safety Standards
- AS/NZS 61558.1:2008 + A1:2009 + A2:2015
- AS/NZS 61558.2.16:2010 + A1:2010 + A2:2012 + A3:2014
EMC Compliance
Designed to comply with Australian electrical safety and EMC requirements.
