Teltonika PR3PRAU6 AU Power Supply 9W 2-pin
Genuine Australian 9W Power Supply with 2-Pin Terminal Output for Teltonika Industrial Devices

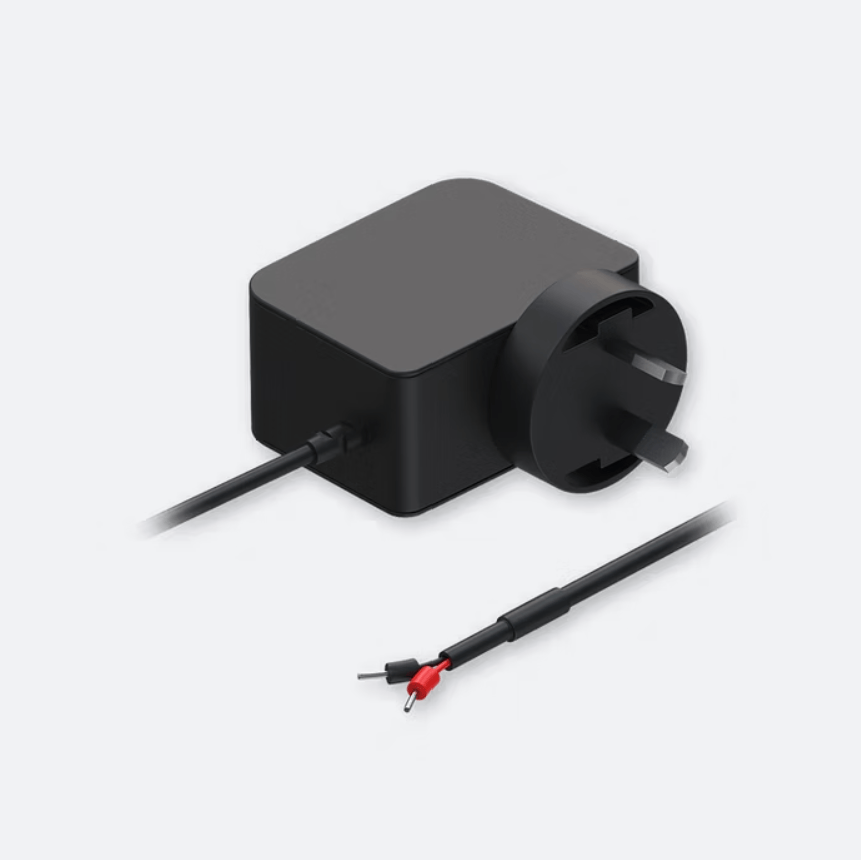

The Teltonika PR3PRAU6 AU 2-Pin Power Supply 9W is an official Teltonika power adapter designed for industrial routers, gateways, and networking devices that require a 2-pin DC power input. Featuring an Australian Type I mains plug, 9V DC output, 1A current rating, and a 2-metre cable with pre-stripped 2-pin wire terminals, the PR3PRAU6 provides a simple and reliable power solution for industrial and commercial networking installations.
Designed to meet Australian safety standards, the PR3PRAU6 incorporates high isolation protection, short circuit protection, and DoE Level VI energy efficiency, making it suitable for continuous operation in industrial IoT, automation, and telecommunications environments.
Key Features
Genuine Teltonika Power Supply
Purpose-built for compatible Teltonika networking equipment including:
- Industrial Routers
- Industrial Gateways
- Ethernet Switches
- Cellular Modems
- IoT Edge Devices
The pre-terminated 2-pin output simplifies installation into devices with screw-terminal power inputs.

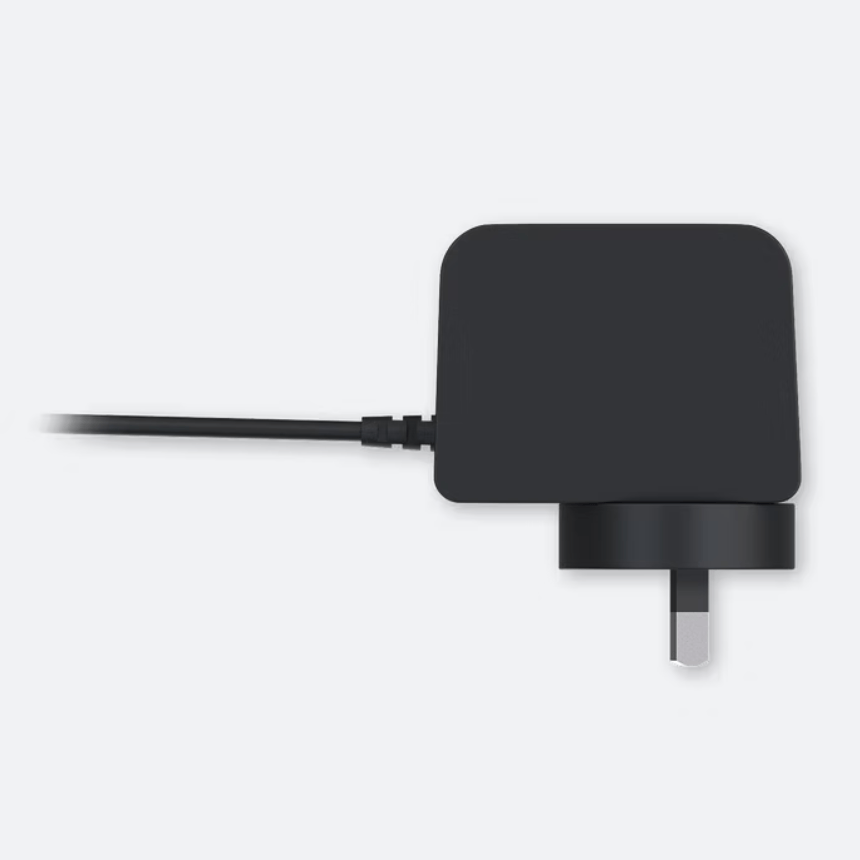

Australian Type I Plug
The PR3PRAU6 includes:
- Australian Type I AC Plug
- Direct Wall Plug Design
- Suitable for Australian and New Zealand power outlets
No travel adapter is required for local installations.
Why Choose the PR3PRAU6?
The PR3PRAU6 is an ideal replacement or spare power supply for Teltonika equipment using 2-pin DC terminals.
Key benefits include:
- Genuine Teltonika Accessory
- Australian Type I Plug
- 9V DC Regulated Output
- 1A Output Current
- 9W Maximum Output
- 2-Pin Wire Terminal Output
- 2 Metre Cable Length
- Short Circuit Protection
- 4000V Isolation Protection
- DoE Level VI Energy Efficiency
Electrical Specifications
AC Input
| Specification |
Value |
| Input Voltage |
100–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
0.45 A |
| Input Connector |
Australian Type I Plug |
The universal AC input range allows operation across a wide range of power systems while using the Australian plug standard.
DC Output
| Specification |
Value |
| Output Voltage |
9 VDC |
| Output Current |
1.0 A |
| Maximum Output Power |
9 W |
| Output Connector |
2-Pin Wire Terminals |
Provides stable regulated power suitable for compatible Teltonika industrial networking devices.

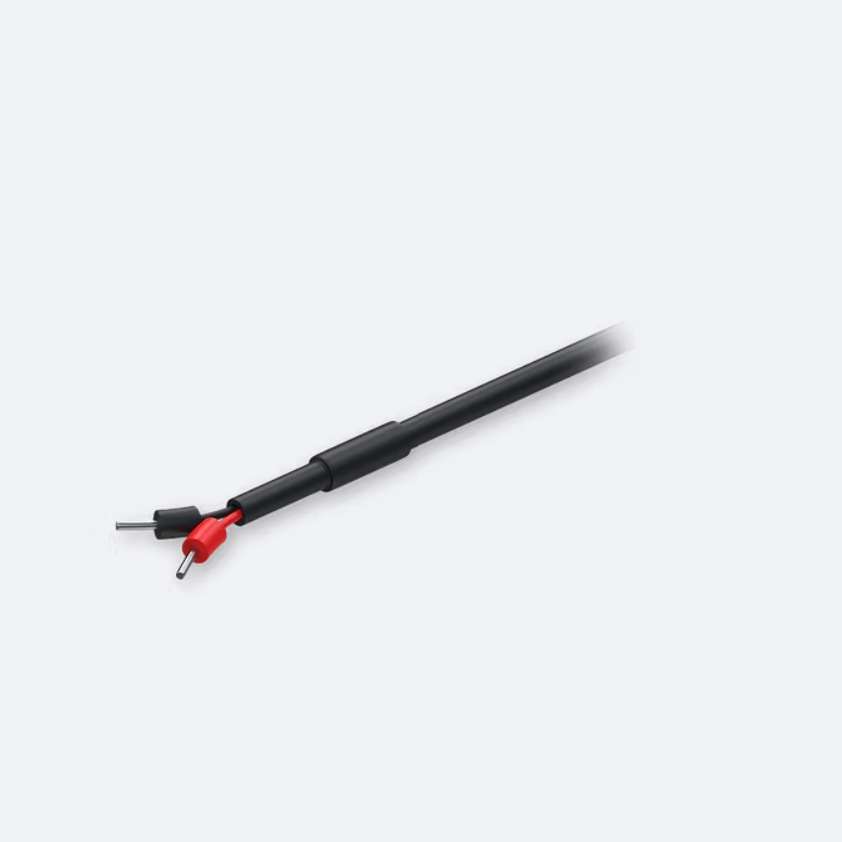

2-Pin Terminal Output
Unlike models with moulded connectors, the PR3PRAU6 features:
- 2-Pin Wire Output
- Pre-Stripped Cable Ends
- Red (+) Positive Wire
- Black (–) Negative Wire
- Approximately 35 mm exposed wire section
- Approximately 8 mm stripped conductor ends
This design allows direct connection to screw-terminal power inputs without requiring additional connectors.
Protection Features
The PR3PRAU6 incorporates built-in electrical protection to improve equipment safety and long-term reliability.
Protection Functions
- Short Circuit Protection
- High Voltage Isolation
- Stable Regulated Output
HIPOT (Dielectric Withstand Test)
- Primary to Secondary Isolation: 4000 VDC
These protections help safeguard connected equipment in industrial environments.
Input and Output Tolerances
Input Operating Range
| Specification |
Value |
| Absolute Input Voltage |
90–264 VAC |
| Frequency Range |
47–63 Hz |
| Inrush Current |
60 A |
Output Voltage Tolerance
Ensures reliable operation even under varying mains supply conditions.
Energy Efficiency
The PR3PRAU6 complies with:
Efficiency Standard
Benefits include:
- Lower Standby Power Consumption
- Improved Energy Efficiency
- Reduced Operating Costs
- Environmentally Friendly Performance
Suitable for continuous 24/7 operation.
Reliability
MTBF
Designed for long service life in commercial and industrial applications.
Physical Specifications
Dimensions
| Dimension |
Size |
| Length |
56.7 mm |
| Width |
28.0 mm |
| Height |
44.5 mm |
Cable Length
Weight
The long cable provides flexibility when powering devices inside equipment cabinets and network enclosures.
Compatible Applications
The PR3PRAU6 is suitable for powering compatible Teltonika devices featuring 2-pin DC terminal power inputs, including:
- Industrial Routers
- Cellular Gateways
- Ethernet Switches
- Industrial Modems
- Remote Monitoring Equipment
- SCADA Systems
- Industrial IoT Controllers
- Automation Equipment
Always verify the required voltage and connector type before installation.
Certifications and Compliance
Safety Standards
- AS/NZS 62368.1:2018
- AS/NZS 3112:2017
EMC Compliance
The PR3PRAU6 is designed to meet Australian electrical safety requirements for commercial and industrial use.
