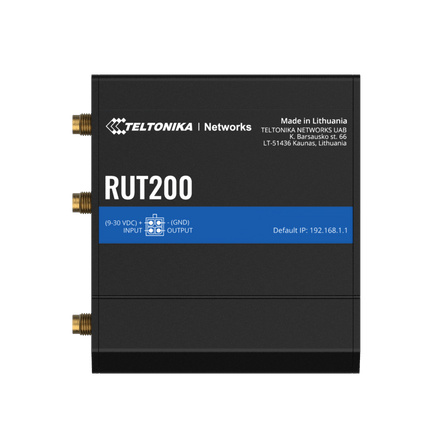

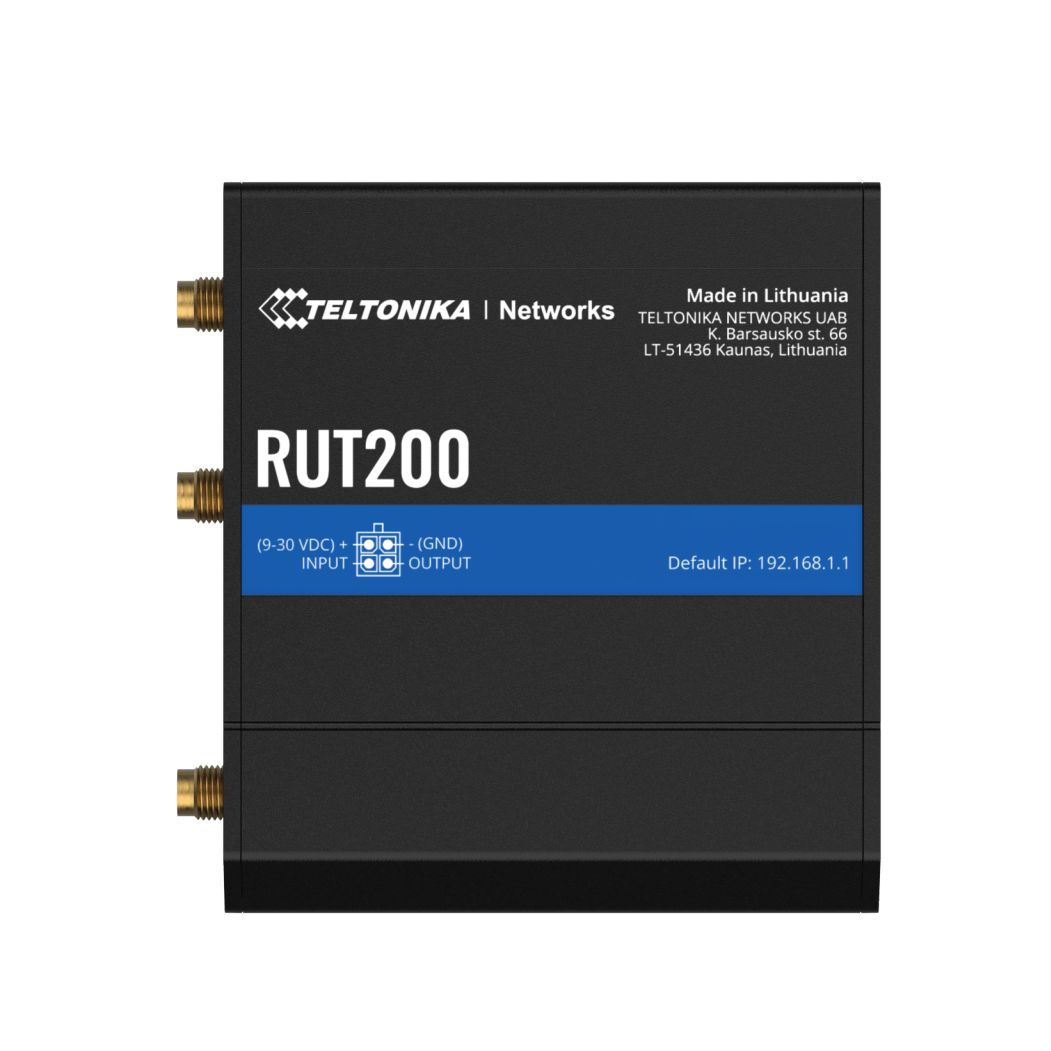

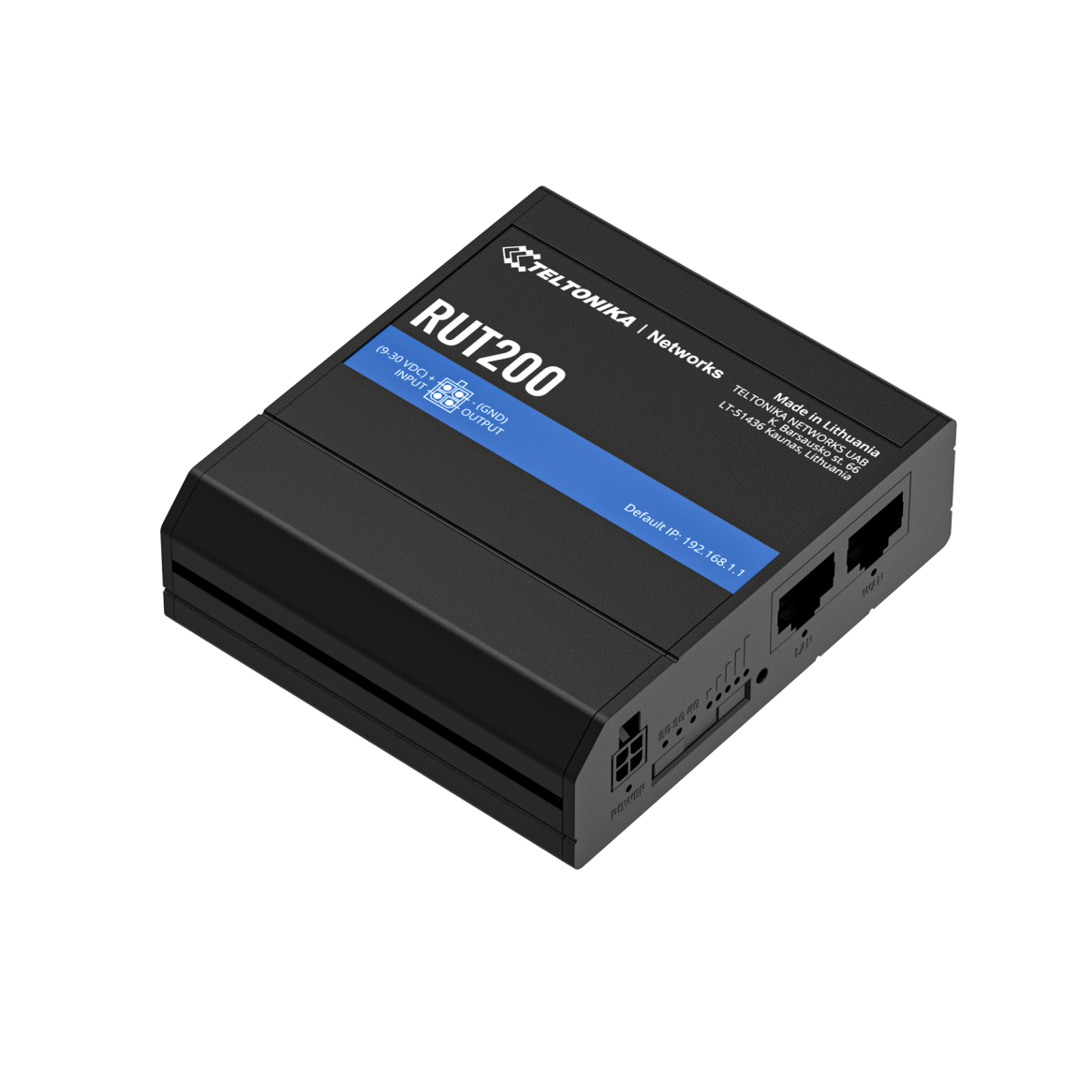

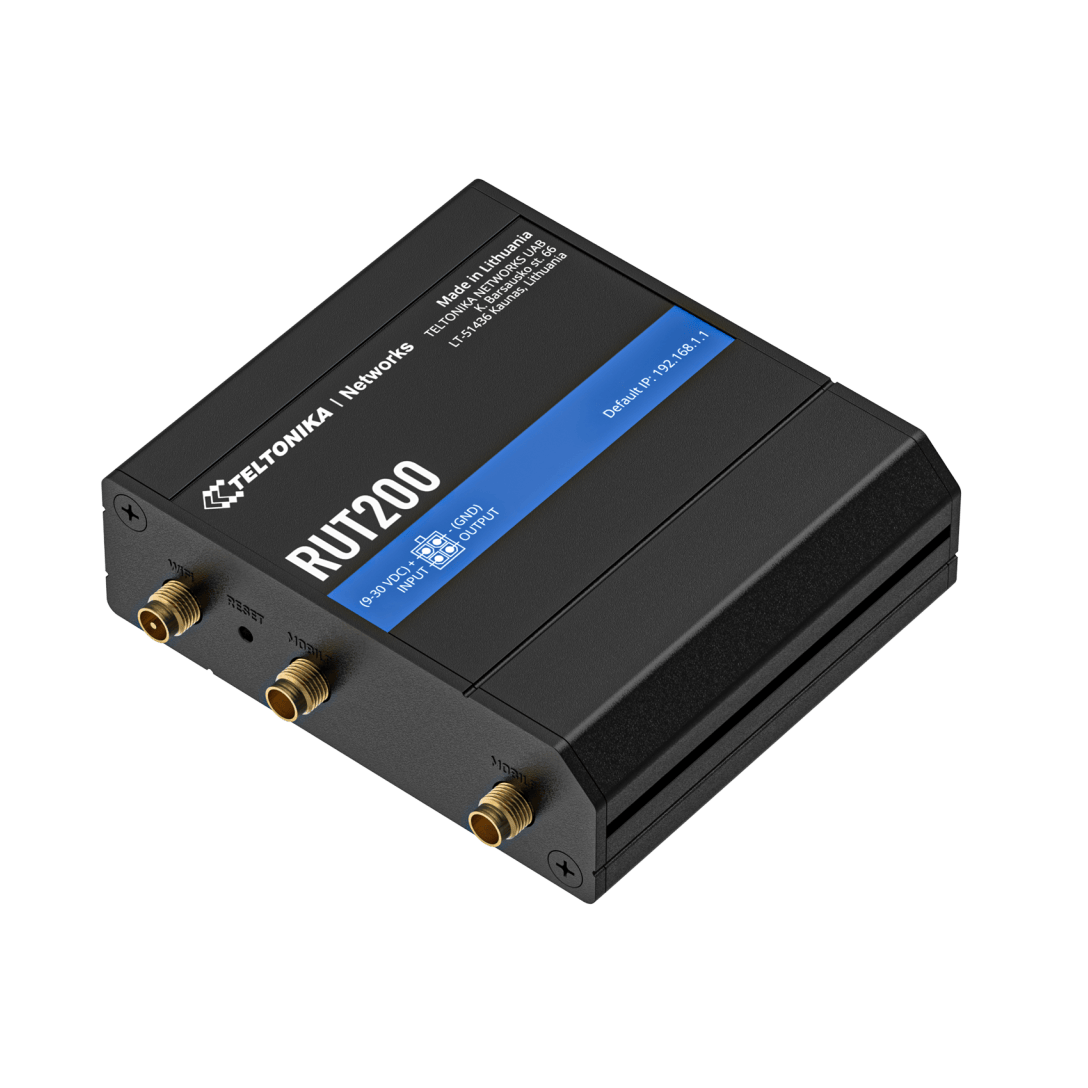

Teltonika RUT200 Industrial Rugged Cellular LTE 4G Router
Compact Industrial LTE Router with WiFi, WAN Failover & Remote Management
The Teltonika RUT200 is a compact and rugged industrial LTE router designed for industrial automation, remote monitoring, smart city, retail, and utility applications. Equipped with 4G LTE Cat 4 connectivity, WiFi 4, dual Ethernet ports, and advanced RutOS networking features, the RUT200 delivers reliable and secure connectivity for mission-critical IoT deployments.
According to the official Teltonika datasheet and flyer, the RUT200 supports automatic WAN failover, VPN services, hotspot functionality, remote management via RMS, and flexible industrial I/O interfaces in a durable industrial-grade enclosure.
Key Features
-
4G LTE Cat 4 Connectivity
High-speed cellular connectivity with download speeds up to 150 Mbps and fallback to 3G/2G networks.
-
WiFi Access Point & Hotspot
Integrated WiFi 4 supports Access Point and Station modes with hotspot functionality.
-
Automatic WAN Failover
Ensures uninterrupted connectivity by automatically switching to backup connections.
-
Remote Management via RMS
Supports Teltonika RMS for remote access, monitoring, VPN services, and firmware updates.
-
Industrial Digital I/O
Includes 1 × Digital Input and 1 × Digital Output for automation and monitoring applications.
-
Compact Industrial Design
Rugged aluminium housing with DIN rail mounting support and wide operating temperature range.
-
Advanced RutOS Networking
Supports VPNs, MQTT, Modbus, OPC UA, VLANs, load balancing, and cloud integrations.
Why Choose RUT200?
-
Reliable Industrial Connectivity
Designed for continuous operation in harsh industrial environments
-
Easy Deployment & Management
RMS enables scalable remote device management and monitoring
-
Compact Yet Powerful
Small footprint ideal for cabinets, kiosks, and edge installations
-
Flexible Networking Features
Enterprise-grade security, VPNs, failover, and hotspot capabilities
The RUT200 is ideal for deployments requiring secure industrial networking with reliable LTE connectivity.
Typical Applications
- Industrial automation & control
- Remote telemetry and monitoring
- Retail and kiosk connectivity
- Smart city infrastructure
- Energy & utility monitoring
- CCTV and remote surveillance
- Transportation and fleet communications
Technical Highlights
-
Cellular: LTE Cat 4 up to 150 Mbps DL / 50 Mbps UL
-
WiFi: WiFi 4 (802.11b/g/n), AP & Station modes
-

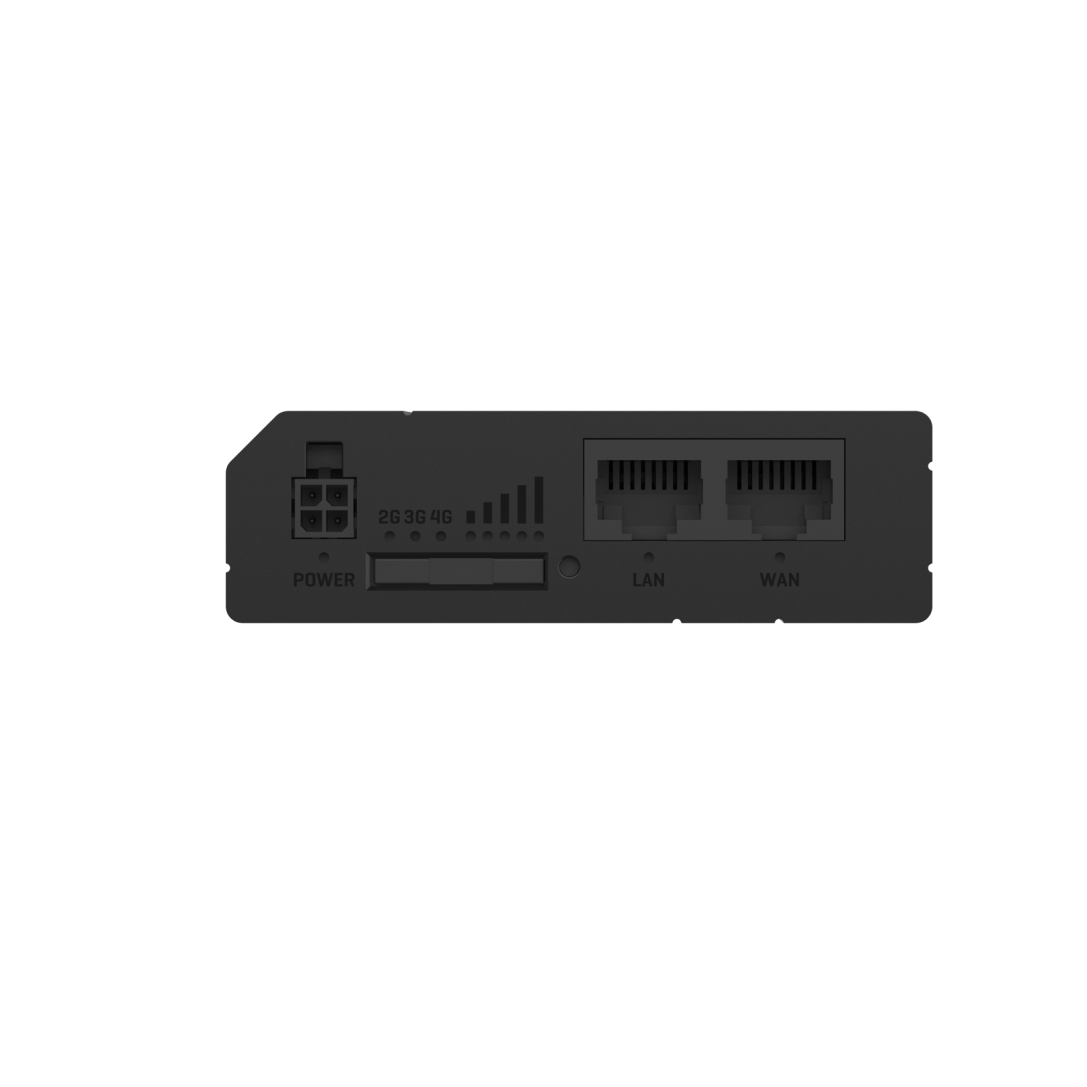

Ethernet: 2 × RJ45 ports (1 WAN + 1 LAN, 10/100 Mbps)
-
SIM: 1 × Mini SIM (2FF), selected models support eSIM
-
CPU: Mediatek 580 MHz, MIPS 24KEc
-
Memory: 128 MB RAM, 16 MB Flash
-
Digital I/O:
- 1 × Digital Input
- 1 × Digital Output
-
VPN Support: OpenVPN, IPsec, WireGuard, GRE, ZeroTier, PPTP, L2TP and more
-
Protocols: MQTT, Modbus TCP, OPC UA, DNP3, DLMS/COSEM
-
Power Input: 9–30 VDC with passive PoE support
-
Operating Temp: -40°C to +75°C
-
Ingress Protection: IP30
-
Dimensions: 83 × 25 × 74 mm
-
Weight: 125 g
-
Operating System: RutOS (OpenWrt-based Linux OS)
Resources:
Teltonika RUT200 Flyer
Teltonika RUT200 Datasheet
Teltonika RUT200 Quick User Guide
Teltonika RUT200 User Guide
Teltonika RUT200 3D Models
